Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Communication P-Door Motor	Connection status between power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU) / OK or STOP	OK: Normal communication STOP: Communication stopped	-

   OK

   On the Techstream screen, OK is displayed.

NG → See step   8

OK: Go to next step

1. Enter the following menus: Body Electrical / P-Door Motor / Data List.
2. Read the Data List according to the display on the Techstream.
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Up SW	Front passenger door power window manual up switch signal / ON or OFF	ON: Front passenger door power window manual up switch being operated OFF: Front passenger door power window manual up switch not being operated	-
   P Door P/W Down SW	Front passenger door power window manual down switch signal / ON or OFF	ON: Front passenger door power window manual down switch being operated OFF: Front passenger door power window manual down switch not being operated	-

   OK

   On the Techstream screen, ON or OFF is displayed accordingly.

NG → See step   4

OK: Go to next step

1. Enter the following menus: Body Electrical / P-Door Motor / Active Test.
2. Perform the Active Test according to the display on the Techstream.
   WARNING:

   Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.

   P-DOOR MOTOR



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	OFF / UP / DOWN	-

   OK

   Front passenger door power window operates normally.

NG → See step   7

OK → See step   9

1. Remove the power window regulator switch assembly. Refer to REMOVAL [06/2012 - ] .

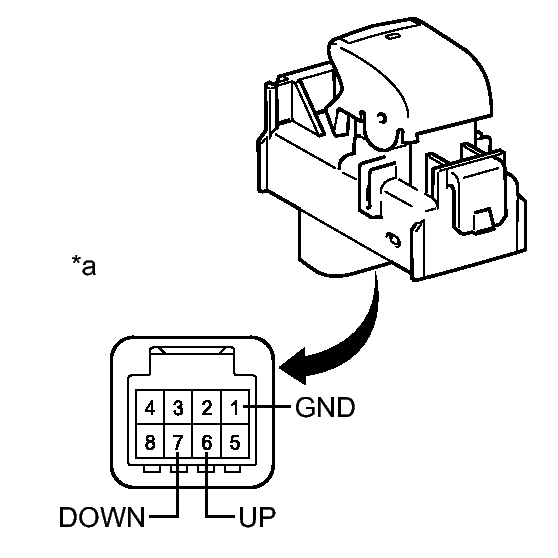

   Fig 1: Identifying Rear Power Window Regulator Switch Assy & Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   6 (UP) - 1 (GND)	Auto up or up position	Below 1 Ω
   7 (DOWN) - 1 (GND)	Auto down or down position	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Power Window Regulator Switch Assembly)

NG → See step   6

OK: Go to next step

1. Disconnect the L9 power window regulator motor assembly (for front passenger door) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L4-6 (UP) - L9-10 (UP)	Always	Below 1 Ω
   L4-7 (DOWN) - L9-7 (DOWN)	Always	Below 1 Ω
   L4-1 (GND) - Body ground	Always	Below 1 Ω
   L4-6 (UP) - Body ground	Always	10 kΩ or higher
   L4-7 (DOWN) - Body ground	Always	10 kΩ or higher
   L9-10 (UP) - Body ground	Always	10 kΩ or higher
   L9-7 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
