Remote Up / Down Function does not Operate: Wiring Diagram

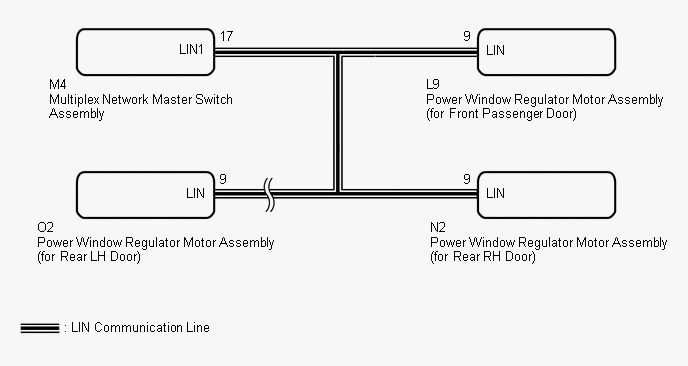

Fig 1: Identifying Power Window Control System Diagram
GTY395475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
