Ground Point: Notes

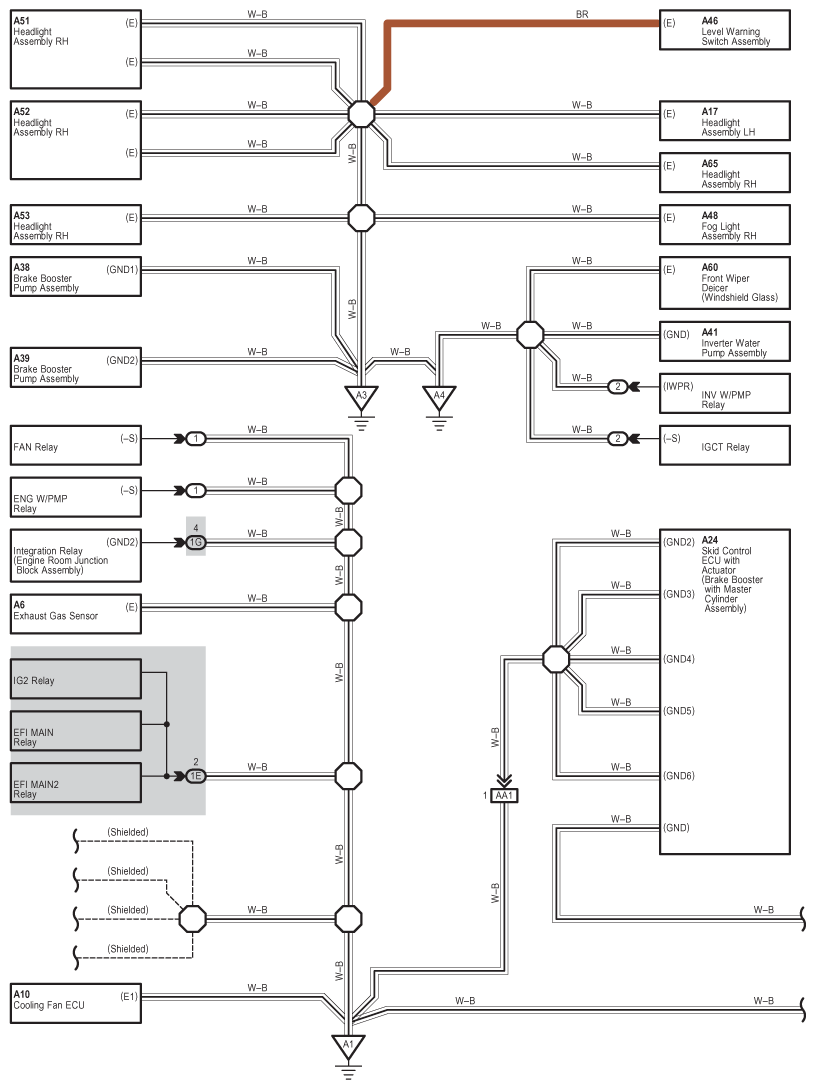

Fig 1: Ground Point Wiring Diagram (1 Of 10)

G08953909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

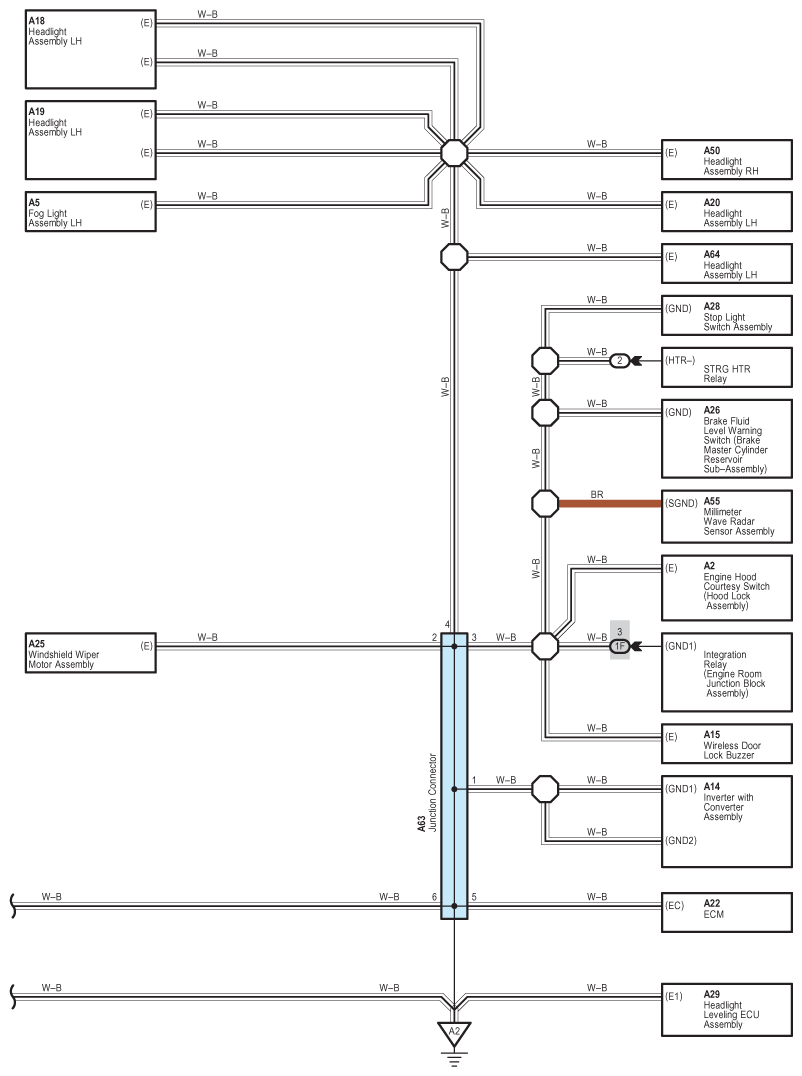

Fig 2: Ground Point Wiring Diagram (2 Of 10)

G08953910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

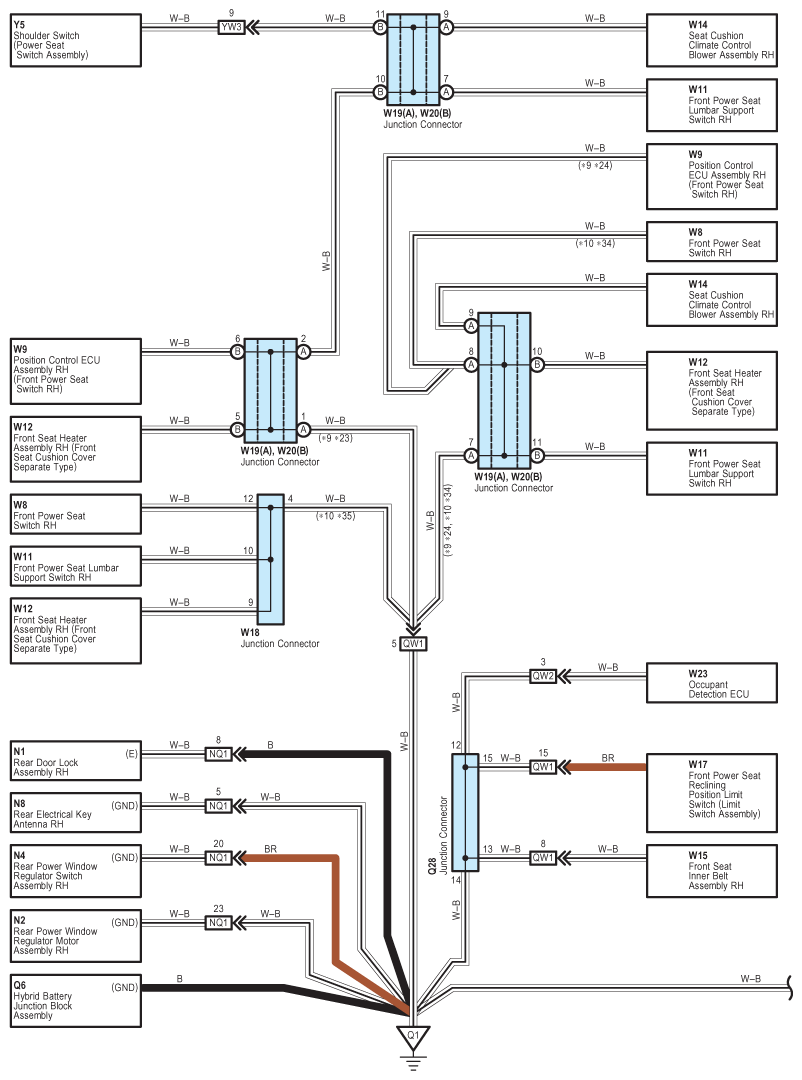

Fig 3: Ground Point Wiring Diagram (3 Of 10)

G08953911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

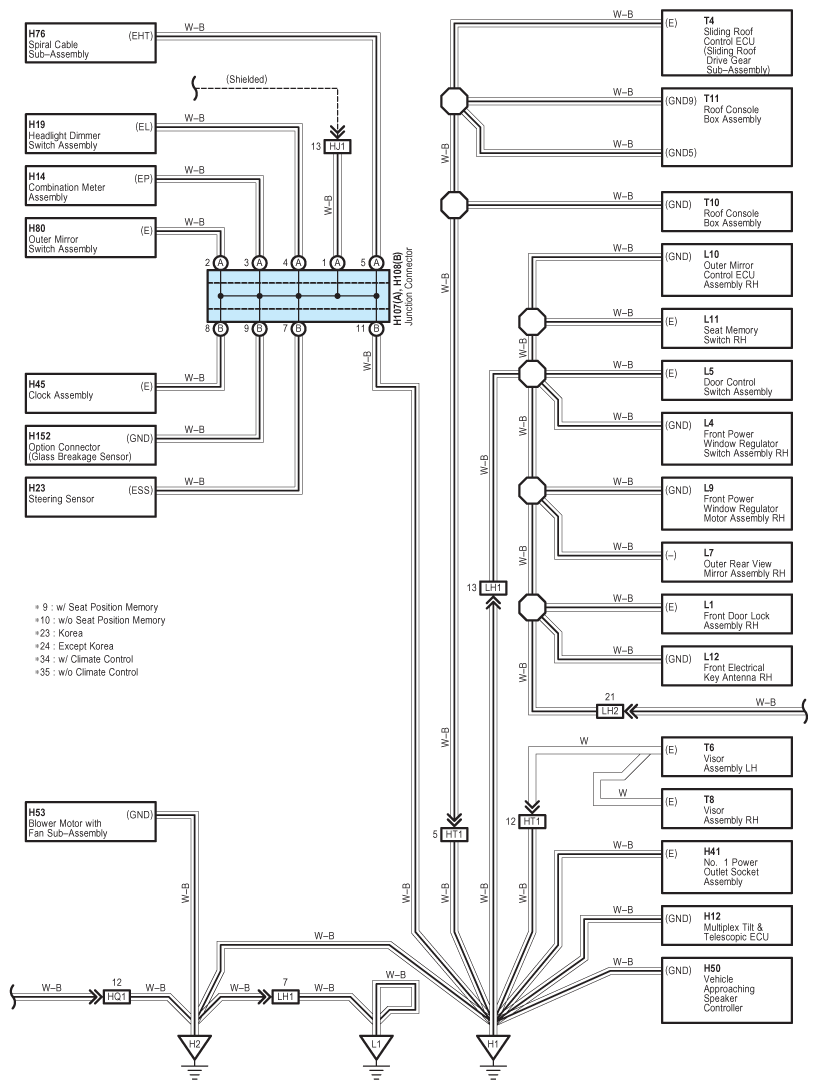

Fig 4: Ground Point Wiring Diagram (4 Of 10)

G08953912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

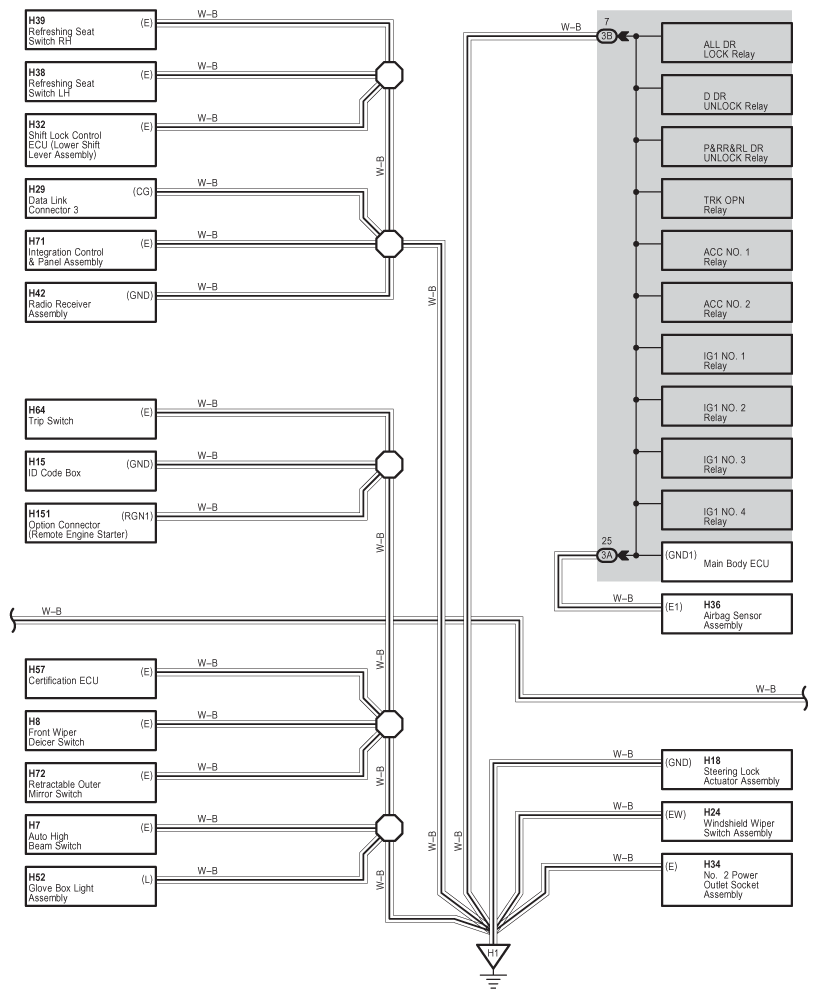

Fig 5: Ground Point Wiring Diagram (5 Of 10)

G08953913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

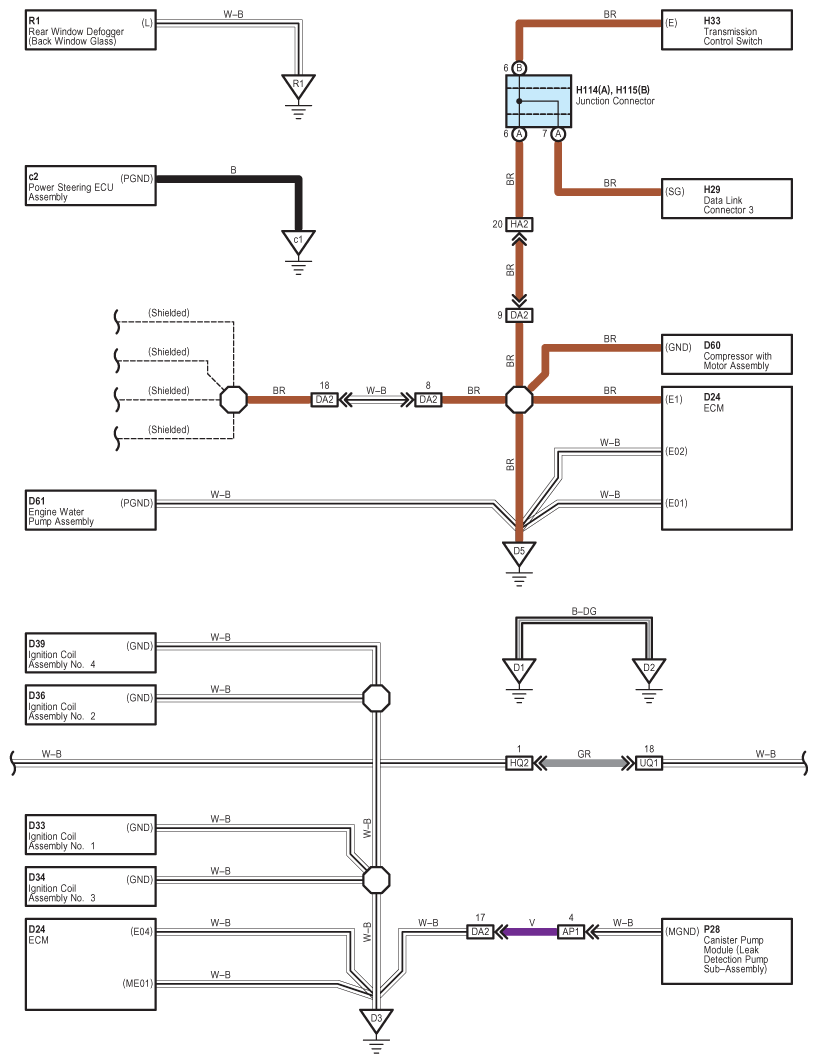

Fig 6: Ground Point Wiring Diagram (6 Of 10)

G08953914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

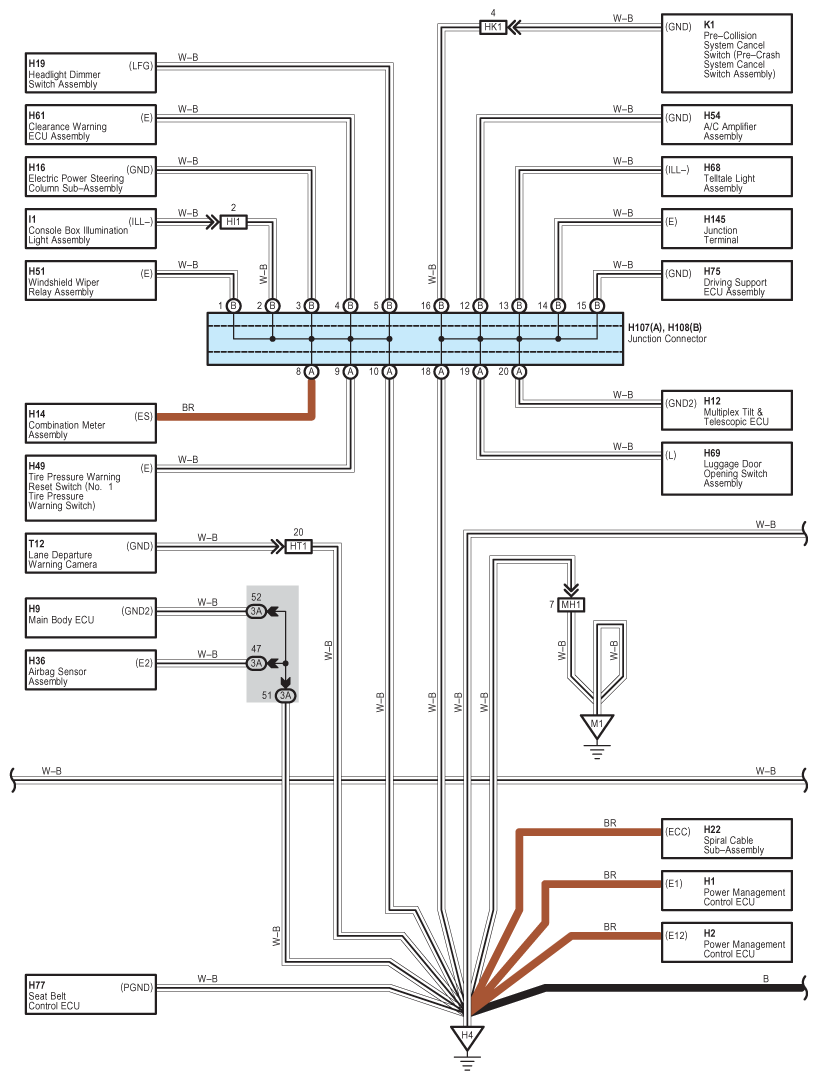

Fig 7: Ground Point Wiring Diagram (7 Of 10)

G08953915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

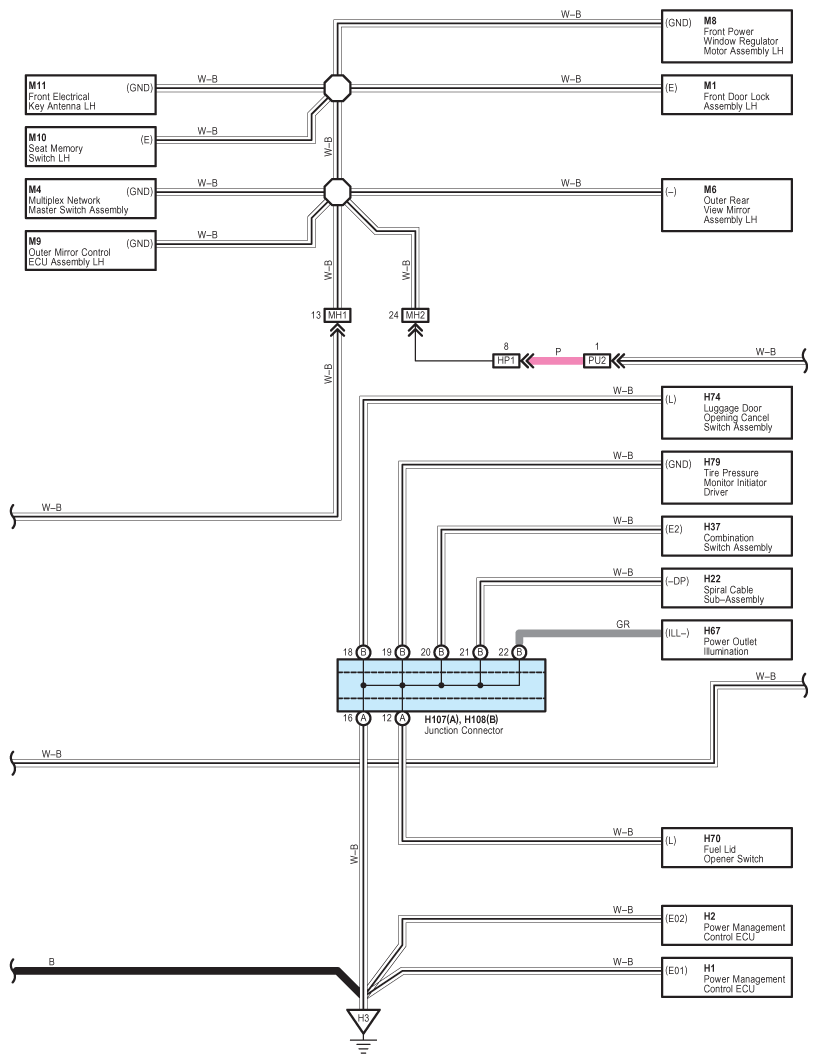

Fig 8: Ground Point Wiring Diagram (8 Of 10)

G08953916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

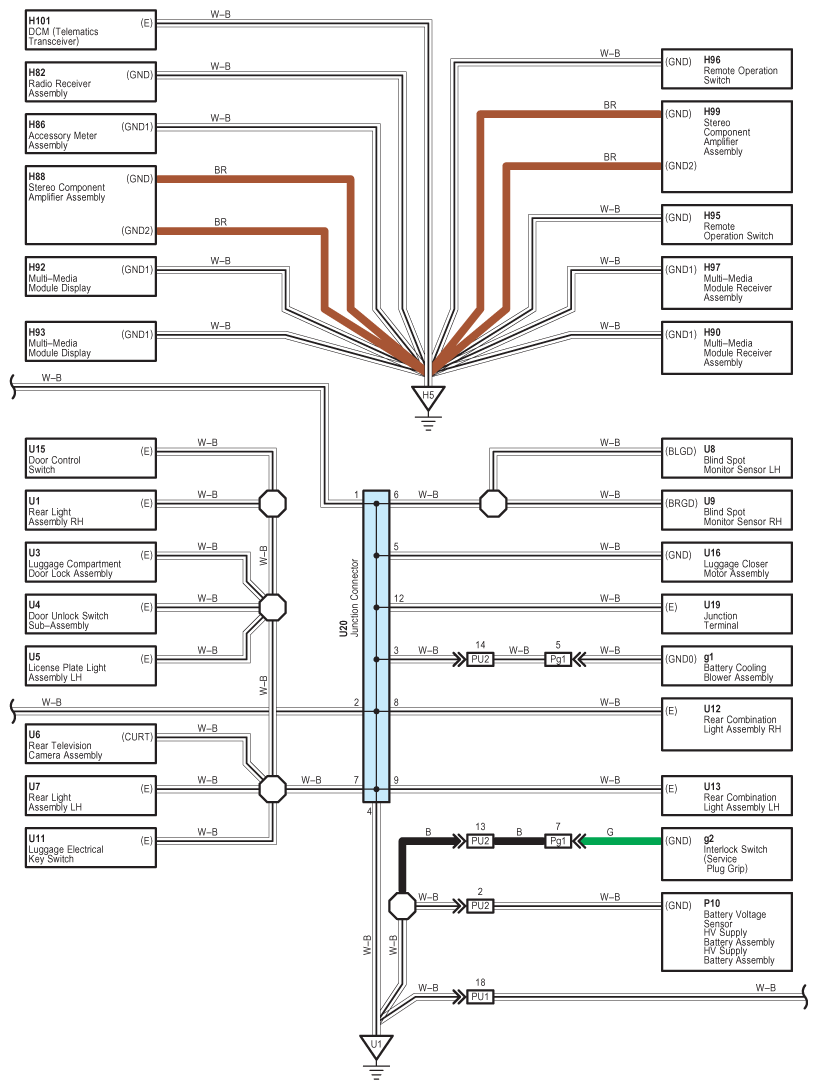

Fig 9: Ground Point Wiring Diagram (9 Of 10)

G08953917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Ground Point Wiring Diagram (10 Of 10)

G08953918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
