Power Seat (Front Passenger's Seat w/Seat Position Memory): Notes

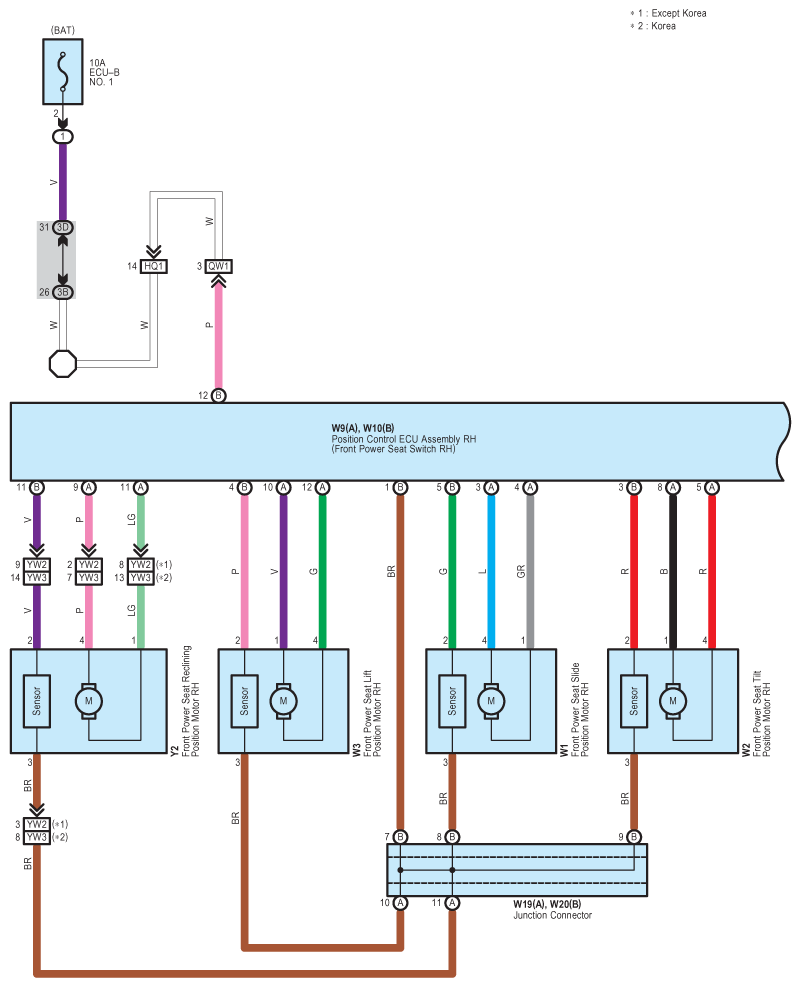

Fig 1: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (1 Of 7)
G08953796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

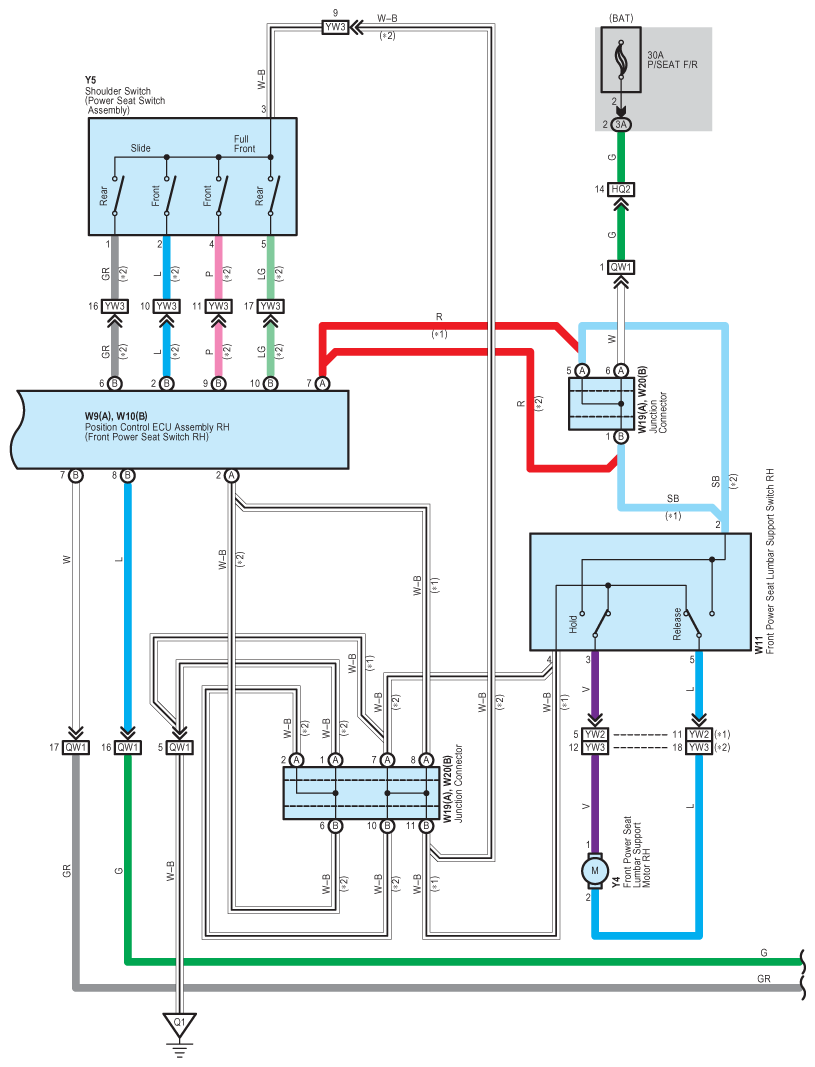

Fig 2: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (2 Of 7)
G08953797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

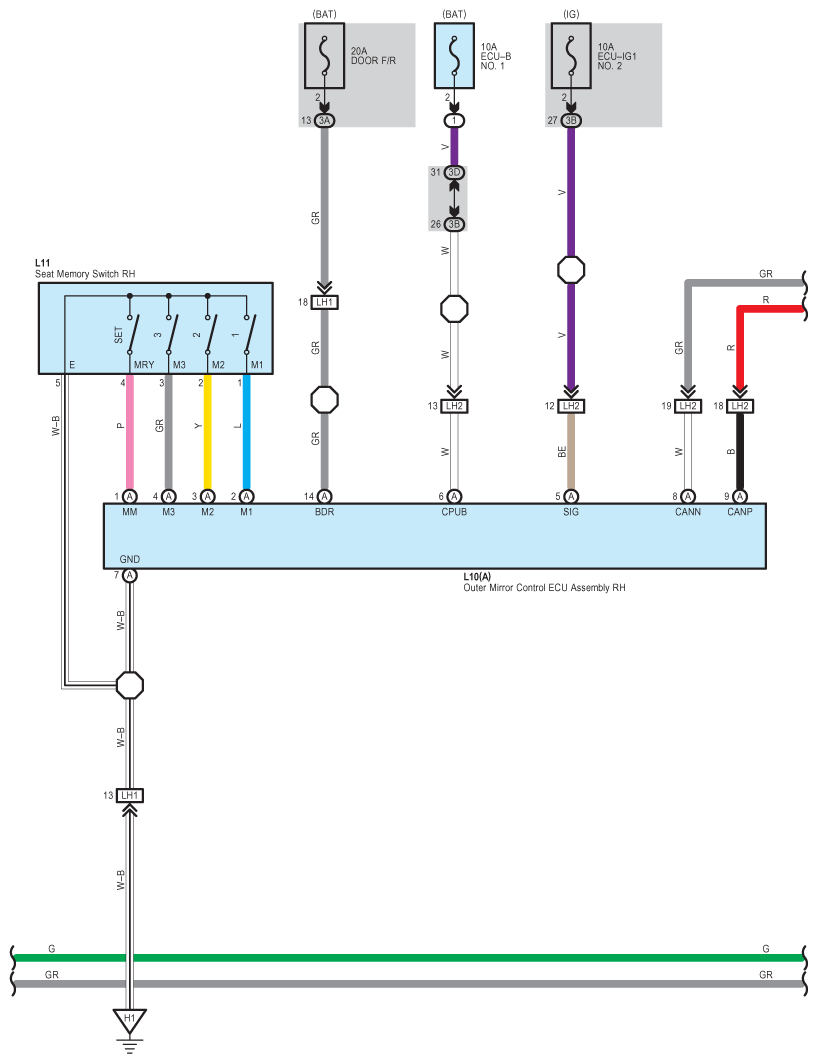

Fig 3: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (3 Of 7)
G08953798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

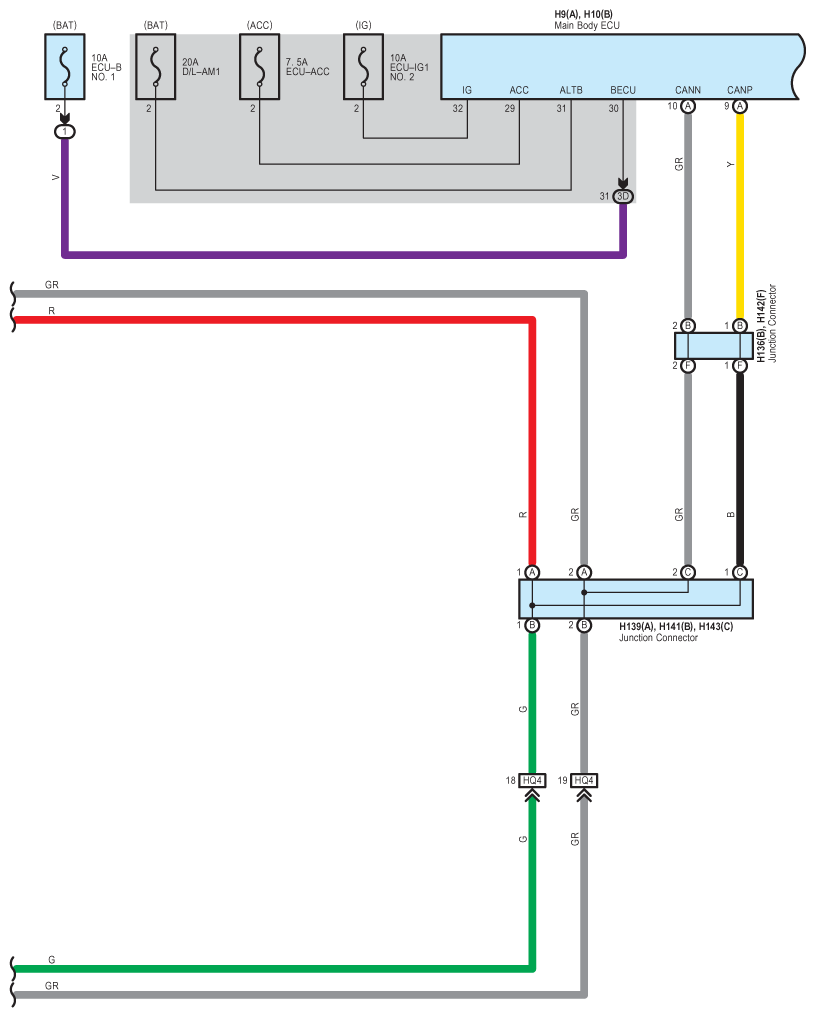

Fig 4: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (4 Of 7)
G08953799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

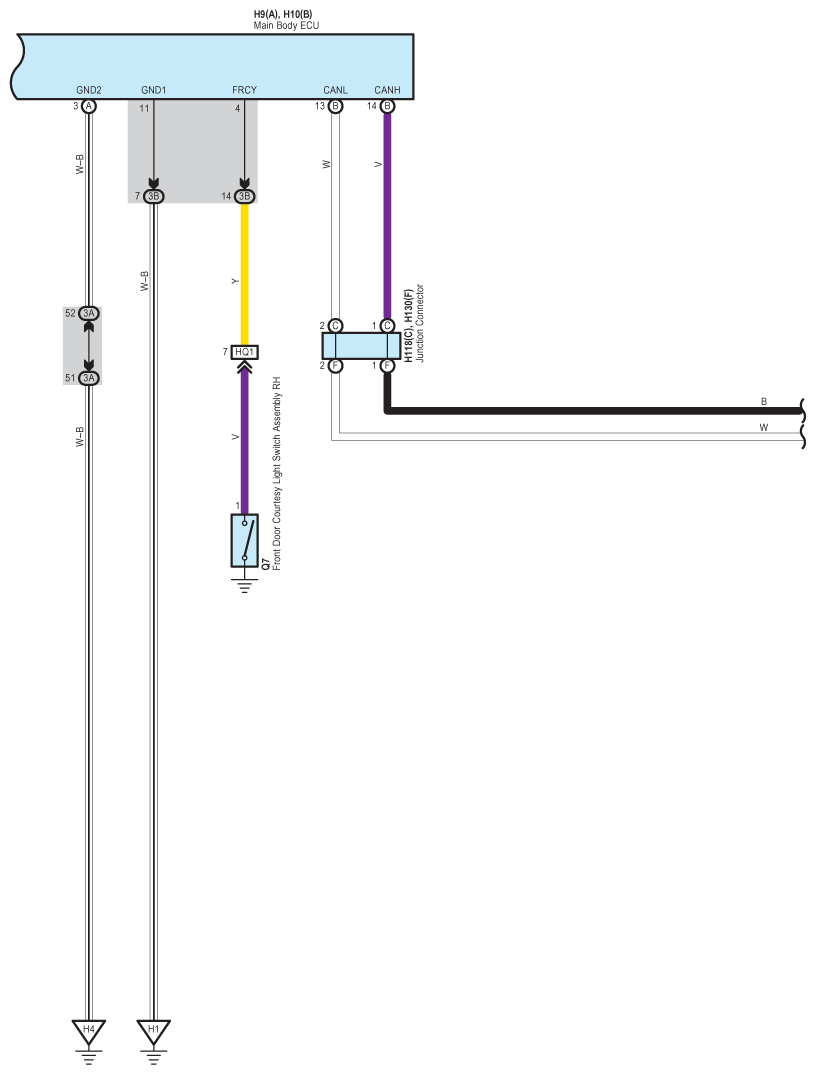

Fig 5: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (5 Of 7)
G08953800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

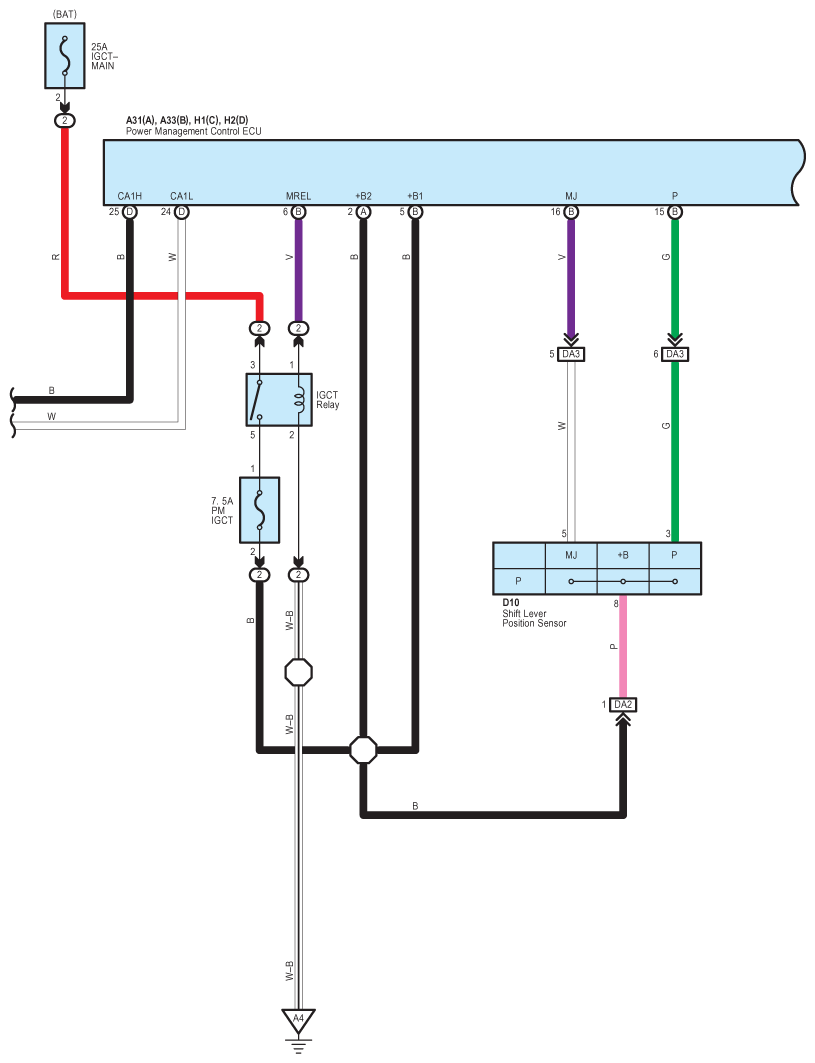

Fig 6: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (6 Of 7)
G08953801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

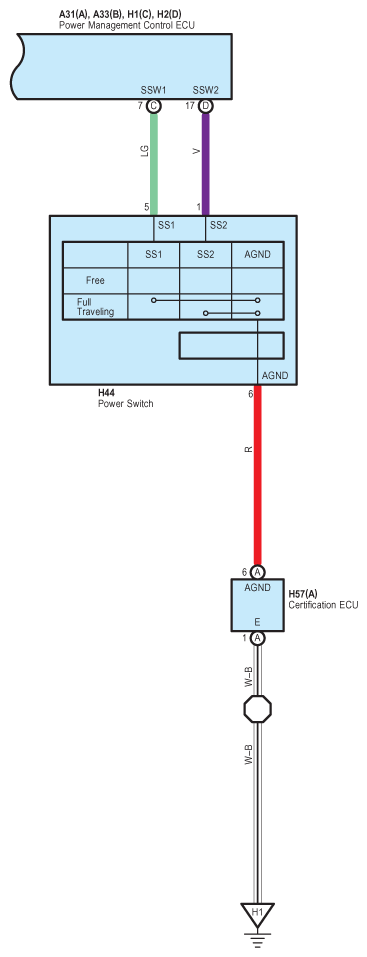

Fig 7: Power Seat (Front Passenger's Seat W/ Seat Position Memory) - Circuit Diagram (7 Of 7)
G08953802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
