LEXUS ENFORM or Safety Connect: Notes

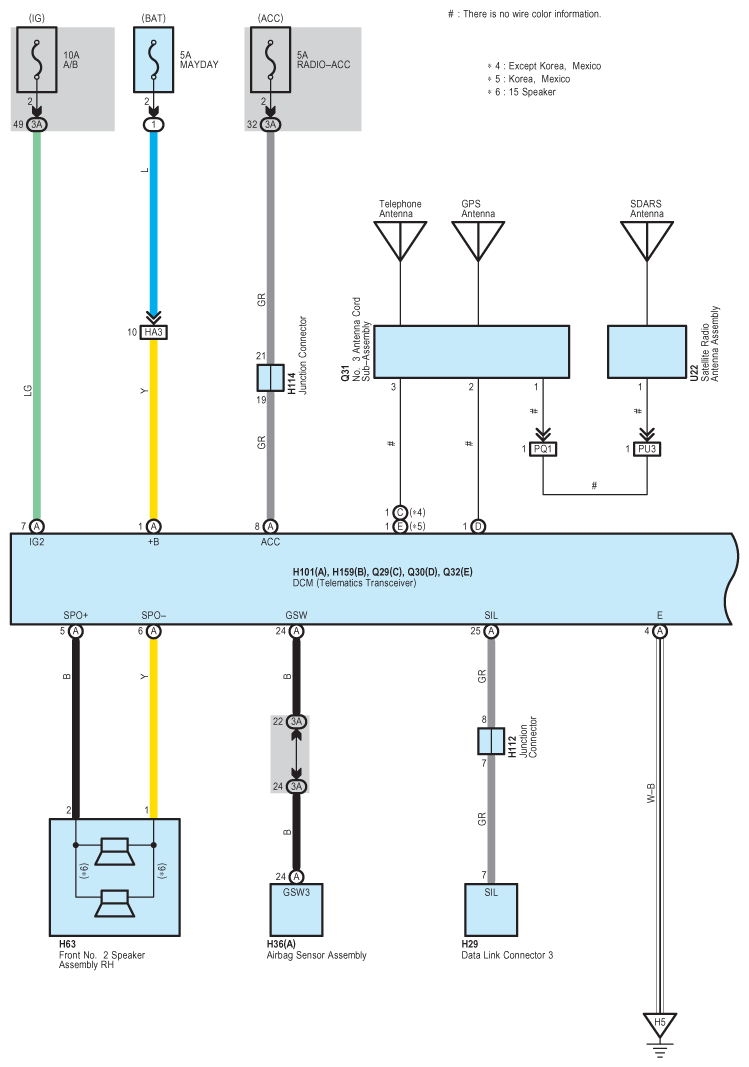

Fig 1: Lexus Enform Or Safety Connect - Circuit Diagram (1 Of 5)
G08948350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

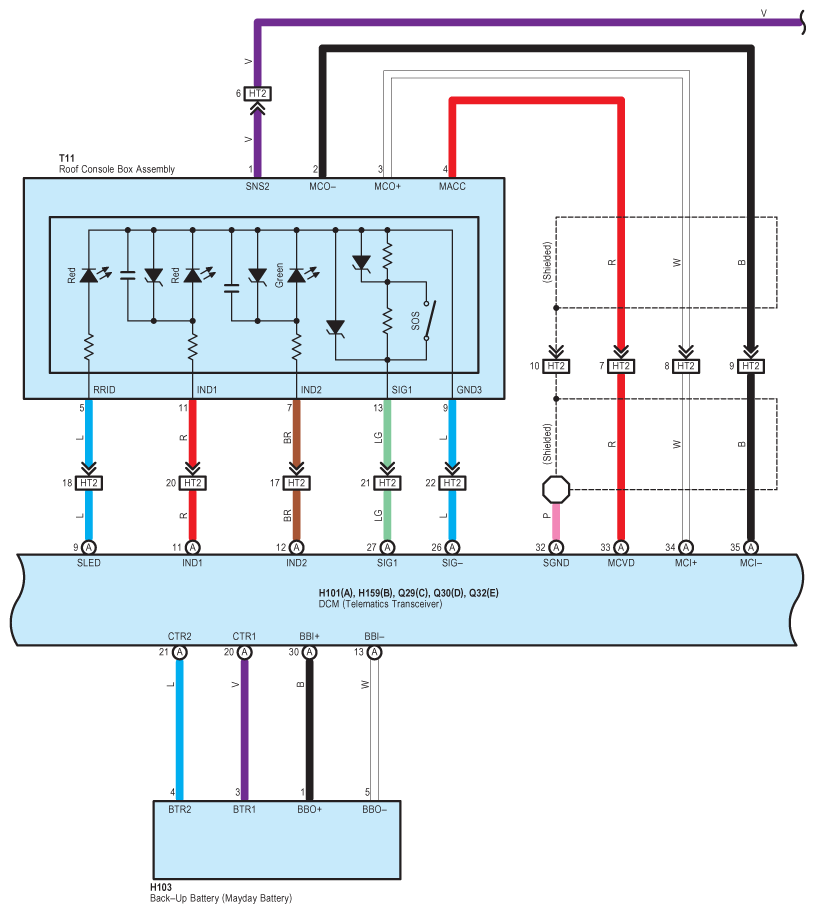

Fig 2: Lexus Enform Or Safety Connect - Circuit Diagram (2 Of 5)
G08948351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

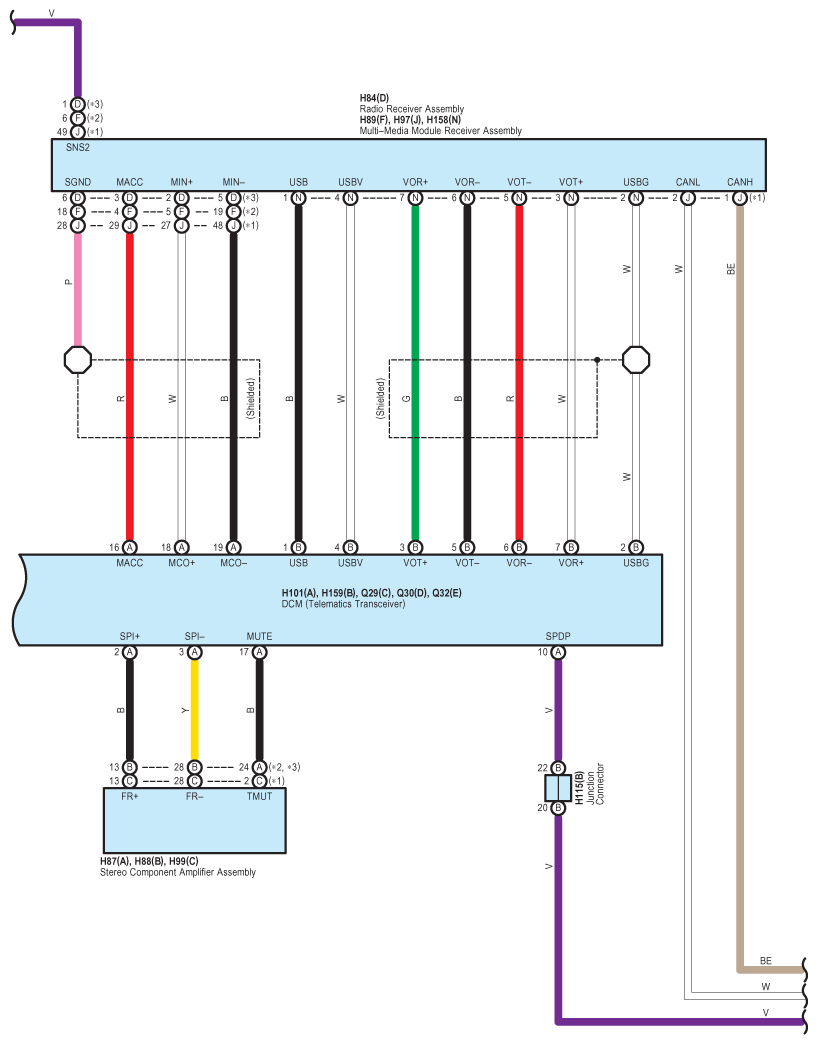

Fig 3: Lexus Enform Or Safety Connect - Circuit Diagram (3 Of 5)
G08948352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

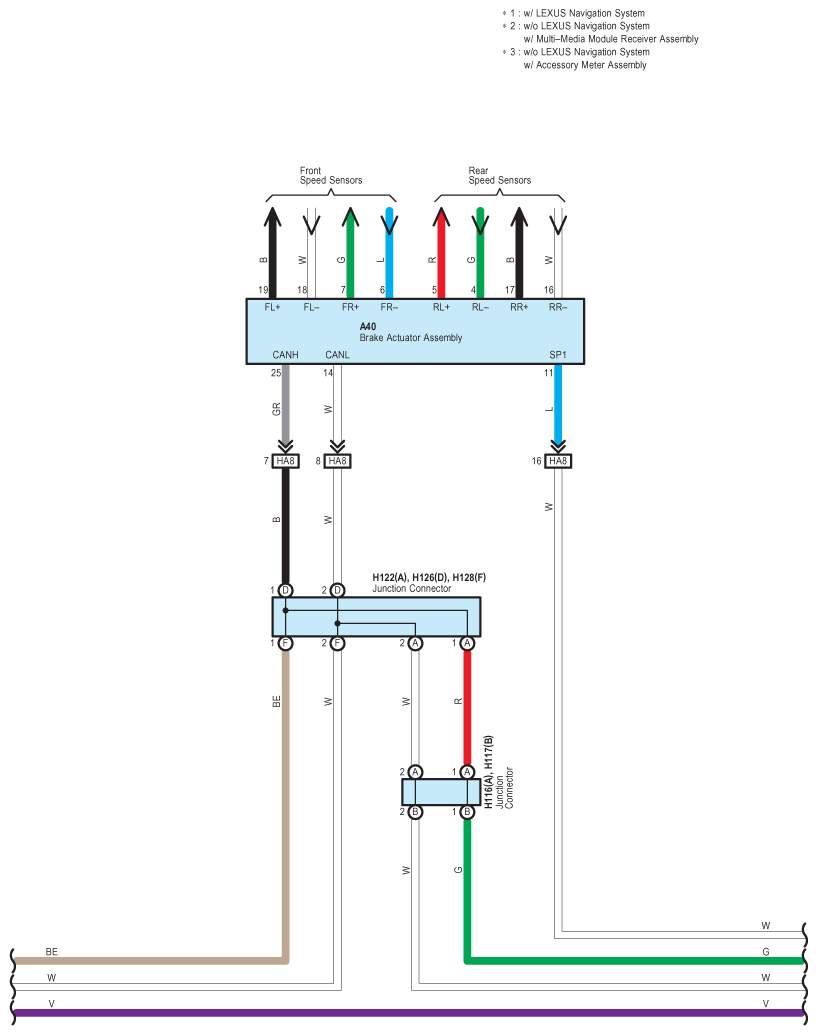

Fig 4: Lexus Enform Or Safety Connect - Circuit Diagram (4 Of 5)
G08948353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

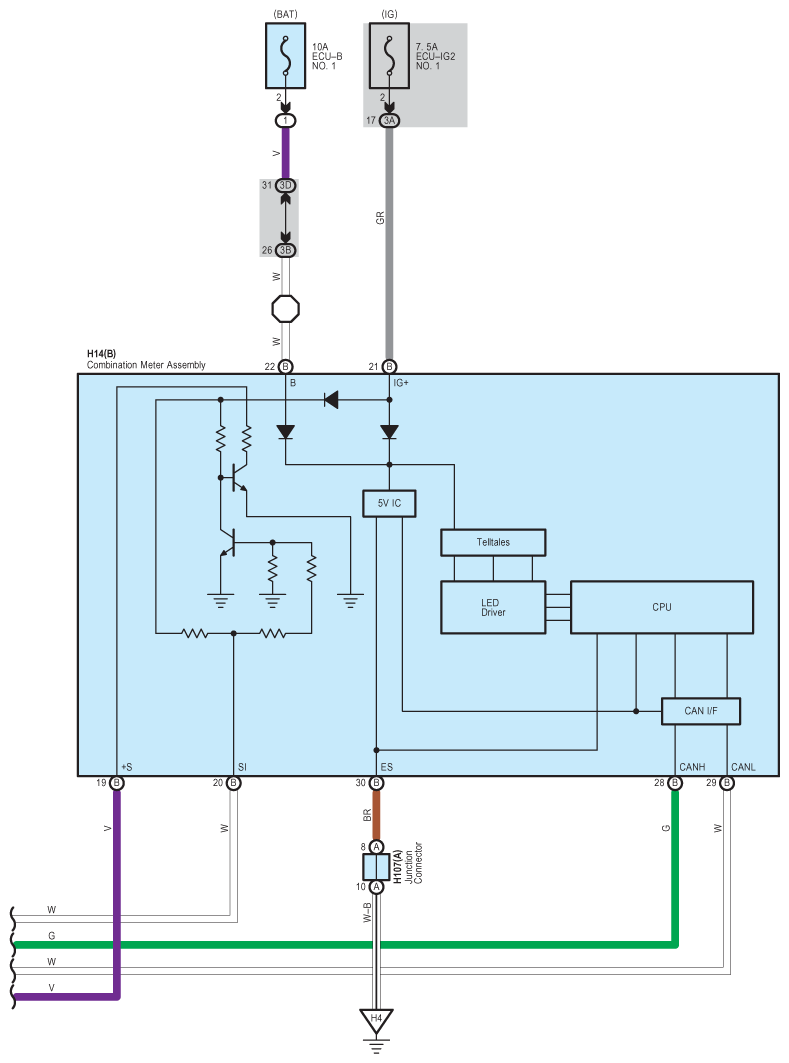

Fig 5: Lexus Enform Or Safety Connect - Circuit Diagram (5 Of 5)
G08948354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
