Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement: Overview

For additional information, refer to Figure.

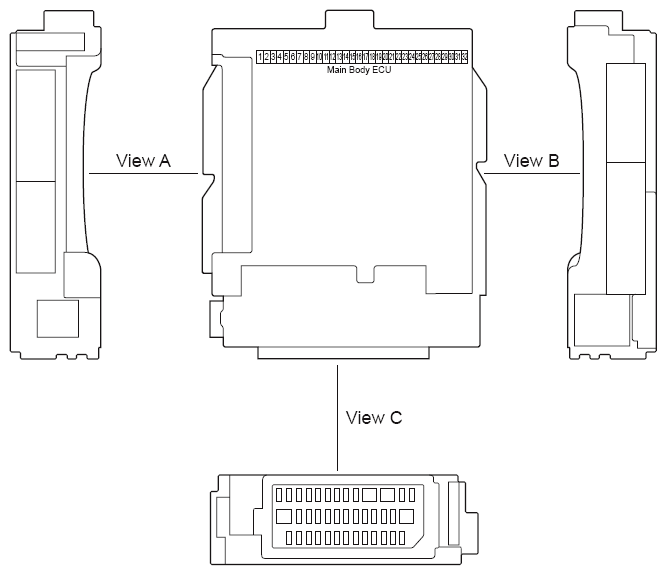

Fig 1: Instrument Panel J/B Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

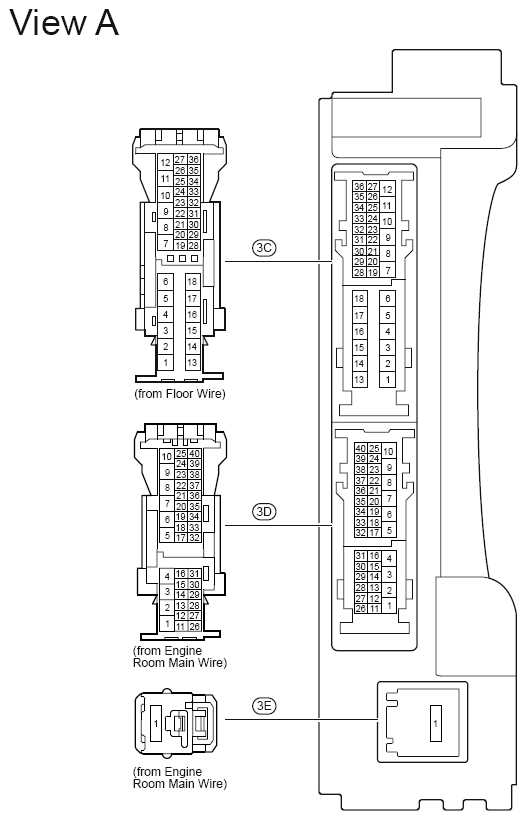

Fig 2: Instrument Panel J/B Assembly (View A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
