Audio System (w/o LEXUS Navigation System w/Multi-Media Module Receiver Assembly) and Parking Assist (Rear View Monitor) (w/o LEXUS Navigation System): Notes

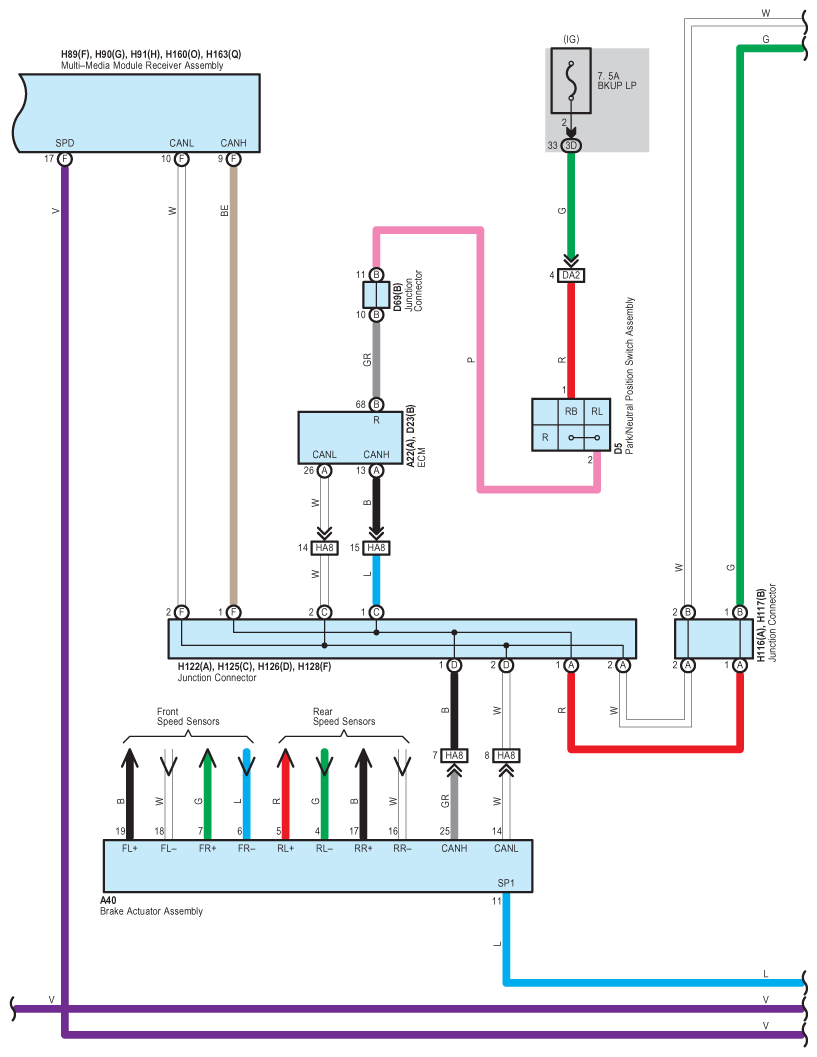

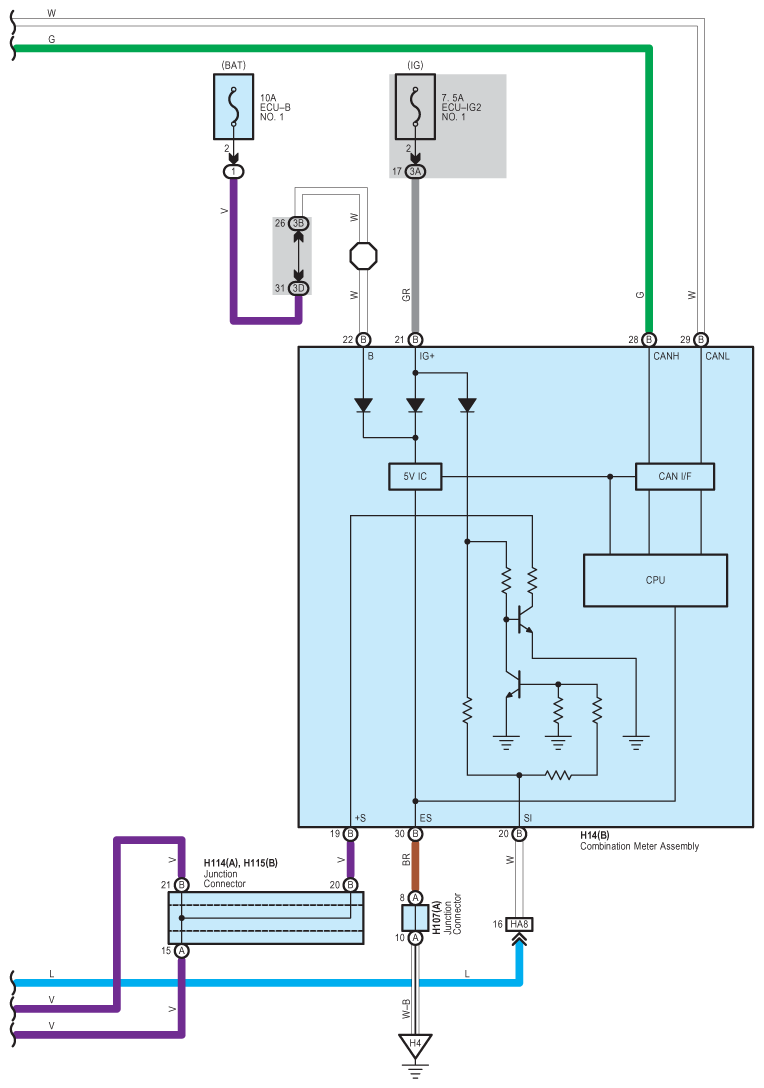

Fig 1: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

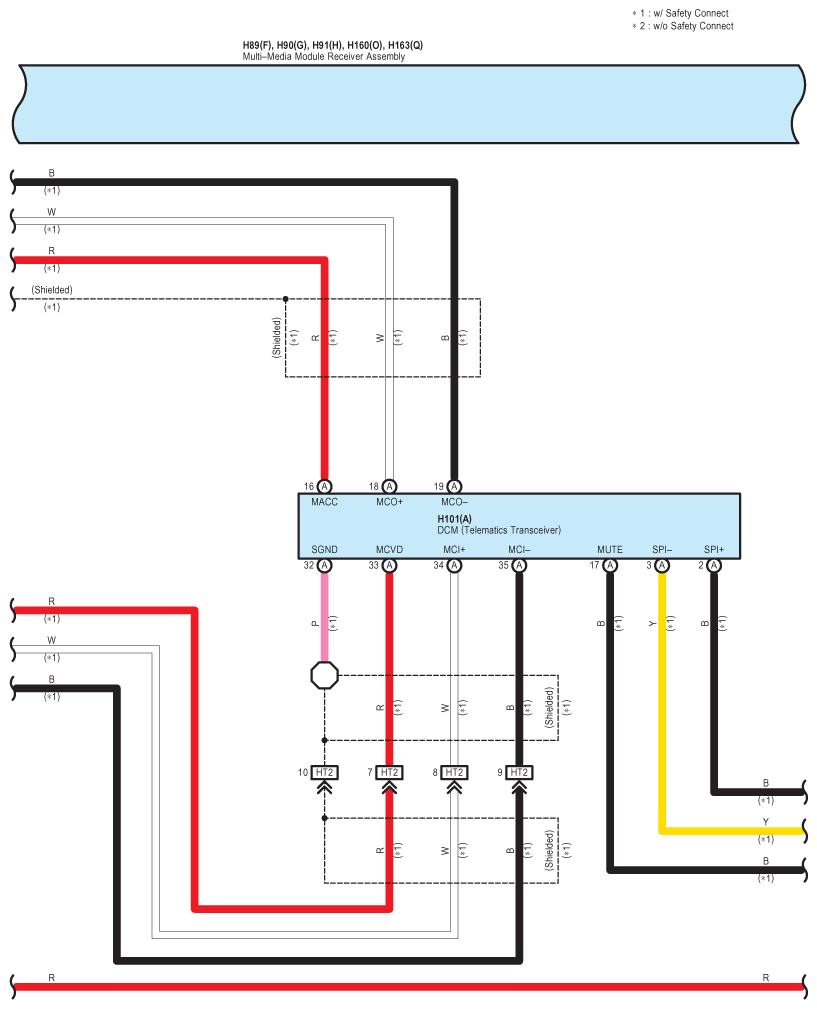

Fig 2: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

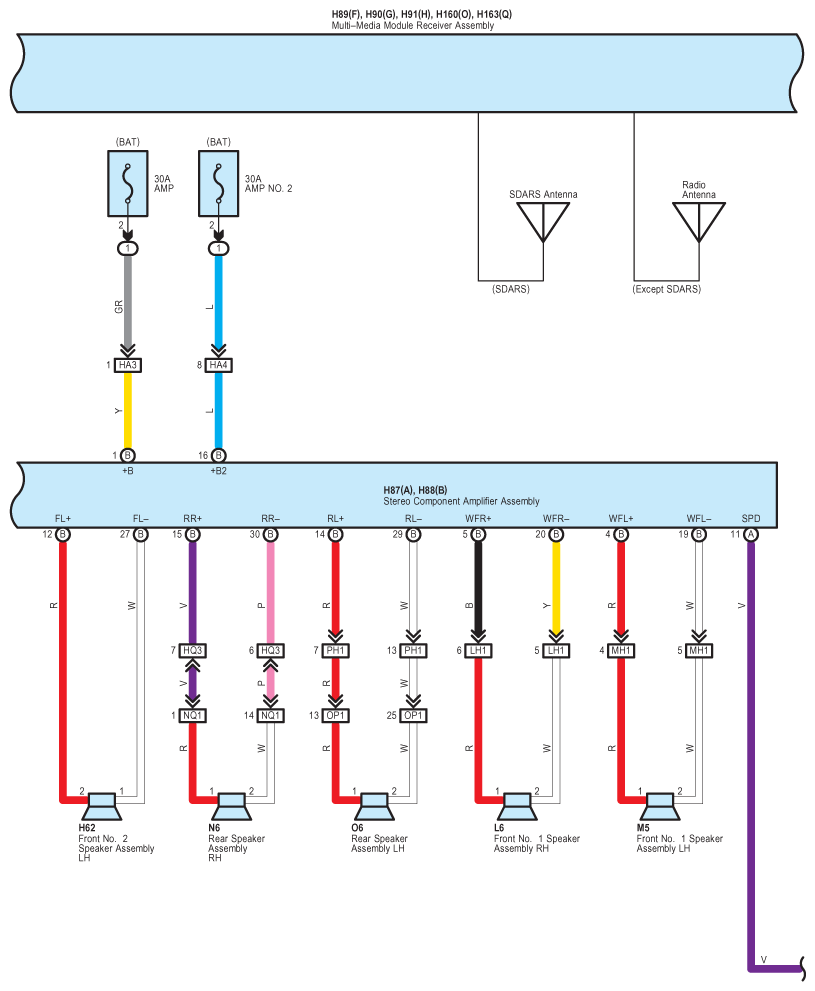

Fig 3: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

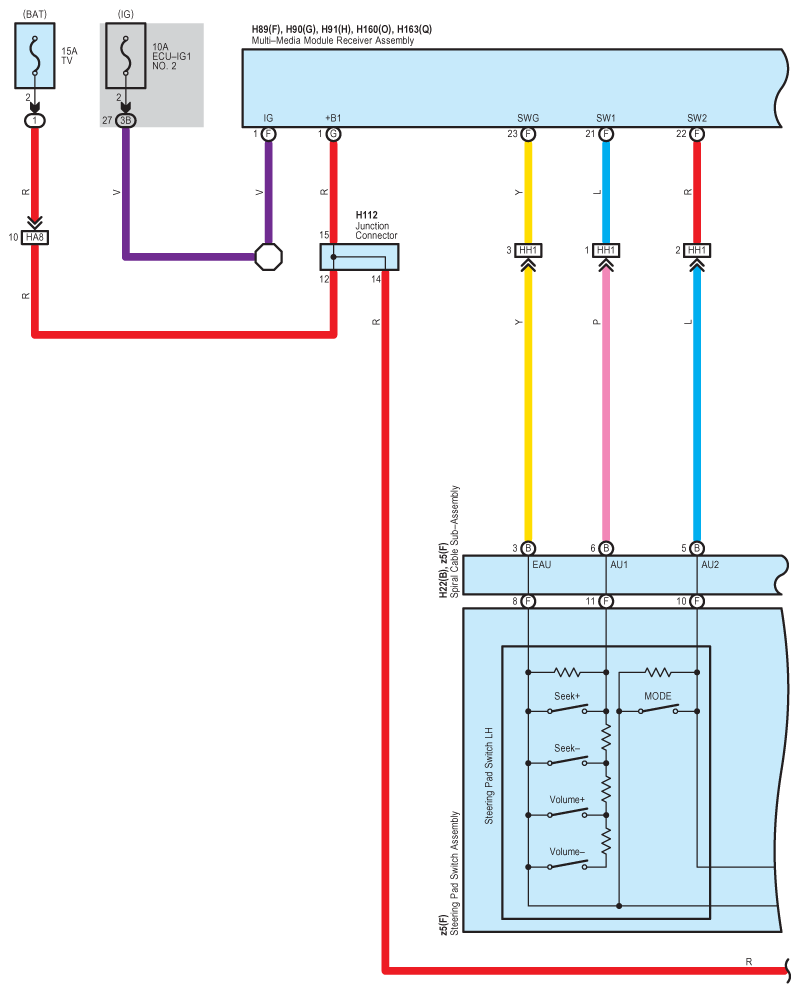

Fig 4: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

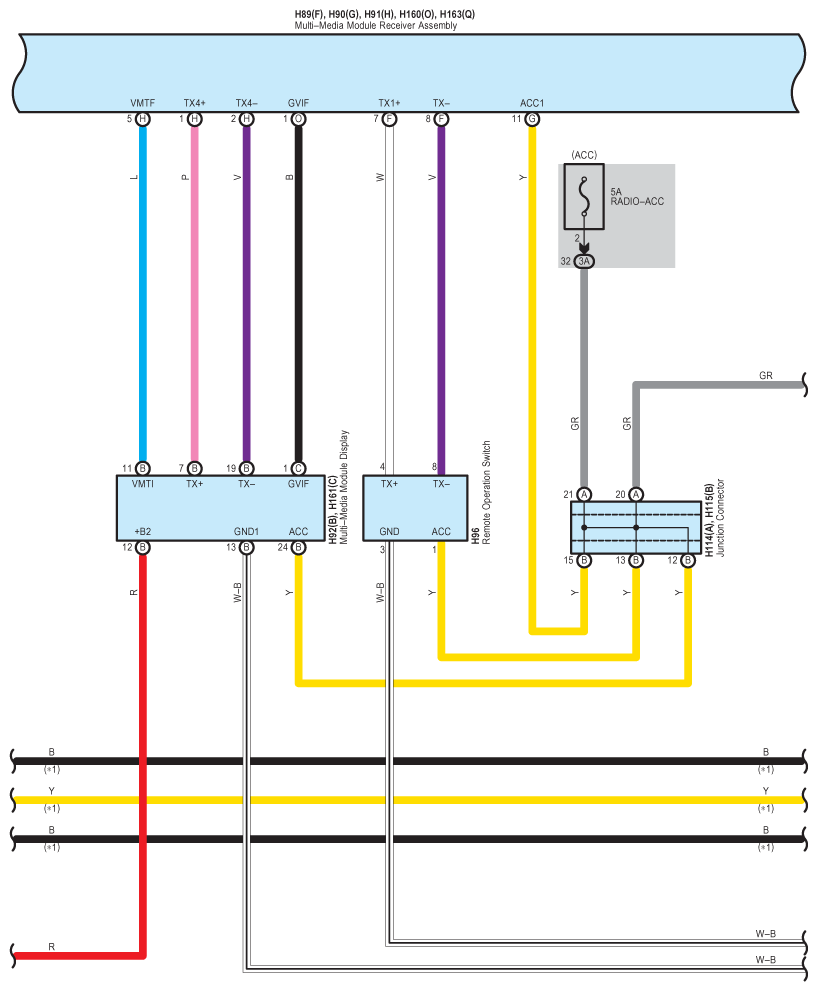

Fig 5: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

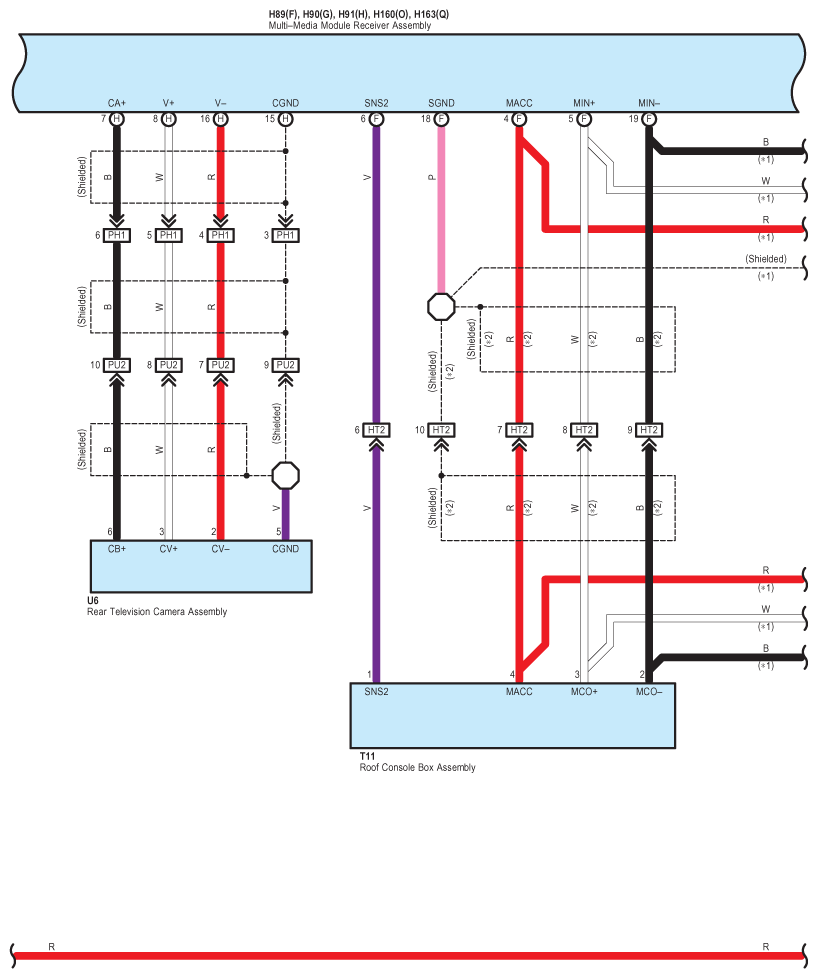

Fig 6: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (6 Of 9)

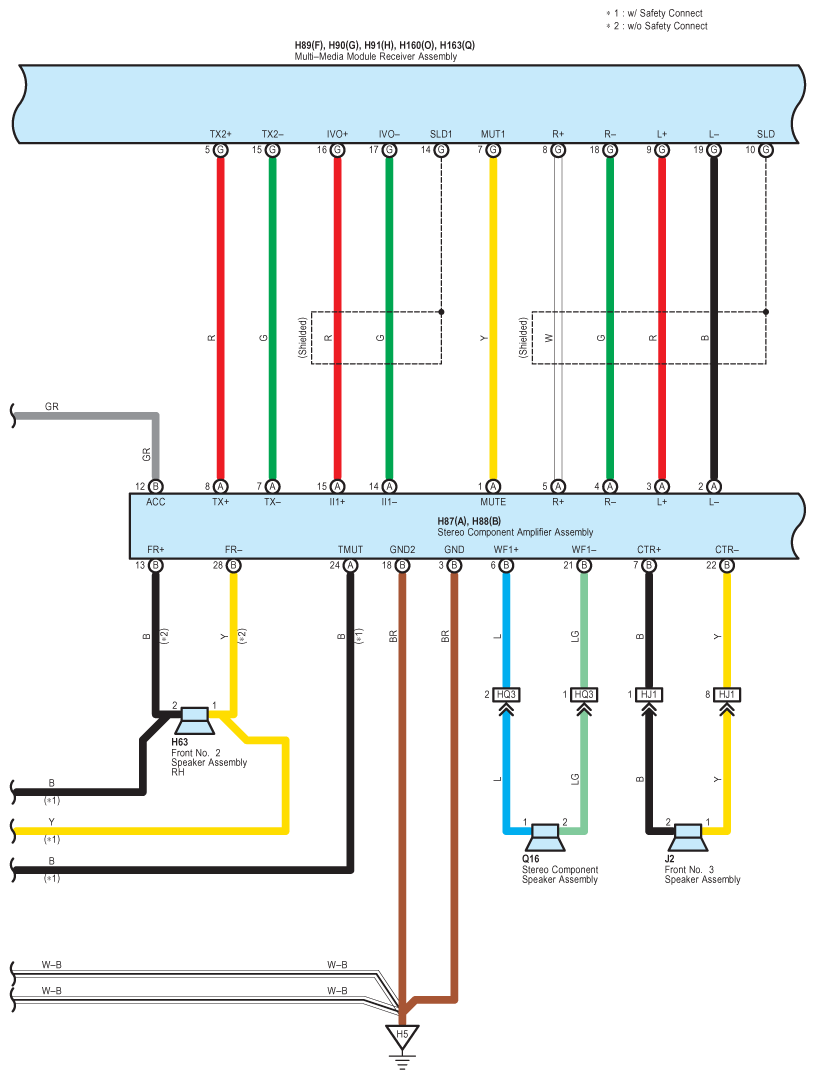

Fig 7: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (7 Of 9)

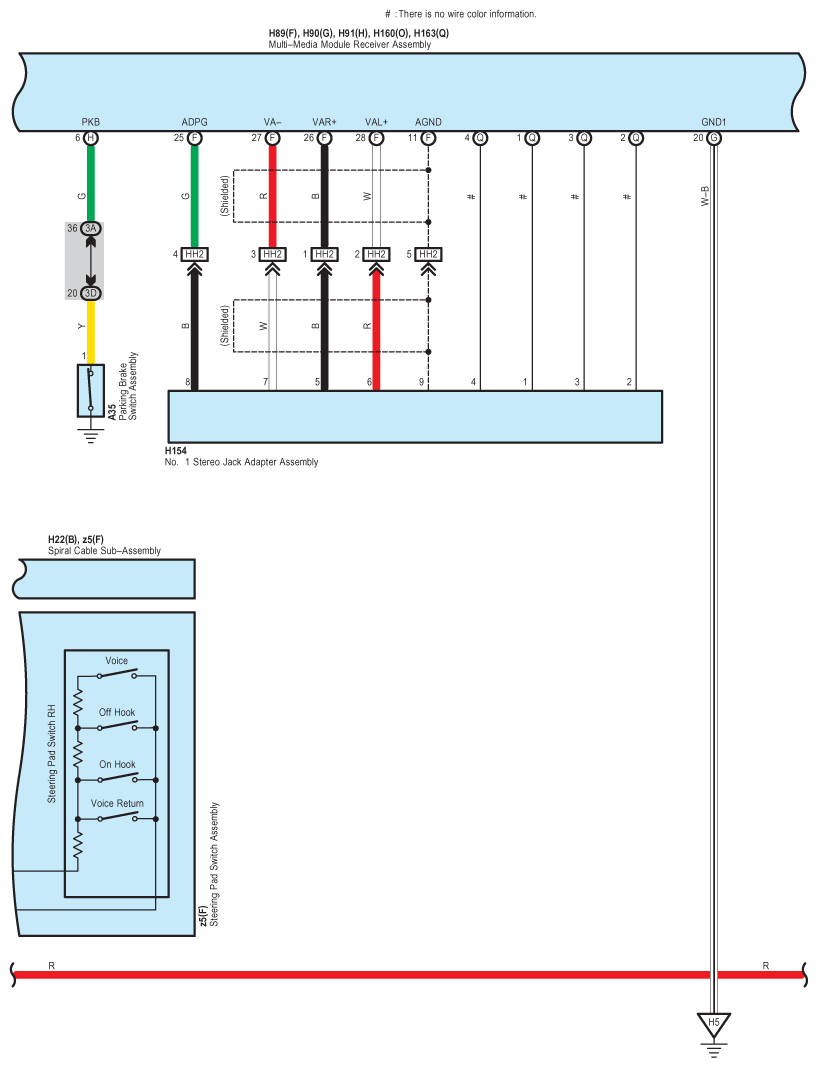

Fig 8: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (8 Of 9)

Fig 9: Audio System (W/O Lexus Navigation System W/Multi-Media Module Receiver Assembly) And Parking Assist (Rear View Monitor) (W/O Lexus Navigation System) - Circuit Diagram (9 Of 9)
