Active Control Engine Mount System: Description

LOCATION

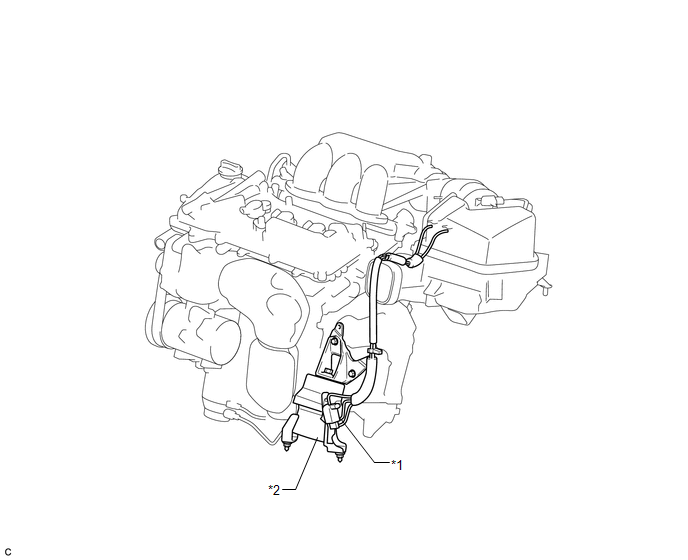

Fig 1: Locating Active Control Engine Mount System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Duty Vacuum Switching Valve (for Active Control Engine Mount)

Front Engine Mounting Insulator Assembly

The active control engine mount system decreases engine vibration at a low engine speed using the duty vacuum switching valve (for active control engine mount). The duty vacuum switching valve (for active control engine mount) is controlled by a pulse signal transmitted to the duty vacuum switching valve (for active control engine mount) from the ECM. The frequency of this pulse signal is matched to the engine speed to decrease engine vibration.
