Air Intake Control Circuit: Wiring Diagram

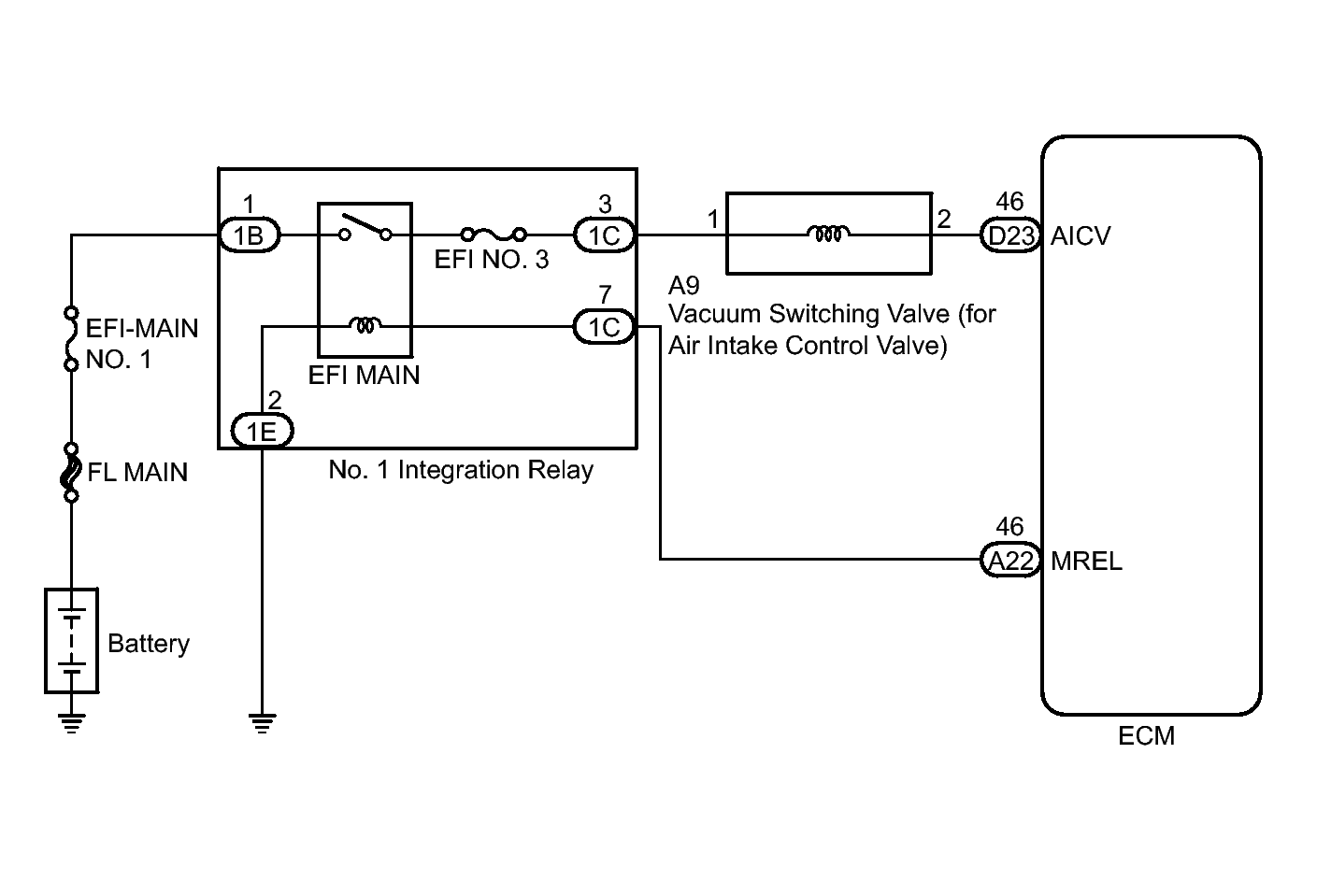

Fig 1: Identifying Vacuum Switching Valve Wiring Diagram
GTY399519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
