ECM Power Source Circuit: Wiring Diagram

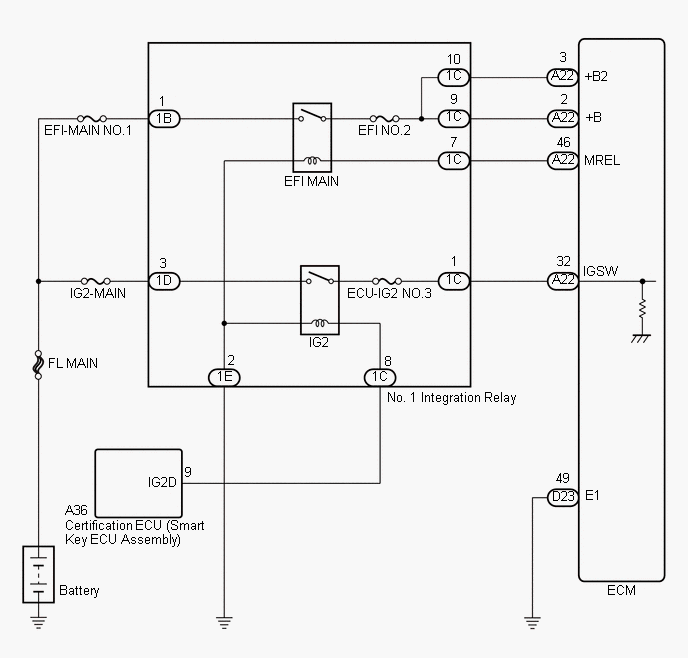

Fig 1: Identifying ECM Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
