Power Source: Notes

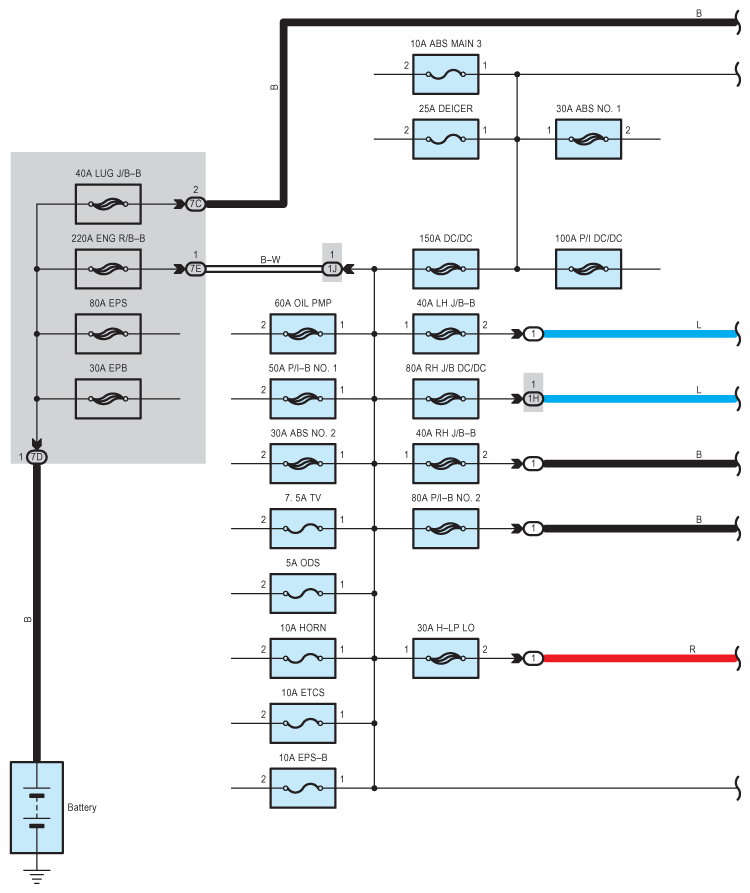

Fig 1: Power Source Wiring Diagram (1 Of 10)

G09117645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

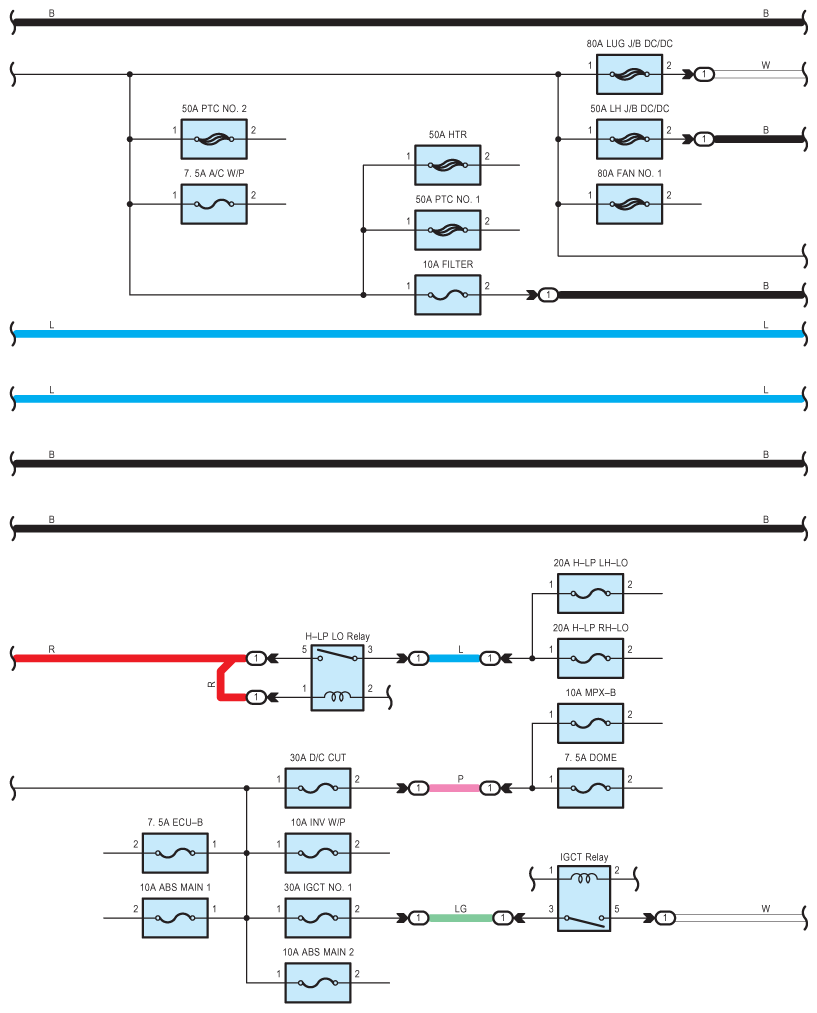

Fig 2: Power Source Wiring Diagram (2 Of 10)

G09117646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

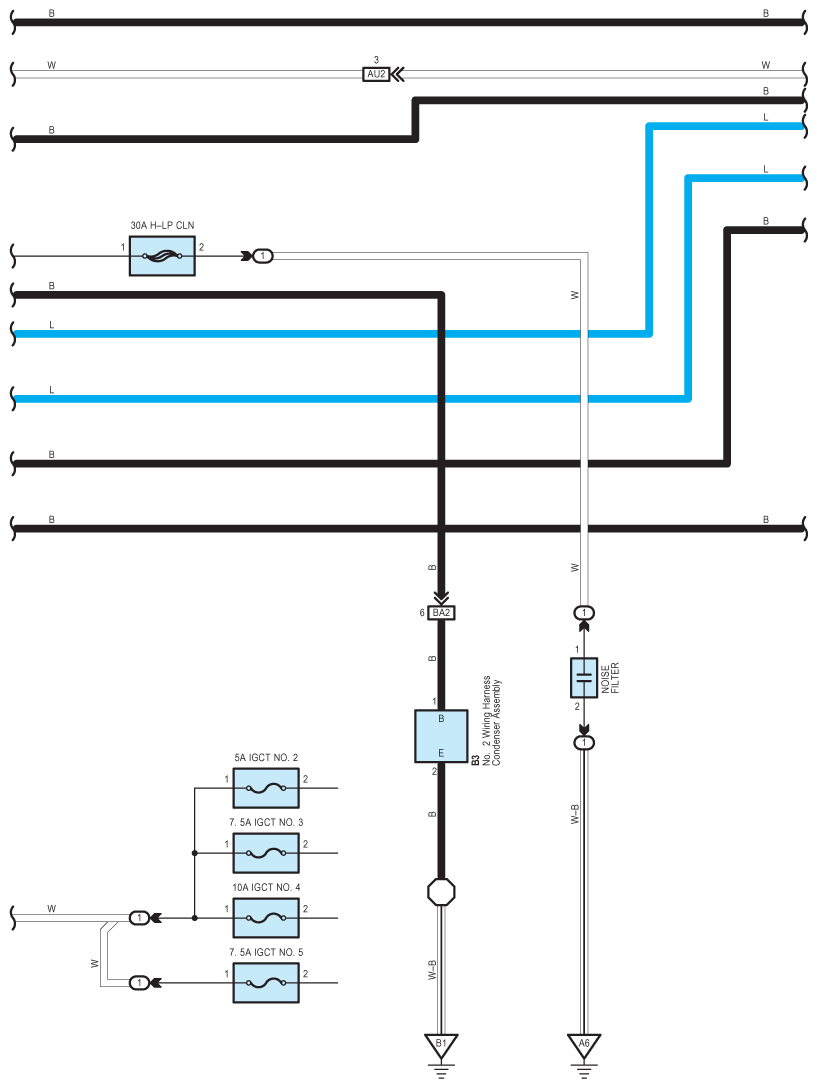

Fig 3: Power Source Wiring Diagram (3 Of 10)

G09117647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

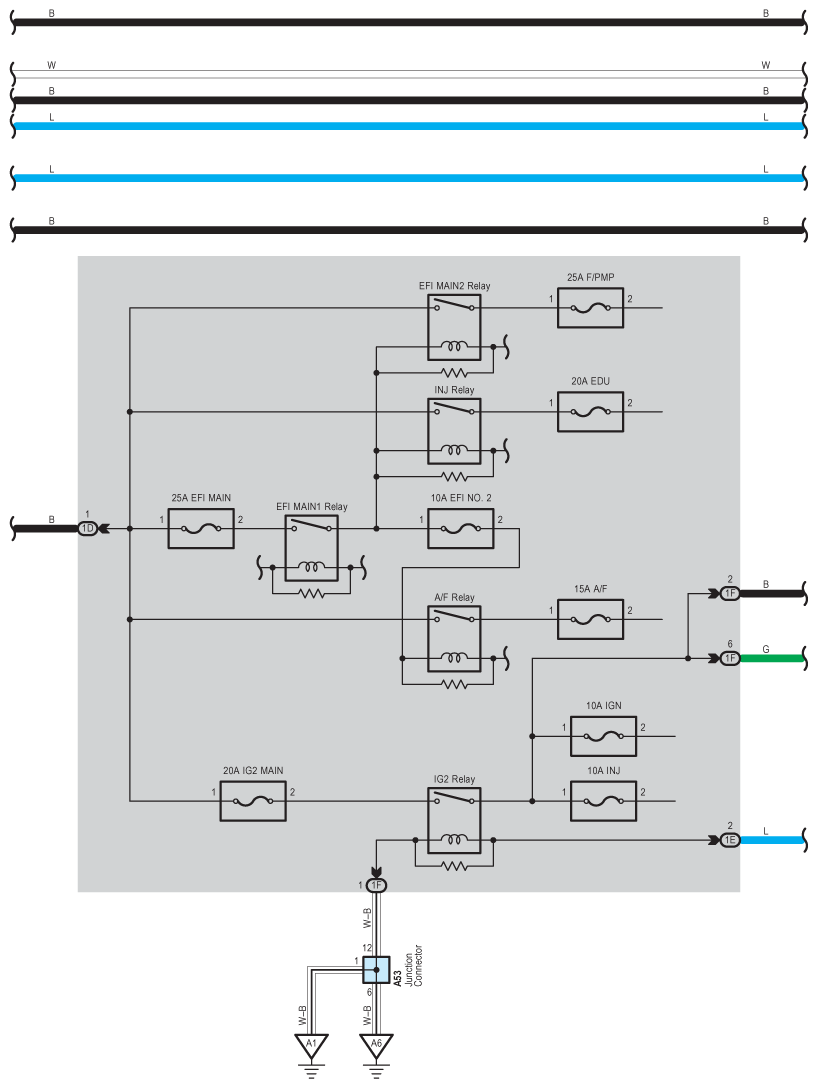

Fig 4: Power Source Wiring Diagram (4 Of 10)

G09117648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

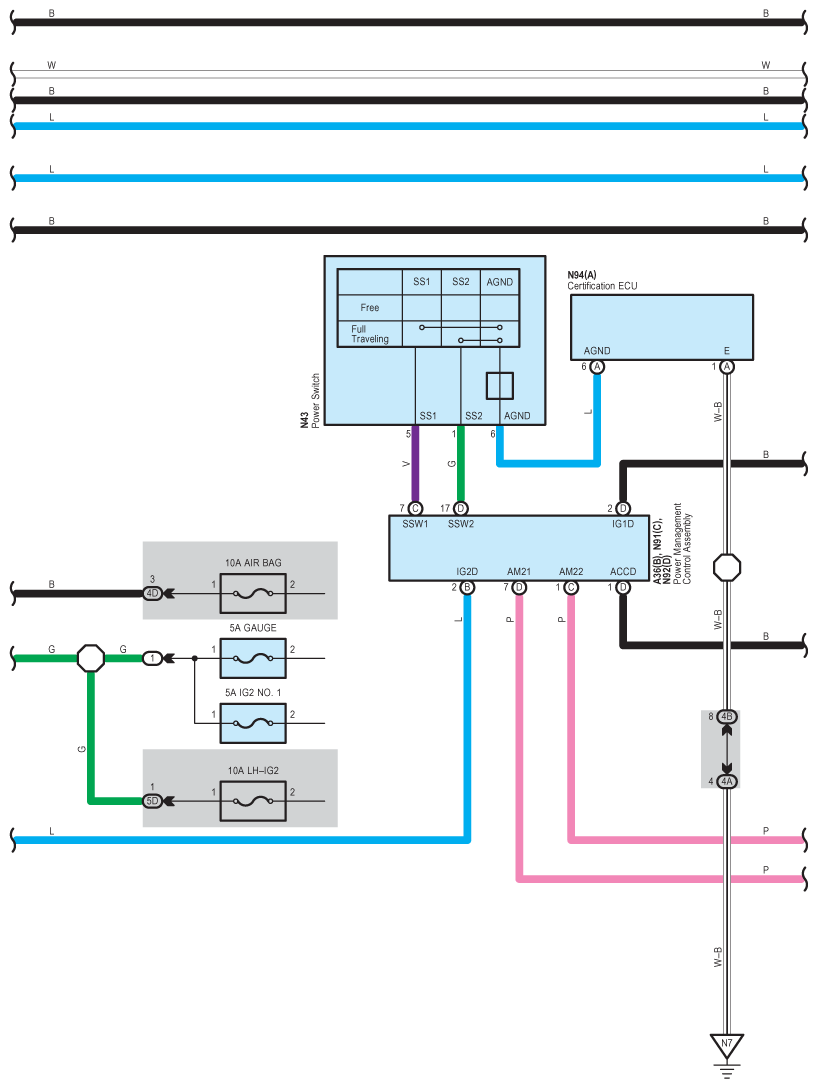

Fig 5: Power Source Wiring Diagram (5 Of 10)

G09117649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

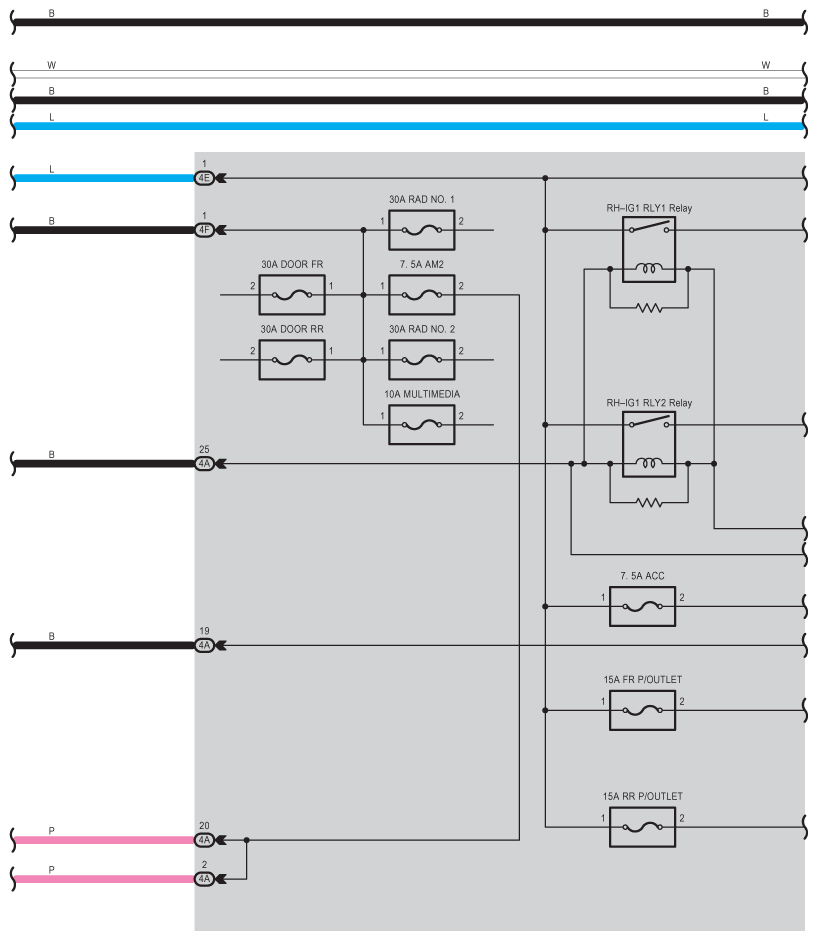

Fig 6: Power Source Wiring Diagram (6 Of 10)

G09117650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

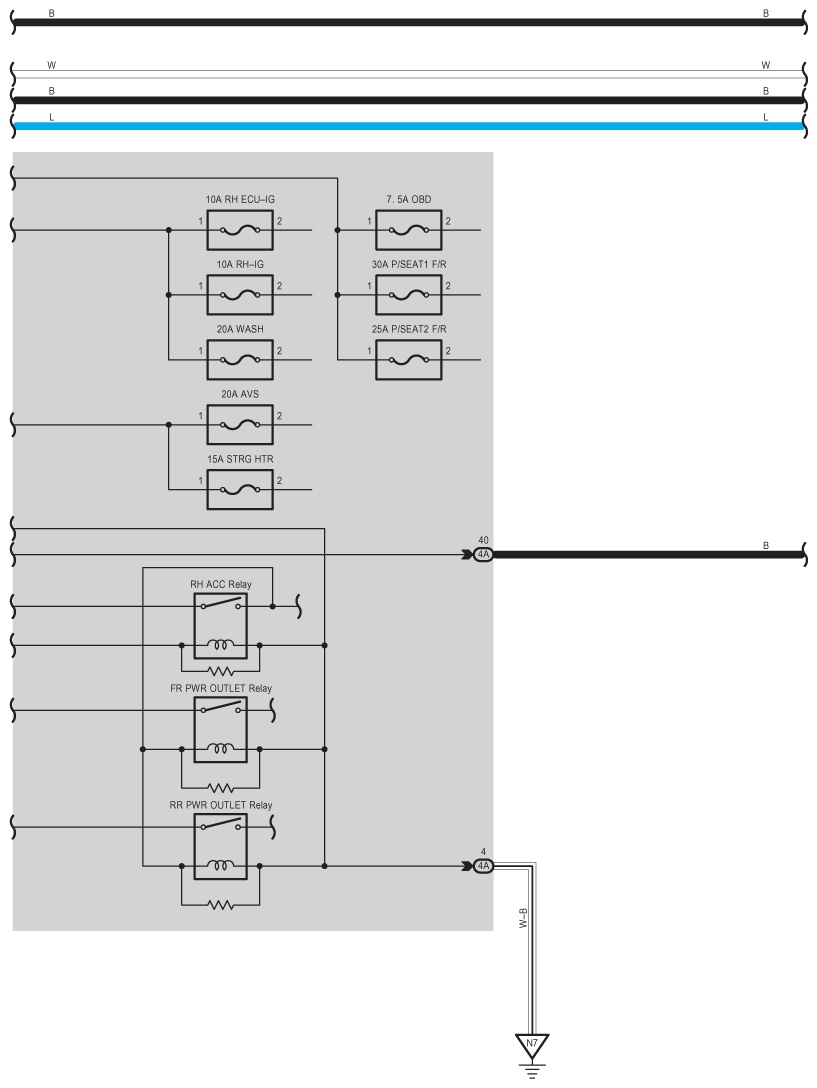

Fig 7: Power Source Wiring Diagram (7 Of 10)

G09117651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

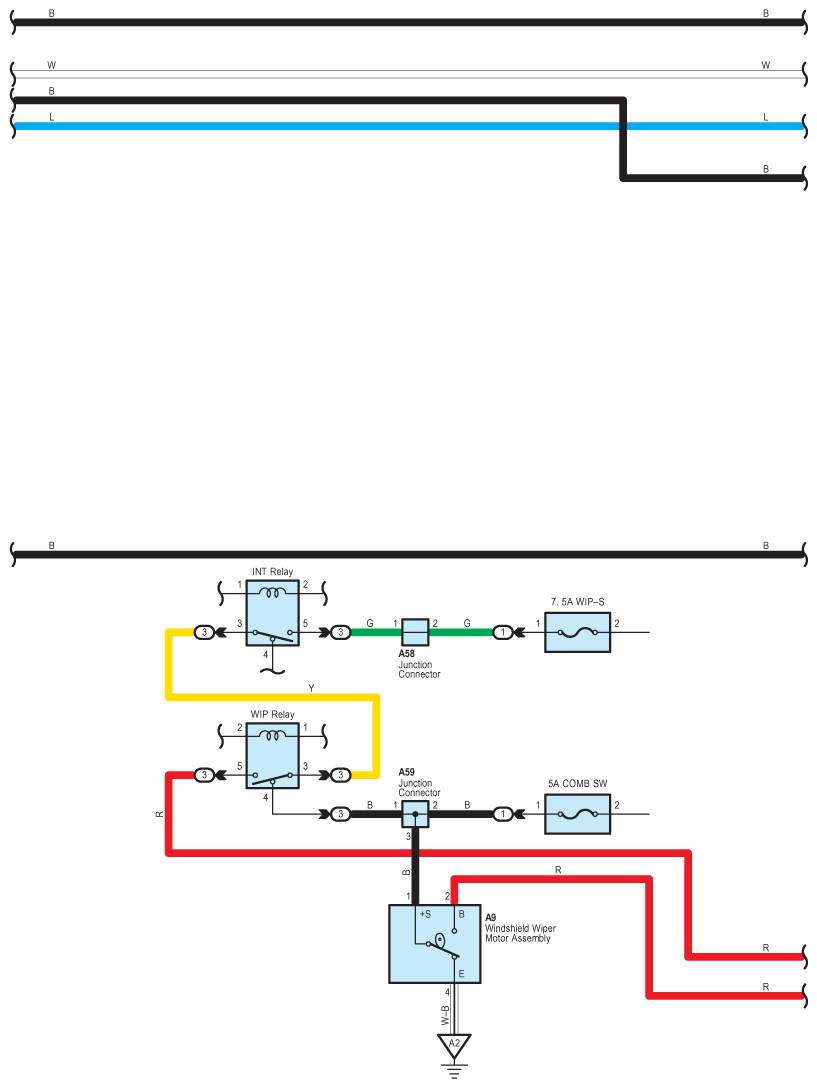

Fig 8: Power Source Wiring Diagram (8 Of 10)

G09117652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

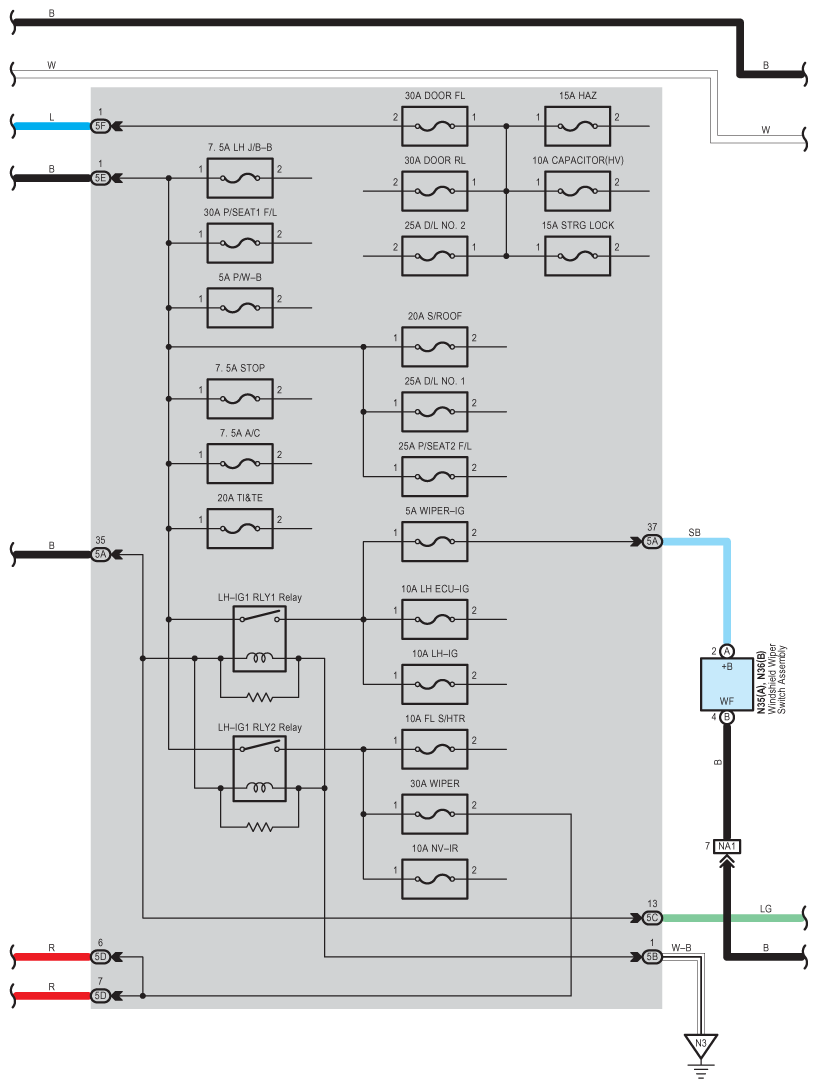

Fig 9: Power Source Wiring Diagram (9 Of 10)

G09117653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

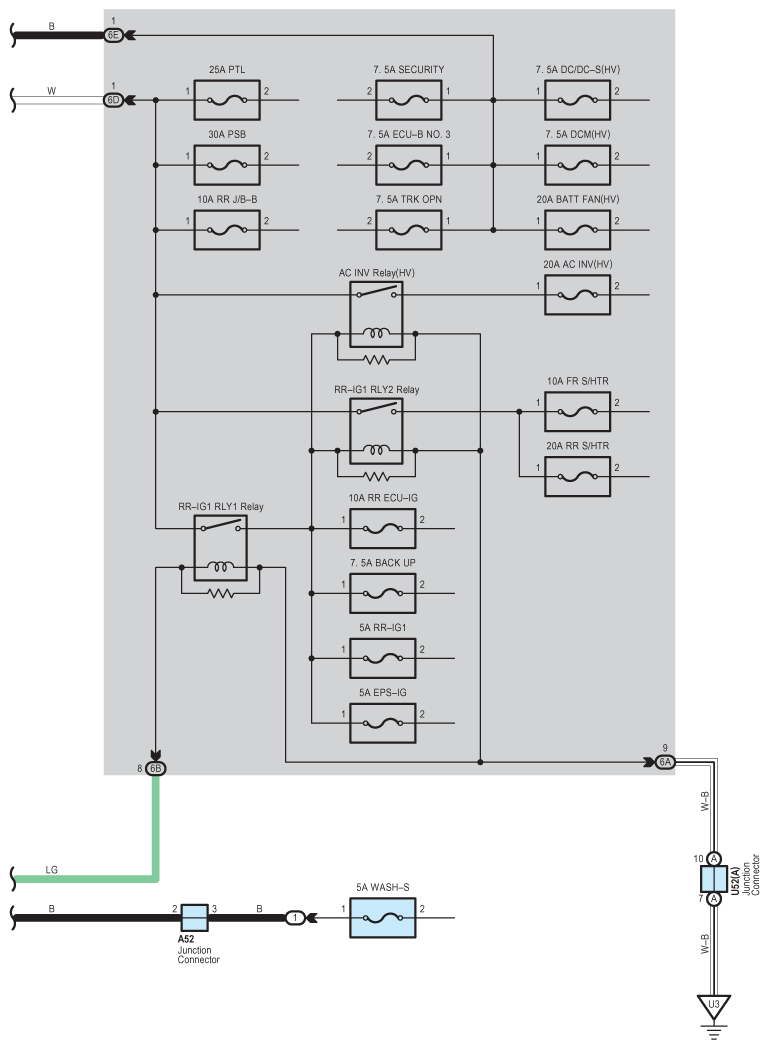

Fig 10: Power Source Wiring Diagram (10 Of 10)

G09117654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
