Audio System, LEXUS Navigation System, Multi-Display and Parking Assist (Rear View Monitor): Notes

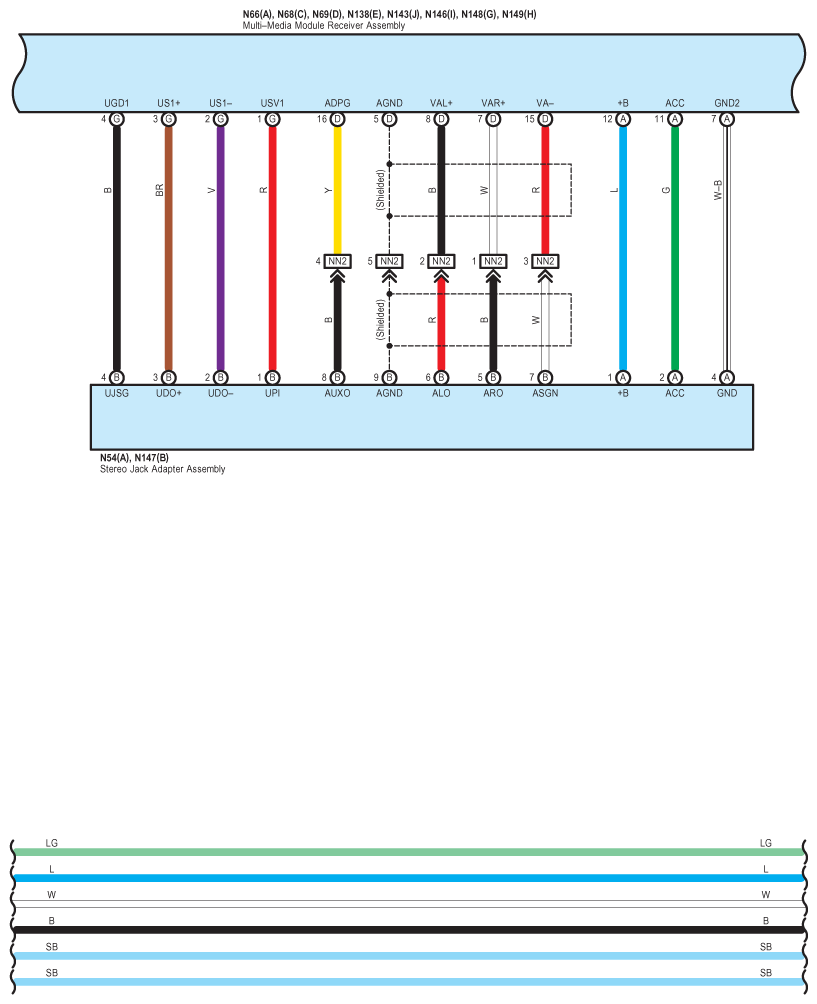

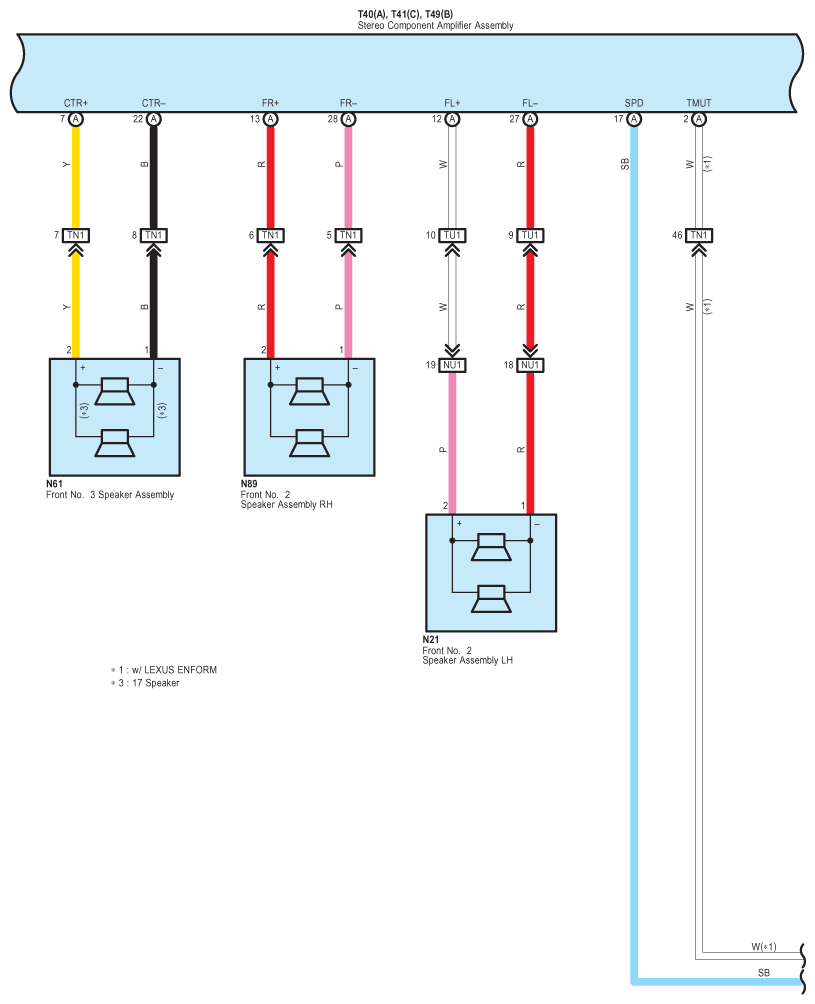

Fig 1: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

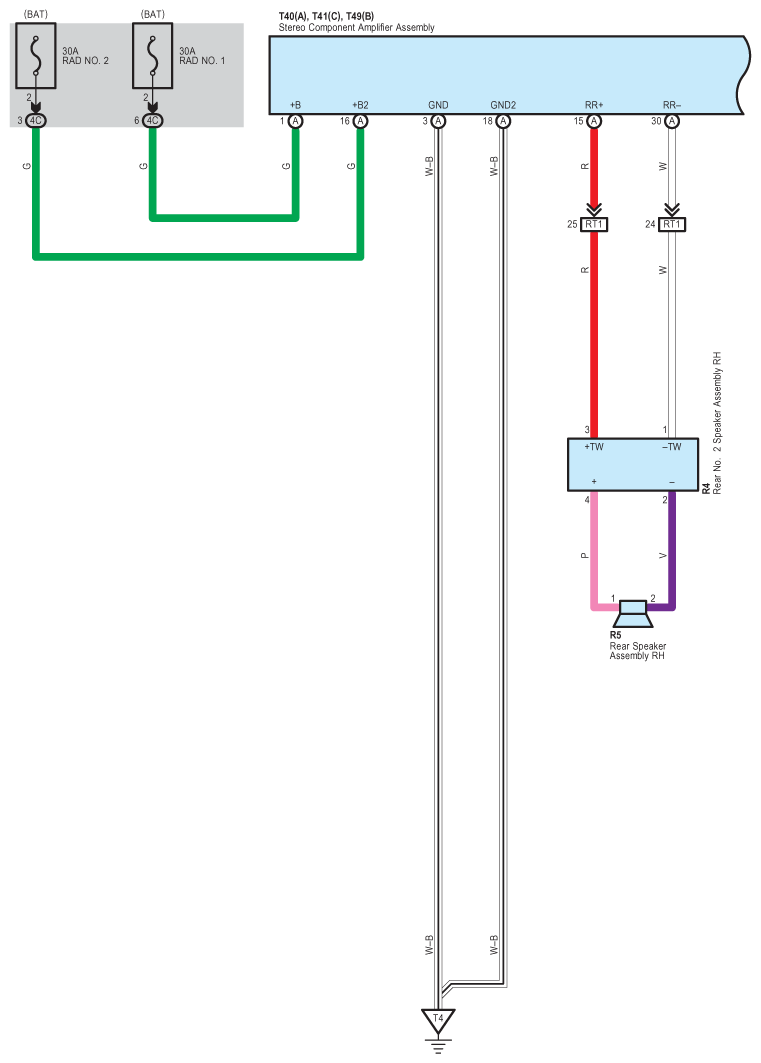

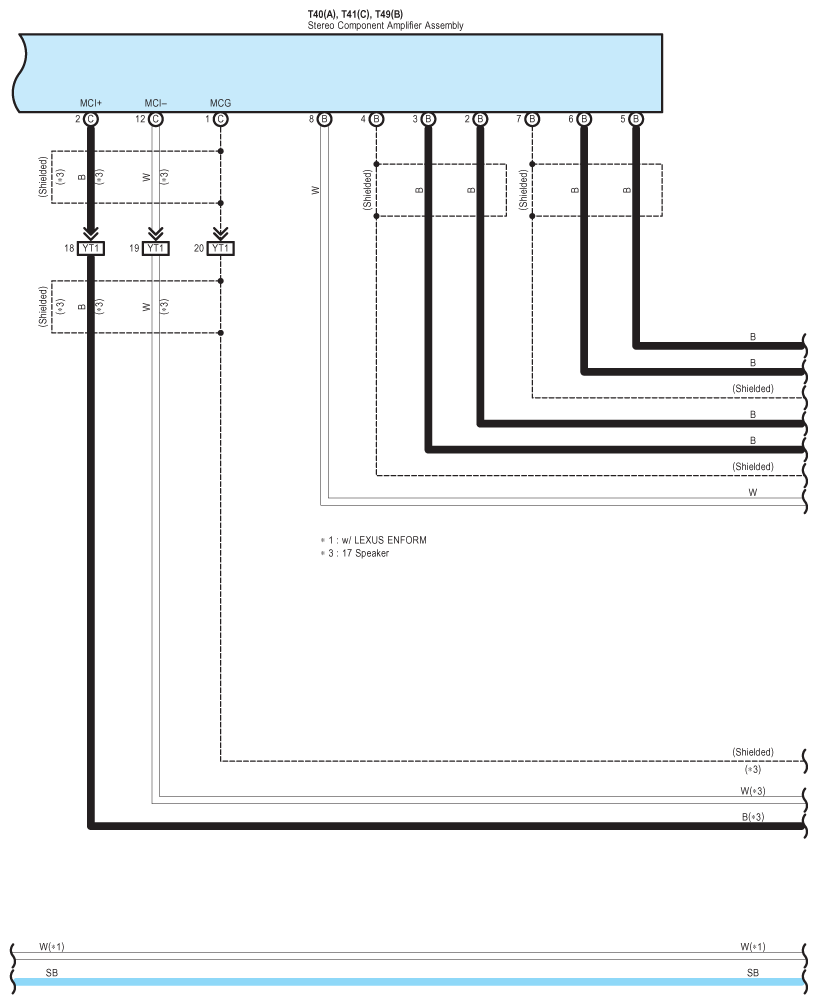

Fig 2: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

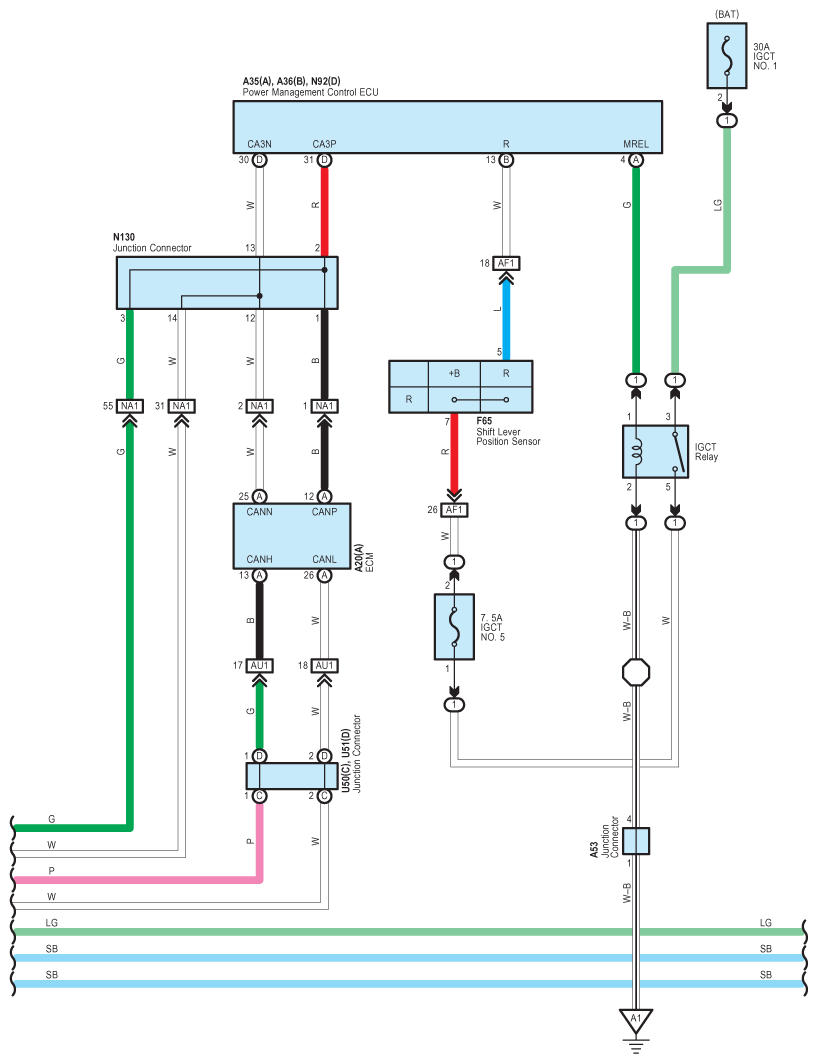

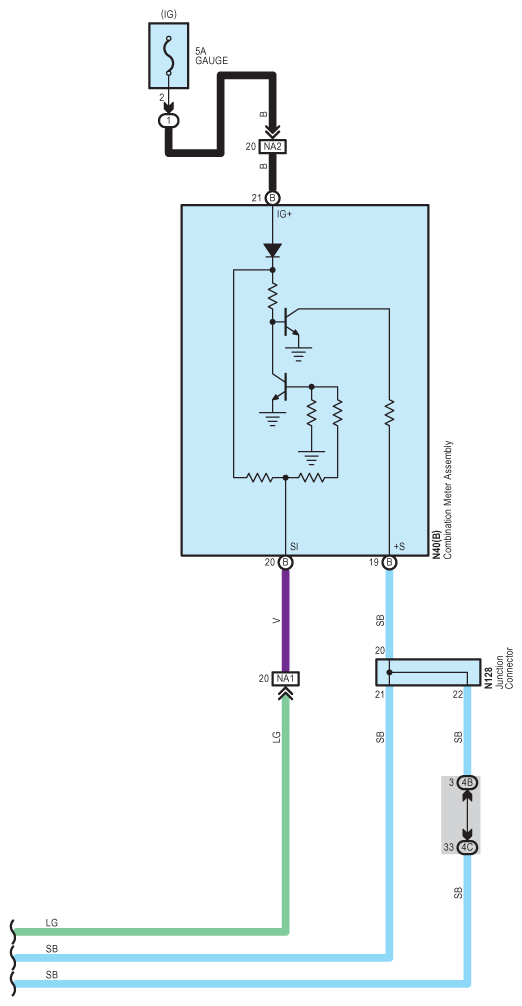

Fig 3: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

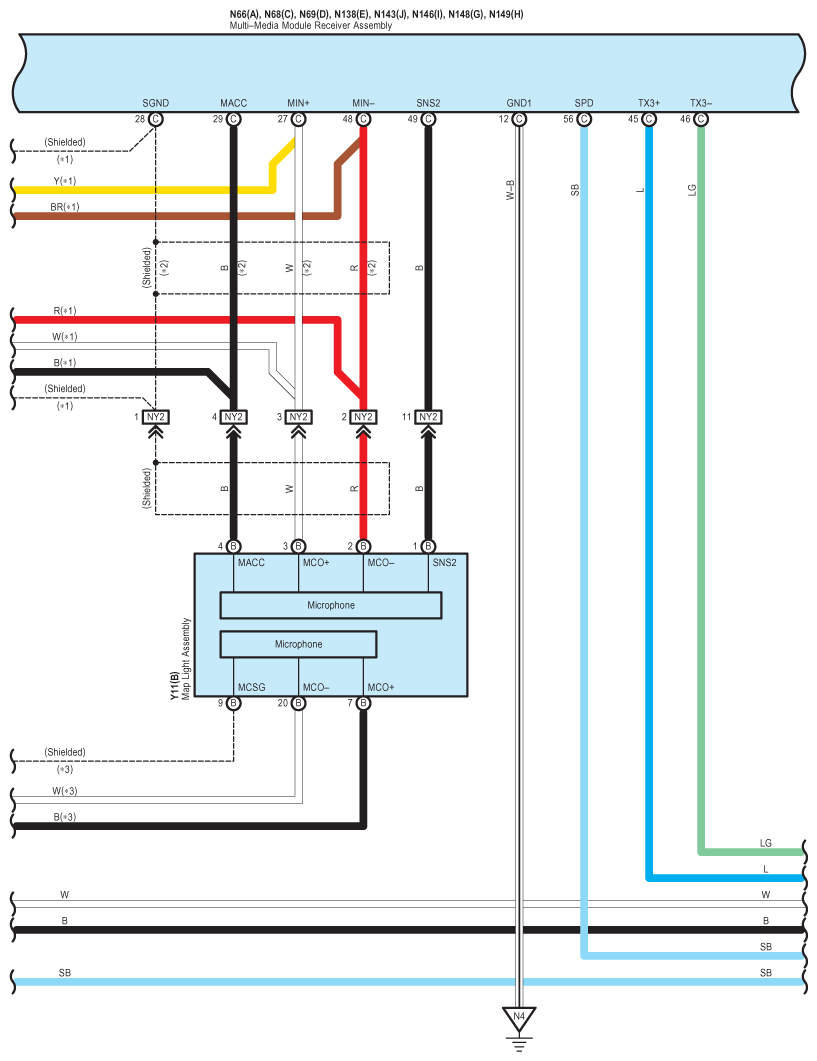

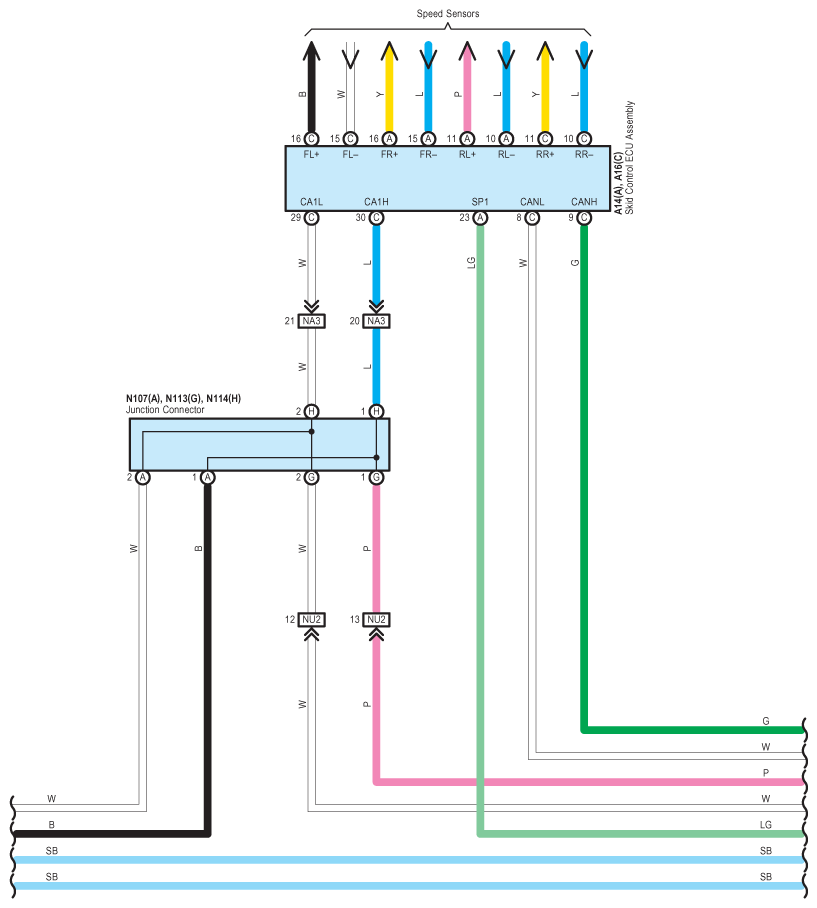

Fig 4: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

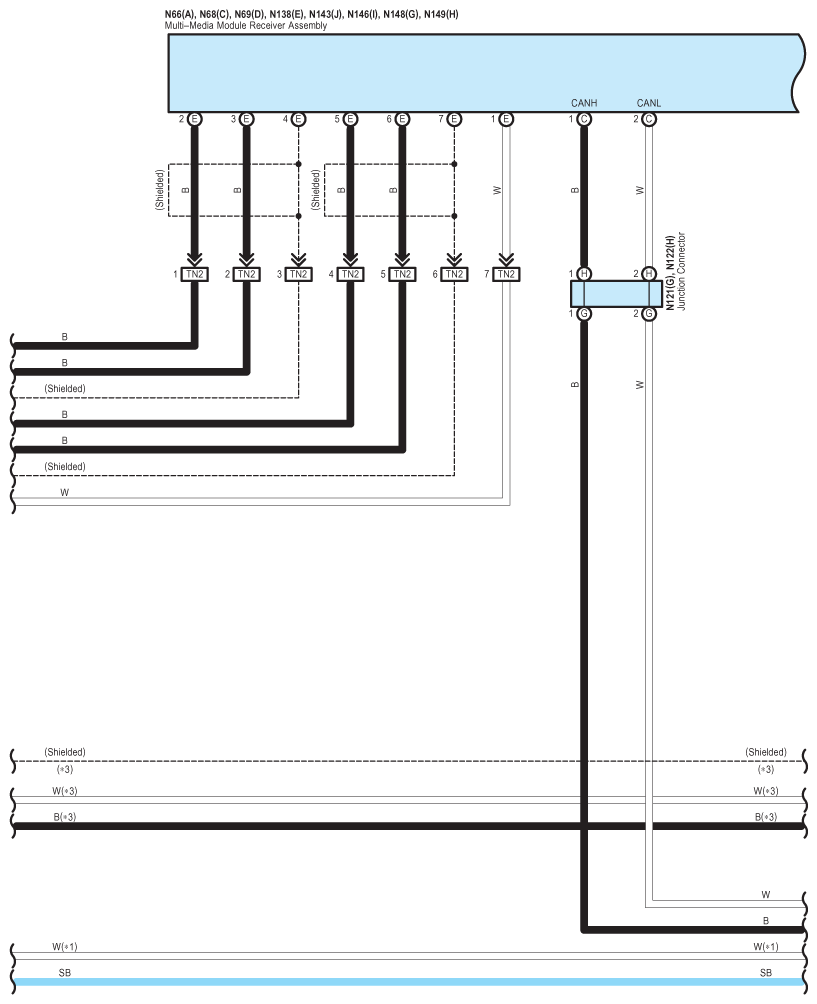

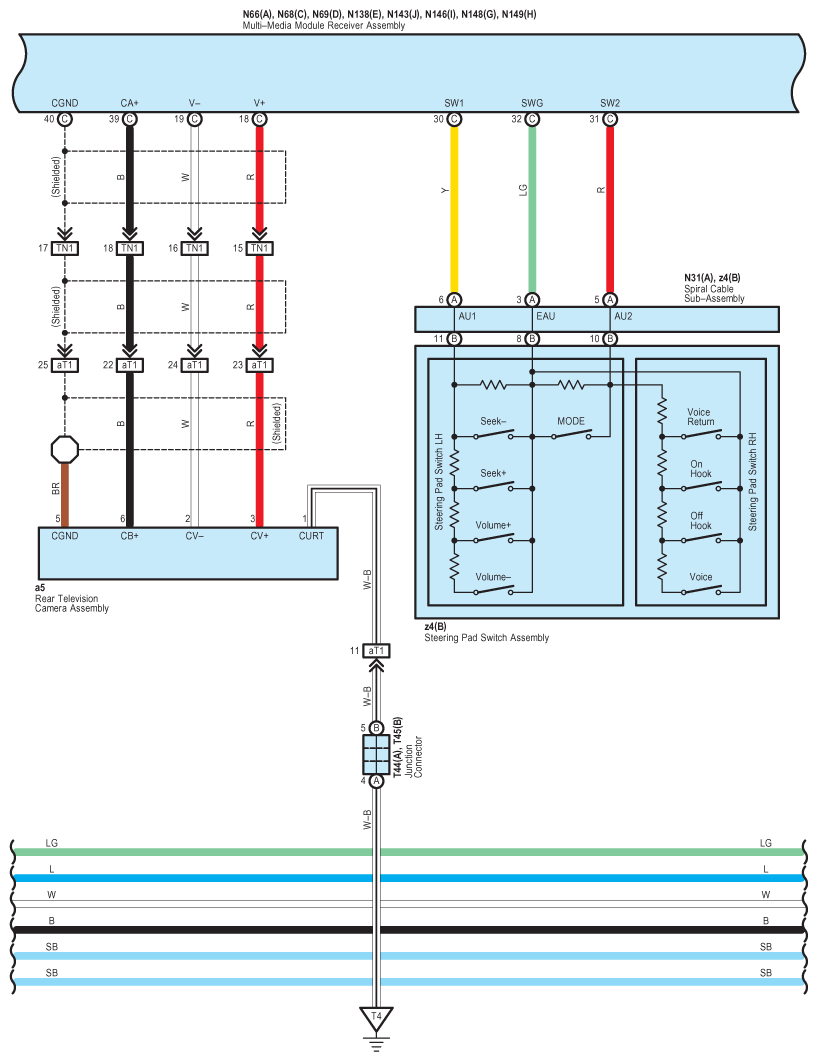

Fig 5: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

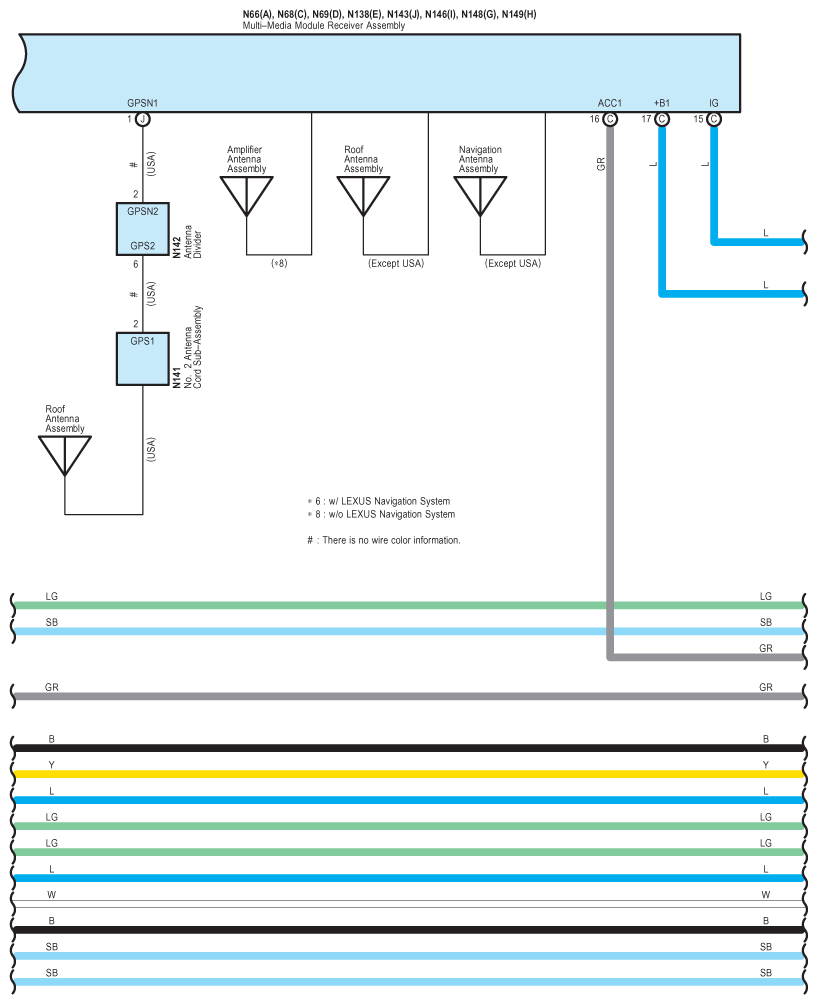

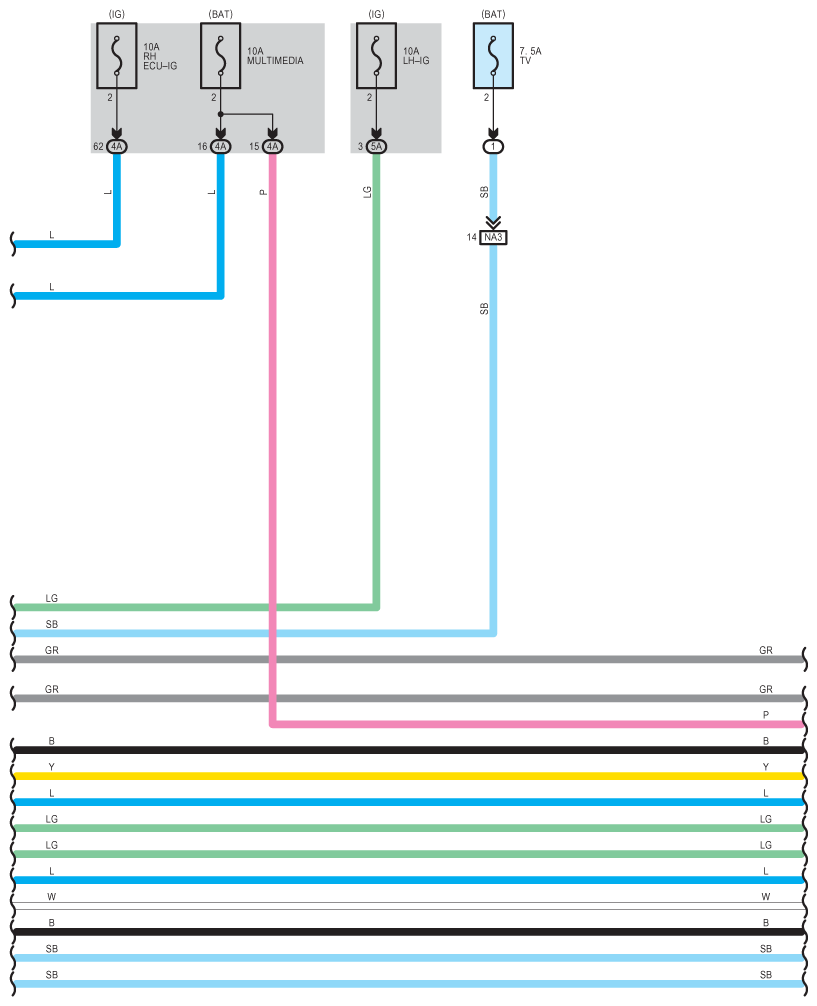

Fig 6: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

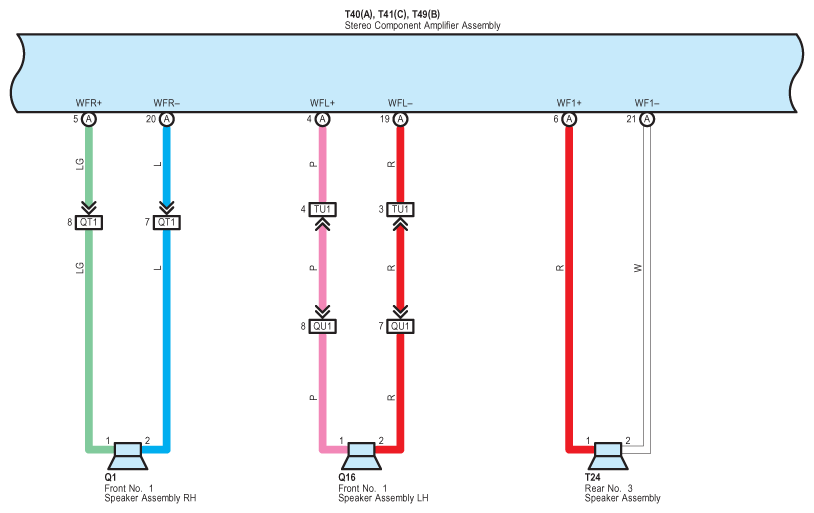

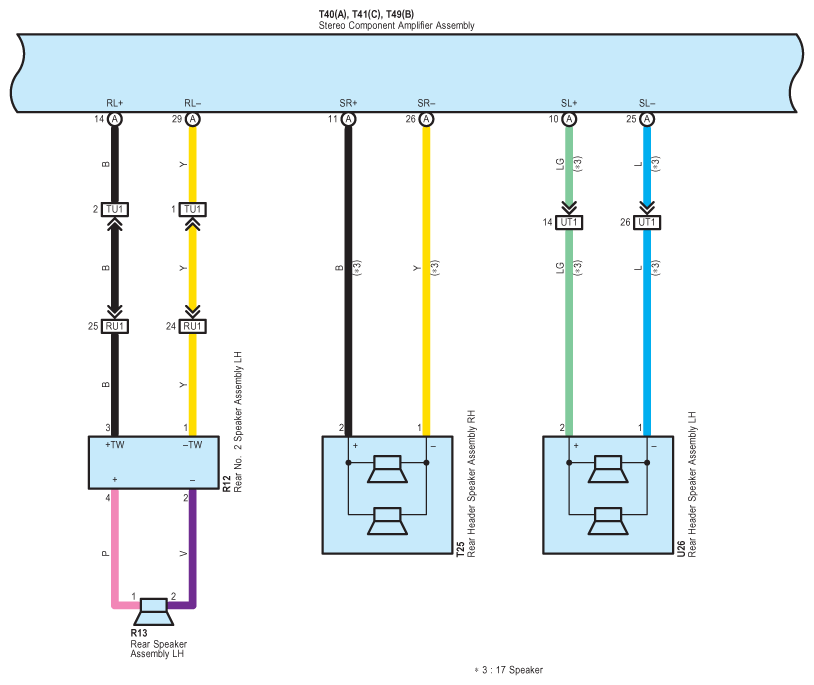

Fig 7: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

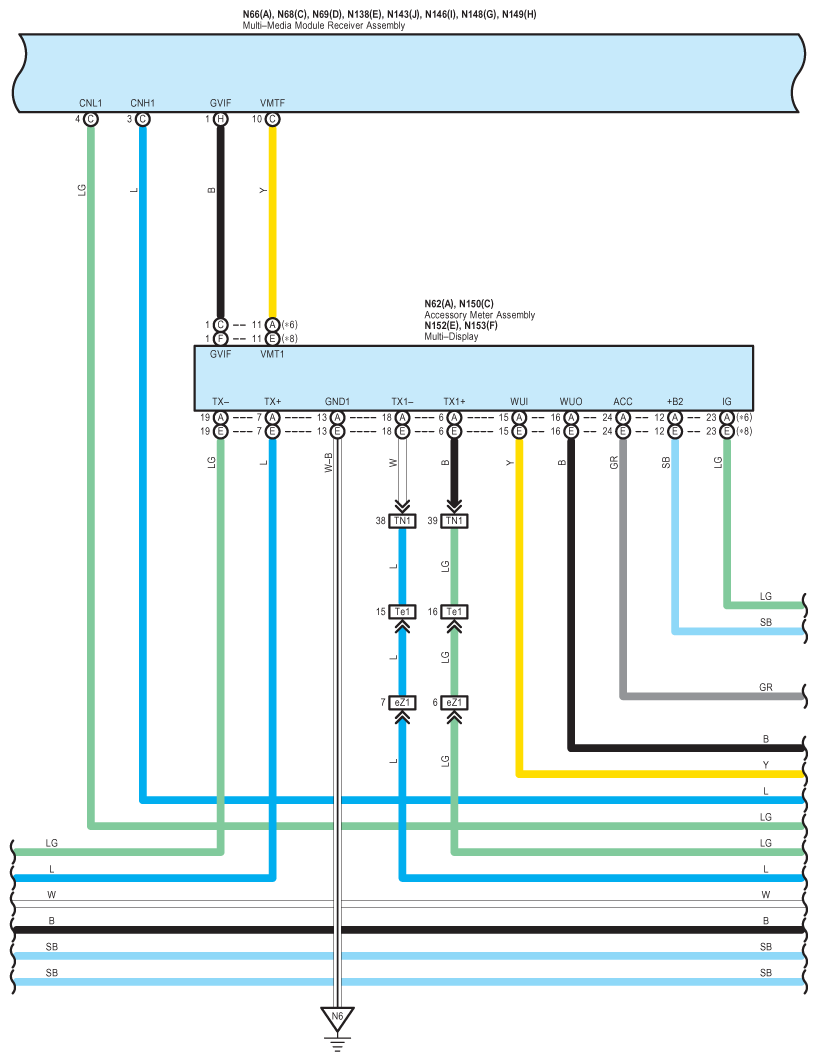

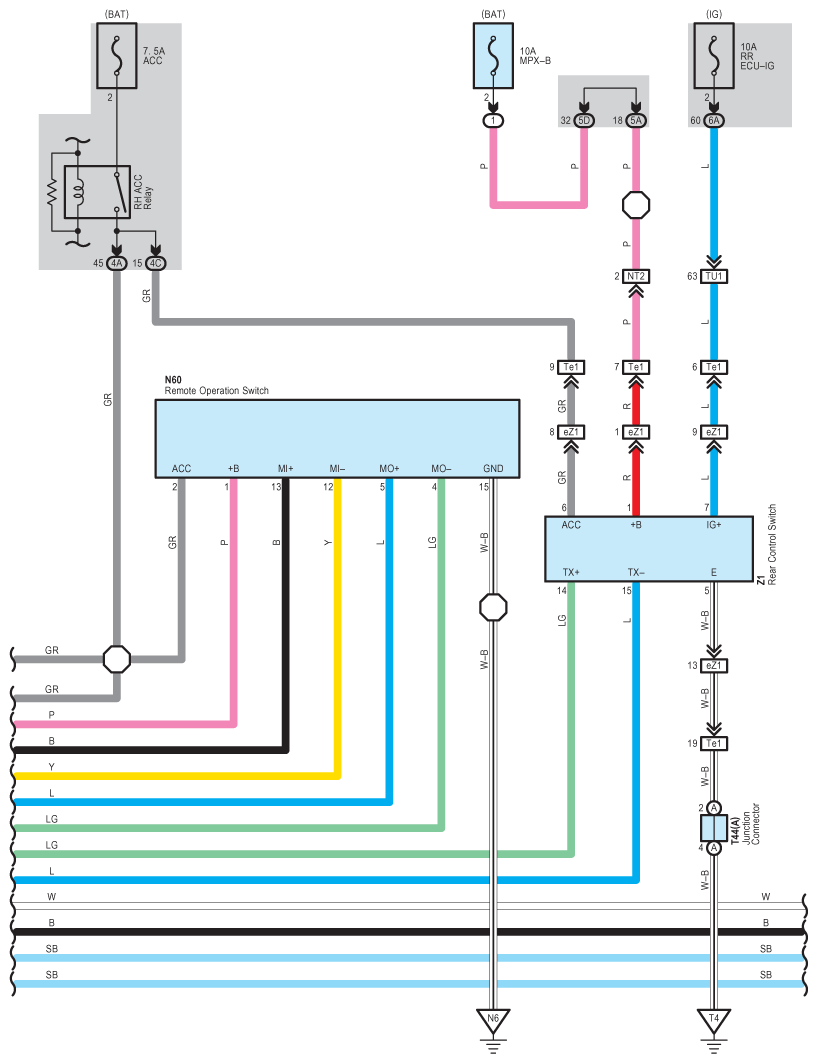

Fig 8: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (12 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (13 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (14 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (15 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (16 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Audio, Lexus Navigation System, Multi-Display And Parking Assist Wiring Diagram (17 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
