Lexus
>>
2013
>>
GS 450h
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Automatic Light Control, Light Auto Turn Off System and Light Reminder
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Light Control, Light Auto Turn Off System and Light Reminder: Notes

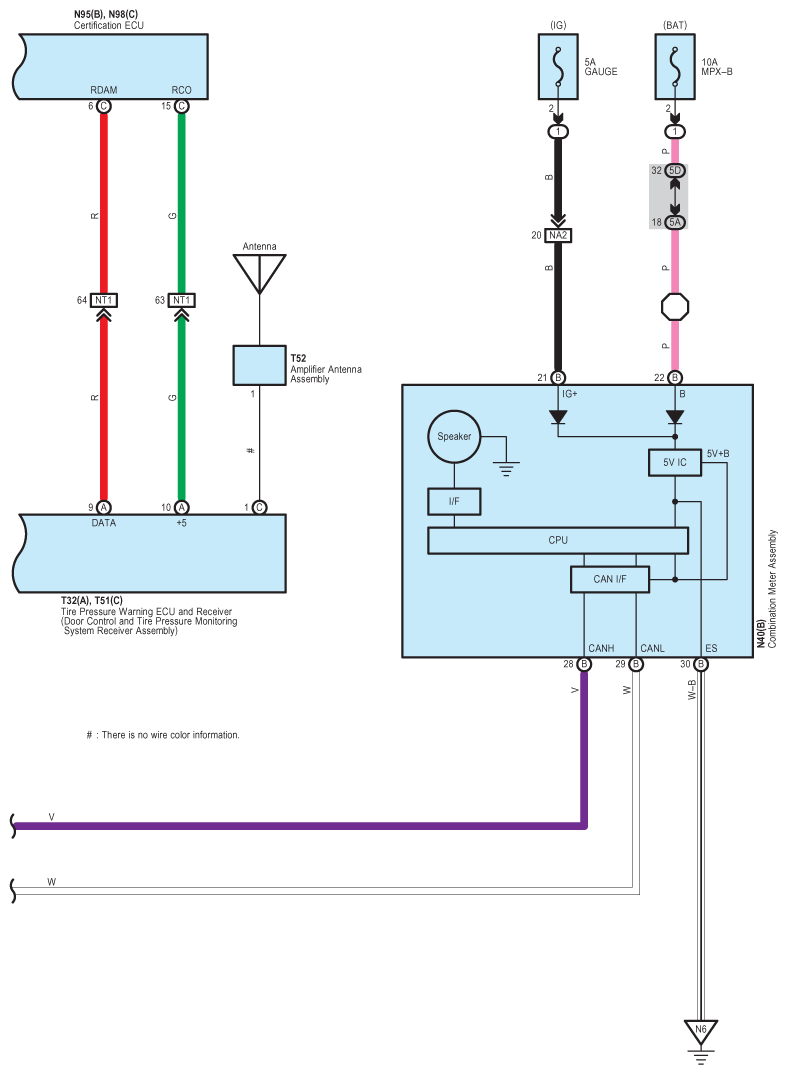

Fig 1: Automatic Light Control, Turn Off System And Light Reminder Wiring Diagram (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

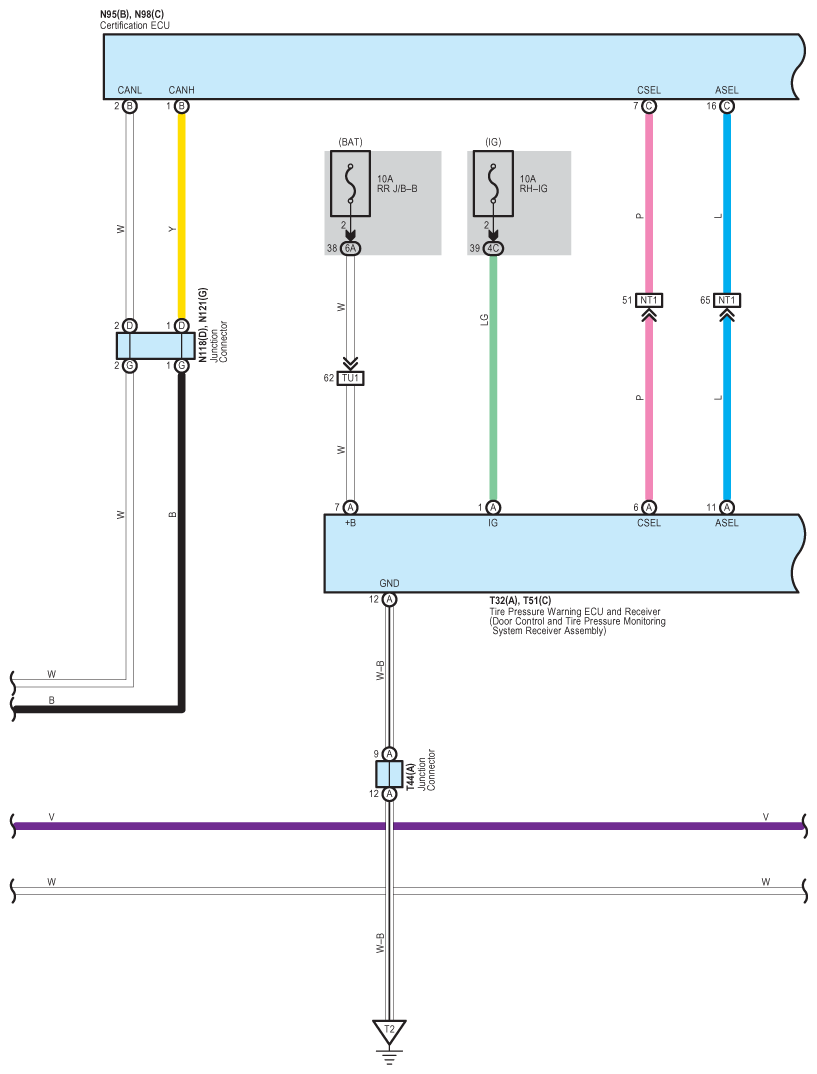

Fig 2: Automatic Light Control, Turn Off System And Light Reminder Wiring Diagram (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

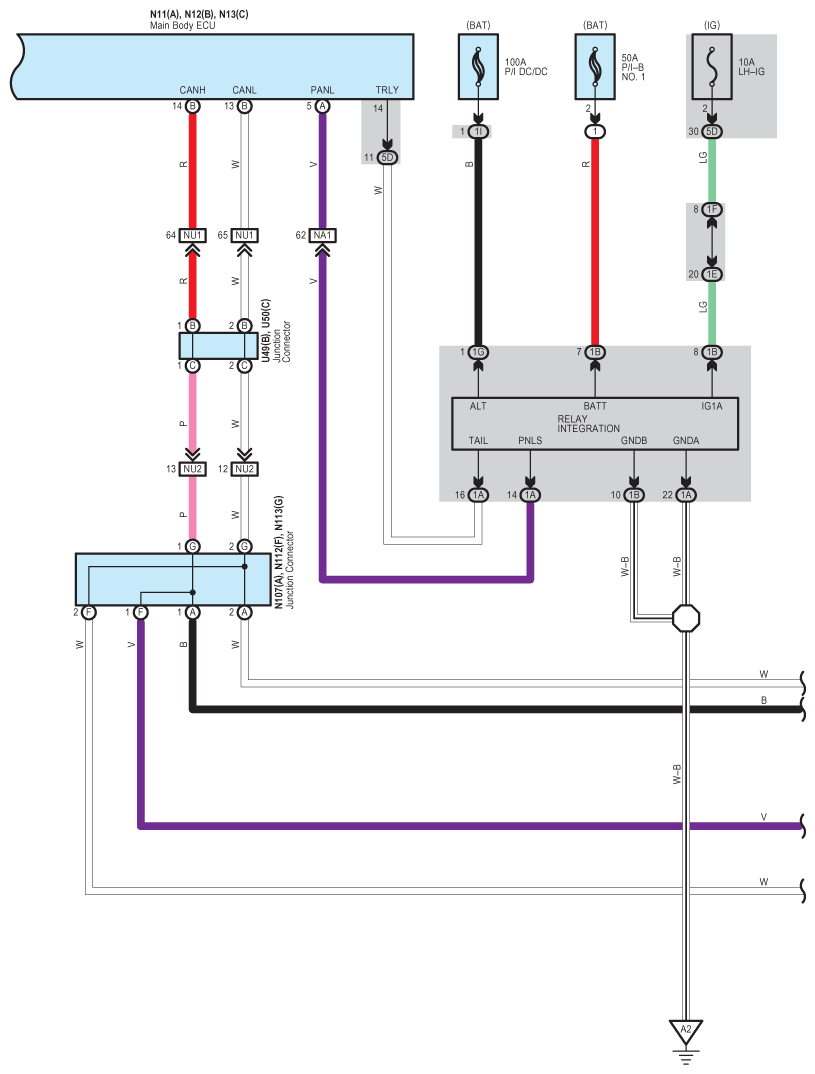

Fig 3: Automatic Light Control, Turn Off System And Light Reminder Wiring Diagram (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

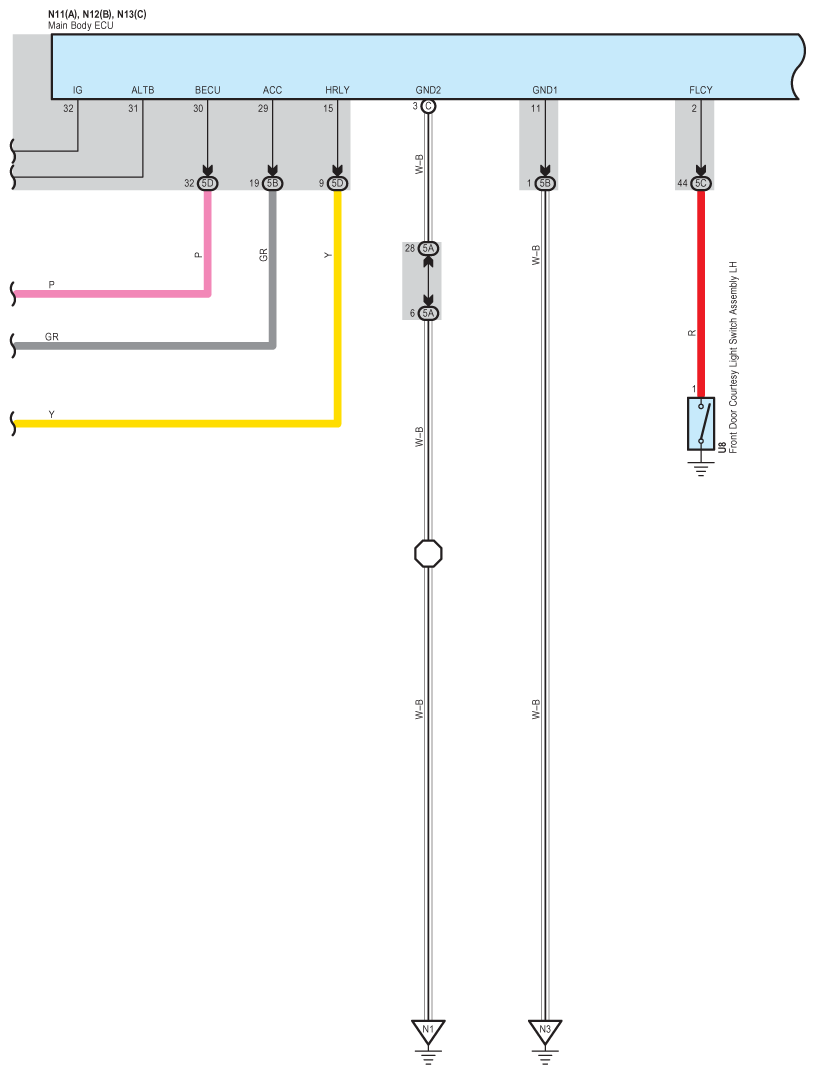

Fig 4: Automatic Light Control, Turn Off System And Light Reminder Wiring Diagram (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

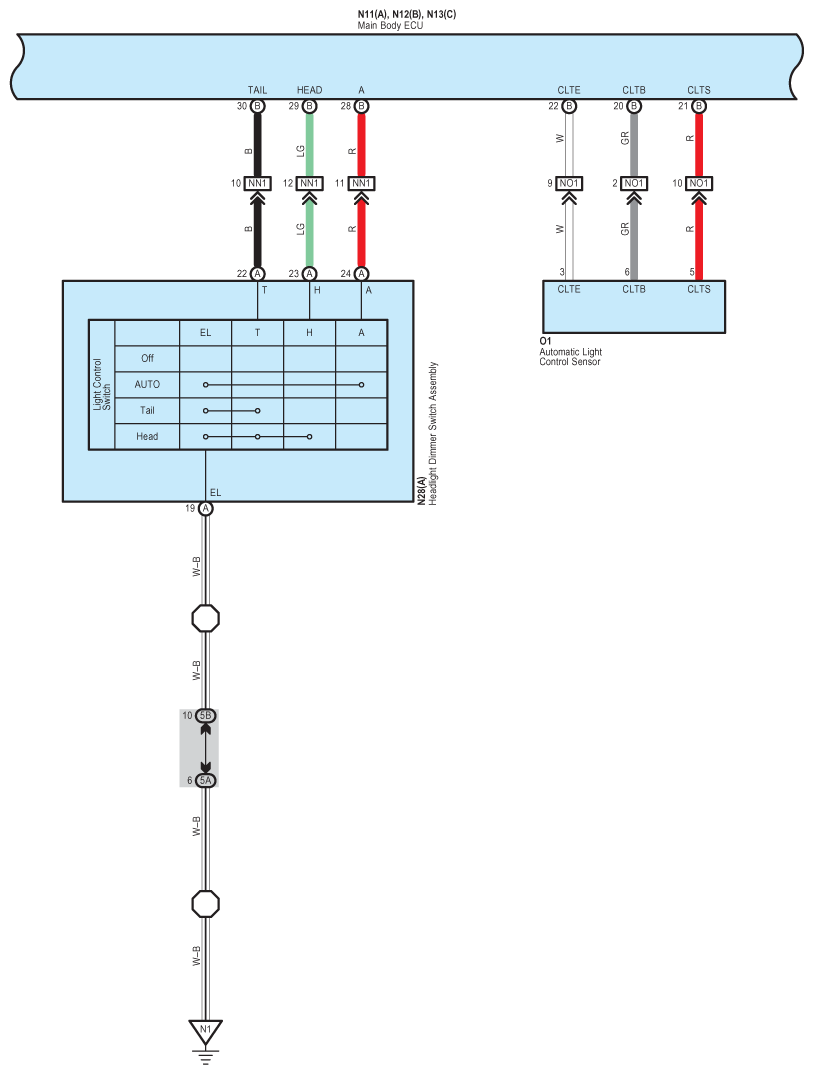

Fig 5: Automatic Light Control, Turn Off System And Light Reminder Wiring Diagram (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

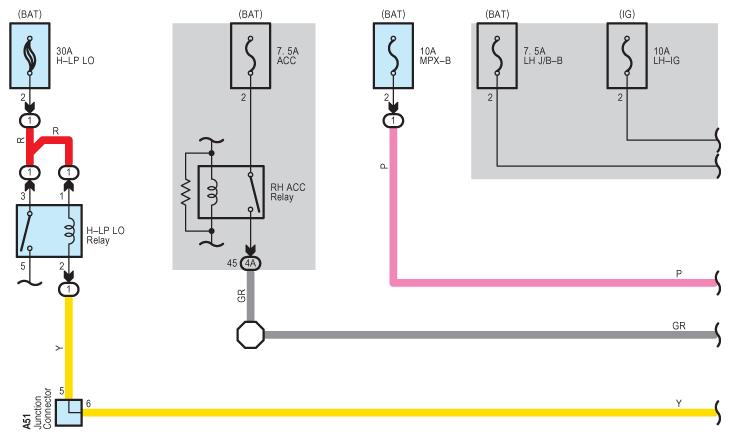

Fig 6: Automatic Light Control, Turn Off System And Light Reminder Wiring Diagram (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
