Power Door Lock Control System (Diagnostics - Introduction)
>>
Power Door Lock Control System
>>
System Diagram [06/2012 - ]
>>
System Diagram [06/2012 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [06/2012 - ]

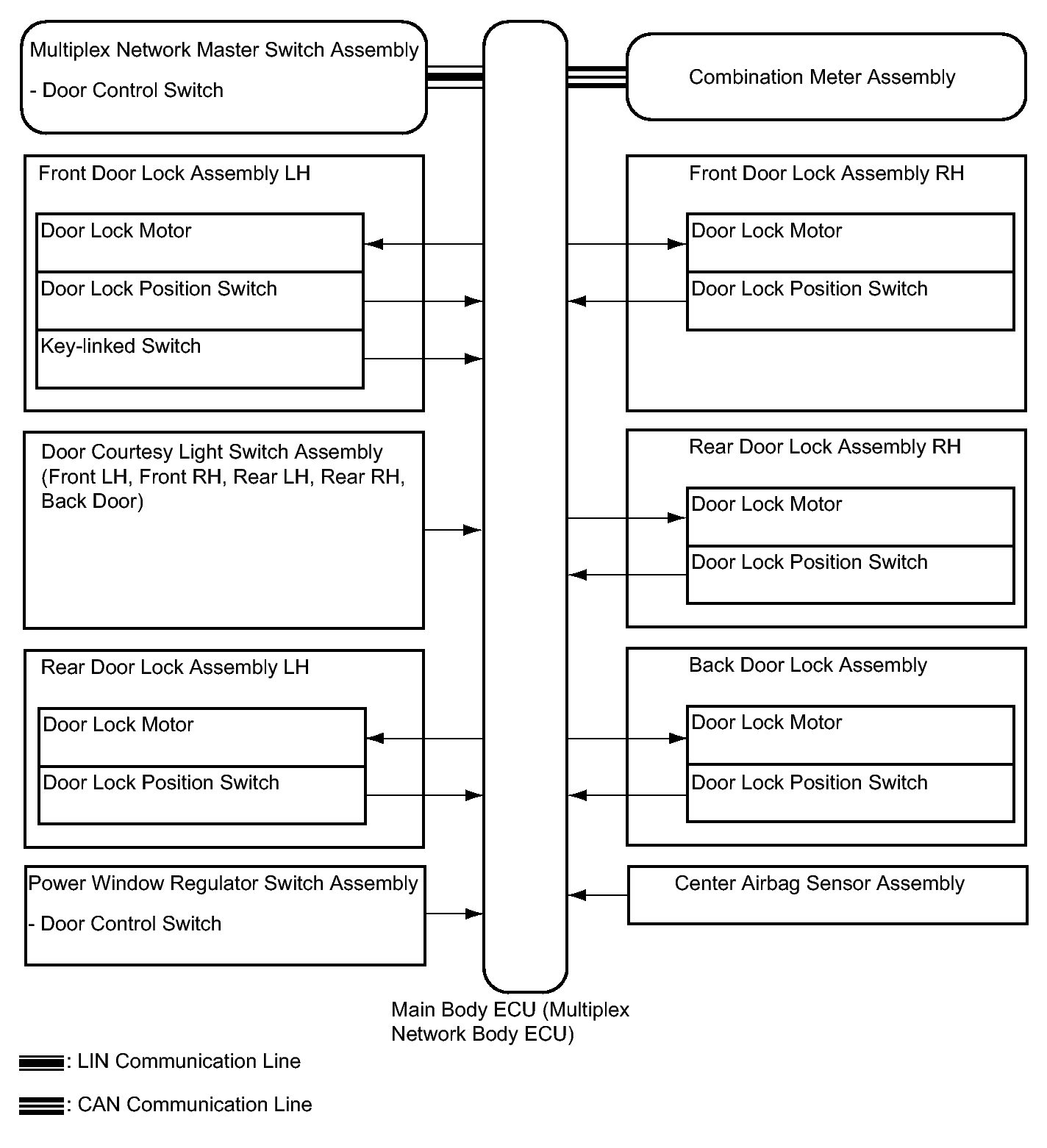

Fig 1: Power Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Communication Method
Multiplex network master switch assembly
Main body ECU (Multiplex network body ECU)
Driver side door manual lock switch signal
LIN
Combination meter assembly
Main body ECU (Multiplex network body ECU)
Vehicle speed signal
CAN
