System Diagram [06/2012 - ]

  1. MOST NETWORK COMMUNICATION LINE

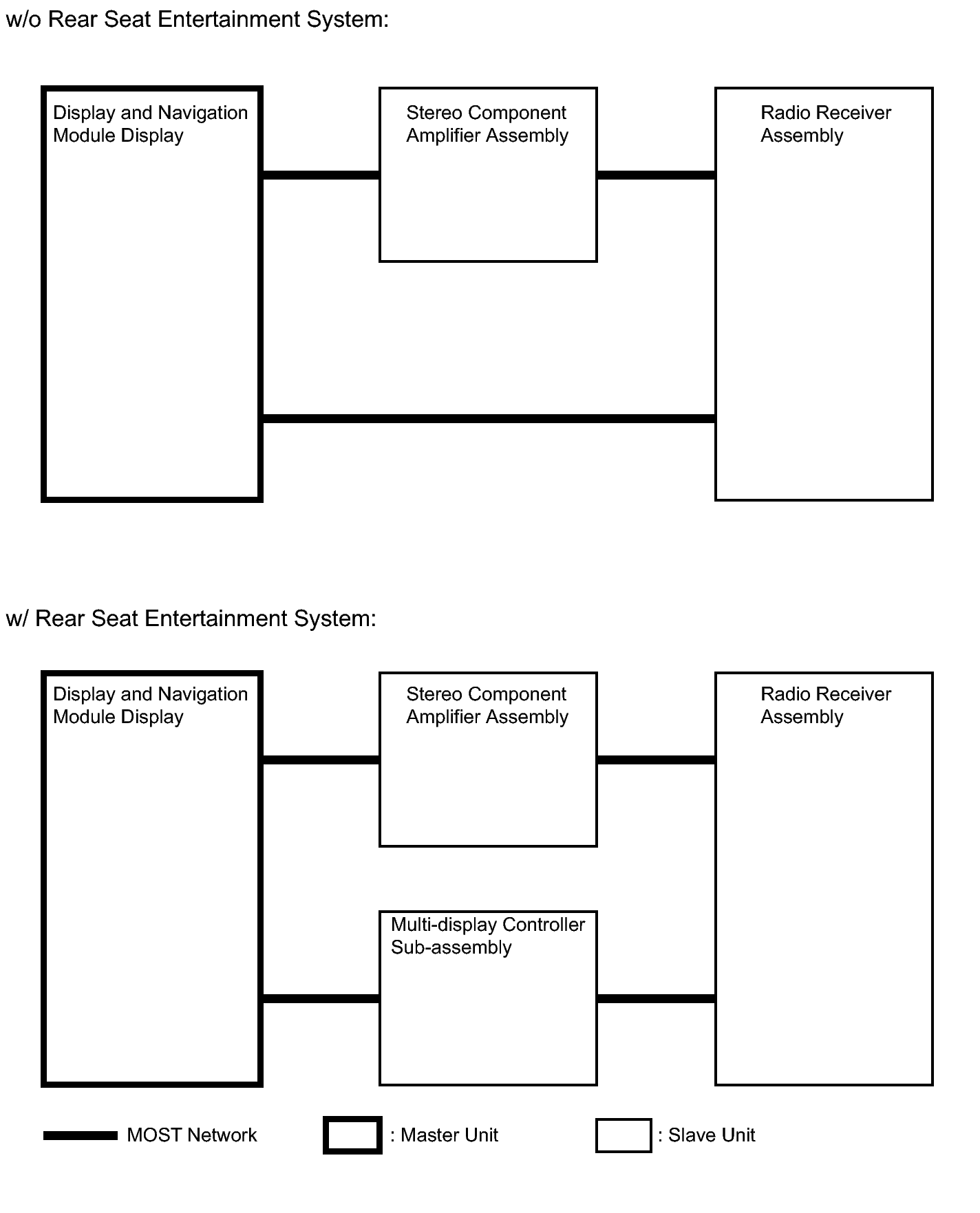

    Fig 1: Most Network Communication Line System Diagram (1 Of 2)
    GTY281366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN COMMUNICATION LINE

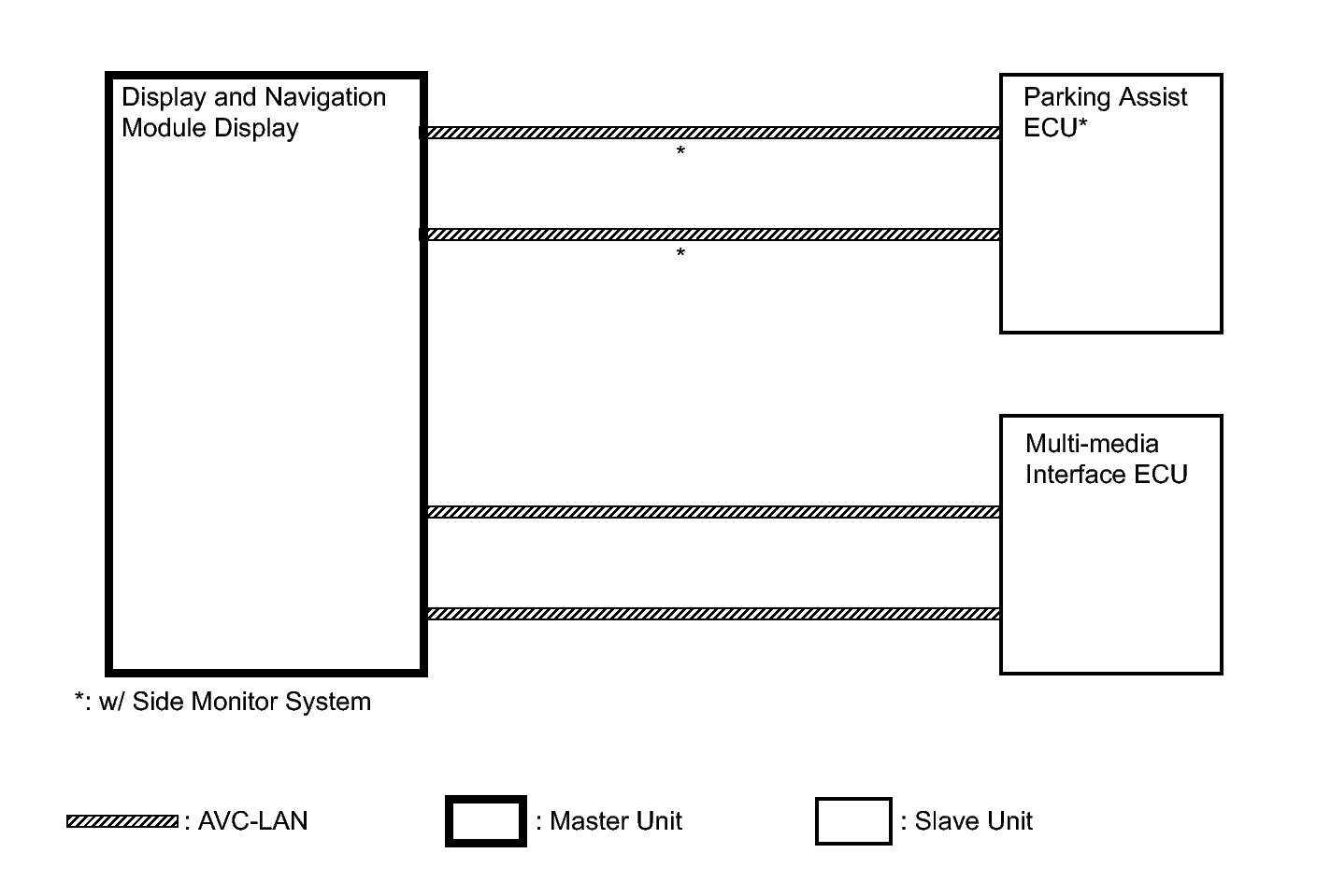

    Fig 2: AVC-LAN Communication Line System Diagram
    GTY270074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. OTHER
    1. w/ Rear Seat Entertainment System

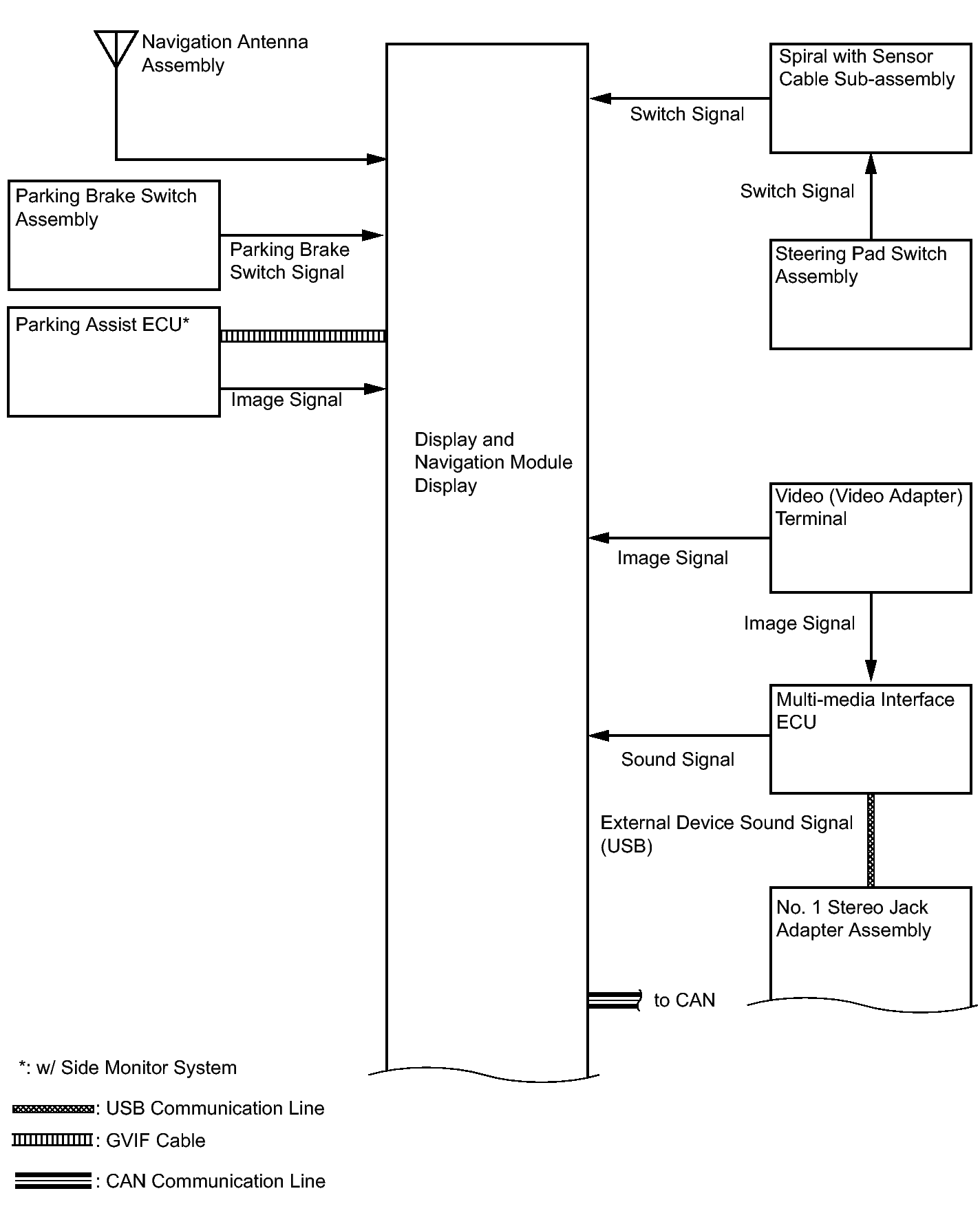

      Fig 3: Navigation System w/ Rear Seat Entertainment System Diagram (1 Of 2)
      GTY260728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

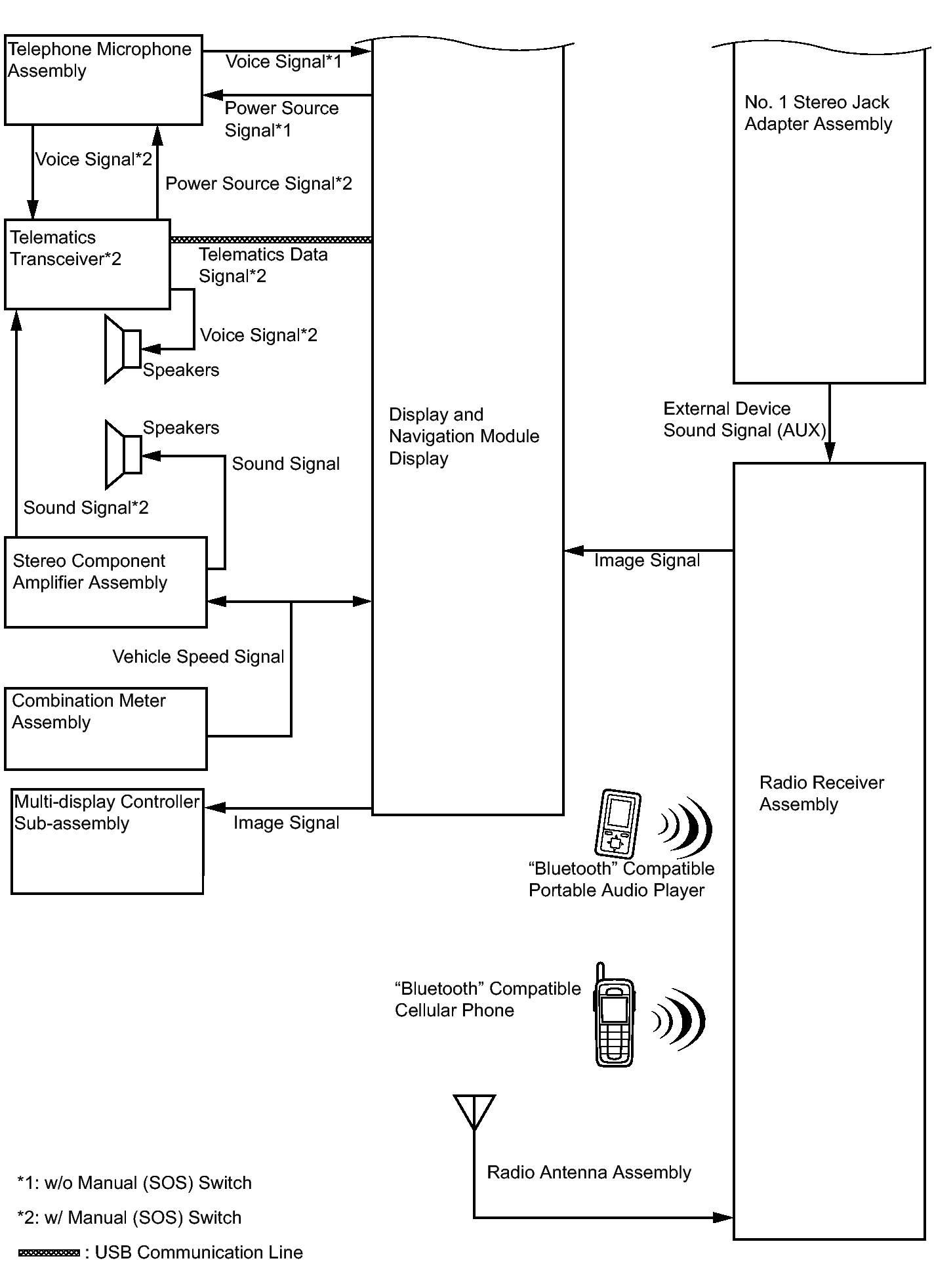

      Fig 4: Navigation System w/ Rear Seat Entertainment System Diagram (2 Of 2)
      GTY266350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Rear Seat Entertainment System

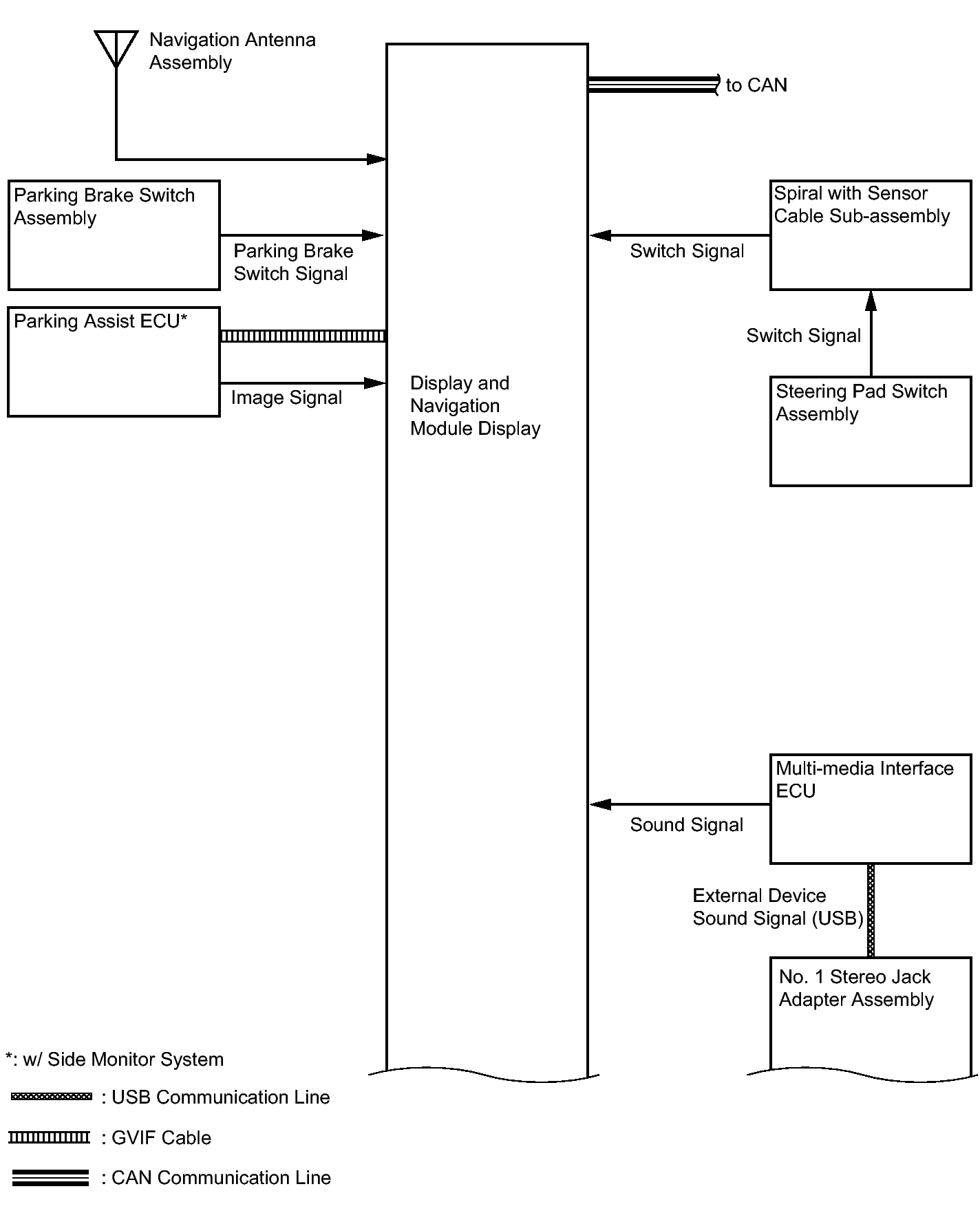

      Fig 5: Navigation System w/o Rear Seat Entertainment System Diagram (1 Of 2)
      GTY267137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

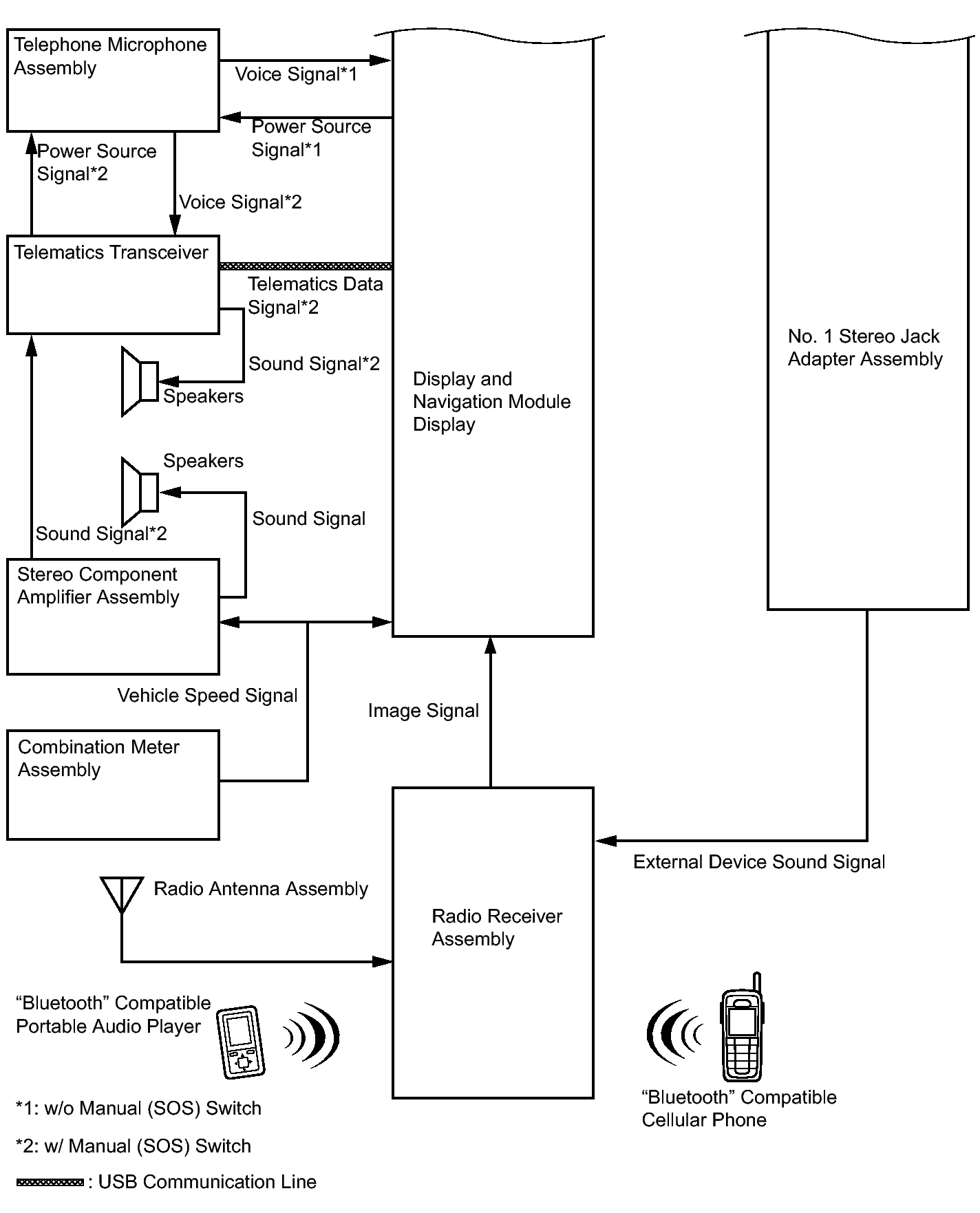

      Fig 6: Navigation System w/o Rear Seat Entertainment System Diagram (2 Of 2)
      GTY285525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
