DTC B2312: Power Window Switch Malfunction: Procedure

1. Clear the DTC. Refer to DTC CHECK / CLEAR [06/2012 - ] .
2. Check for DTCs. Refer to DTC CHECK / CLEAR [06/2012 - ] .
   RESULT



   Result	Proceed to
   No DTCs output	A
   DTC B2312 is output	C

NG → See step   2

OK → END (DTC WAS STORED DUE TO SWITCH BEING OPERATED FOR 20 SECONDS OR MORE)

1. Check the parts which the DTCs have been output from.
   RESULT



   Result	Proceed to
   DTC output from multiplex network master switch	A
   DTC output from front power window regulator motor LH	B
   DTC output from front power window regulator motor RH	C
   DTC output from rear power window regulator motor LH	D
   DTC output from rear power window regulator motor RH	E

B → See step   3

C → See step   5

D → See step   8

E → See step   11

A → See step   14

1. Use the Data List to check if the power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .
   D-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D Door P/W Up SW	Driver side power window manual up signal / ON or OFF	ON: Driver side power window manual up switch operated OFF: Driver side power window switch not operated	-
   D Door P/W Down SW	Driver side power window manual down signal / ON or OFF	ON: Driver side power window manual down switch operated OFF: Driver side power window switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

NG → See step   4

OK → See step   18

1. Disconnect the K3 multiplex network master switch connector.
2. Disconnect the K6 power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K3-20 (UP) - K6-10 (UP)	Always	Below 1 Ω
   K3-15 (DOWN) - K6-7 (DOWN)	Always	Below 1 Ω
   K3-20 (UP) - Body ground	Always	10 kΩ or higher
   K3-15 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   18

1. Use the Data List to check if the power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Auto SW	Front passenger side power window auto up/down signal / ON or OFF	ON: Front passenger side power window auto up/down switch operated OFF: Front passenger side power window regulator switch not operated	-
   P Door P/W Up SW	Front passenger side power window manual up signal / ON or OFF	ON: Front passenger side power window manual up switch operated OFF: Front passenger side power window regulator switch not operated	-
   P Door P/W Down SW	Front passenger side power window manual down signal / ON or OFF	ON: Front passenger side power window manual down switch operated OFF: Front passenger side power window regulator switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

NG → See step   6

OK → See step   19

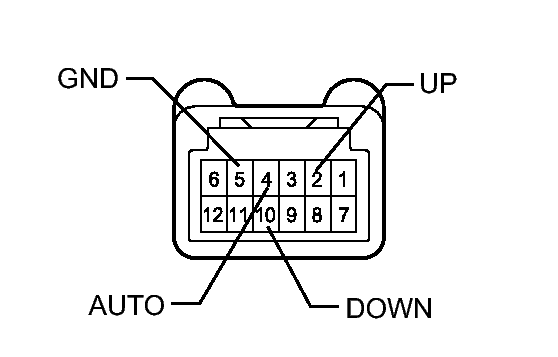

1. Remove the power window regulator switch. Refer to REMOVAL [06/2012 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Switch Condition	Specified Condition
   2 (UP) - 5 (GND)	Manual up operation	Below 1 Ω
   10 (DOWN) - 5 (GND)	Manual down operation	Below 1 Ω
   4 (AUTO) - 5 (GND)	Auto up/down operation	Below 1 Ω
   2 (UP) - 5 (GND)	Not operated	10 kΩ or higher
   10 (DOWN) - 5 (GND)	Not operated	10 kΩ or higher
   4 (AUTO) - 5 (GND)	Not operated	10 kΩ or higher

NG → See step   15

OK: Go to next step

1. Disconnect the J1 power window regulator switch connector.
2. Disconnect the J6 power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J1-2 (UP) - J6-10 (UP)	Always	Below 1 Ω
   J1-10 (DOWN) - J6-7 (DOWN)	Always	Below 1 Ω
   J1-4 (AUTO) - J6-4 (AUTO)	Always	Below 1 Ω
   J1-2 (UP) - Body ground	Always	10 kΩ or higher
   J1-10 (DOWN) - Body ground	Always	10 kΩ or higher
   J1-4 (AUTO) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   19

1. Use the Data List to check if the power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .
   RL-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RL Door P/W Auto SW	Rear power window LH auto up/down signal / ON or OFF	ON: Rear power window LH auto up/down switch operated OFF: Rear power window LH switch not operated	-
   RL Door P/W Up SW	Rear power window LH manual up signal / ON or OFF	ON: Rear power window LH manual up switch operated OFF: Rear power window LH switch not operated	-
   RL Door P/W Down SW	Rear power window LH manual down signal / ON or OFF	ON: Rear power window LH manual down switch operated OFF: Rear power window LH switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

NG → See step   9

OK → See step   20

1. Remove the rear power window regulator switch. Refer to REMOVAL [06/2012 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Switch Condition	Specified Condition
   2 (UP) - 5 (GND)	Manual up operation	Below 1 Ω
   10 (DOWN) - 5 (GND)	Manual down operation	Below 1 Ω
   4 (AUTO) - 5 (GND)	Auto up/down operation	Below 1 Ω
   2 (UP) - 5 (GND)	Not operated	10 kΩ or higher
   10 (DOWN) - 5 (GND)	Not operated	10 kΩ or higher
   4 (AUTO) - 5 (GND)	Not operated	10 kΩ or higher

NG → See step   16

OK: Go to next step

1. Disconnect the M2 rear power window regulator switch connector.
2. Disconnect the M4 rear power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   M2-2 (UP) - M4-10 (UP)	Always	Below 1 Ω
   M2-10 (DOWN) - M4-7 (DOWN)	Always	Below 1 Ω
   M2-4 (AUTO) - M4-4 (AUTO)	Always	Below 1 Ω
   M2-2 (UP) - Body ground	Always	10 kΩ or higher
   M2-10 (DOWN) - Body ground	Always	10 kΩ or higher
   M2-4 (AUTO) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   20

1. Use the Data List to check if the power window regulator motor is functioning properly.
   RR-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Auto SW	Rear power window RH auto up/down signal / ON or OFF	ON: Rear power window RH auto up/down switch operated OFF: Rear power window RH switch not operated	-
   RR Door P/W Up SW	Rear power window RH manual up signal / ON or OFF	ON: Rear power window RH manual up switch operated OFF: Rear power window RH switch not operated	-
   RR Door P/W Down SW	Rear power window RH manual down signal / ON or OFF	ON: Rear power window RH manual down switch operated OFF: Rear power window RH switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

NG → See step   12

OK → See step   21

1. Remove the rear power window regulator switch. Refer to REMOVAL [06/2012 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Switch Condition	Specified Condition
   2 (UP) - 5 (GND)	Manual up operation	Below 1 Ω
   10 (DOWN) - 5 (GND)	Manual down operation	Below 1 Ω
   4 (AUTO) - 5 (GND)	Auto up/down operation	Below 1 Ω
   2 (UP) - 5 (GND)	Not operated	10 kΩ or higher
   10 (DOWN) - 5 (GND)	Not operated	10 kΩ or higher
   4 (AUTO) - 5 (GND)	Not operated	10 kΩ or higher

NG → See step   17

OK: Go to next step

1. Disconnect the L2 rear power window regulator switch connector.
2. Disconnect the L4 rear power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   L2-2 (UP) - L4-10 (UP)	Always	Below 1 Ω
   L2-10 (DOWN) - L4-7 (DOWN)	Always	Below 1 Ω
   L2-4 (AUTO) - L4-4 (AUTO)	Always	Below 1 Ω
   L2-2 (UP) - Body ground	Always	10 kΩ or higher
   L2-10 (DOWN) - Body ground	Always	10 kΩ or higher
   L2-4 (AUTO) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   21
