Driver Side Power Window does not Operate with Power Window Master Switch: Procedure

1. Check if DTC B2312 is output. Refer to DTC B2312: Power Window Switch Malfunction .

   OK

   DTC B2312 is not output.

NG → See step   9

OK: Go to next step

1. Use the Data List to check if the multiplex network master switch is functioning properly. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .
   D-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D Door P/W Up SW	Driver side power window manual up signal / ON or OFF	ON: Driver side power window manual up switch operated OFF: Driver side power window switch not operated	-
   D Door P/W Down SW	Driver side power window manual down signal / ON or OFF	ON: Driver side power window manual down switch operated OFF: Driver side power window switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

NG → See step   4

OK: Go to next step

1. Select the Active Test, use the Techstream to generate a control command, and then check that power window regulator motor operates. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .
   D-DOOR MOTOR



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Passenger side power window	OFF/UP/DOWN	-

   OK

   The power window regulator motor operates normally.

NG → See step   11

OK → See step   12

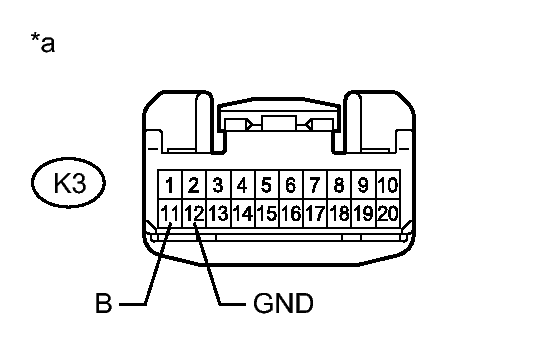

1. Disconnect the K3 multiplex network master switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.
   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   K3-11 (B) - Body ground	Always	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K3-12 (GND) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multiplex Network Master Switch Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

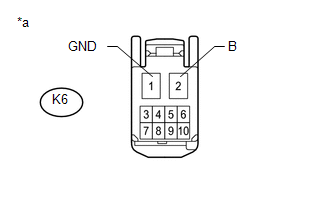

1. Disconnect the K6 power window regulator motor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.
   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   K6-2 (B) - Body ground	Always	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K6-1 (GND) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Front Power Window Regulator Motor Assembly LH)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the K3 multiplex network master switch connector.
2. Disconnect the K6 power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   K3-20 (UP) - K6-10 (UP)	Always	Below 1 Ω
   K3-15 (DOWN) - K6-7 (DOWN)	Always	Below 1 Ω
   K3-20 (UP) - Body ground	Always	10 kΩ or higher
   K3-15 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

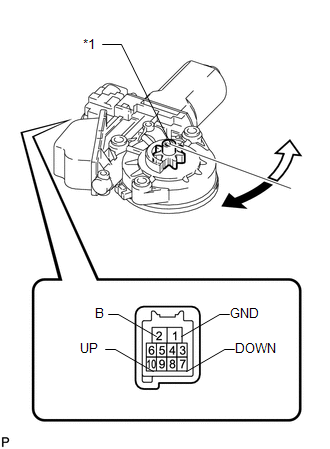

1. Remove the front power window regulator motor LH. Refer to REMOVAL [06/2012 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Check that the window regulator motor moves smoothly as follows.
   NOTE:

   • Do not apply positive (+) battery voltage to any terminal other than terminal 2 (B) to avoid damaging the pulse sensor inside the motor.

   • Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor to the door.
   OK



   Measurement Condition	Specified Condition
   Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 10 (UP). Disconnect and reconnect the negative (-) battery terminal to terminal 10 (UP) within 1 second.	Motor gear rotates clockwise (Up)
   Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 7 (DOWN). Disconnect and reconnect the negative (-) battery terminal to terminal 7 (DOWN) within 1 second.	Motor gear rotates counterclockwise (Down)

   TEXT IN ILLUSTRATION



   *1	Motor Gear
   	Clockwise
   	Counterclockwise

NG → See step   10

OK → See step   8
