Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure
- CHECK FOR DTC (B2312)
- Check if DTC B2312 is output. Refer to DTC B2312: Power Window Switch Malfunction .
OK
DTC B2312 is not output.
NG → See step 9
OK: Go to next step
- Check if DTC B2312 is output. Refer to DTC B2312: Power Window Switch Malfunction .
- READ VALUE USING TECHSTREAM (POWER WINDOW REGULATOR SWITCH RH)
- Use the Data List to check if the front power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [06/2012 - ]
.P-DOOR MOTOR
Tester Display Measurement Item/Range Normal Condition Diagnostic Note P Door P/W Up SW Front passenger side power window manual up signal / ON or OFF ON: Front passenger side power window manual up switch operated
OFF: Front passenger side power window regulator switch not operated- P Door P/W Down SW Front passenger side power window manual down signal / ON or OFF ON: Front passenger side power window manual down switch operated
OFF: Front passenger side power window regulator switch not operated- OK
On tester screen, each item changes between ON and OFF according to above chart.
NG → See step 4
OK: Go to next step
- Use the Data List to check if the front power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [06/2012 - ]
.
- PERFORM ACTIVE TEST USING TECHSTREAM (POWER WINDOW)
- Select the Active Test, use the Techstream to generate a control command, and then check that power window regulator motor operates. Refer to DATA LIST / ACTIVE TEST [06/2012 - ]
.P-DOOR MOTOR
Tester Display Test Part Control Range Diagnostic Note Power Window Passenger side power window OFF/UP/DOWN - OK
The power window regulator motor operates normally.
NG → See step 8
OK → See step 11
- Select the Active Test, use the Techstream to generate a control command, and then check that power window regulator motor operates. Refer to DATA LIST / ACTIVE TEST [06/2012 - ]
.
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
- Remove the power window regulator switch. Refer to REMOVAL [06/2012 - ]
.
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Switch Condition Specified Condition 2 (UP) - 5 (GND) Manual up operation Below 1 Ω 10 (DOWN) - 5 (GND) Manual down operation Below 1 Ω 2 (UP) - 5 (GND) Not operated 10 kΩ or higher 10 (DOWN) - 5 (GND) Not operated 10 kΩ or higher
NG → See step 10
OK: Go to next step
- Remove the power window regulator switch. Refer to REMOVAL [06/2012 - ]
.
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY RH - BODY GROUND)
- Disconnect the J1 power window regulator switch connector.
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE

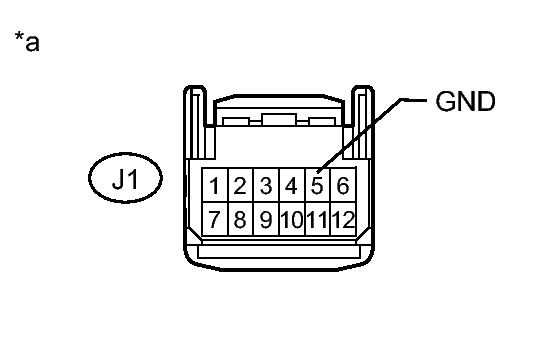

Tester Connection Condition Specified Condition J1-5 (GND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Power Window Regulator Switch Assembly RH)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the J1 power window regulator switch connector.
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY RH - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
- Disconnect the J1 power window regulator switch connector.
- Disconnect the J6 power window regulator motor connector.
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Condition J1-2 (UP) - J6-10 (UP) Always Below 1 Ω J1-10 (DOWN) - J6-7 (DOWN) Always Below 1 Ω J1-2 (UP) - Body ground Always 10 kΩ or higher J1-10 (DOWN) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH - BATTERY AND BODY GROUND)
- Disconnect the J6 power window regulator motor connector.
- Measure the voltage according to the value(s) in the table below.STANDARD VOLTAGE
Tester Connection Condition Specified Condition J6-2 (B) - Body ground Always 11 to 14 V - Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Condition J6-1 (GND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Front Power Window Regulator Motor Assembly RH)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 8
- Disconnect the J6 power window regulator motor connector.
- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to REMOVAL [06/2012 - ]
- GO TO DTC B2312. Refer to DTC B2312: Power Window Switch Malfunction
- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY RH. Refer to REMOVAL [06/2012 - ]
- REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to REMOVAL [06/2012 - ]
