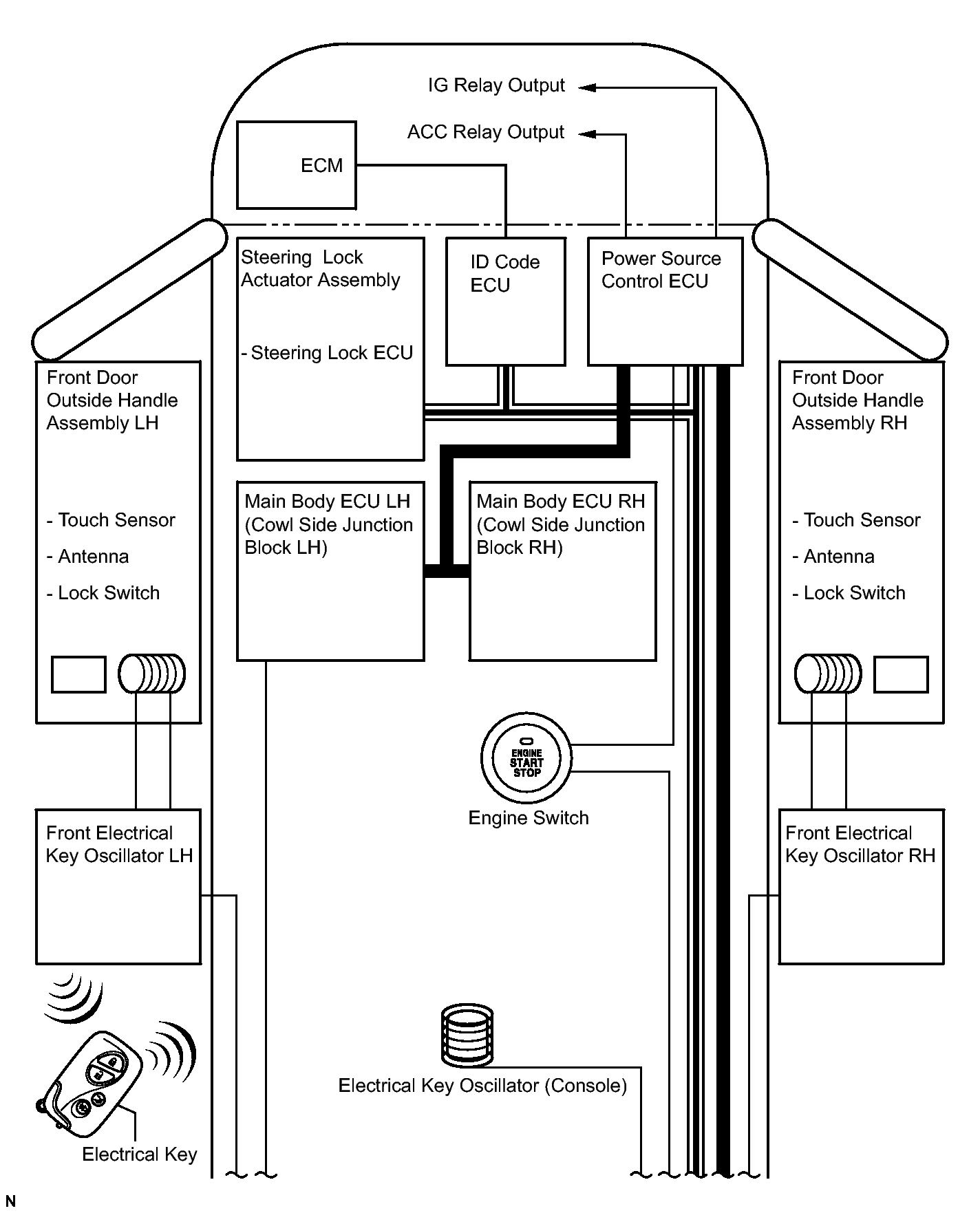

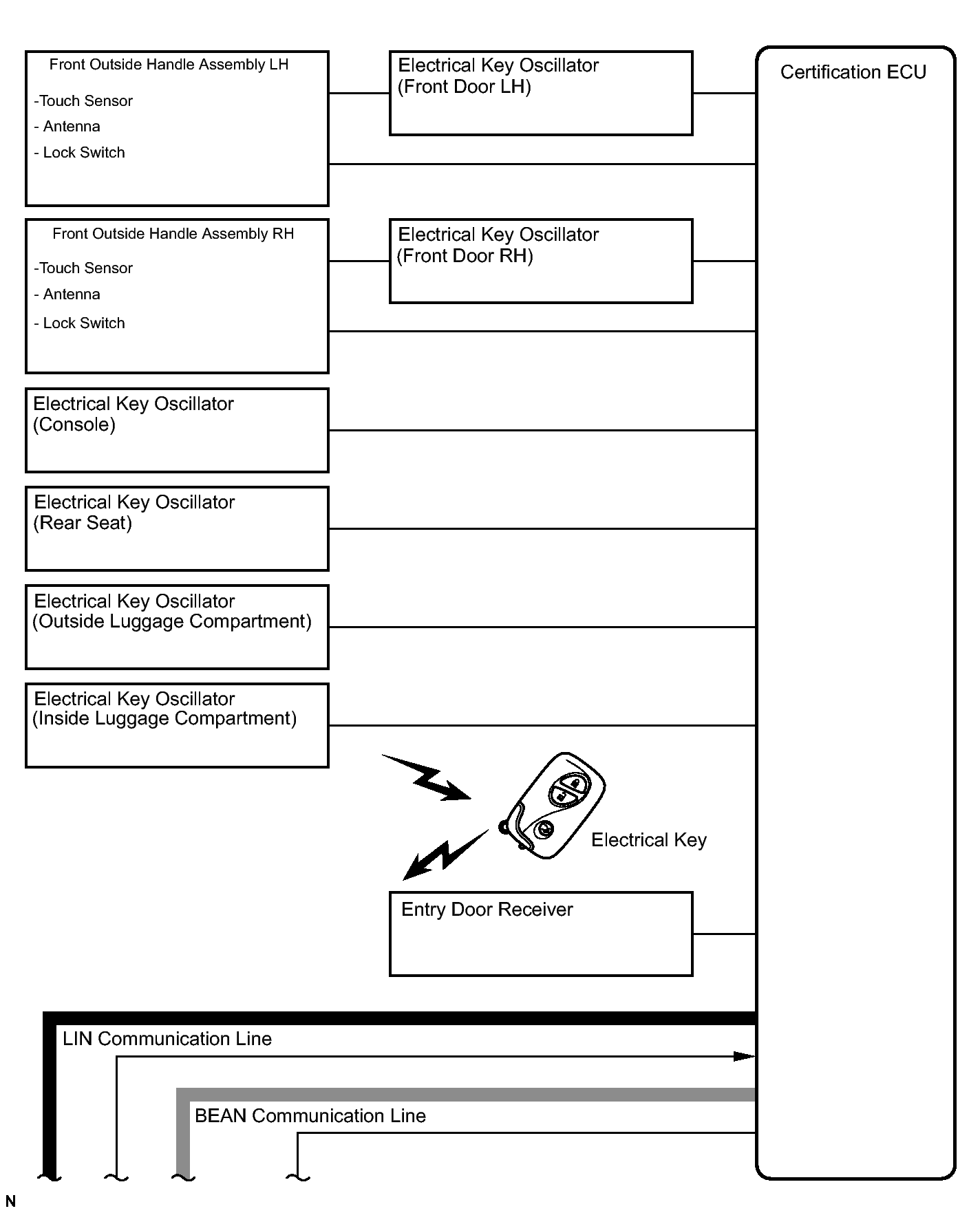

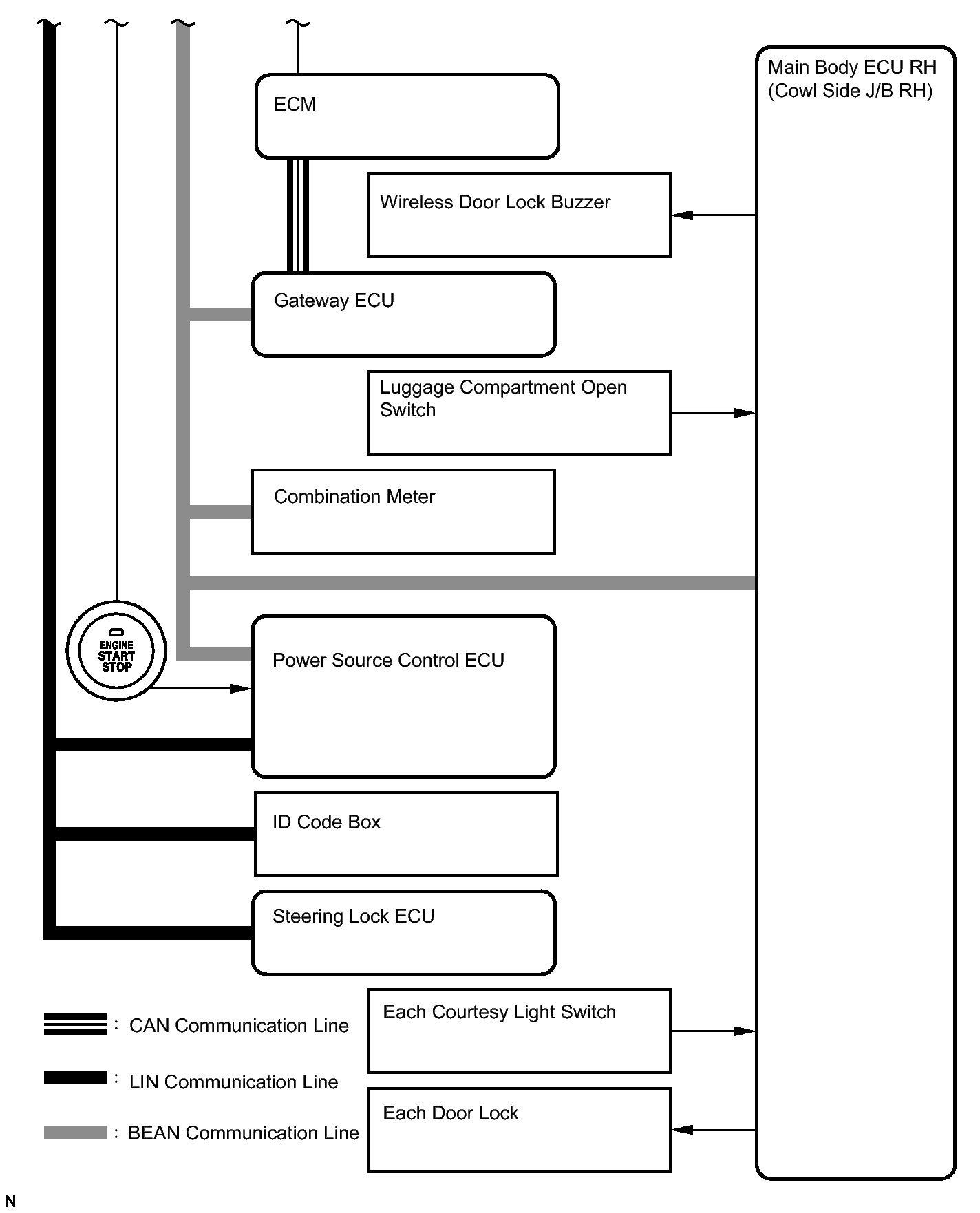

| Combination meter |
Certification ECU |
Vehicle speed signal |
BEAN |
| Power source control ECU |
Certification ECU |
- Alarm control signal
- Power source control ECU information
|
BEAN |
| Certification ECU |
Combination meter |
- Shift position warning signal
- "Single beep" sound control signal
- "Intermittent beep" sound control signal
- "Beep buzzer" sound control signal
|
BEAN |
| Main body ECU RH |
Certification ECU |
- Door lock/unlock position signal
- Courtesy light switch signal
- Alarm signal
- Destination signal
- Vehicle type handle signal
- Door electrical key operation switch signal
- Door lock output operate signal
- Wireless door lock/unlock signal
- DTC erase signal
- DTC response signal
|
BEAN |
| ECM |
Certification ECU |
Engine speed signal |
BEAN/CAN |
| ID code box |
Certification ECU |
- Matching request random number signal
- EEP ROM access malfunction
- Model code matching signal
- Model code mismatching signal
- ECM code receiving status
- Engine start permission request signal
- Engine start permission response signal
- S code matching result signal
- S code registration status signal
- S code registration mode signal
- L code matching result signal
- ECM communication signal
- The number of registered key response signal
- Diagnosis mode switching signal
- The number of registered key signal
|
LIN |
| Certification ECU |
ID code box |
- 3 bit code request signal
- ID code matching result signal
- The number of registered key signal
- Vehicle type handle signal
|
LIN |
| ID code box |
- Certification ECU
- Steering lock ECU
|
- L code registration mode signal
- Diagnosis mode request signal
- DTC clear request signal
- L code registration status signal
|
LIN |
| Steering lock ECU |
- Certification ECU
- ID code box
|
- Steering lock request signal
- Steering unlock signal
- Steering lock confirmation
- Steering unlock confirmation
- Diagnosis response signal
- Steering unlock drive relay signal
- Steering lock drive relay signal
- Steering lock motor operation signal
|
LIN |
| Power source control ECU |
Certification ECU |
- Shift position P signal
- Power ON operation status signal
- Engine starting status
- ACC relay operating status
- IG relay operating status
|
LIN |
| Power source control ECU |
Steering lock ECU |
Steering lock relay power supply status |
LIN |
| Steering lock ECU |
- Certification ECU
- Power source control ECU
|
- Steering lock catching malfunction signal
- Push button start malfunction signal
- Engine operation signal
|
LIN |
