Parts Location [08/2012 - ]: Illustration

WARNING: This page is about a different car, the 2013 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

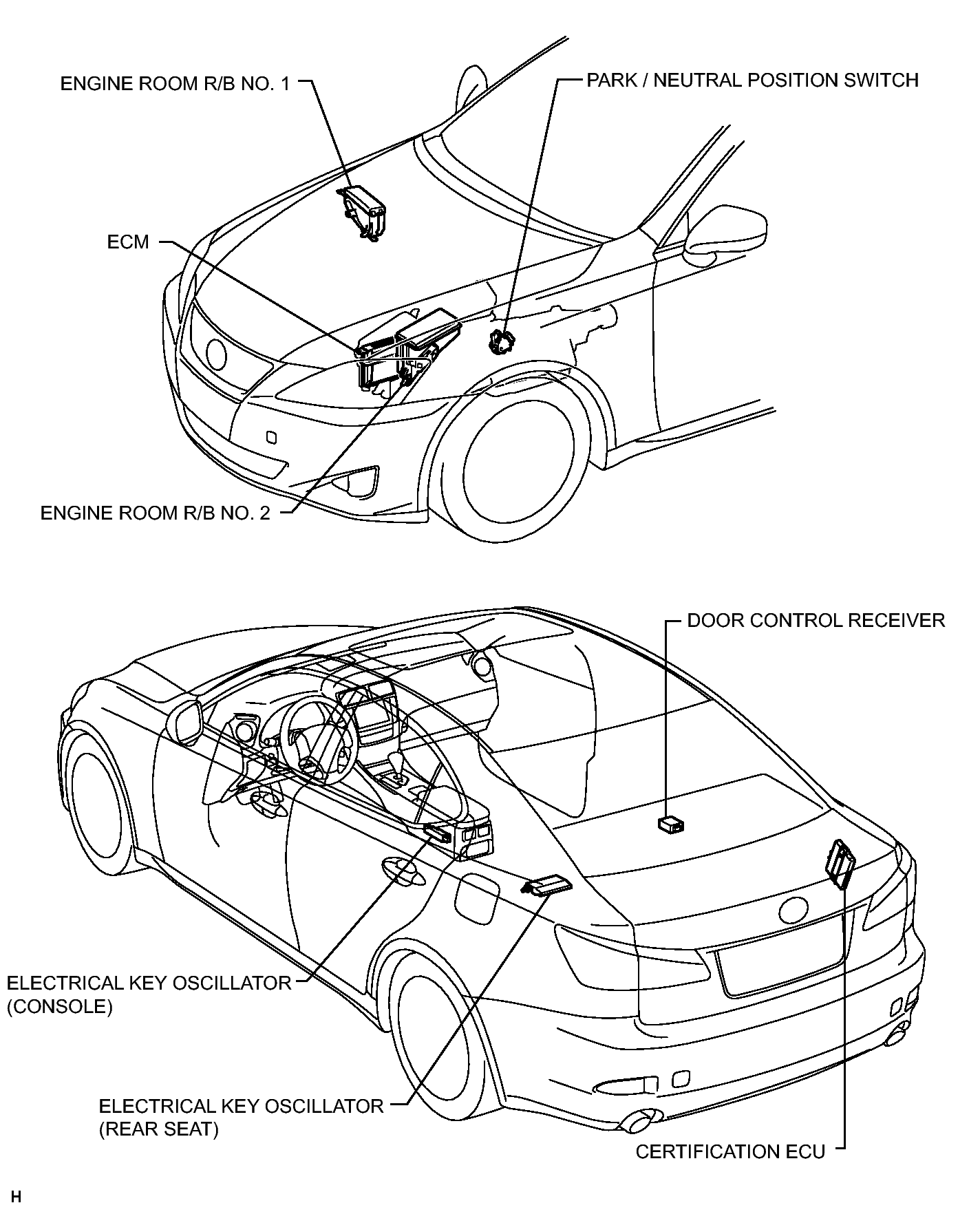

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (1 Of 2)
GTY407561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

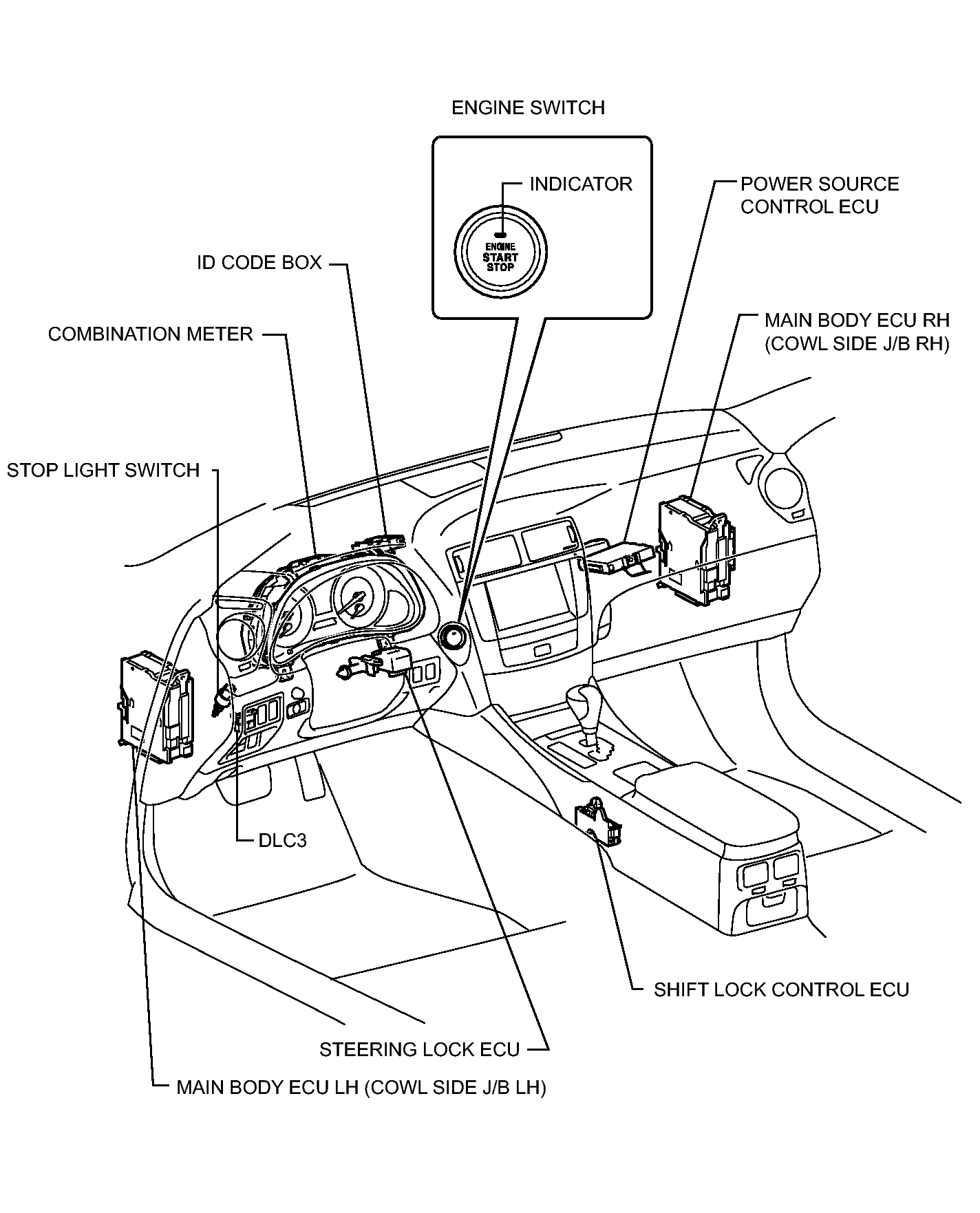

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (2 Of 2)
GTY405752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
