Parts Location [08/2012 - ]: Illustration

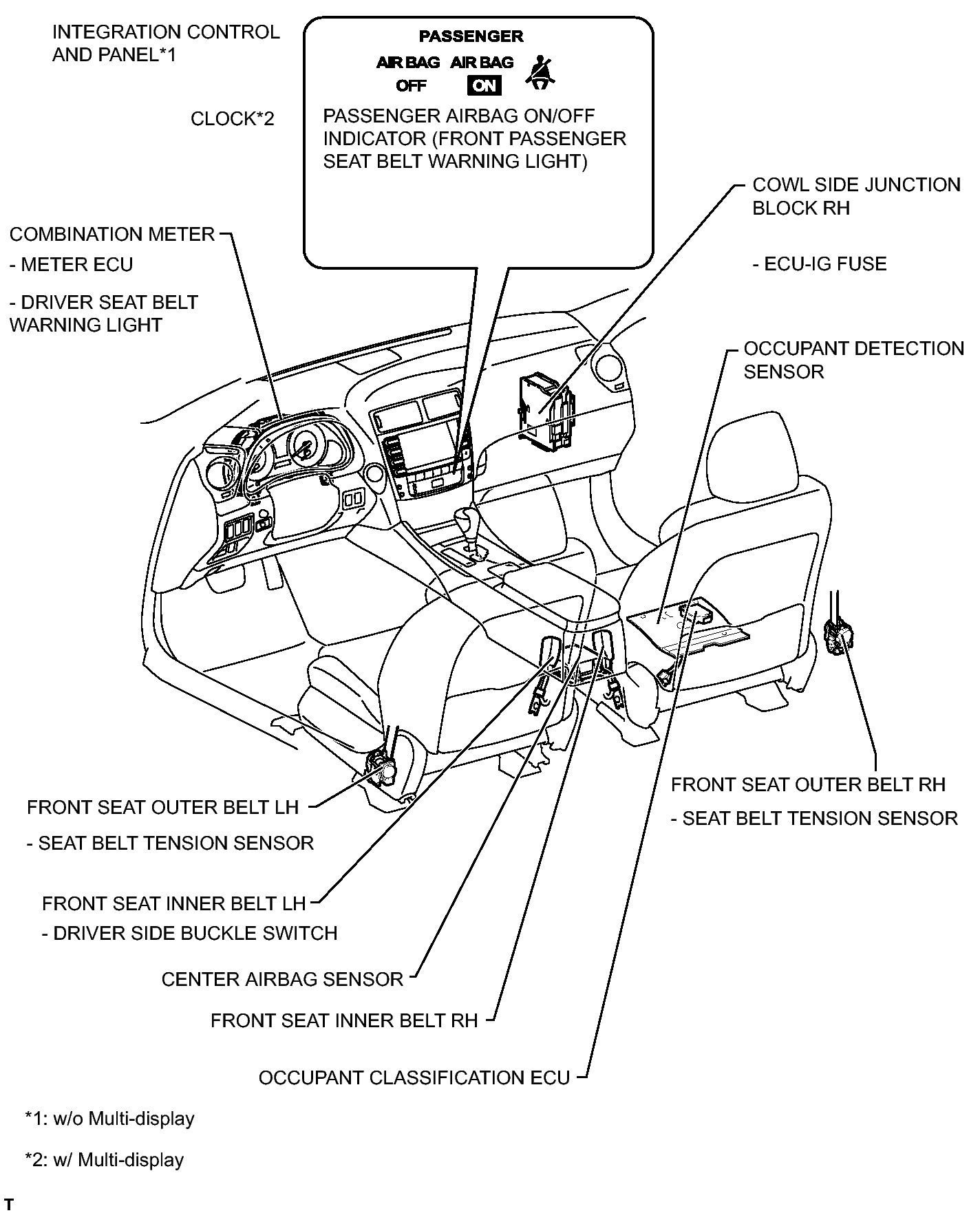

Fig 1: Identifying Seat Belt Warning System (W/ Occupant Classification System) Components Location
GTY395022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
