VC Output Circuit: Wiring Diagram

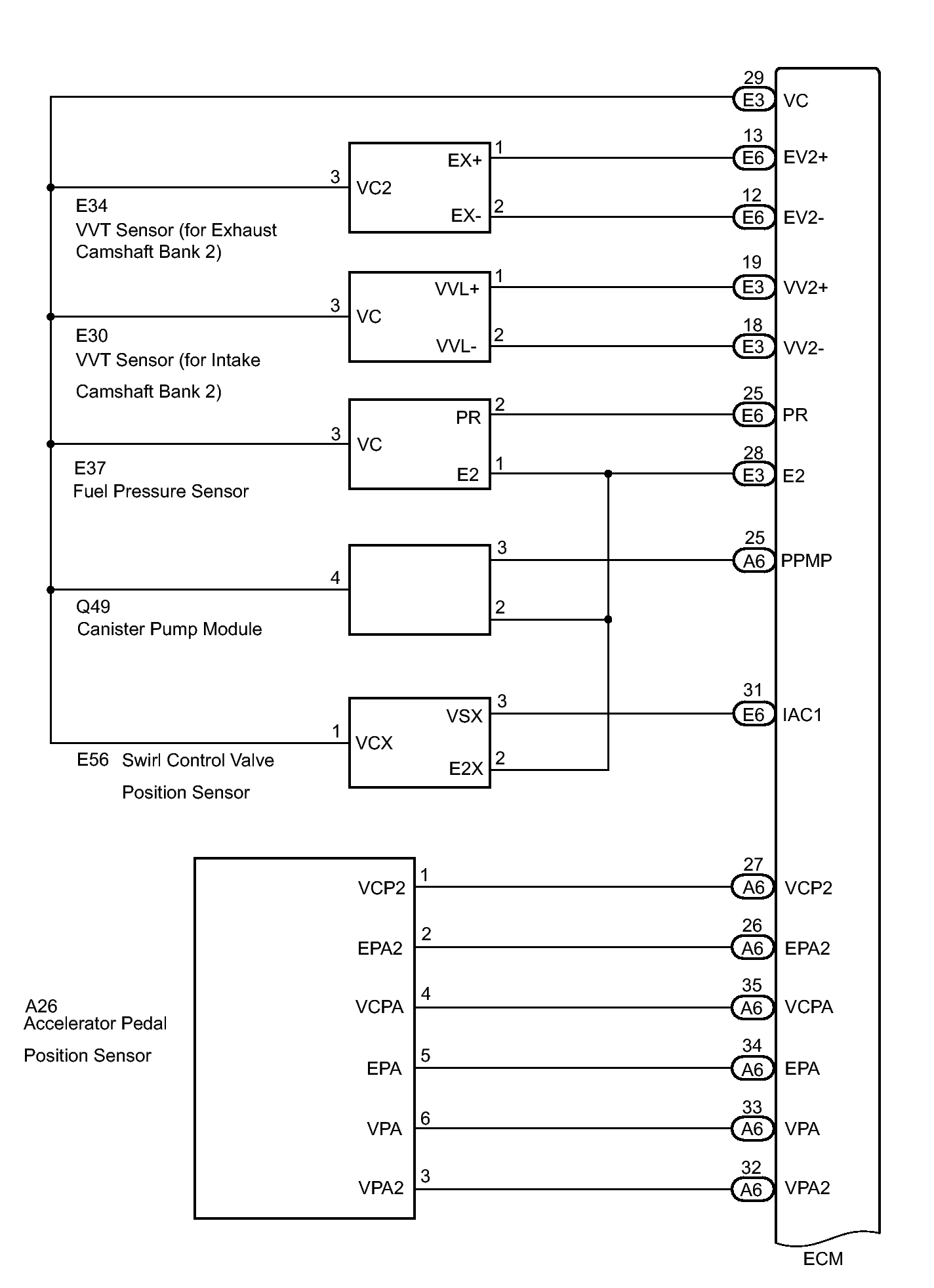

Fig 1: VC Output Circuit - Wiring Diagram (1 Of 2)
GTY397889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

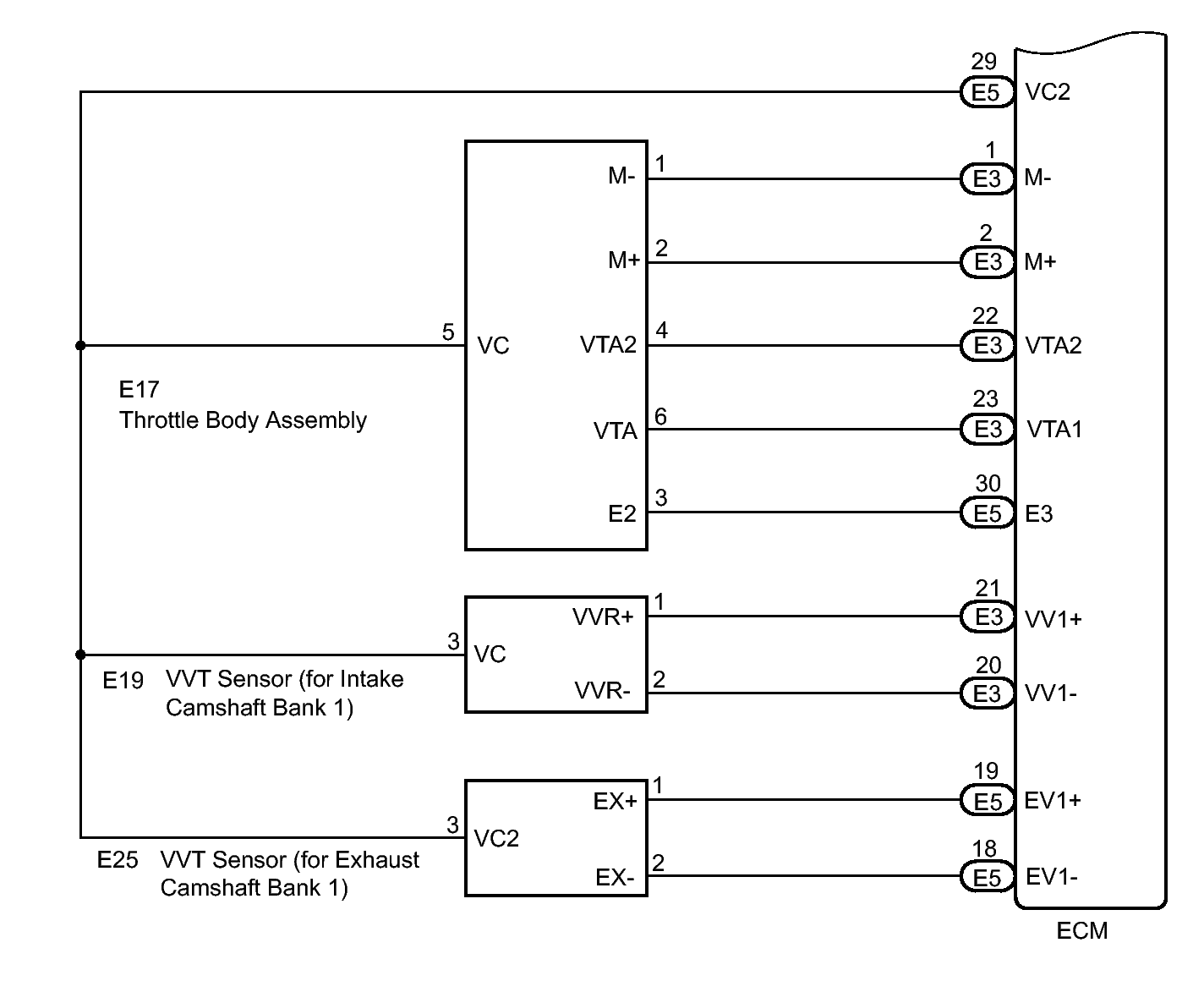

Fig 2: VC Output Circuit - Wiring Diagram (2 Of 2)
GTY417706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
