DTC P2004: Intake Manifold Runner Control Stuck Open (Bank 1); DTC P2006: Intake Manifold Runner Control Stuck Closed (Bank 1): Wiring Diagram

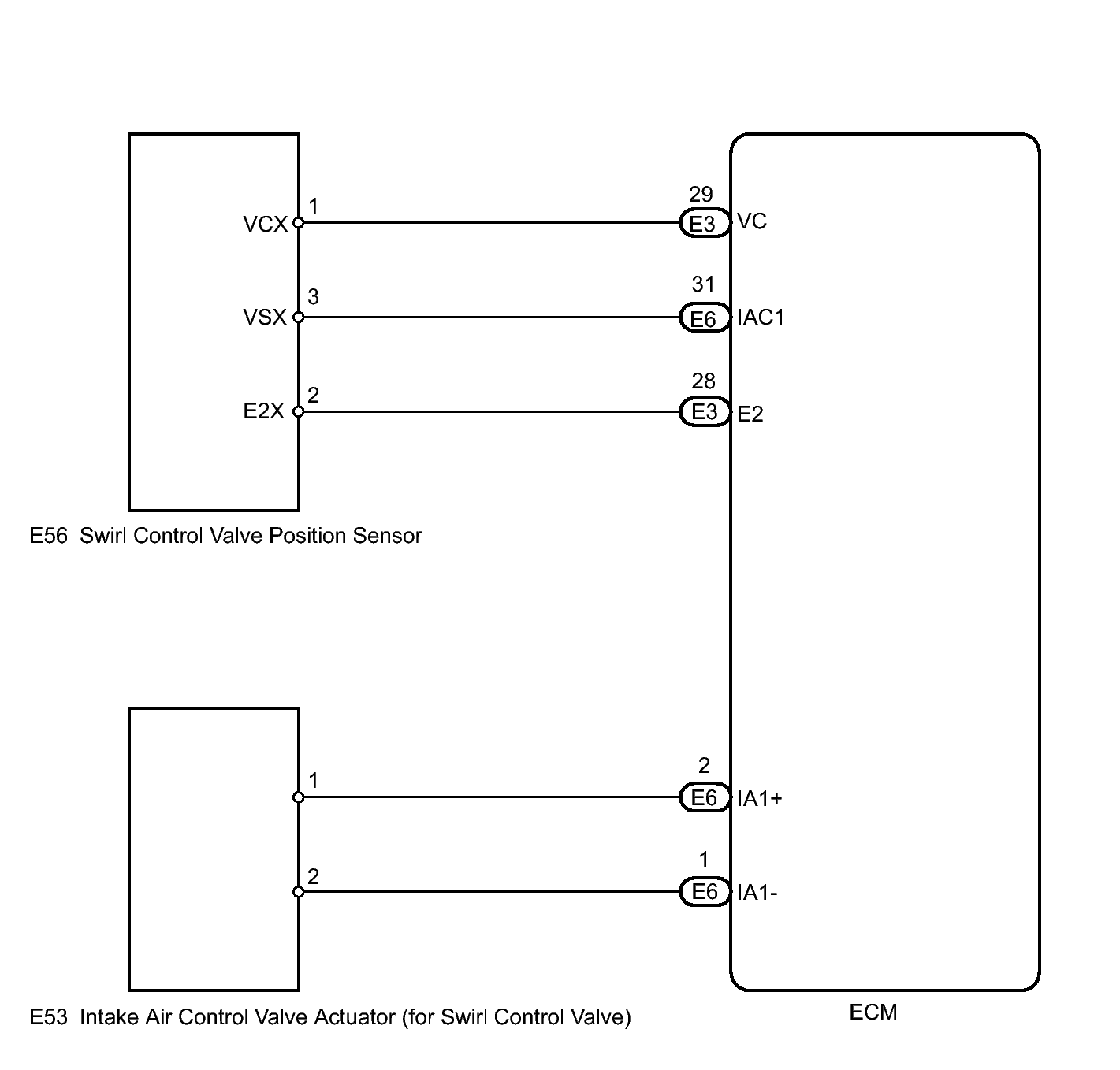

Fig 1: Identifying Intake Manifold Runner Control - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
