Components [08/2012 - ]: Illustration

WARNING: This page is about a different car, the 2013 Lexus IS 350C. However, it is still accessible from the selected car via links, so may be relevant.

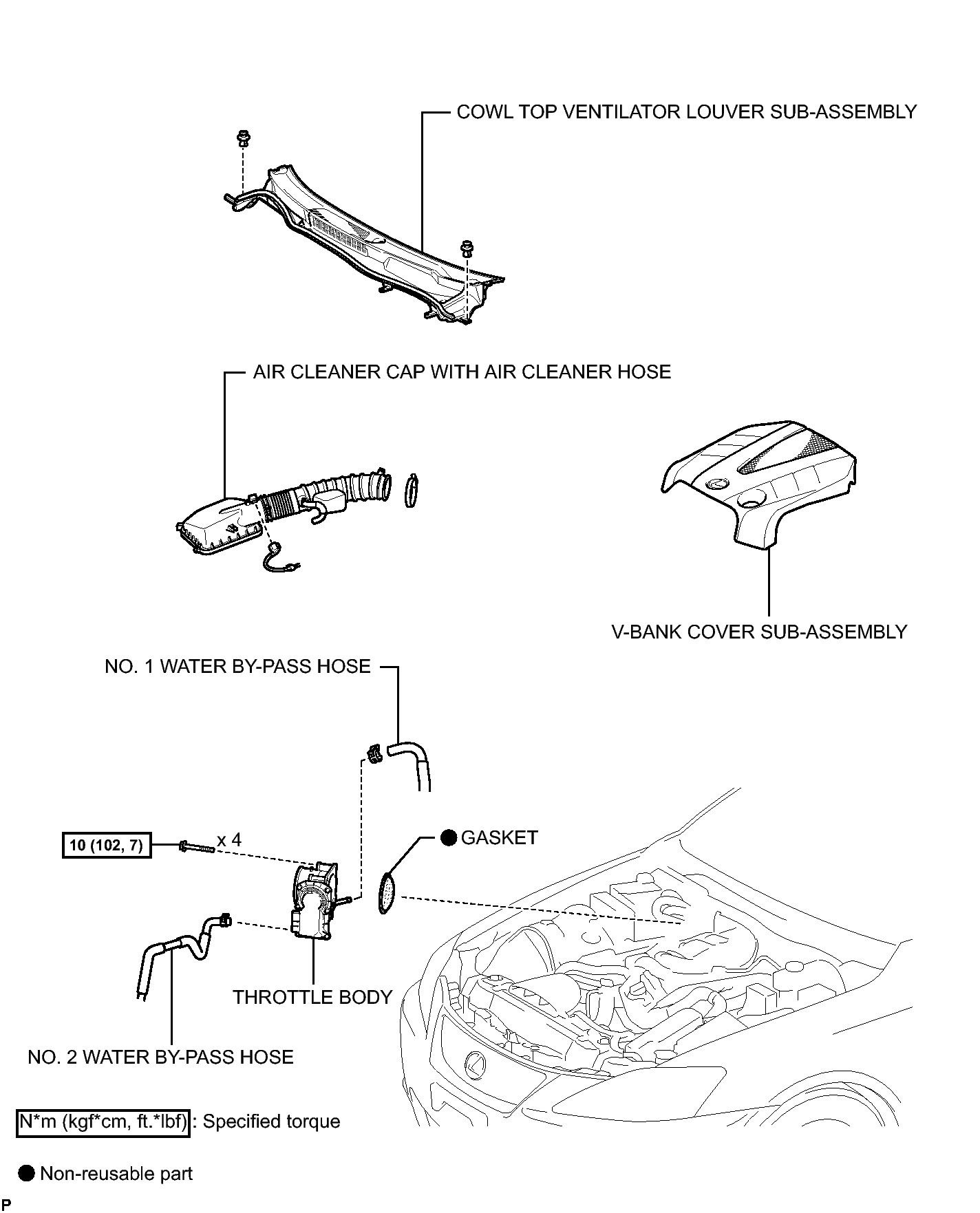

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 2)
GTY264939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

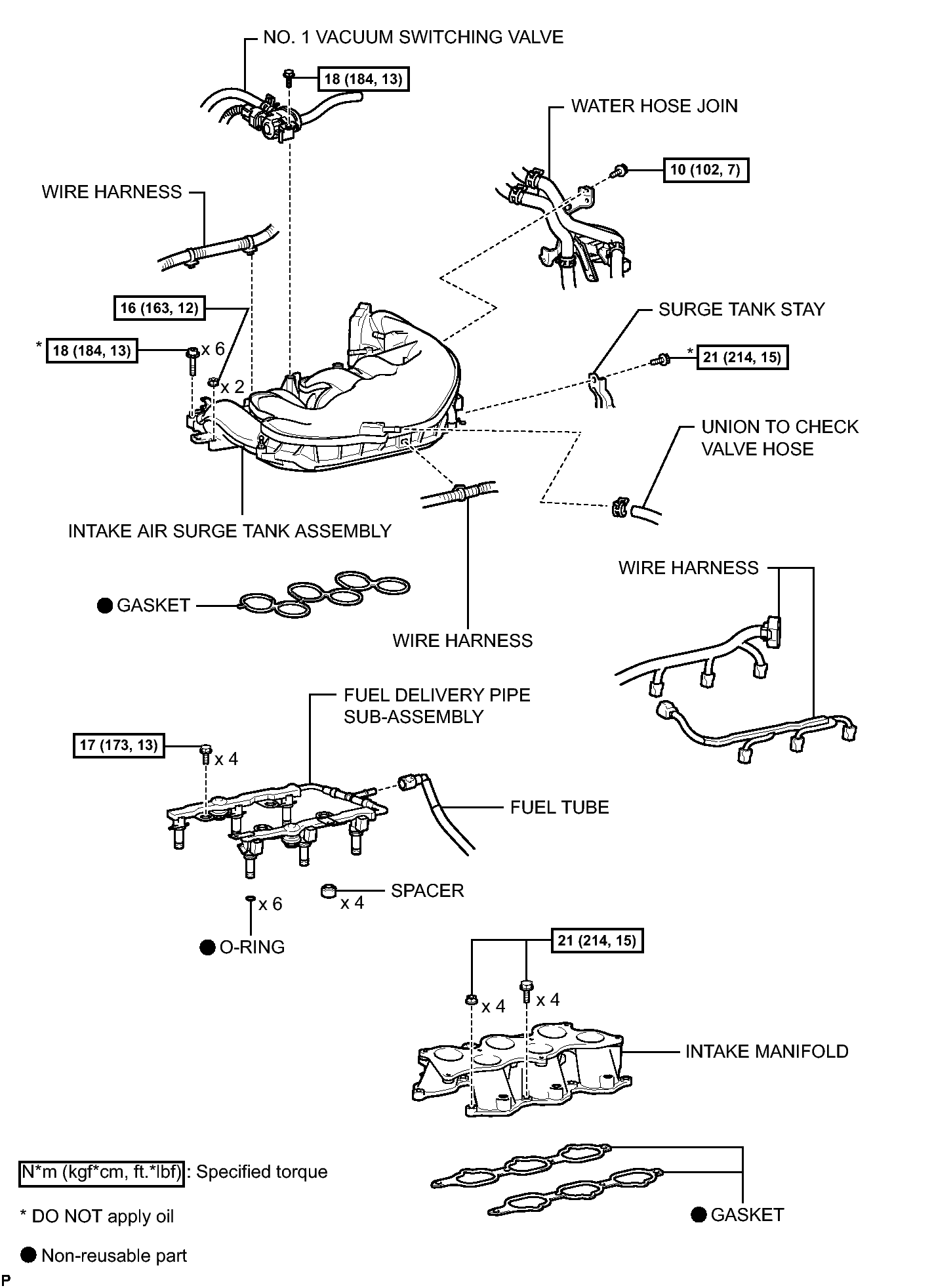

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
GTY258273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
