LEXUS ENFORM or Safety Connect: Notes

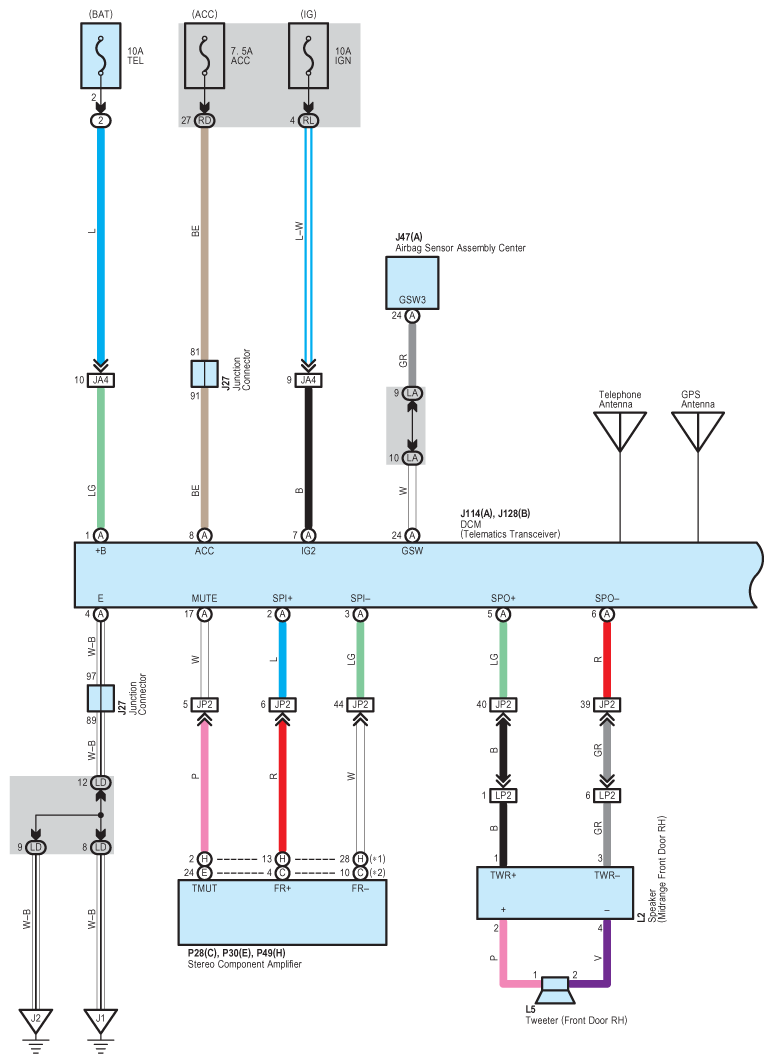

Fig 1: Lexus Enform Or Safety Connect System Wiring Diagram (1 Of 4)
G09119231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

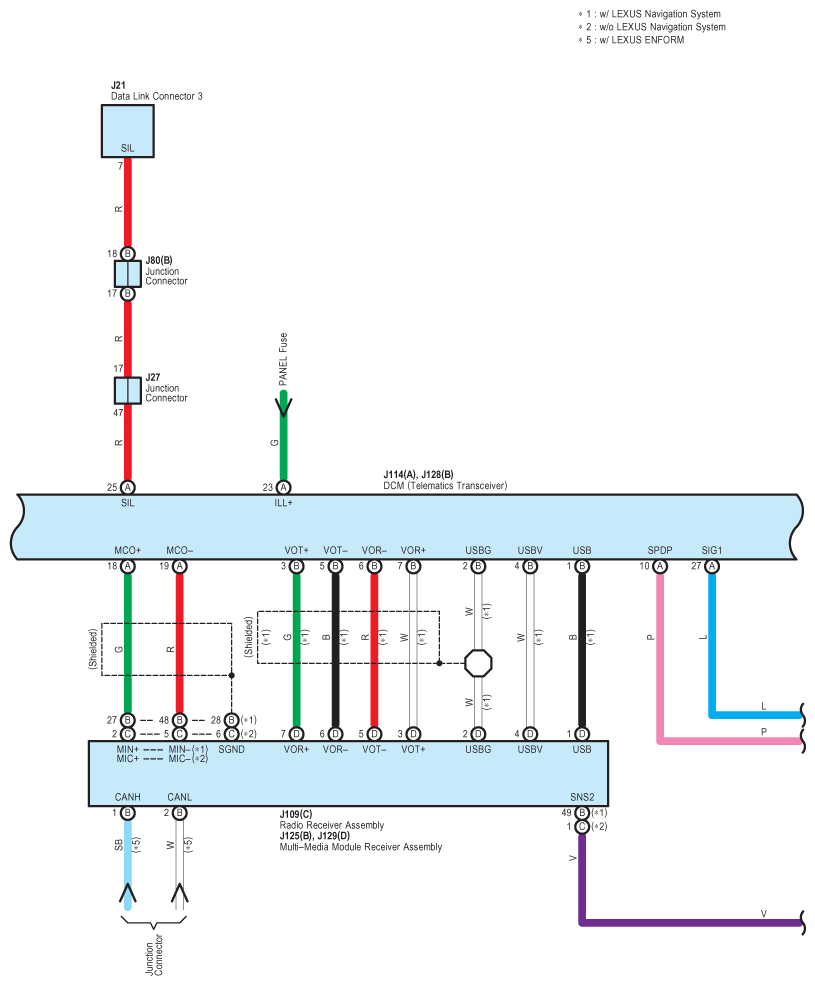

Fig 2: Lexus Enform Or Safety Connect System Wiring Diagram (2 Of 4)
G09119232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

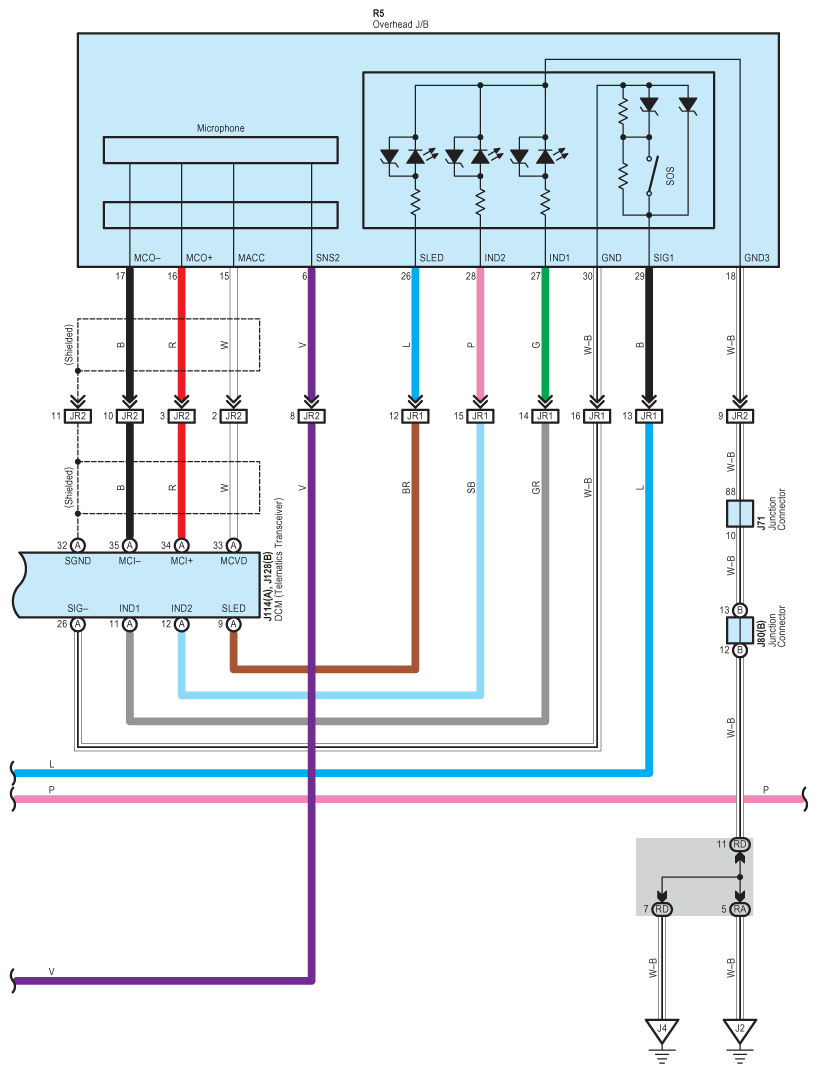

Fig 3: Lexus Enform Or Safety Connect System Wiring Diagram (3 Of 4)
G09119233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Lexus Enform Or Safety Connect System Wiring Diagram (4 Of 4)
G09119234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
