System Diagram [08/2012 - ]

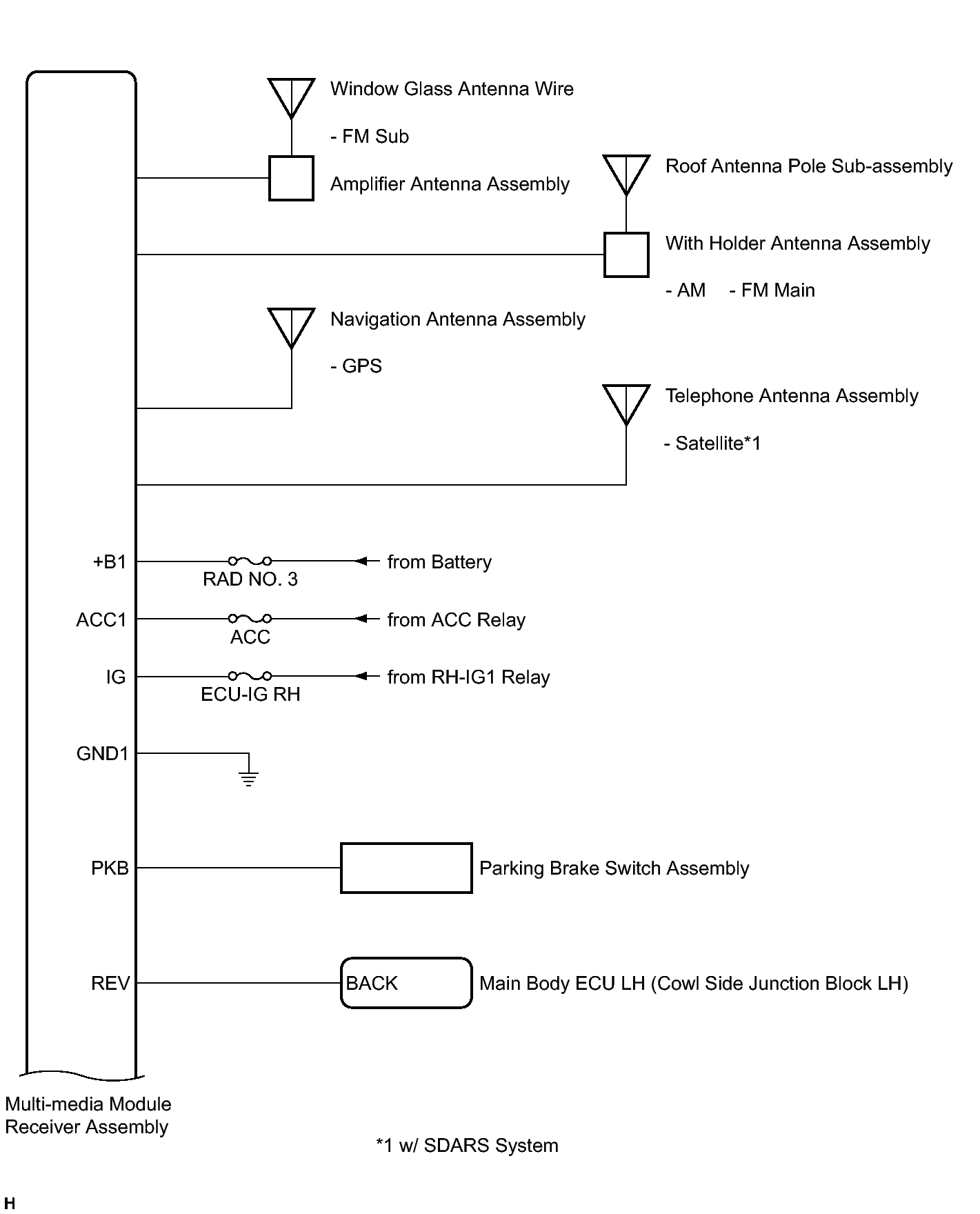

Fig 1: Navigation System Wiring Diagram (1 Of 6)
GTY420073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

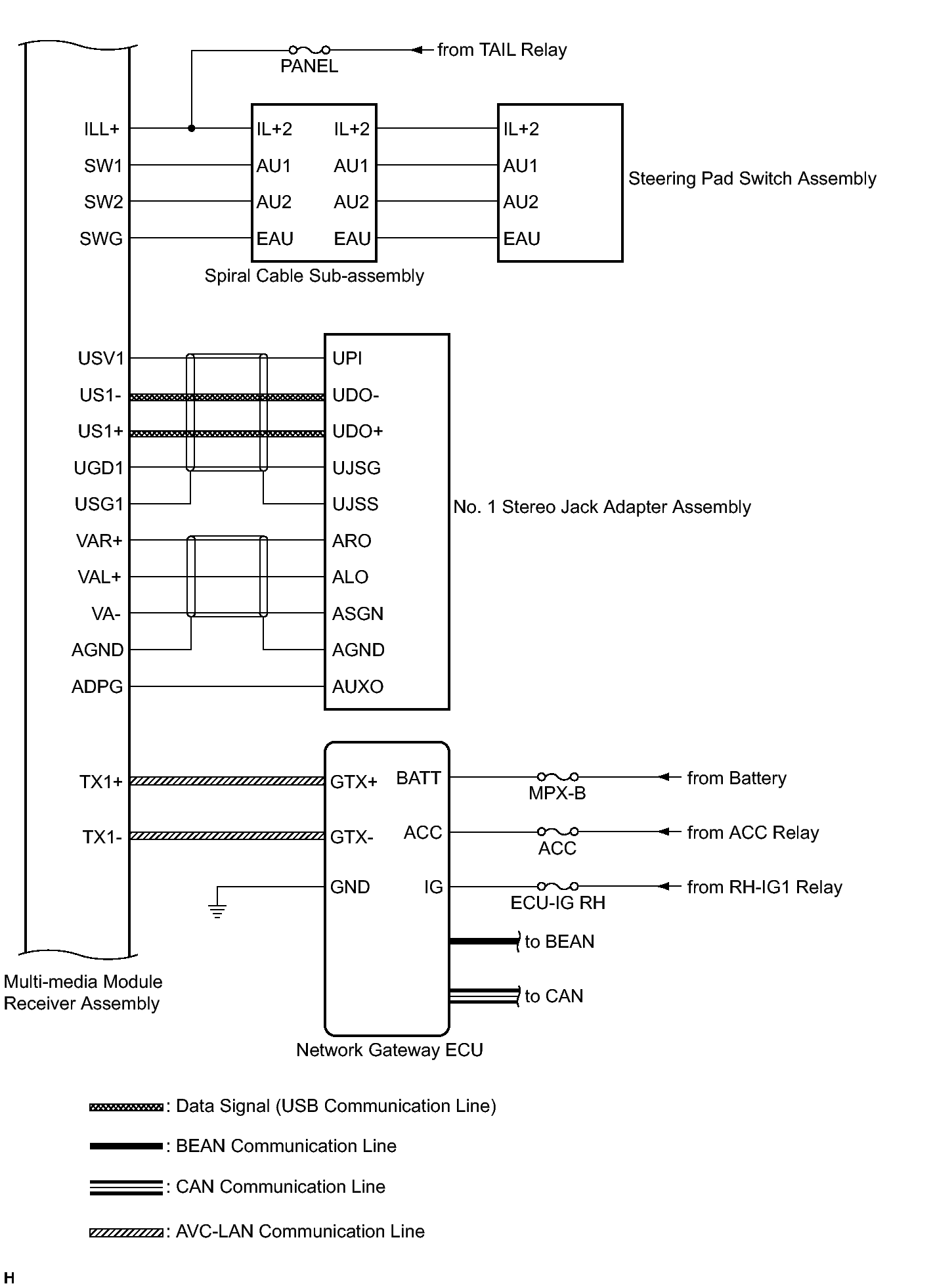

Fig 2: Navigation System Wiring Diagram (2 Of 6)
GTY414970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

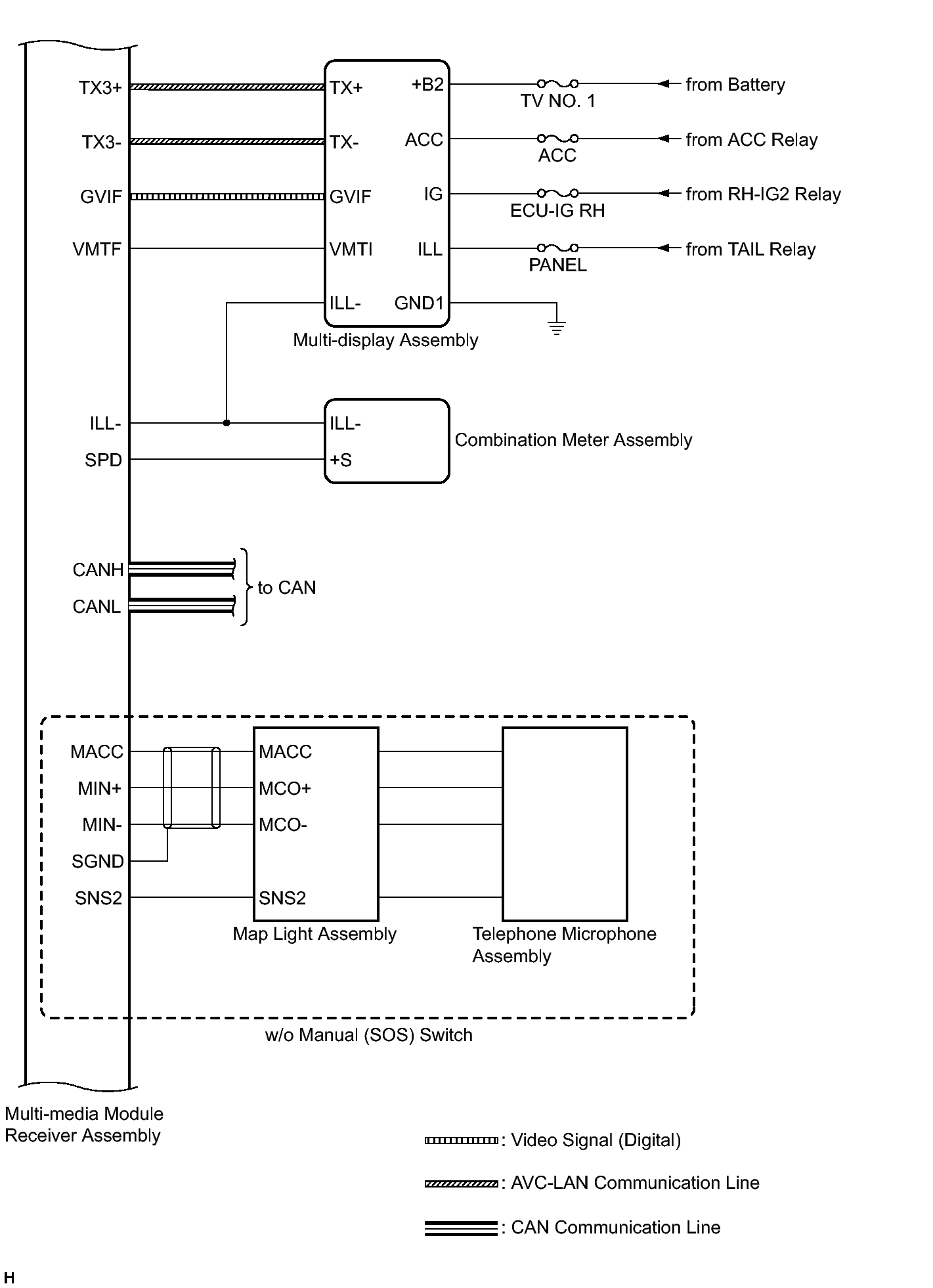

Fig 3: Navigation System Wiring Diagram (3 Of 6)
GTY405384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

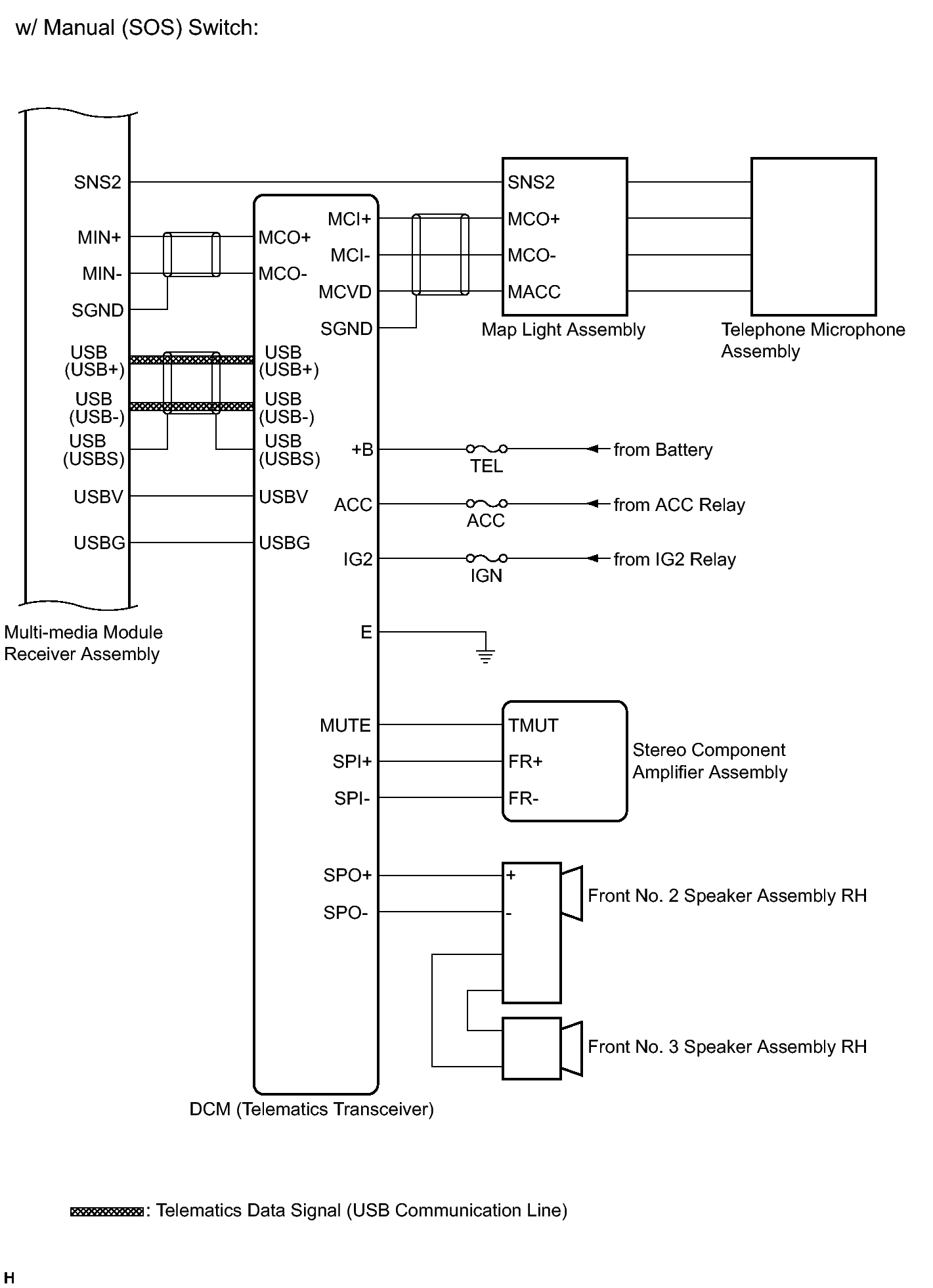

Fig 4: Navigation System Wiring Diagram (4 Of 6)
GTY419584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

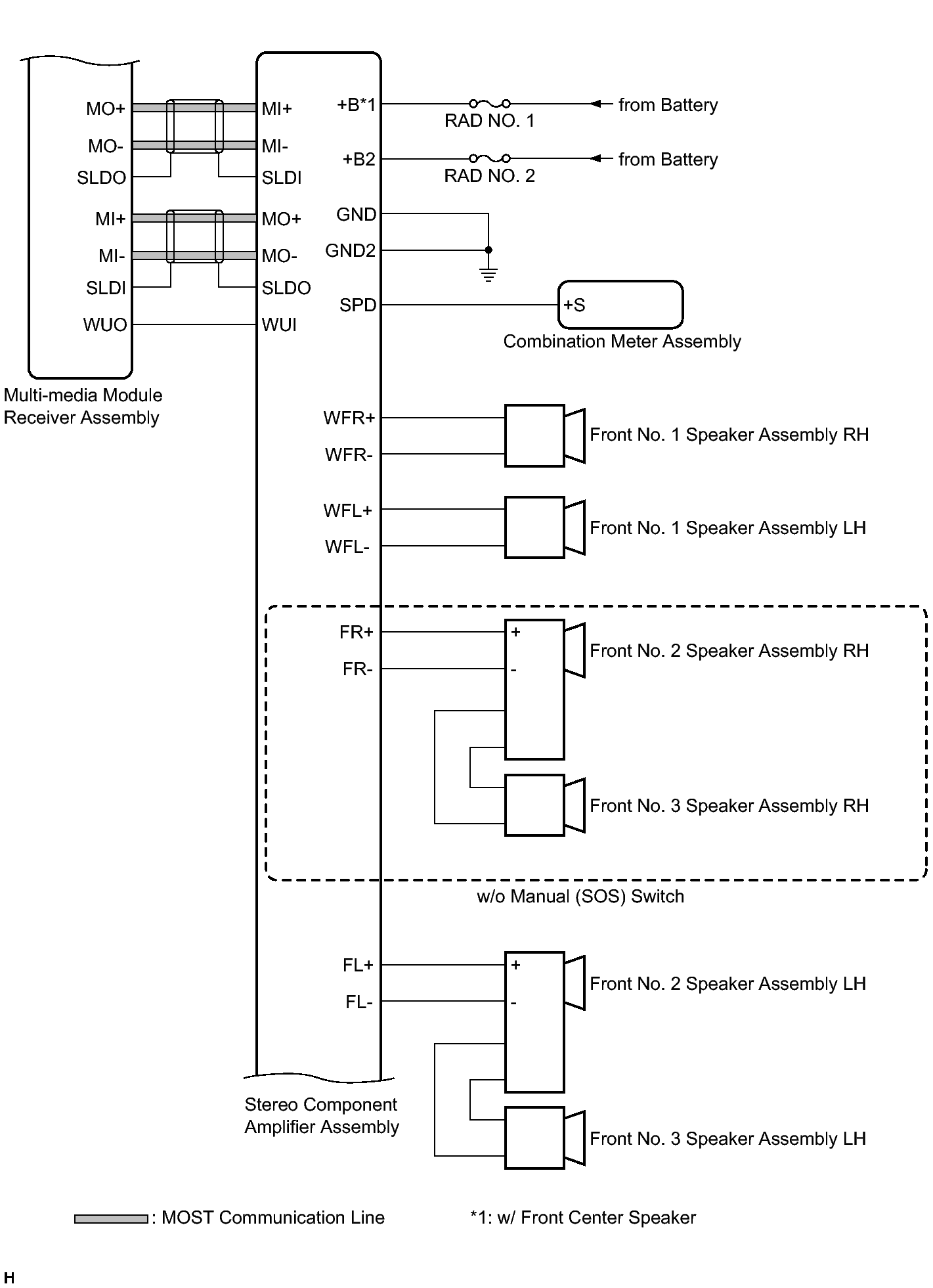

Fig 5: Navigation System Wiring Diagram (5 Of 6)
GTY397940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

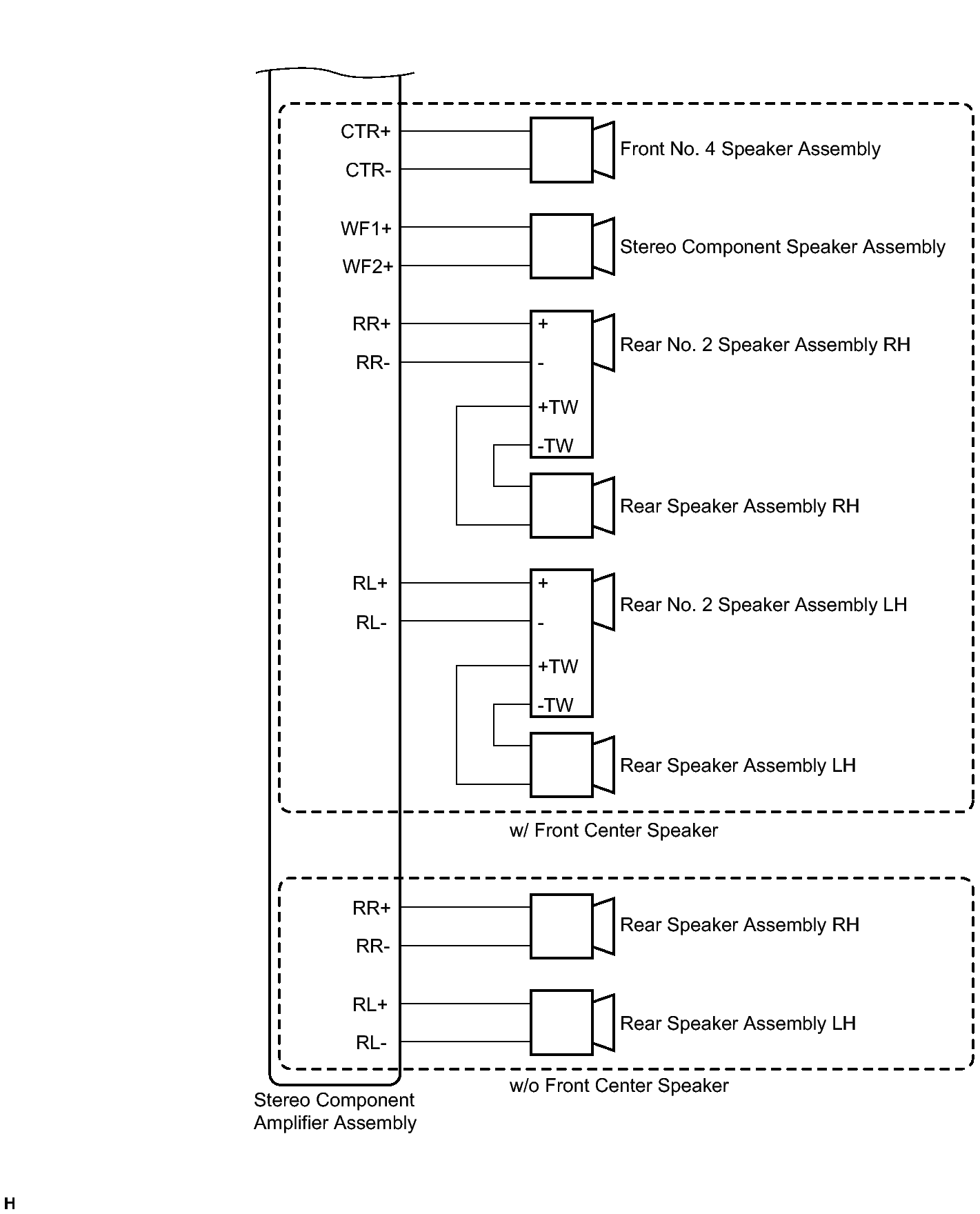

Fig 6: Navigation System Wiring Diagram (6 Of 6)
GTY398584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
