Remote Control Mirror (w/o Seat Position Memory): Notes

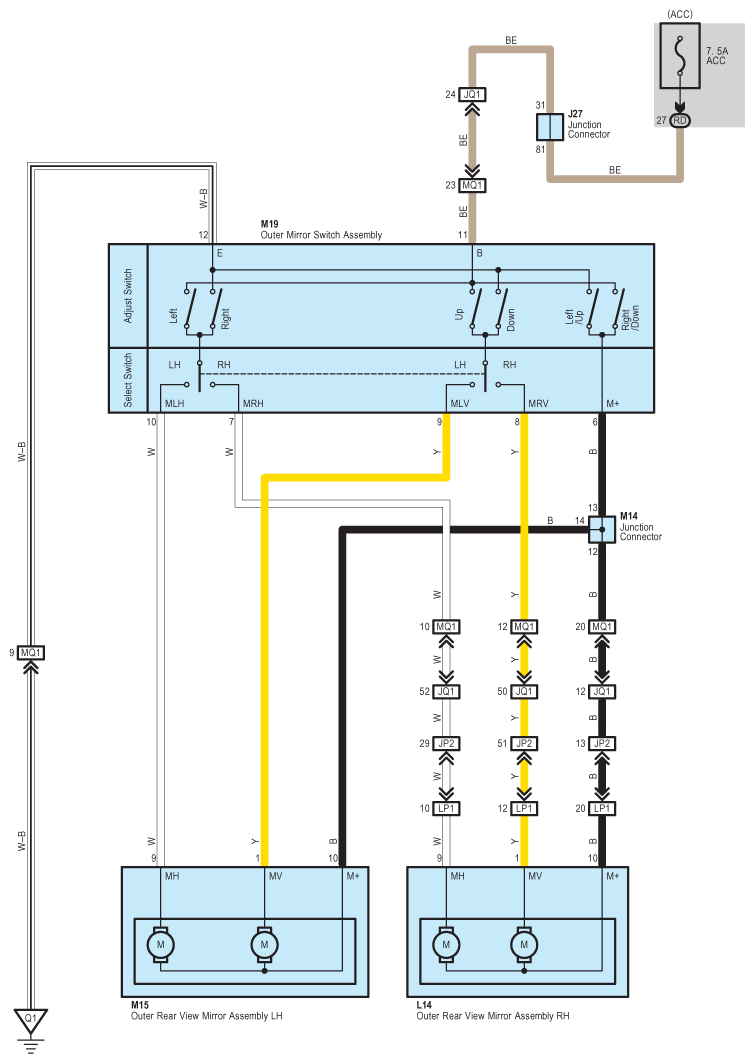

Fig 1: Remote Control Mirror (W/O Seat Position Memory) Wiring Diagram
G09121421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
