Cranking Holding Function Circuit: Procedure

  1. READ VALUE USING TECHSTREAM (STA SIGNAL)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine / Data List / Starter Signal.
    4. Check the result when the engine switch is turned on (IG) and the engine is started.

      Standard

      Starter Signal Engine Switch Position
      ON On (IG)
      OFF Engine start

    NG → See step   8

    OK: Go to next step

  2. INSPECT STARTER RELAY
    1. Inspect the STARTER relay. Refer to ON-VEHICLE INSPECTION [08/2012 - ] - Step 1 .

    NG → REPLACE STARTER RELAY

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (STARTER RELAY - BODY GROUND)
    1. Remove the STARTER relay from the engine room No. 1 relay block.
      GTY284349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      STARTER relay terminal 2 - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 1 Relay Block
    3. Reinstall the STARTER relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY - BODY GROUND)

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - STARTER RELAY)
    1. Disconnect the park/neutral position switch connector.
    2. Remove the STARTER relay from the engine room No. 1 relay block.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E45-5 - STARTER relay terminal 1 Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E45-5 or STARTER relay terminal 1 - Body ground Always 10 kΩ or higher
    4. Reconnect the park/neutral position switch connector.
    5. Reinstall the STARTER relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - STARTER RELAY)

    OK: Go to next step

  5. INSPECT ENGINE ROOM RELAY BLOCK NO. 1 (STARTER RELAY VOLTAGE)
    1. Remove the STARTER relay from the engine room No. 1 relay block.
      GTY284349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      STARTER relay terminal 5 - Body ground Always 11 to 14 V
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 1 Relay Block
    3. Reinstall the STARTER relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY - BATTERY)

    OK: Go to next step

  6. INSPECT STARTER ASSEMBLY
    1. Inspect the starter assembly. Refer to INSPECTION [08/2012 - ] .

    NG → See step   19

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (STARTER RELAY - STARTER ASSEMBLY)
    1. Remove the STARTER relay from the engine room No. 1 relay block.
    2. Disconnect the starter connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      STARTER relay terminal 3 - E10-1 Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      STARTER relay terminal 3 or E10-1 - Body ground Always 10 kΩ or higher
    4. Reinstall the STARTER relay.
    5. Reconnect the starter connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY - STARTER ASSEMBLY)

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER ASSEMBLY - BATTERY)

  8. INSPECT ECM (STAR AND STSW VOLTAGE)
    1. Measure the voltage according to the value(s) in the table below while cranking the engine.

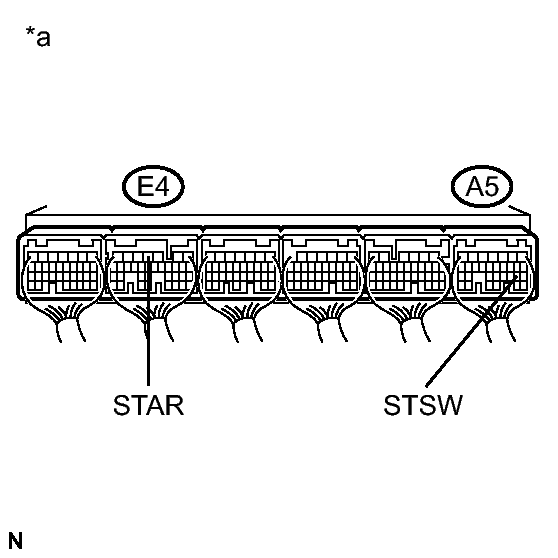

      GTY354086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      E4-4 (STAR) - Body ground Cranking 5.5 V or more
      A5-19 (STSW) - Body ground Cranking 8 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (ECM)

      Result

      Terminal STAR Terminal STSW Proceed to
      5.5 V or more 8 to 14 V A
      0 V 8 to 14 V B
      0 V 0 V C

    B → See step   20

    C → See step   16

    A: Go to next step

  9. INSPECT ST CUT RELAY
    1. Inspect the ST CUT relay. Refer to ON-VEHICLE INSPECTION [08/2012 - ] - Step 2 .

    NG → REPLACE ST CUT RELAY

    OK: Go to next step

  10. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the park/neutral position switch. Refer to INSPECTION [08/2012 - ] .

    NG → See step   17

    OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (ST CUT RELAY POWER SOURCE)
    1. Remove the ST CUT relay from the engine room No. 2 relay block.

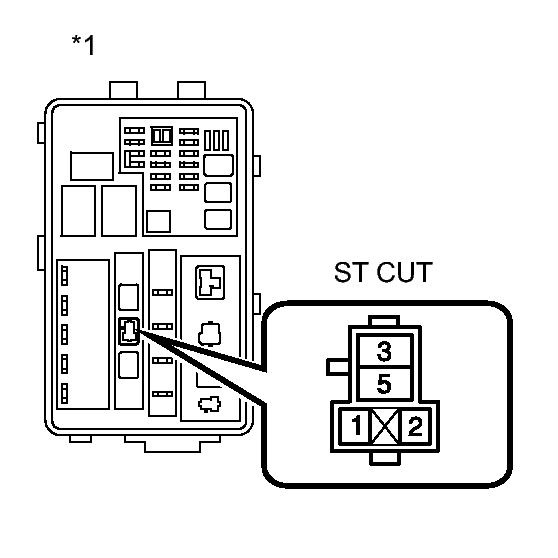

      GTY351912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      ST CUT relay terminal 2 - Body ground Engine switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 2 Relay Block
    4. Reinstall the ST CUT relay.

    NG → See step   15

    OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (ST CUT RELAY - BODY GROUND)
    1. Remove the ST CUT relay from the engine room No. 2 relay block.
      GTY351912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      ST CUT relay terminal 1 - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 2 Relay Block
    3. Reinstall the ST CUT relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST CUT RELAY - BODY GROUND)

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (ECM - ST CUT RELAY - POWER SOURCE CONTROL ECU)
    1. Disconnect the ECM connector.
    2. Remove the ST CUT relay from the engine room No. 2 relay block.
    3. Disconnect the power source control ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E4-4 (STAR) - ST CUT relay terminal 3 Always Below 1 Ω
      E4-4 (STAR) - J55-15 (STR2) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E4-4 (STAR) or ST CUT relay terminal 3 or J55-15 (STR2) - Body ground Always 10 kΩ or higher
    5. Reinstall the ST CUT relay.
    6. Reconnect the ECM connector.
    7. Reconnect the power source control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - ST CUT RELAY - POWER SOURCE CONTROL ECU)

    OK: Go to next step

  14. CHECK HARNESS AND CONNECTOR (PNP SWITCH - ST CUT RELAY - POWER SOURCE CONTROL ECU)
    1. Disconnect the park/neutral position switch connector.
    2. Remove the ST CUT relay from the engine room No. 2 relay block.
    3. Disconnect the power source control ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      E45-4 - ST CUT relay terminal 5 Always Below 1 Ω
      E45-4 - J55-17 (STR1) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      E45-4 or ST CUT relay terminal 5 or J55-17 (STR1) - Body ground Always 10 kΩ or higher
    5. Reconnect the park/neutral position switch connector.
    6. Reinstall the ST CUT relay.
    7. Reconnect the power source control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (PNP SWITCH - ST CUT RELAY - POWER SOURCE CONTROL ECU)

    OK: Go to next step

  15. CHECK HARNESS AND CONNECTOR (ST CUT RELAY - POWER SOURCE CONTROL ECU)
    1. Remove the ST CUT relay from the engine room No. 2 relay block.
    2. Disconnect the power source control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      ST CUT relay terminal 2 - J55-35 (IG2D) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      ST CUT relay terminal 2 or J55-35 (IG2D) - Body ground Always 10 kΩ or higher
    4. Reinstall the ST CUT relay.
    5. Reconnect the power source control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ST CUT RELAY - POWER SOURCE CONTROL ECU)

    OK → See step   18

  16. CHECK HARNESS AND CONNECTOR (POWER SOURCE CONTROL ECU - ECM)
    1. Disconnect the power source control ECU connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      J55-39 (STSW) - A5-19 (STSW) Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      J55-39 (STSW) or A5-19 (STSW) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the power source control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CONTROL ECU - ECM)

    OK → See step   18

  17. REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
  18. GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2012 - ]
  19. REPAIR OR REPLACE STARTER ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
  20. REPLACE ECM. Refer to  REMOVAL [08/2012 - ]
