Alignment

Wheel Alignment Specifications

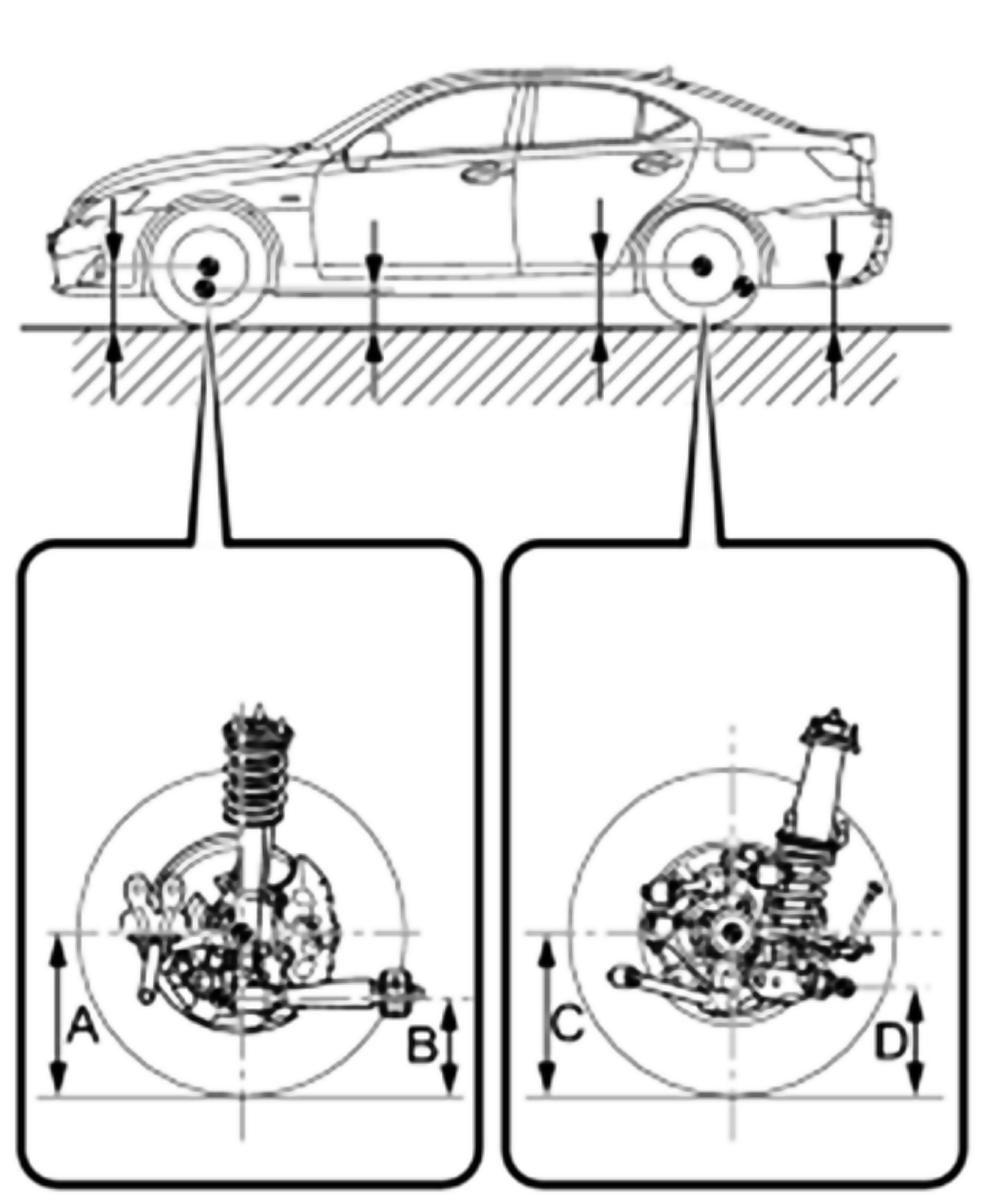

Measurement Points:

A
Ground clearance of front wheel center.

B
Ground clearance of front center position of front suspension lower arm assembly front bushing installation bolt head.

C
Ground clearance of rear wheel center.

D
Ground clearance of rear center position of rear No. 2 suspension arm assembly bushing installation bolt threads

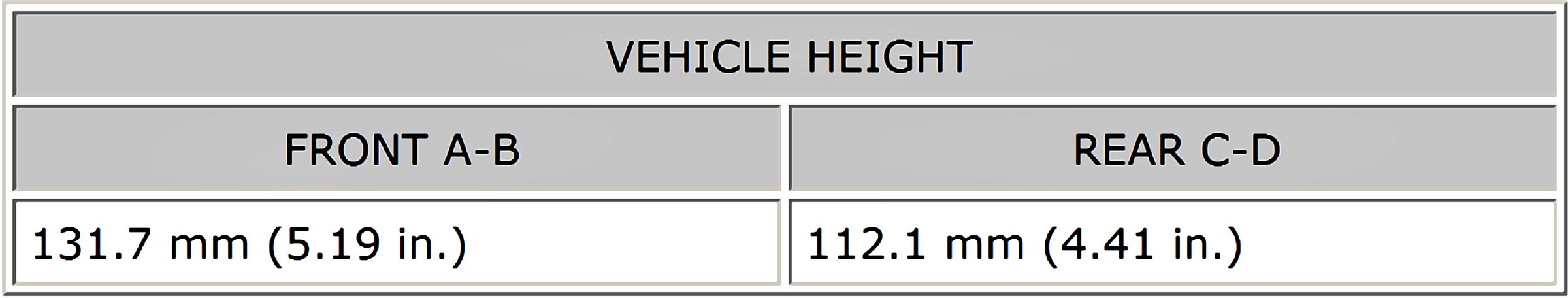

Vehicle Height:

Measurement Points:

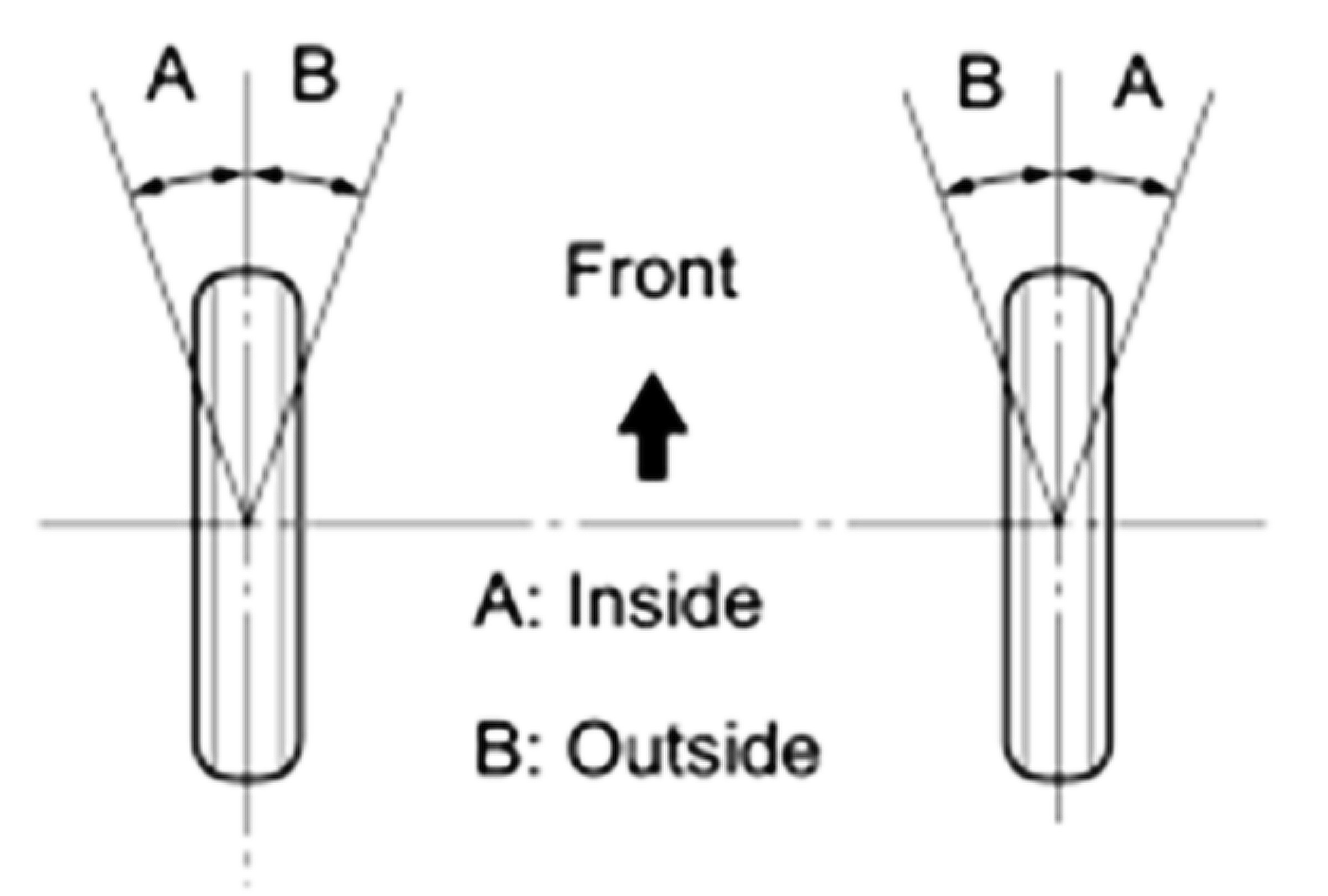

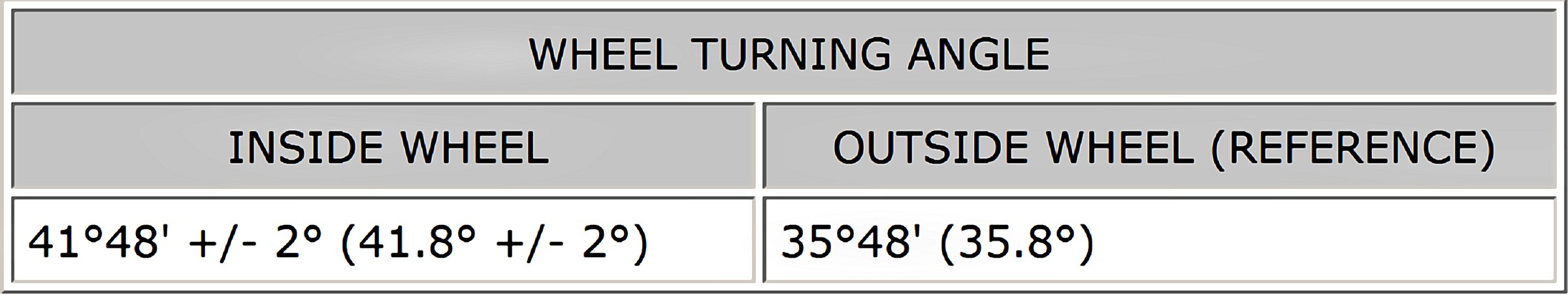

Wheel Turning Angle:

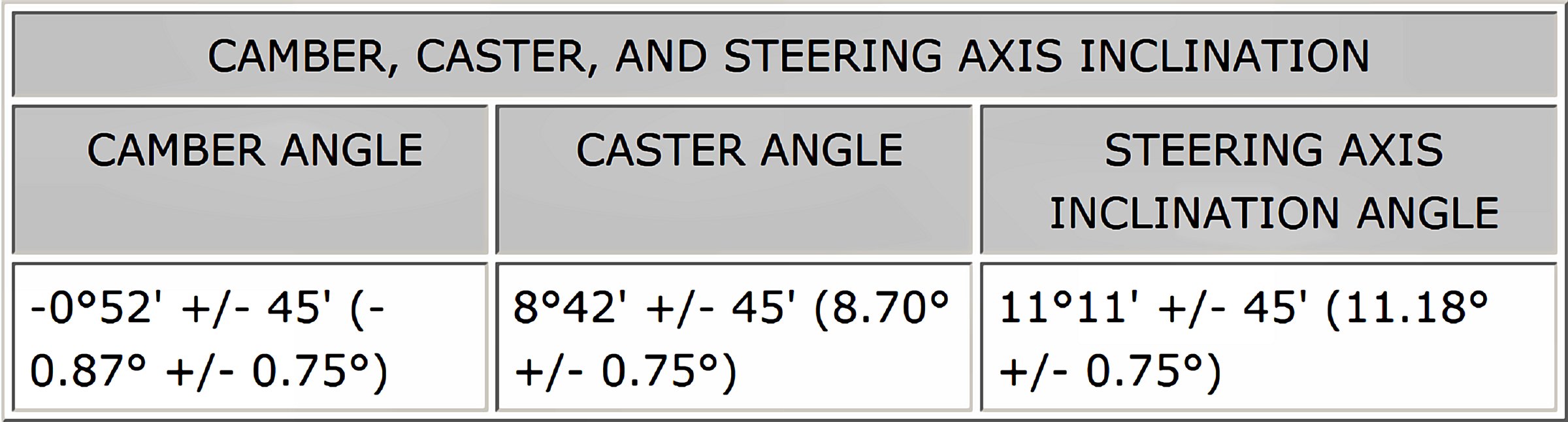

Camber, Castor and Steering Axis Inclination:

Measurement Points:

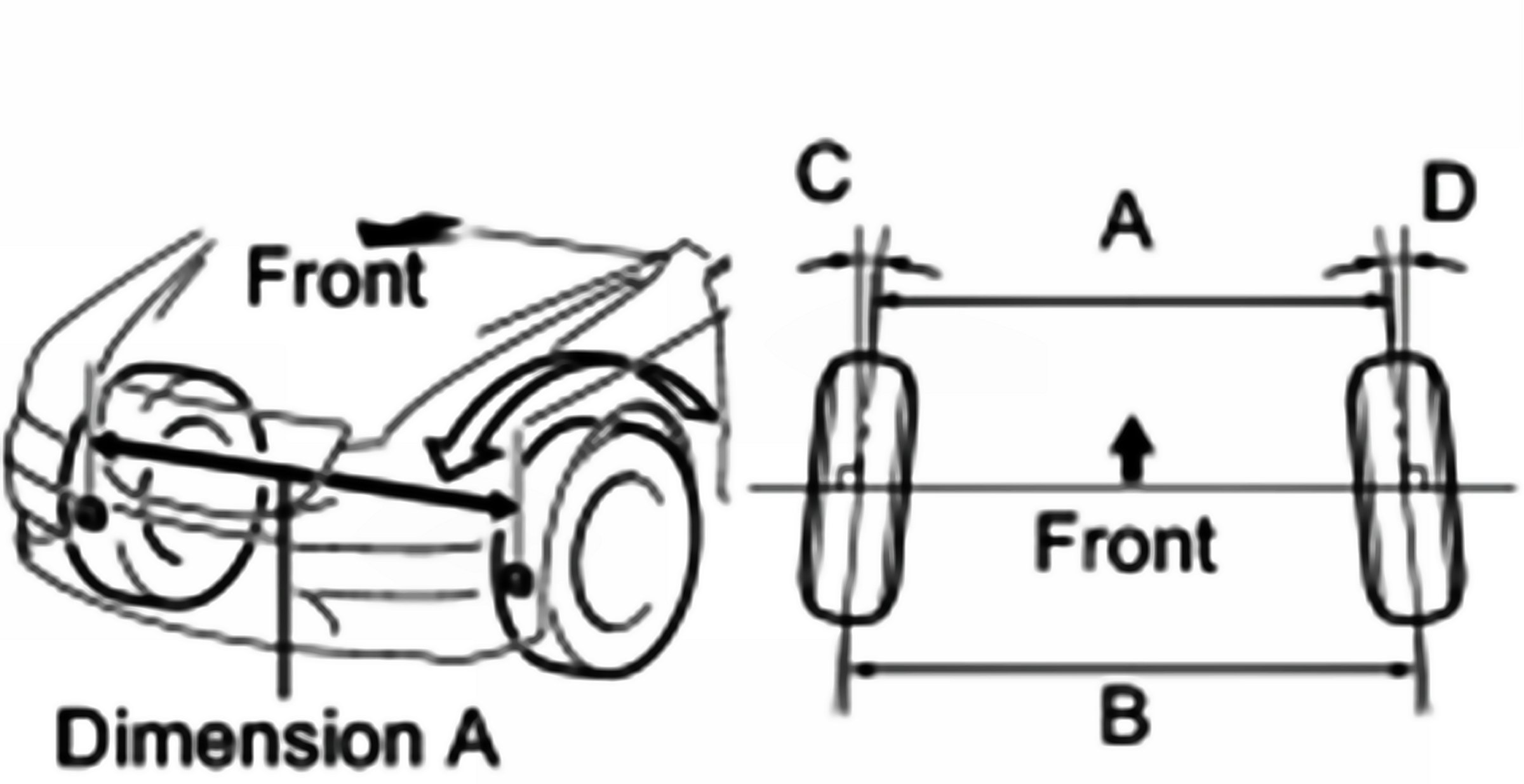

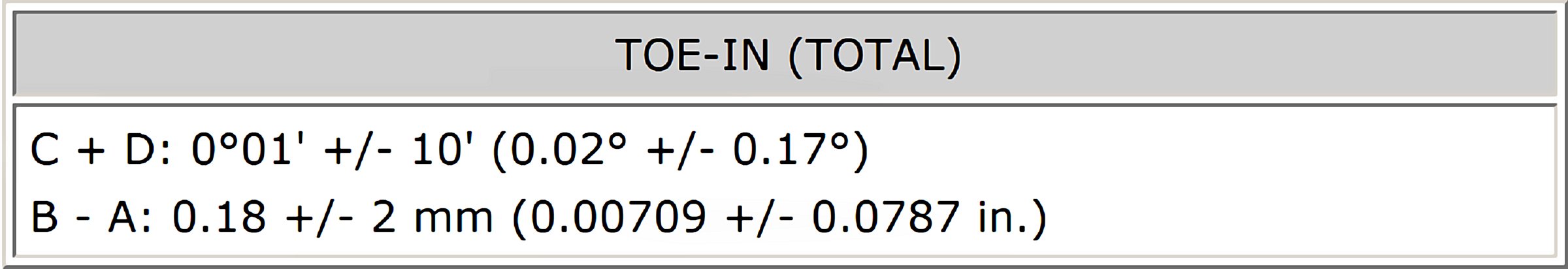

Toe-in:

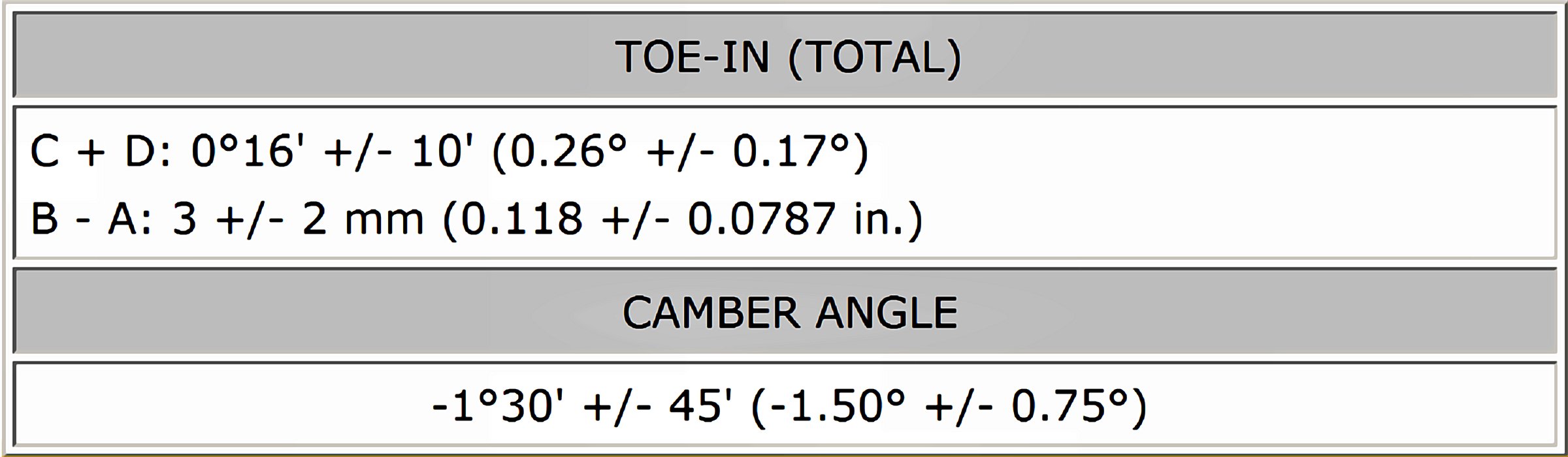

Rear Alignment:
