Driver Side ECU Power Source Circuit: Wiring Diagram

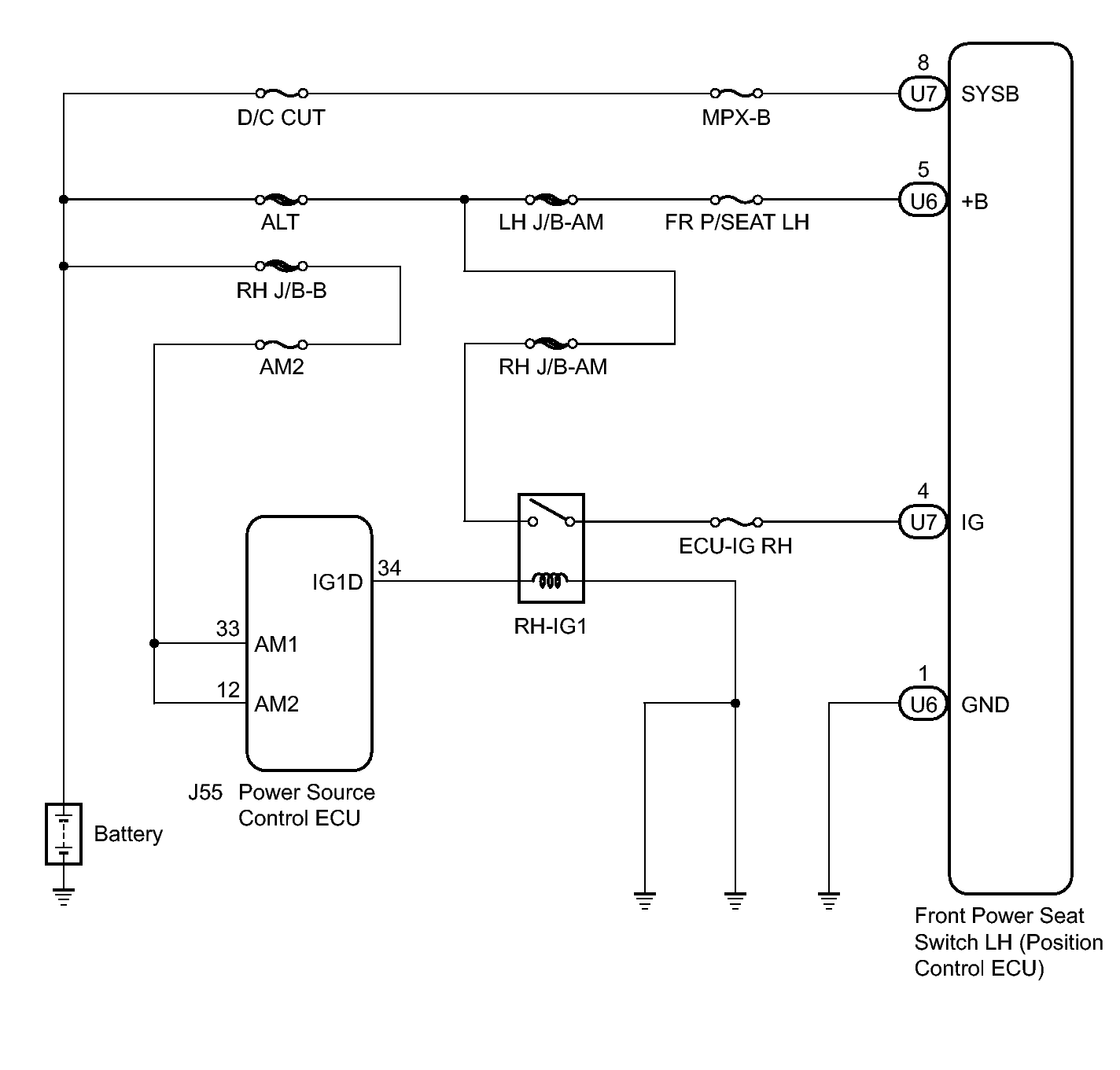

Fig 1: Driver Side ECU Power Source Wiring Diagram
GTY407101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
