Skid Control Buzzer Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Start the engine.
3. Select the Active Test on the Techstream. Refer to DATA LIST / ACTIVE TEST [08/2012 - ] .
   ABS/VSC/TRAC



   Tester Display	Test Part	Control Range	Diagnostic Note
   DSS Signal Buzzer	Skid control buzzer	Buzzer ON/OFF	Buzzer can be heard

4. Check that the buzzer sounds/stops when turning the skid control buzzer on/off by using the Techstream.

   Result

   Result	Proceed to
   Buzzer does not sound or sounds constantly	A
   Buzzer sounds/stops	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ] .

B → END

A: Go to next step

1. Turn the engine switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the skid control buzzer connector.
3. Turn the engine switch on (IG).
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   J18-2 - Body ground	Engine switch on (IG)	11 to 14 V

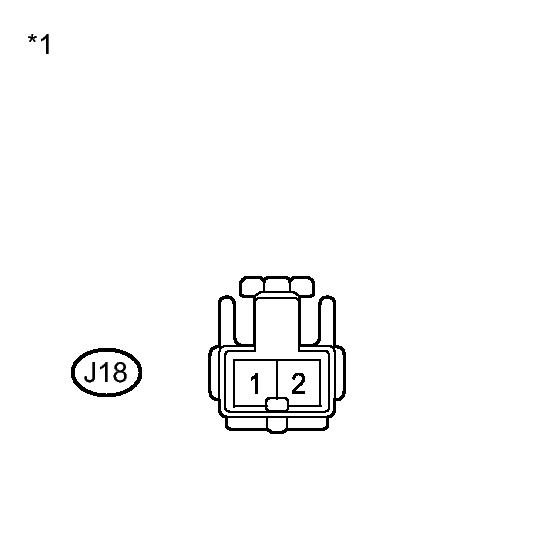

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Skid Control Buzzer)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to next step

1. Turn the engine switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

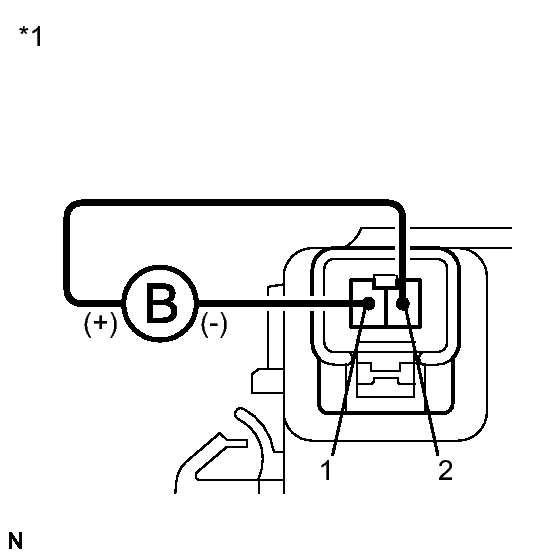

2. Connect a negative (-) lead from the battery to terminal 1, and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

   OK

   The skid control buzzer sounds.

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Skid Control Buzzer)

NG → See step   6

OK: Go to next step

1. Disconnect the skid control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A62-21 (BZ) - J18-1	Always	Below 1 Ω
   A62-21 (BZ) - Body ground	Always	10 kΩ or higher

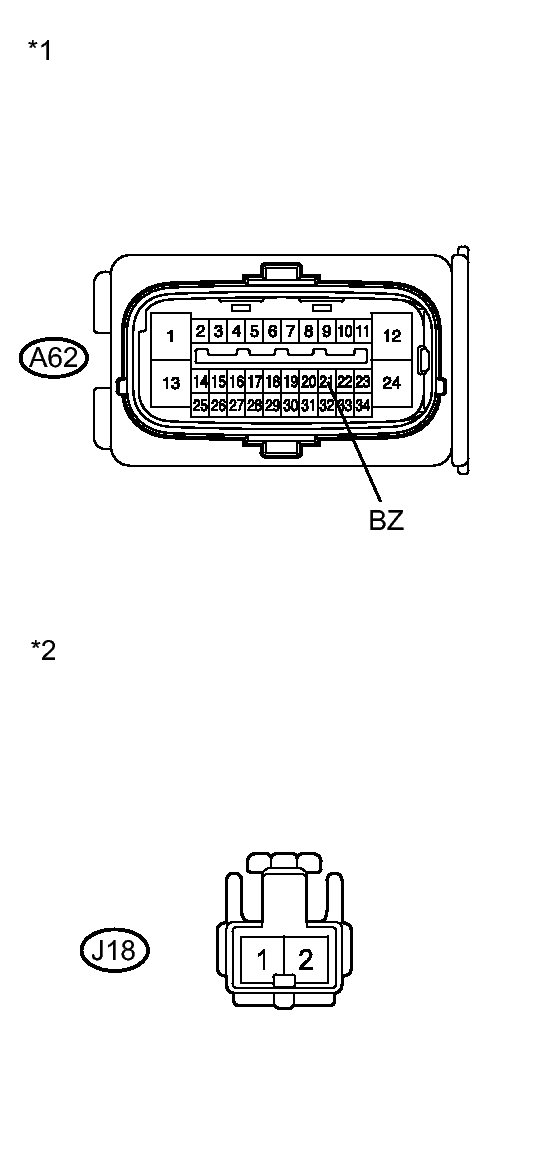

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Skid Control ECU)
   *2	Front view of wire harness connector (to Skid Control Buzzer)

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ] .

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
