LEXUS ENFORM or Safety Connect: Notes

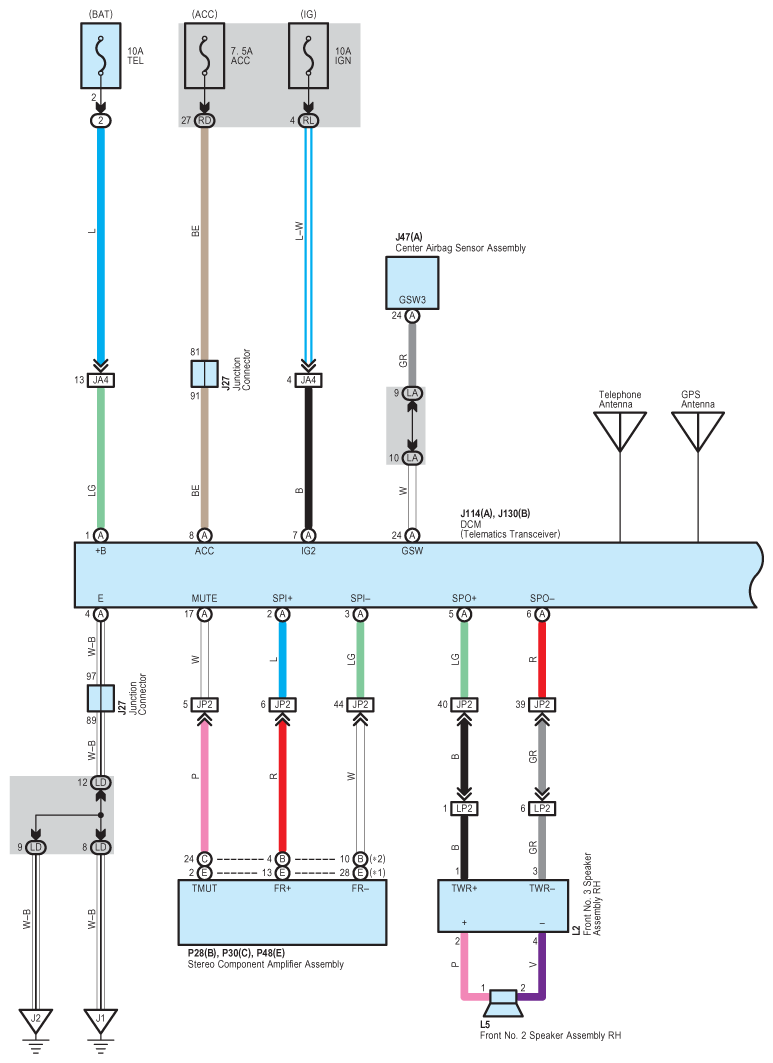

Fig 1: LEXUS Enform Or Safety Connect System Wiring Diagram (1 Of 4)
G09122371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

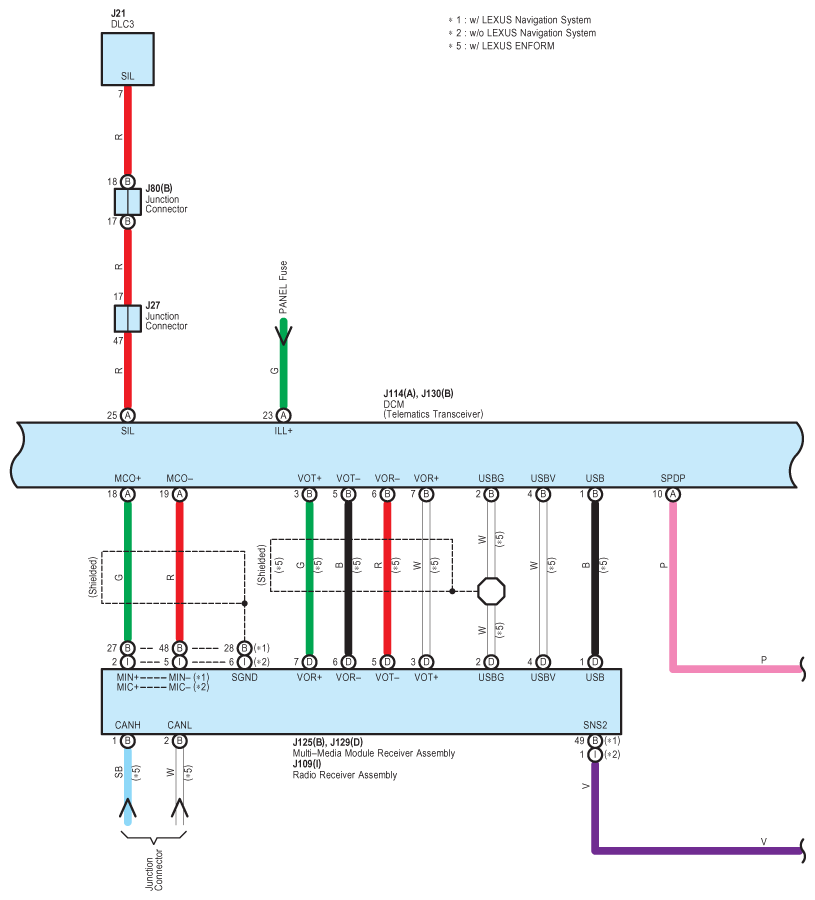

Fig 2: LEXUS Enform Or Safety Connect System Wiring Diagram (2 Of 4)
G09122372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

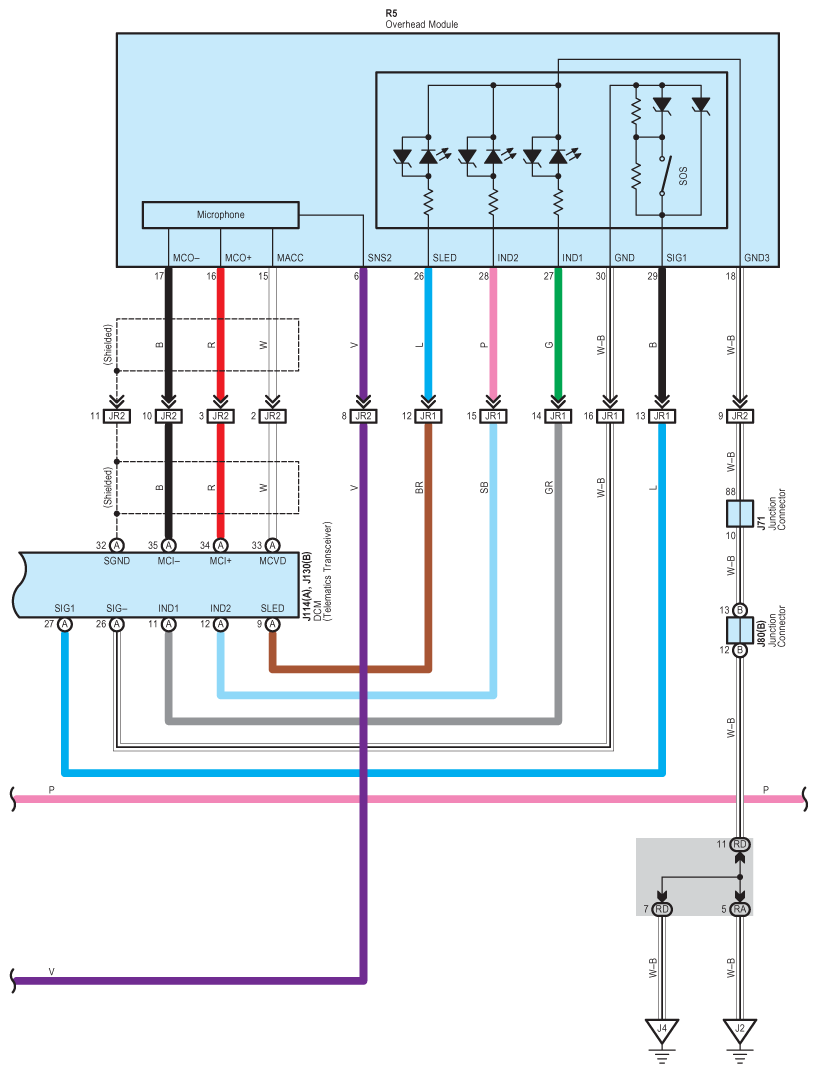

Fig 3: LEXUS Enform Or Safety Connect System Wiring Diagram (3 Of 4)
G09122373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: LEXUS Enform Or Safety Connect System Wiring Diagram (4 Of 4)
G09122374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
