Components [09/2012 - ]: Illustration

Fig 1: Object Recognition Camera Replacement Components With Torque Specifications (1 Of 2)
GTY407993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

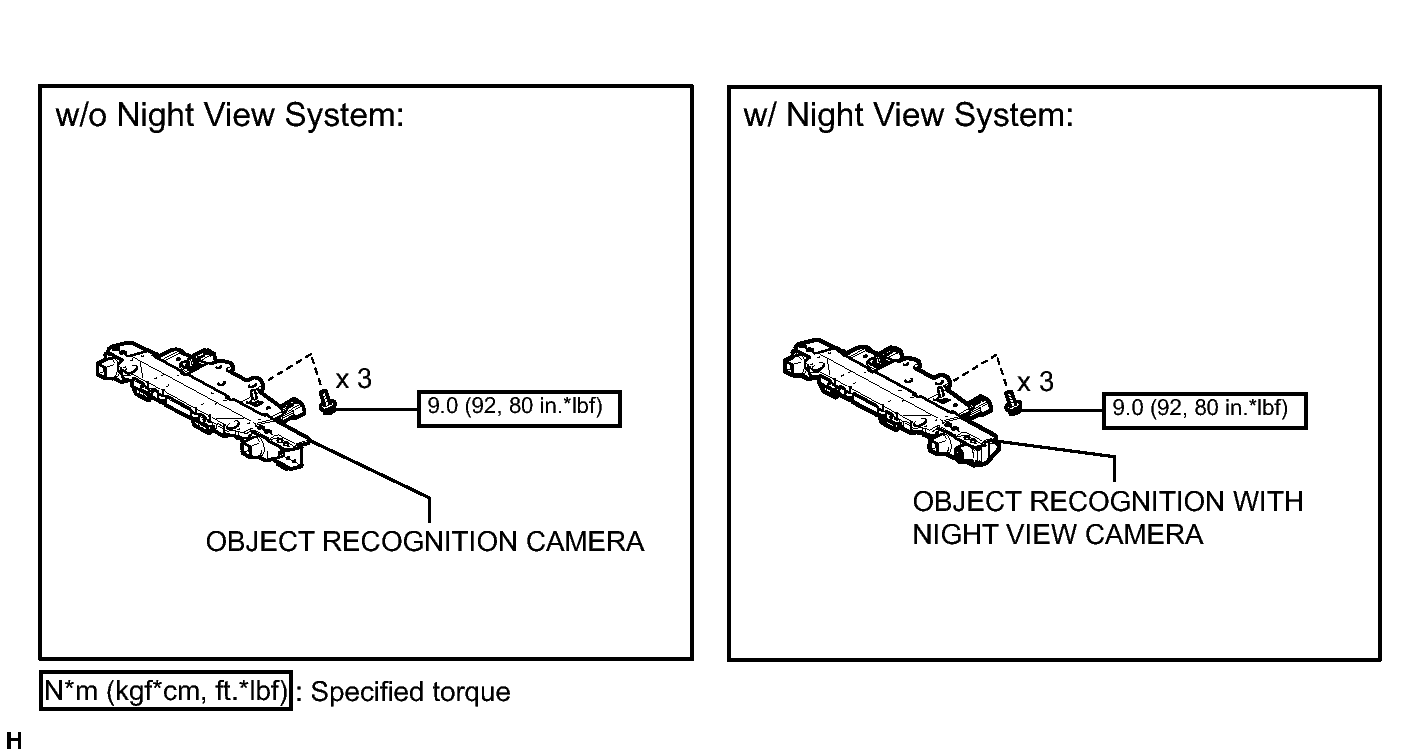

Fig 1: Object Recognition Camera Replacement Components With Torque Specifications (2 Of 2)
GTY411353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
