DTC B2312: Power Window Switch Malfunction: Procedure

  1. CHECK LIN COMMUNICATION SYSTEM
    1. Check for LIN communication system DTCs related to the power window control system.

      OK

      LIN communication system DTCs are not output.

    NG → See step   27

    OK: Go to next step

  2. CHECK CAN COMMUNICATION SYSTEM
    1. Check for CAN communication system DTCs related to the power window control system.

      OK

      CAN communication system DTCs are not output.

    NG → See step   28

    OK: Go to next step

  3. CHECK FOR DTC
    1. Check where DTC B2312 is output from.
      RESULT:

      Result Proceed to
      B2312 output from master switch A
      B2312 output from driver side motor B
      B2312 output from front passenger side motor C
      B2312 output from rear motor LH D
      B2312 output from rear motor RH E

    B → See step   5

    C → See step   10

    D → See step   15

    E → See step   20

    A: Go to next step

  4. READ VALUE USING TECHSTREAM (MULTIPLEX NETWORK MASTER SWITCH)
    1. Use the Data List to check if the multiplex network master switch is functioning properly.
      MASTER SWITCH:

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      D Door P/W Auto SW Driver side power window auto UP/DOWN switch signal / ON or OFF ON: Driver side power window auto UP/DOWN switch on master switch operated
      OFF: Driver side power window switch on master switch not operated      		 -
      P Door P/W Auto SW Front passenger side power window remote auto UP/DOWN switch signal / ON or OFF ON: Front passenger side power window remote auto UP/DOWN switch on master switch operated
      OFF: Front passenger side power window switch on master switch not operated      		 -
      RR Door P/W Auto SW Rear power window RH remote auto UP/DOWN switch signal / ON or OFF ON: Rear power window RH remote auto UP/DOWN switch on master switch operated
      OFF: Rear power window RH switch on master switch not operated      		 -
      RL Door P/W Auto SW Rear power window LH remote auto UP/DOWN switch signal / ON or OFF ON: Rear power window LH remote auto UP/DOWN switch on master switch operated
      OFF: Rear power window LH switch on master switch not operated      		 -
      P Door P/W Up SW Front passenger side power window remote manual UP switch signal / ON or OFF ON: Front passenger side power window remote manual UP switch on master switch operated
      OFF: Front passenger side power window switch on master switch not operated      		 -
      RR Door P/W up switch Rear power window RH remote manual UP switch signal / ON or OFF ON: Rear power window RH remote manual UP switch on master switch operated
      OFF: Rear power window RH switch on master switch not operated      		 -
      RL Door P/W up switch Rear power window LH remote manual UP switch signal / ON or OFF ON: Rear power window LH remote manual UP switch on master switch operated
      OFF: Rear power window LH switch on master switch not operated      		 -
      P Door P/W Down SW Front passenger side power window remote manual DOWN switch signal / ON or OFF ON: Front passenger side power window remote manual DOWN switch on master switch operated
      OFF: Front passenger side power window switch on master switch not operated      		 -
      RR Door P/W Down SW Rear power window RH remote manual DOWN switch signal / ON or OFF ON: Rear power window RH remote manual DOWN switch on master switch operated
      OFF: Rear power window RH switch on master switch not operated      		 -
      RL Door P/W Down SW Rear power window LH remote manual DOWN switch signal / ON or OFF ON: Rear power window LH remote manual DOWN switch on master switch operated
      OFF: Rear power window LH switch on master switch not operated      		 -
      Window Lock Switch Status Power window LOCK switch / ON or OFF ON: Power window lock switch LOCK position
      OFF: Power window lock switch UNLOCK position      		 -

      OK

      Techstream display changes normally when multiplex network master switch is operated.

    NG → See step   29

    OK → END (DUE TO KEEPING SWITCH OPERATED FOR 20 SECONDS OR MORE)

  5. READ VALUE USING TECHSTREAM (FRONT POWER WINDOW REGULATOR MOTOR LH)
    1. Use the Data List to check if the front power window regulator motor LH is functioning properly.
      D-DOOR MOTOR:

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      D Door P/W Auto SW Driver side power window auto UP/DOWN switch signal / ON or OFF ON: Driver side power window auto UP/DOWN switch on master switch operated
      OFF: Driver side power window switch on master switch not operated      		 -
      D Door P/W Up SW Driver side power window MANUAL UP switch signal/ON or OFF ON: Driver side power window manual UP switch on master switch operated
      OFF: Driver side power window switch on master switch not operated      		 -
      D Door P/W Down SW Driver side power window MANUAL DOWN switch signal/ON or OFF ON: Driver side power window manual DOWN switch on master switch operated
      OFF: Driver side power window switch on master switch not operated      		 -

      OK

      Techstream display changes normally when multiplex network master switch is operated.

    NG → See step   6

    OK → END (DUE TO KEEPING SWITCH OPERATED FOR 20 SECONDS OR MORE)

  6. CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH - FRONT MULTIPLEX NETWORK DOOR ECU LH)
    1. Disconnect the P10 ECU connector.
      GTY283129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the N13 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      P10-27 (SGND) - N13-12 (GND) Always Below 1 Ω
      P10-26 (CPBJ) - N13-11 (B) Always Below 1 Ω
      P10-27 (SGND) or N13-12 (GND) - Body ground Always 10 kΩ or higher
      P10-26 (CPBJ) or N13-11 (B) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU LH - FRONT POWER WINDOW REGULATOR MOTOR LH)
    1. Disconnect the N10 ECU connector.
      GTY269576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the N11 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      N10-5 (BDRJ) - N11-2 (B) Always Below 1 Ω
      N10-2 (PWE) - N11-1 (E) Always Below 1 Ω
      N10-5 (BDRJ) or N11-2 (B) - Body ground Always 10 kΩ or higher
      N10-2 (PWE) or N11-1 (E) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH - FRONT POWER WINDOW REGULATOR MOTOR LH)
    1. Disconnect the N13 switch connector.
      GTY288655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the N11 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      N13-20 (UP) - N11-10 (UP1) Always Below 1 Ω
      N13-15 (DOWN) - N11-7 (DWN1) Always Below 1 Ω
      N13-20 (UP) or N11-10 (UP1) - Body ground Always 10 kΩ or higher
      N13-15 (DOWN) or N11-7 (DWN1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (OPERATION)
    1. Temporarily replace the multiplex network master switch with a new or normally functioning one. Refer to REMOVAL [09/2012 - ] .
    2. Check that the power window function operates normally.

      OK

      Power window operates normally.

    NG → See step   26

    OK → See step   29

  10. READ VALUE USING TECHSTREAM (FRONT POWER WINDOW REGULATOR MOTOR RH)
    1. Use the Data List to check if the front power window regulator motor RH is functioning properly.
      P-DOOR MOTOR:

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      P Door P/W Auto SW Front passenger side power window auto UP/DOWN switch signal / ON or OFF ON: Front passenger side power window auto UP/DOWN switch operated
      OFF: Front passenger side power window switch not operated      		 -
      P Door P/W Up SW Front passenger side power window manual UP switch signal / ON or OFF ON: Front passenger side power window manual UP switch operated
      OFF: Front passenger side power window switch not operated      		 -
      P Door P/W Down SW Front passenger side power window manual DOWN switch signal / ON or OFF ON: Front passenger side power window manual DOWN switch operated
      OFF: Front passenger side power window switch not operated      		 -

      OK

      Techstream display changes normally when front passenger side power window switch is operated.

    NG → See step   11

    OK → END (DUE TO KEEPING SWITCH OPERATED FOR 20 SECONDS OR MORE)

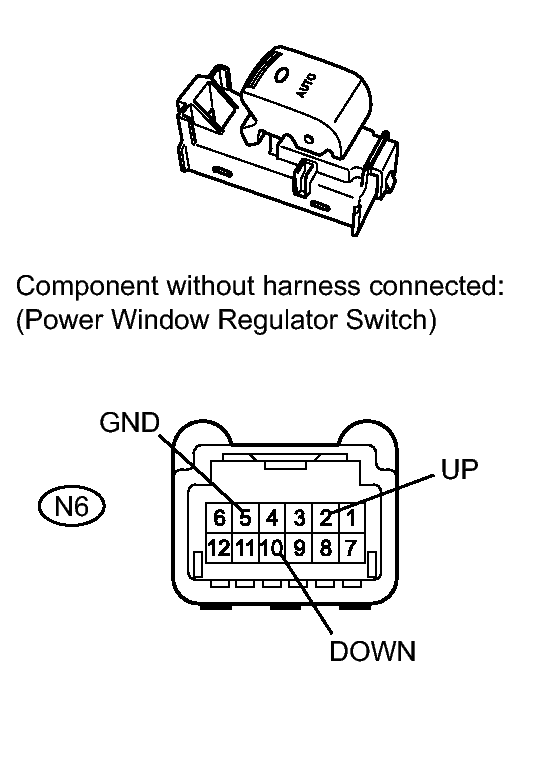

  11. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
    GTY117179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the switch.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      N6-2 (UP) - N6-5 (GND) Manual UP operation Below 1 Ω
      N6-10 (DOWN) - N6-5 (GND) Manual DOWN operation Below 1 Ω
      N6-2 (UP) - N6-5 (GND) Not operated 10 kΩ or higher
      N6-10 (DOWN) - N6-5 (GND) Not operated 10 kΩ or higher

    NG → See step   25

    OK: Go to next step

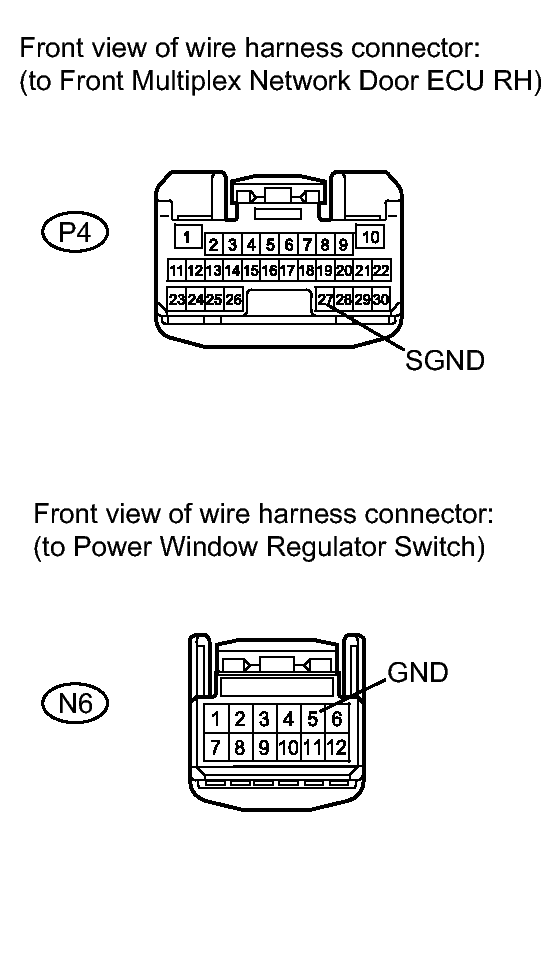

  12. CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU RH - POWER WINDOW REGULATOR SWITCH)
    1. Disconnect the P4 ECU connector.
      GTY288718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the N6 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      P4-27 (SGND) - N6-5 (GND) Always Below 1 Ω
      P4-27 (SGND) or N6-5 (GND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (FRONT MULTIPLEX NETWORK DOOR ECU RH - FRONT POWER WINDOW REGULATOR MOTOR RH)
    1. Disconnect the N1 ECU connector.

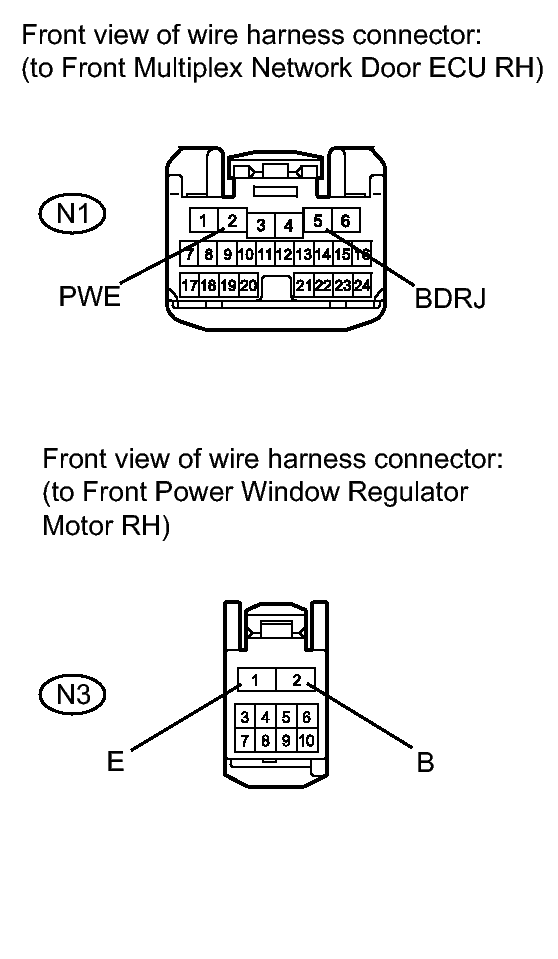

      GTY269226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the N3 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      N1-5 (BDRJ) - N3-2 (B) Always Below 1 Ω
      N1-2 (PWE) - N3-1 (E) Always Below 1 Ω
      N1-5 (BDRJ) or N3-2 (B) - Body ground Always 10 kΩ or higher
      N1-2 (PWE) or N3-1 (E) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

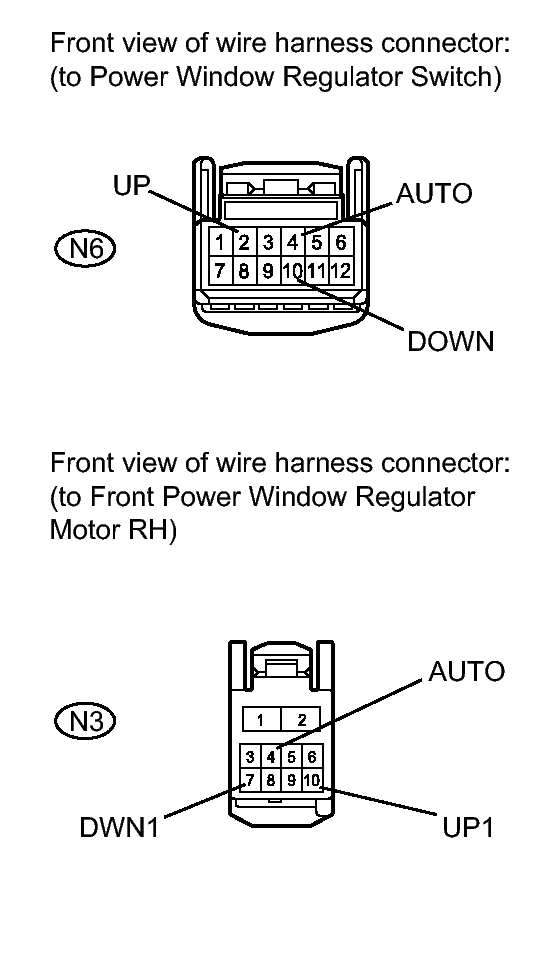

  14. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH - FRONT POWER WINDOW REGULATOR MOTOR RH)
    1. Disconnect the N6 switch connector.
      GTY288656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the N3 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      N6-2 (UP) - N3-10 (UP1) Always Below 1 Ω
      N6-10 (DOWN) - N3-7 (DWN1) Always Below 1 Ω
      N6-4 (AUTO) - N3-4 (AUTO) Always Below 1 Ω
      N6-2 (UP) or N3-10 (UP1) - Body ground Always 10 kΩ or higher
      N6-10 (DOWN) or N3-7 (DWN1) - Body ground Always 10 kΩ or higher
      N6-4 (AUTO) or N3-4 (AUTO) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   30

  15. READ VALUE USING TECHSTREAM (REAR POWER WINDOW REGULATOR MOTOR LH)
    1. Use the Data List to check if the power window regulator motor is functioning properly.
      RL-DOOR MOTOR:

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      RL Door P/W Auto SW Rear power window LH auto UP/DOWN switch signal / ON or OFF ON: Rear power window LH auto UP/DOWN switch operated
      OFF: Rear power window switch LH not operated      		 -
      RL Door P/W Up SW Rear power window LH manual UP switch signal / ON or OFF ON: Rear power window LH manual UP switch operated
      OFF: Rear power window switch LH not operated      		 -
      RL Door P/W Down SW Rear power window LH manual DOWN switch signal / ON or OFF ON: Rear power window LH manual DOWN switch operated
      OFF: Rear power window switch LH not operated      		 -

      OK

      Techstream display changes normally when rear power window switch LH is operated.

    NG → See step   16

    OK → END (DUE TO KEEPING SWITCH OPERATED FOR 20 SECONDS OR MORE)

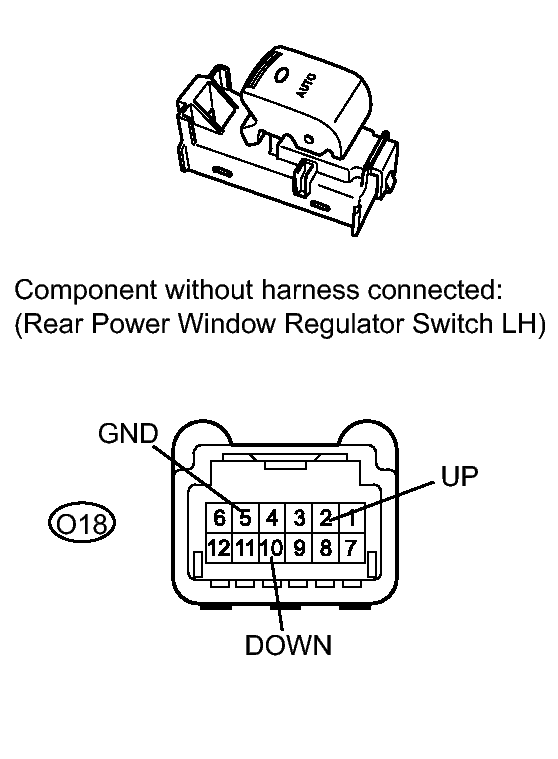

  16. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH
    GTY288721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the switch.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      O18-2 (UP) - O18-5 (GND) Manual UP operation Below 1 Ω
      O18-10 (DOWN) - O18-5 (GND) Manual DOWN operation Below 1 Ω
      O18-2 (UP) - O18-5 (GND) Not operated 10 kΩ or higher
      O18-10 (DOWN) - O18-5 (GND) Not operated 10 kΩ or higher

    NG → See step   31

    OK: Go to next step

  17. CHECK HARNESS AND CONNECTOR (REAR MULTIPLEX NETWORK DOOR ECU LH - REAR POWER WINDOW REGULATOR SWITCH LH)
    1. Disconnect the O15 ECU connector.

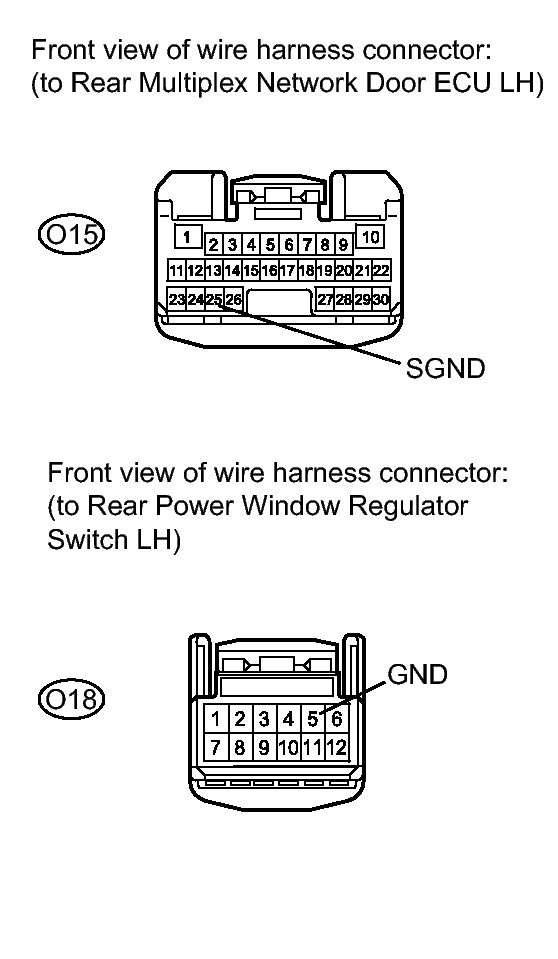

      GTY288719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O18 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      O15-25 (SGND) - O18-5 (GND) Always Below 1 Ω
      O15-25 (SGND) or O18-5 (GND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

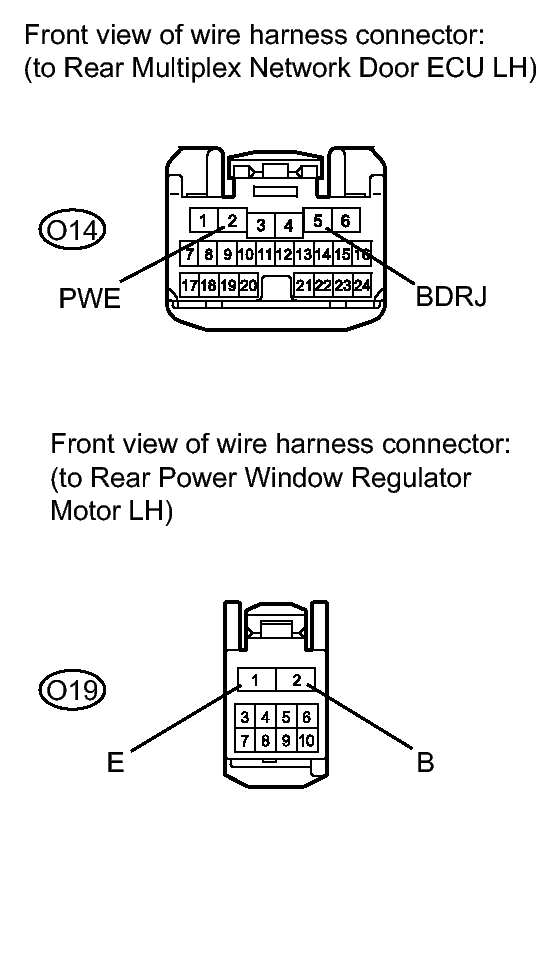

  18. CHECK HARNESS AND CONNECTOR (REAR MULTIPLEX NETWORK DOOR ECU LH - REAR POWER WINDOW REGULATOR MOTOR LH)
    1. Disconnect the O14 ECU connector.
      GTY269402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O19 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      O14-5 (BDRJ) - O19-2 (B) Always Below 1 Ω
      O14-2 (PWE) - O19-1 (E) Always Below 1 Ω
      O14-5 (BDRJ) or O19-2 (B) - Body ground Always 10 kΩ or higher
      O14-2 (PWE) or O19-1 (E) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  19. CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH LH - REAR POWER WINDOW REGULATOR MOTOR LH)
    1. Disconnect the O18 switch connector.

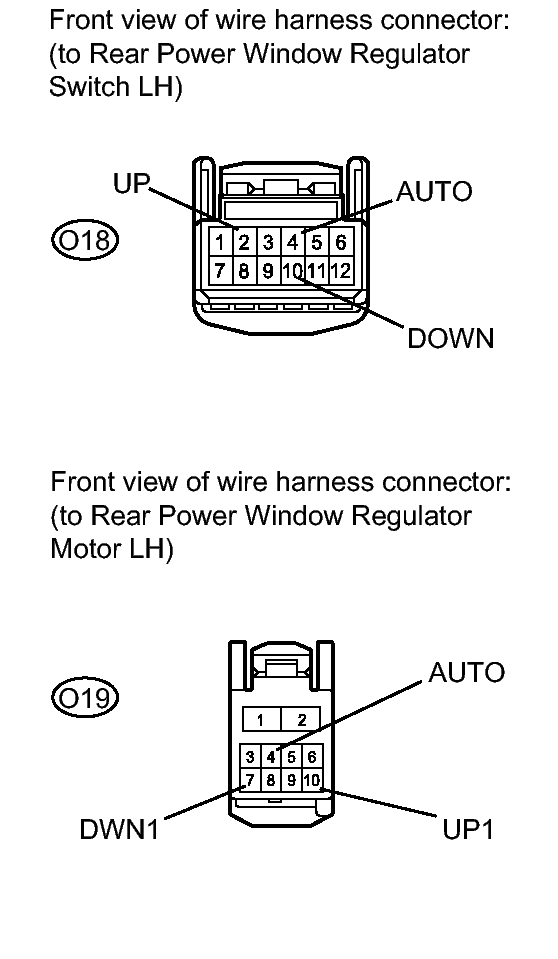

      GTY288657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O19 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      O18-2 (UP) - O19-10 (UP1) Always Below 1 Ω
      O18-10 (DOWN) - O19-7 (DWN1) Always Below 1 Ω
      O18-4 (AUTO) - O19-4 (AUTO) Always Below 1 Ω
      O18-2 (UP) or O19-10 (UP1) - Body ground Always 10 kΩ or higher
      O18-10 (DOWN) or O19-7 (DWN1) - Body ground Always 10 kΩ or higher
      O18-4 (AUTO) or O19-4 (AUTO) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   32

  20. READ VALUE USING TECHSTREAM (REAR POWER WINDOW REGULATOR MOTOR RH)
    1. Use the Data List to check if the rear power window regulator motor RH is functioning properly.
      RR-DOOR MOTOR:

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      RR Door P/W Auto SW Rear power window RH auto UP/DOWN switch signal / ON or OFF ON: Rear power window RH auto UP/DOWN switch operated
      OFF: Rear power window switch RH not operated      		 -
      RR Door P/W Up SW Rear power window RH manual UP switch signal / ON or OFF ON: Rear power window RH manual UP switch operated
      OFF: Rear power window switch RH not operated      		 -
      RR Door P/W Down SW Rear power window RH manual DOWN switch signal / ON or OFF ON: Rear power window RH manual DOWN switch operated
      OFF: Rear power window switch RH not operated      		 -

      OK

      Techstream display changes normally when rear power window switch RH is operated.

    NG → See step   21

    OK → END (DUE TO KEEPING SWITCH OPERATED FOR 20 SECONDS OR MORE)

  21. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH

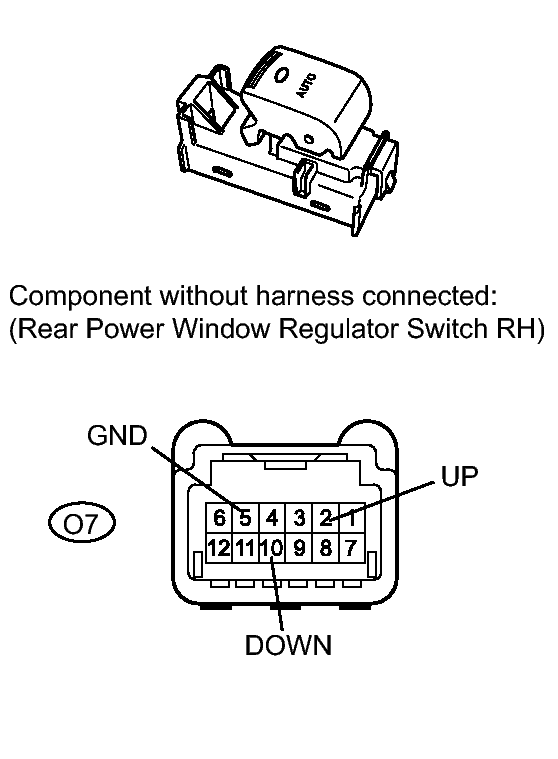

    GTY286911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the switch.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      O7-2 (UP) - O7-5 (GND) Manual UP operation Below 1 Ω
      O7-10 (DOWN) - O7-5 (GND) Manual DOWN operation Below 1 Ω
      O7-2 (UP) - O7-5 (GND) Not operated 10 kΩ or higher
      O7-10 (DOWN) - O7-5 (GND) Not operated 10 kΩ or higher

    NG → See step   33

    OK: Go to next step

  22. CHECK HARNESS AND CONNECTOR (REAR MULTIPLEX NETWORK DOOR ECU RH - REAR POWER WINDOW REGULATOR SWITCH RH)
    1. Disconnect the O2 ECU connector.

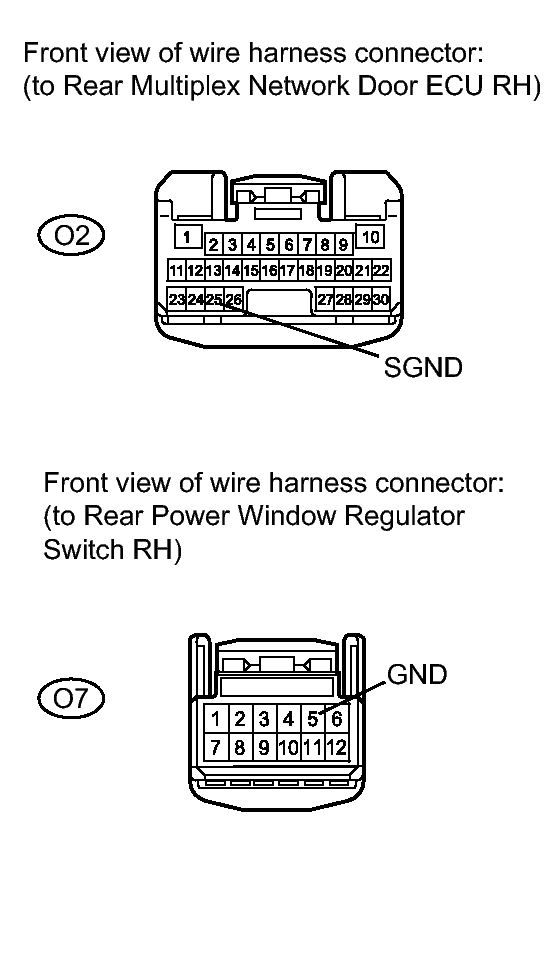

      GTY288720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O7 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      O2-25 (SGND) - O7-5 (GND) Always Below 1 Ω
      O2-25 (SGND) or O7-5 (GND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  23. CHECK HARNESS AND CONNECTOR (REAR MULTIPLEX NETWORK DOOR ECU RH - REAR POWER WINDOW REGULATOR MOTOR RH)
    1. Disconnect the O3 ECU connector.

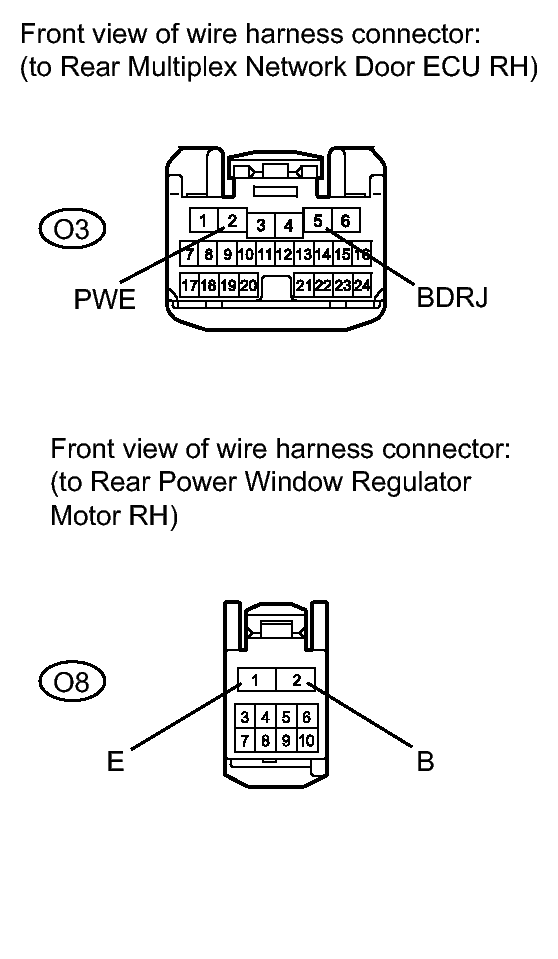

      GTY288661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O8 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      O3-5 (BDRJ) - O8-2 (B) Always Below 1 Ω
      O3-2 (PWE) - O8-1 (E) Always Below 1 Ω
      O3-5 (BDRJ) or O8-2 (B) - Body ground Always 10 kΩ or higher
      O3-2 (PWE) or O8-1 (E) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  24. CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH RH - REAR POWER WINDOW REGULATOR MOTOR RH)
    1. Disconnect the O7 switch connector.

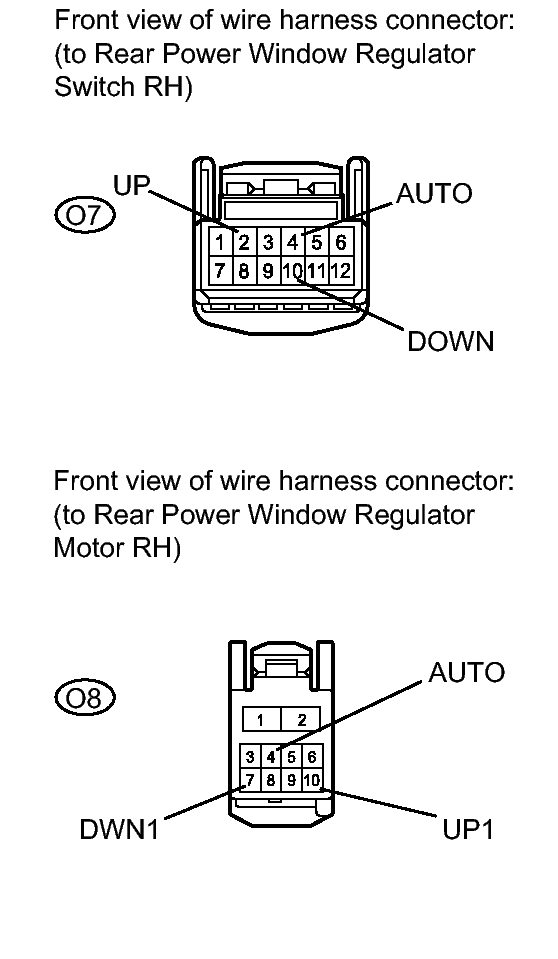

      GTY281512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O8 motor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      O7-2 (UP) - O8-10 (UP1) Always Below 1 Ω
      O7-10 (DOWN) - O8-7 (DWN1) Always Below 1 Ω
      O7-4 (AUTO) - O8-4 (AUTO) Always Below 1 Ω
      O7-2 (UP) or O8-10 (UP1) - Body ground Always 10 kΩ or higher
      O7-10 (DOWN) or O8-7 (DWN1) - Body ground Always 10 kΩ or higher
      O7-4 (AUTO) or O8-4 (AUTO) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   34

  25. REPLACE FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY. Refer to  REMOVAL [09/2012 - ]
  26. REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to  REMOVAL [09/2012 - ]
  27. GO TO LIN COMMUNICATION SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2012 - ]
  28. GO TO CAN COMMUNICATION SYSTEM. Refer to  PRECAUTION [09/2012 - ]
  29. REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to  REMOVAL [09/2012 - ]
  30. REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [09/2012 - ]
  31. REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH. Refer to  REMOVAL [09/2012 - ]
  32. REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to  REMOVAL [09/2012 - ]
  33. REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH. Refer to  REMOVAL [09/2012 - ]
  34. REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [09/2012 - ]
scientia non olet · About LEMON Manuals
