Ground Point: Notes

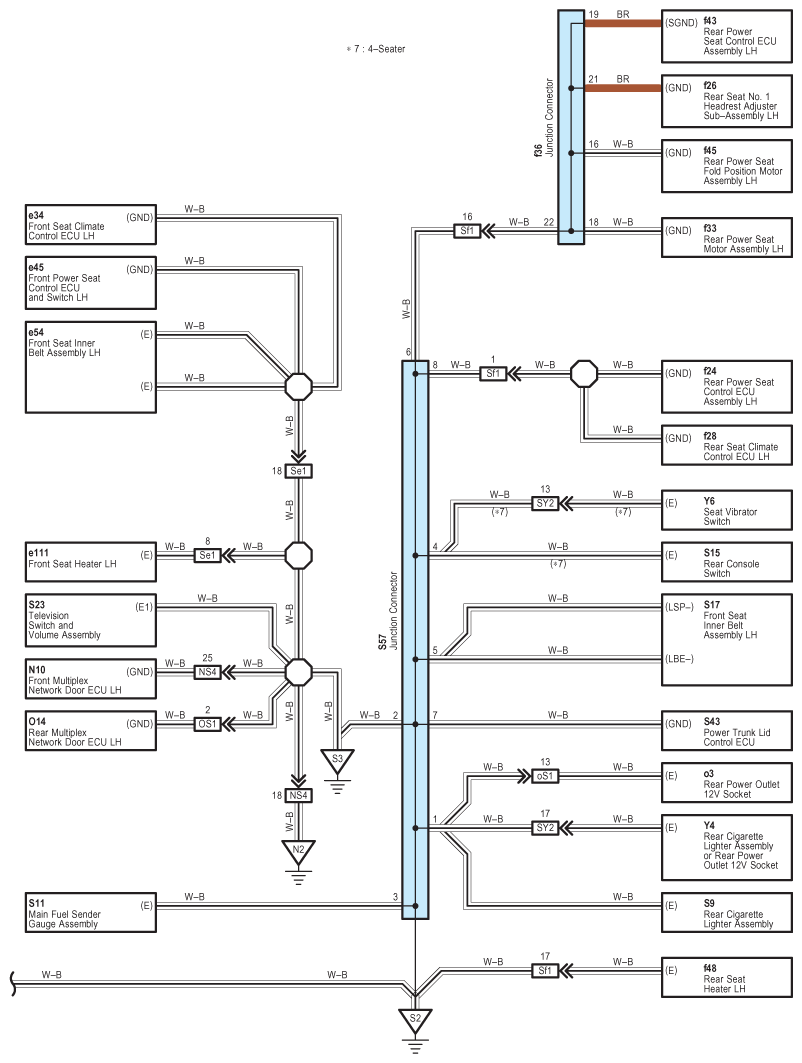

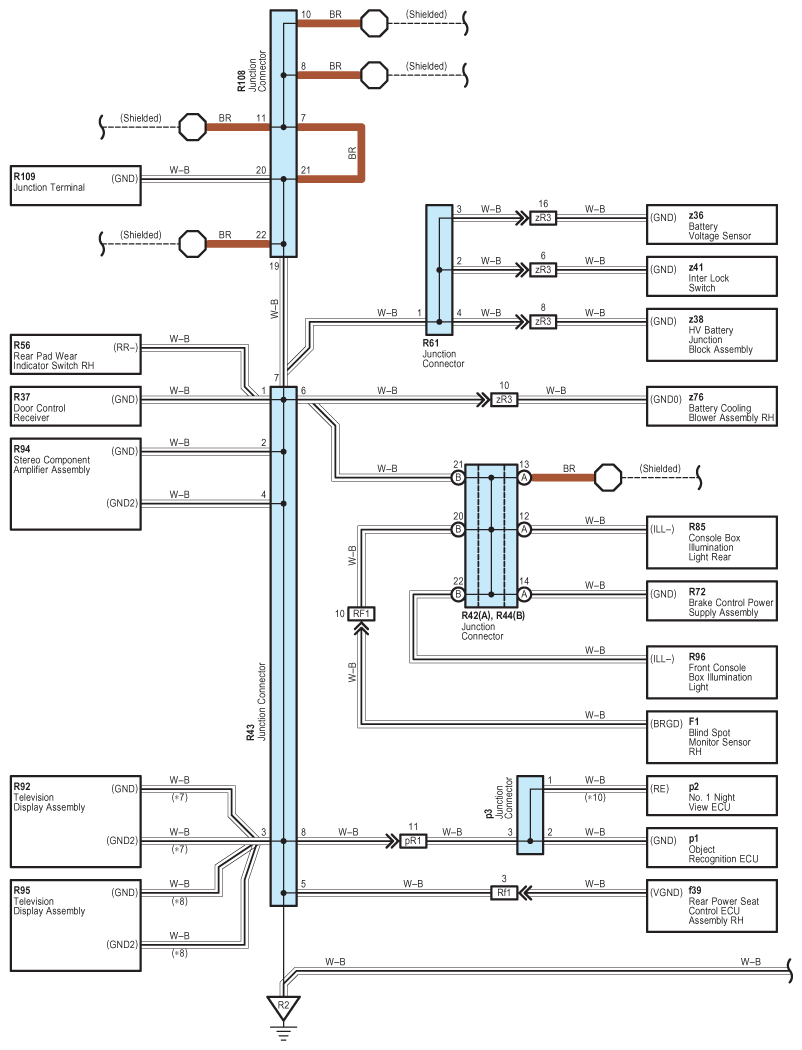

Fig 1: Ground Point Electrical Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

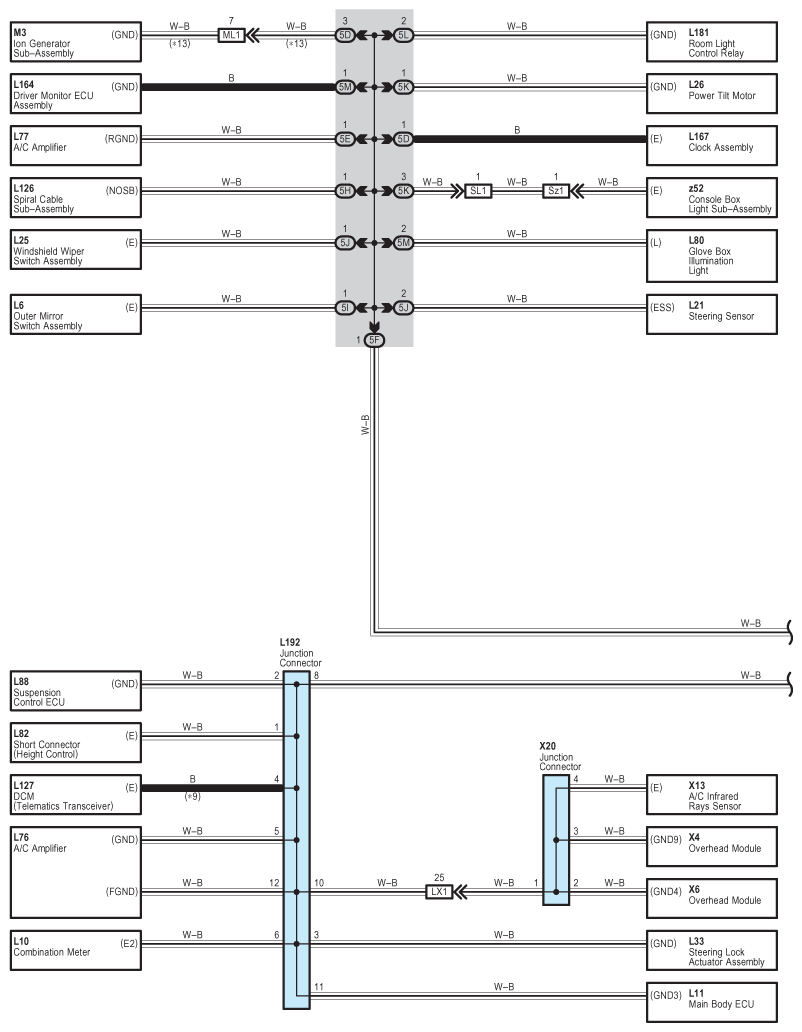

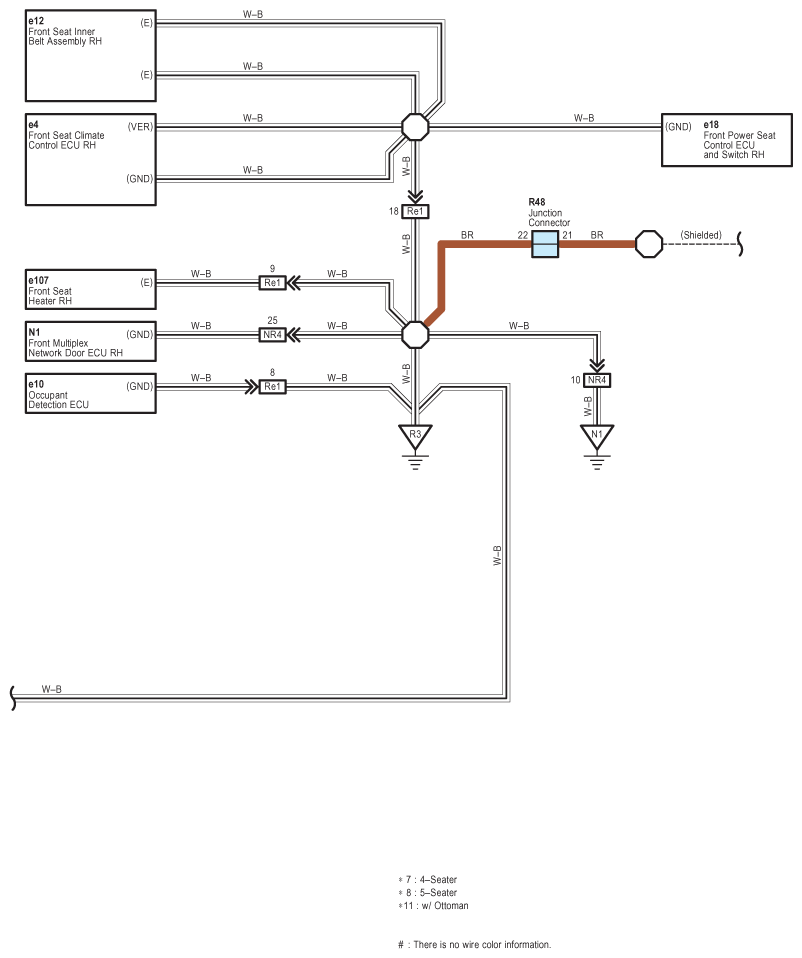

Fig 2: Ground Point Electrical Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

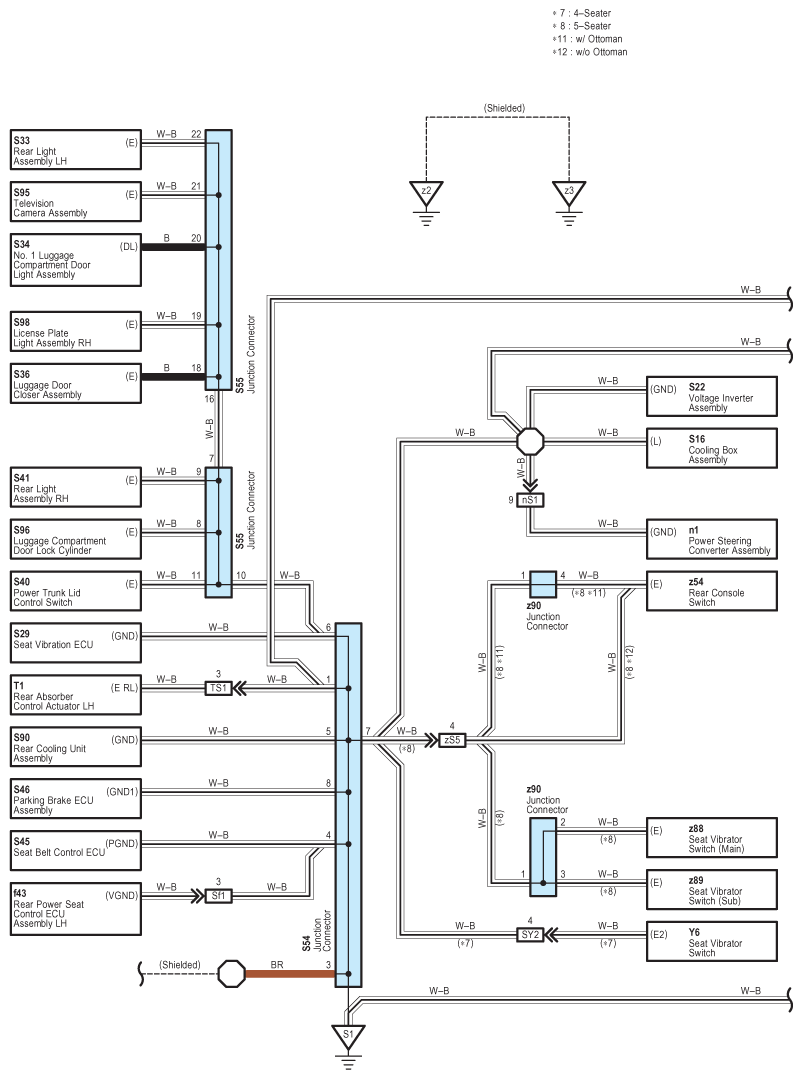

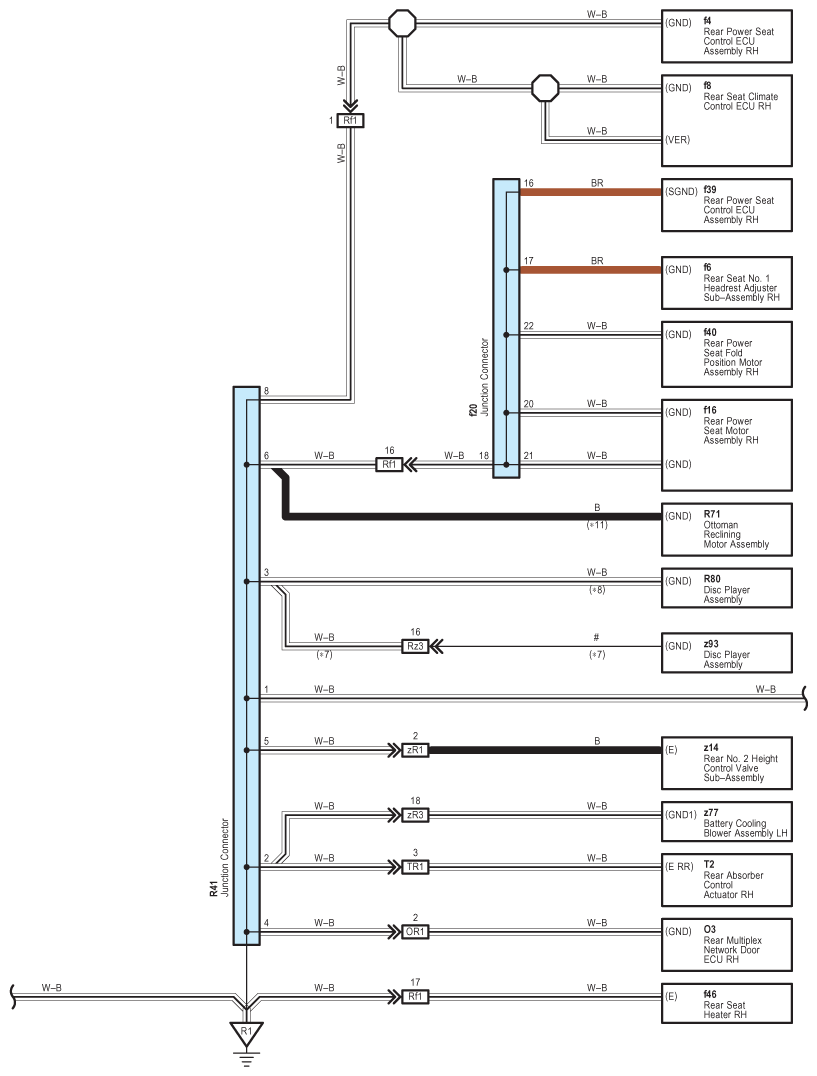

Fig 3: Ground Point Electrical Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

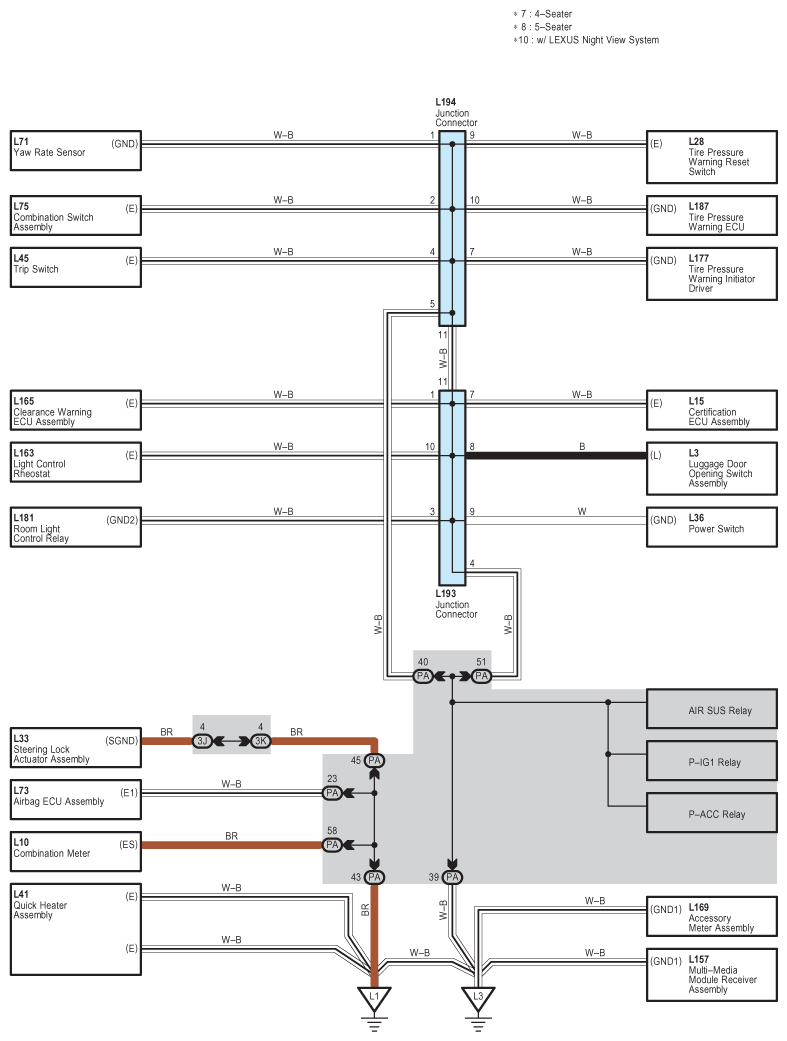

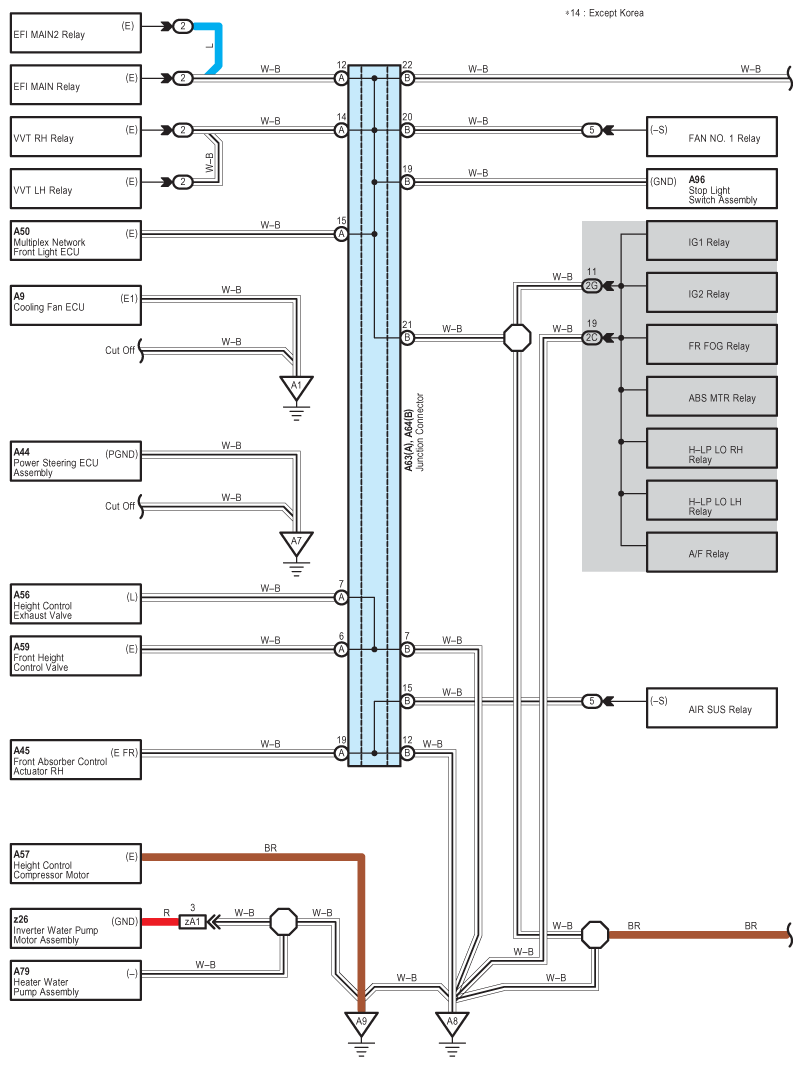

Fig 4: Ground Point Electrical Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

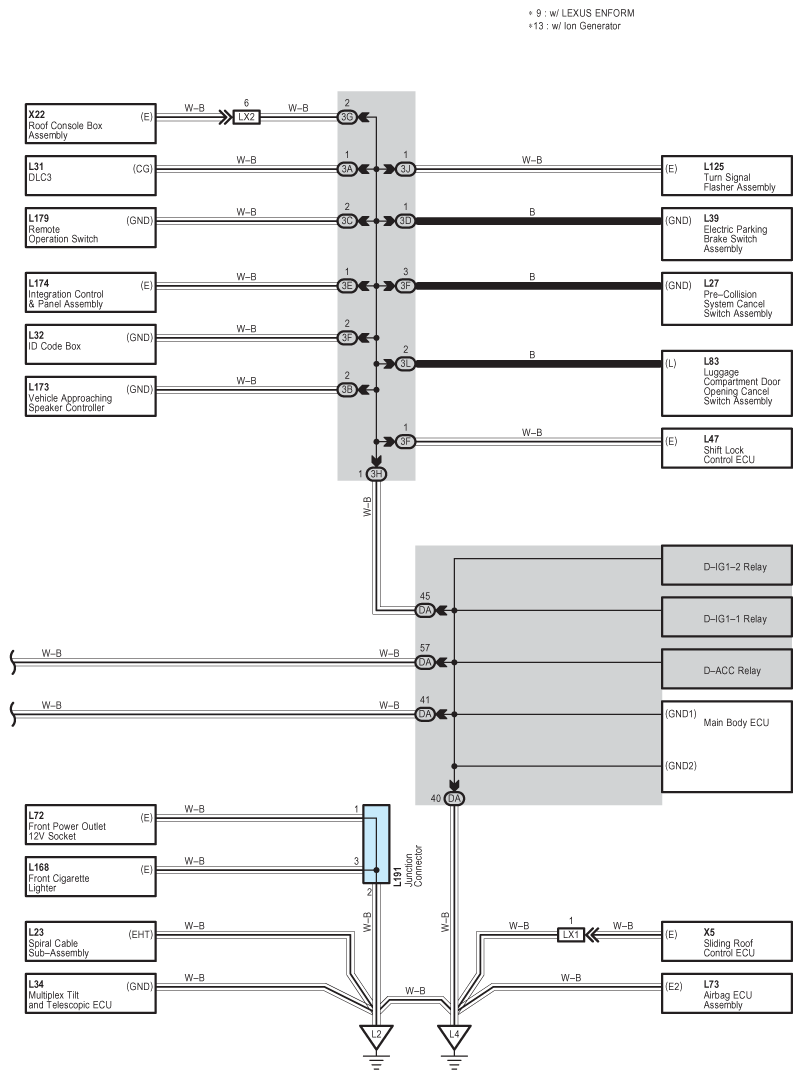

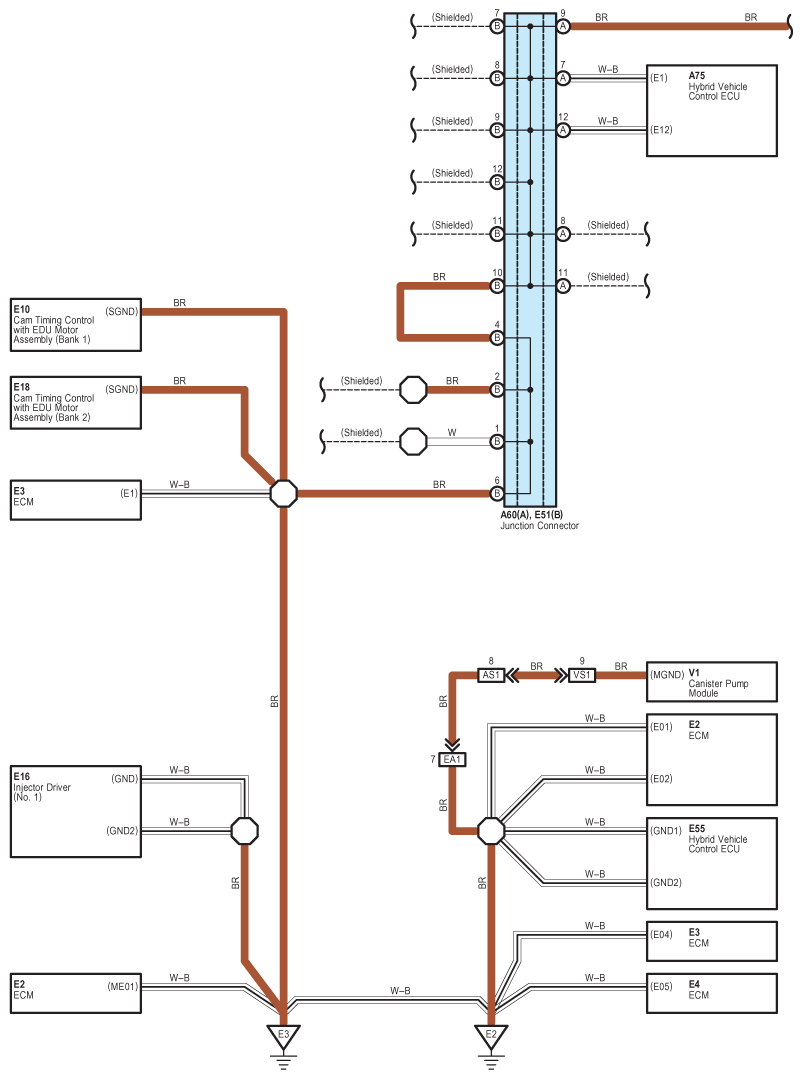

Fig 5: Ground Point Electrical Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

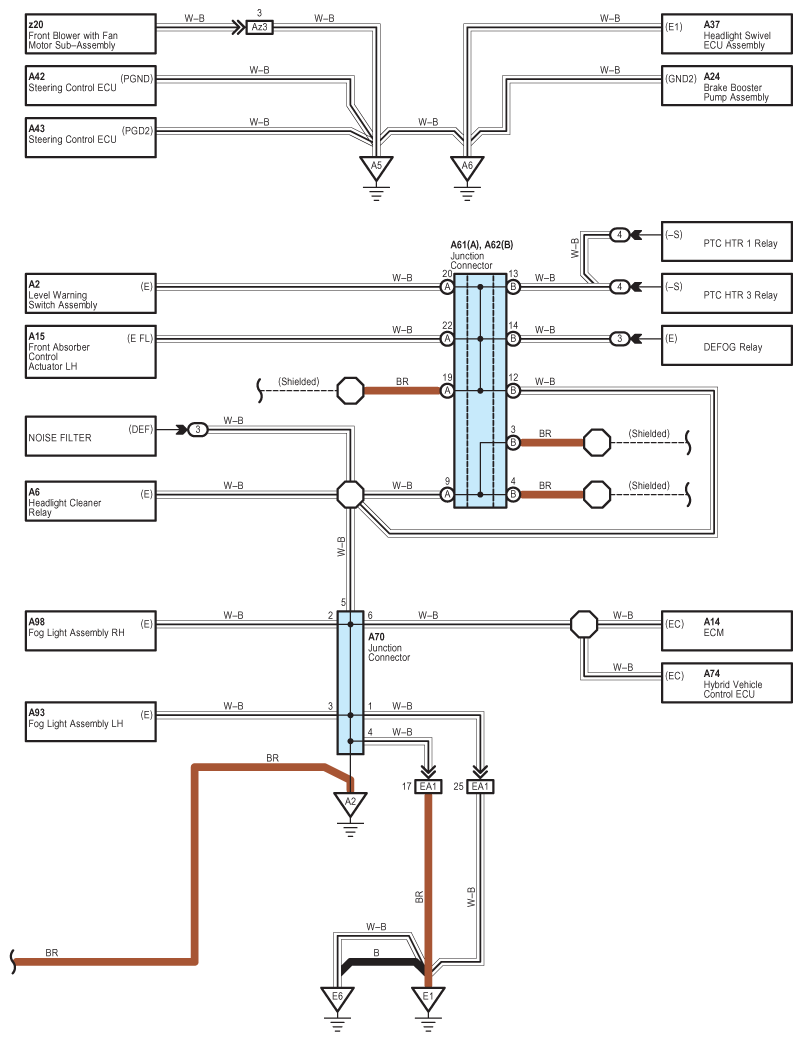

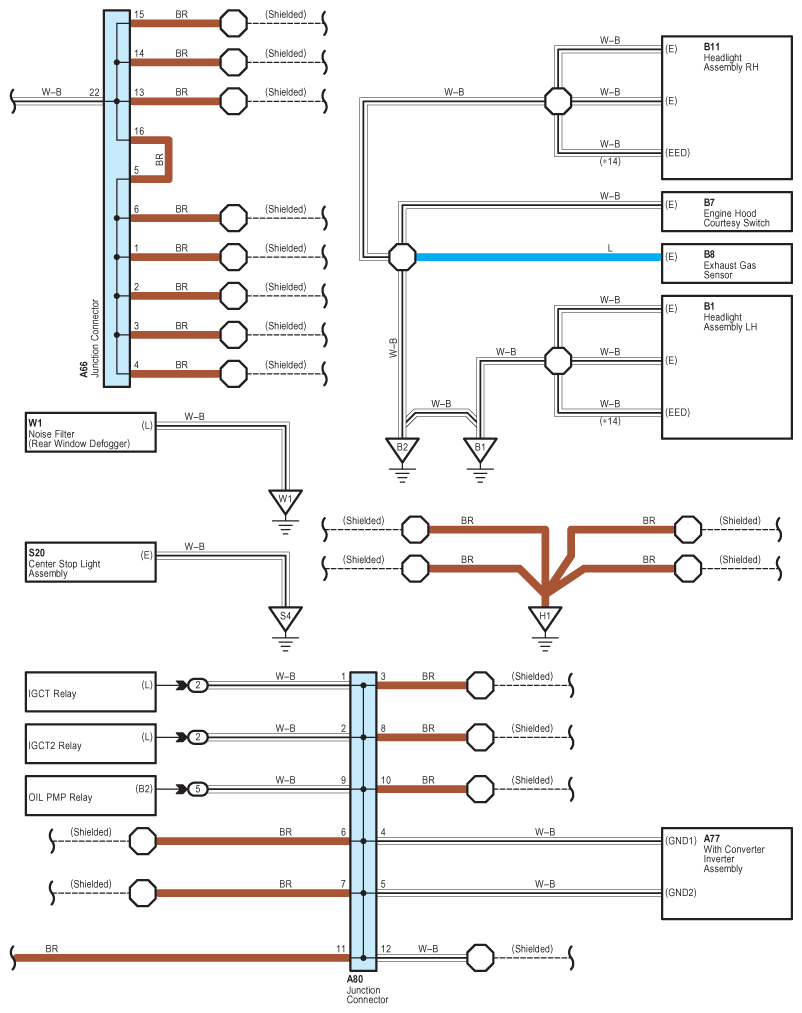

Fig 6: Ground Point Electrical Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

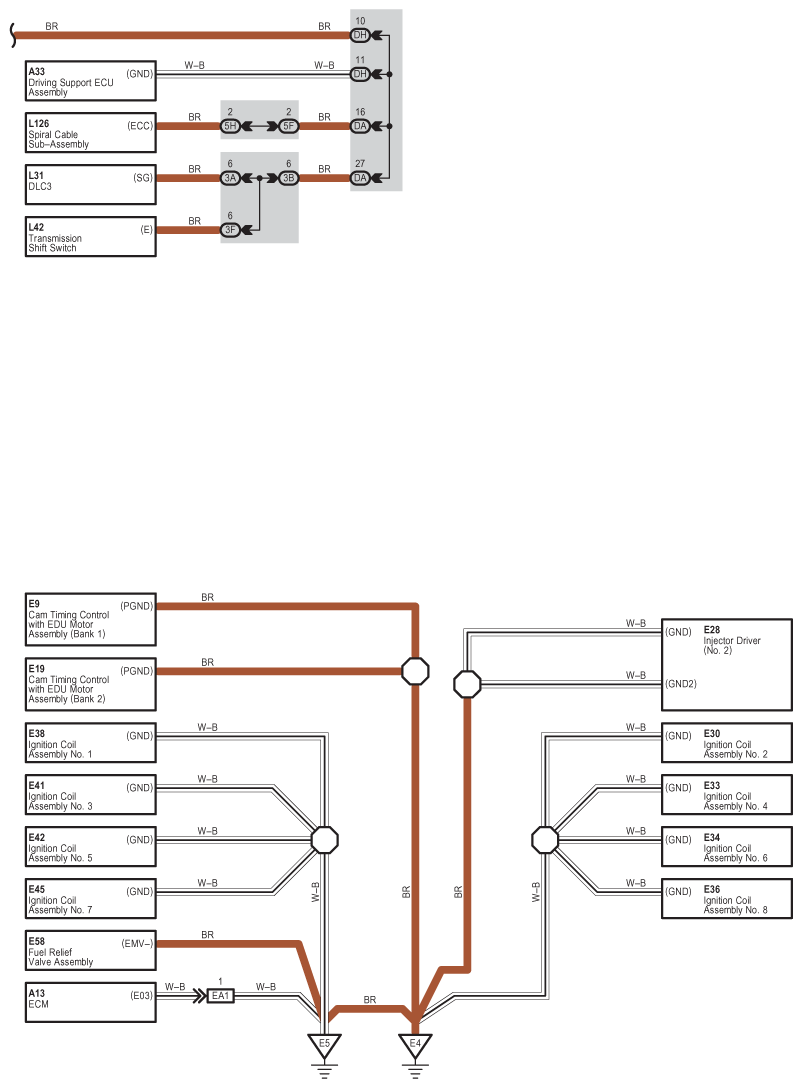

Fig 7: Ground Point Electrical Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

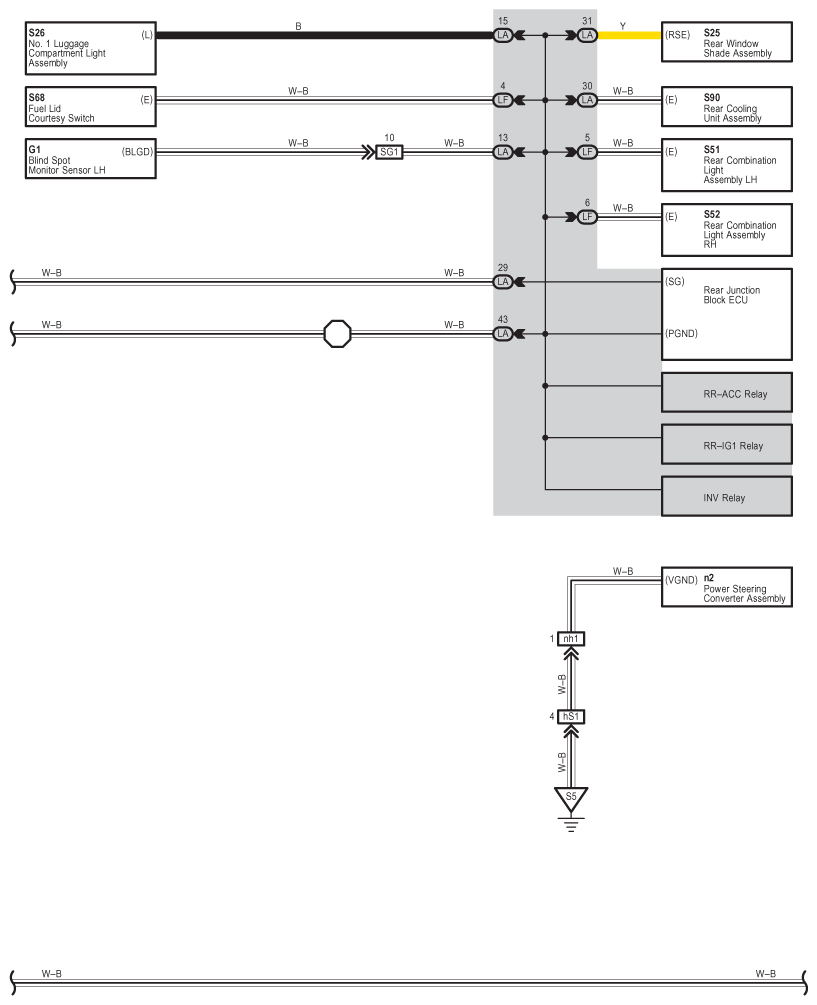

Fig 8: Ground Point Electrical Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Ground Point Electrical Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Ground Point Electrical Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Ground Point Electrical Wiring Diagram (11 Of 15)

Fig 12: Ground Point Electrical Wiring Diagram (12 Of 15)

Fig 13: Ground Point Electrical Wiring Diagram (13 Of 15)

Fig 14: Ground Point Electrical Wiring Diagram (14 Of 15)

Fig 15: Ground Point Electrical Wiring Diagram (15 Of 15)
