System Description [07/2012 - ]

  1. CRUISE CONTROL SYSTEM

    This system is controlled by the ECM, and is activated by the throttle position sensor and motor. The ECM controls the following functions: ON-OFF, - (COAST)/SET, + (ACCEL)/RES (RESUME), CANCEL, vehicle speed operation, motor output control, and overdrive control.

    • The ECM compares the driving vehicle speed from the speed sensors with the stored vehicle speed set through the cruise control main switch. The ECM instructs the throttle valve motor of the throttle body assembly to close the valve when the driving speed is greater than the stored speed, and instructs it to open the valve when the driving speed is less than the stored speed.
    • The ECM receives signals such as ON-OFF, - SET, + RES, and CANCEL from the cruise control main switch and executes the command.
    • The ECM illuminates the combination meter's cruise main indicator light when it receives a cruise control main switch ON signal.

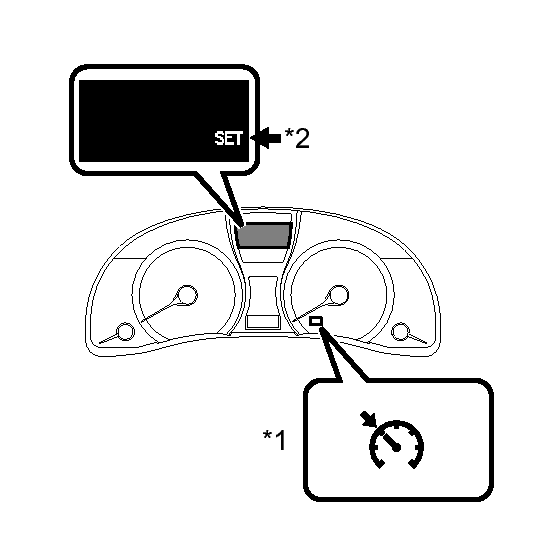

      TEXT IN ILLUSTRATION

      *1 Cruise Main Indicator Light
      *2 "SET" Indicator
      Fig 1: Cruise Main Indicator Light And "SET" Indicator Light
      GTY397242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The ECM displays "SET" on the multi-information display when constant speed control is started by pushing the cruise control main switch to "- SET".
    • The ECM cancels the cruise control system when the brake pedal is depressed.
    • The ECM cancels the cruise control system when the shift lever is moved from D or S to any other position (for U660E, U660F).
    • The ECM cancels the cruise control system when the 3rd, 2nd, or 1st range is selected with the shift lever in S (for U660E, U660F).
    • The ECM cancels the cruise control system when the shift lever is moved from D to any other position (for U880F).
    • The ECM cancels the cruise control system when the transmission shift switch is operated to select the 3rd, 2nd, or 1st range with the shift lever in D (w/ Shift Paddle Switch).
  2. LIMIT CONTROL
    1. Low speed limit

      The lowest possible limit of the speed setting range is set at approximately 40 km/h (25 mph). The cruise control system cannot be set when the driving vehicle speed is below the low speed limit. Cruise control operation will be automatically canceled but the stored vehicle speed will be retained when the vehicle speed drops below the low speed limit of approximately 40 km/h (25 mph) while the cruise control is in operation.

    2. High speed limit

      The highest possible limit of the speed setting range is set at approximately 200 km/h (124 mph). The cruise control system cannot be set when the driving vehicle speed is over the high speed limit. Also, + RES cannot be used to increase speed over the high speed limit.

  3. CRUISE CONTROL OPERATION

    The cruise control main switch operates 7 functions: SET, - (COAST), TAP-DOWN, RES (RESUME), + (ACCEL), TAP-UP, and CANCEL. The SET, TAP-DOWN, and - (COAST) functions, and the RES (RESUME), TAP-UP, and + (ACCEL) functions are operated with the same switch. The cruise control main switch is an automatic return type switch which turns on only while operating it in the direction of each arrow and turns off after releasing it.

    1. SET CONTROL

      Vehicle speed is stored and constant speed control is maintained when pushing the cruise control main switch to - SET while driving with the main switch on (the cruise main indicator light comes on), and the vehicle speed is within the set speed range (between the low and high speed limits).

    2. - (COAST) CONTROL

      When the cruise control main switch is held to - SET while the cruise control system is operating, the ECM sends a "throttle valve opening angle 0°" demand signal to the cruise control system. Then the vehicle speed, when the cruise control main switch is released, is stored and maintained.

      HINT:

      An actual throttle valve opening angle of 0° is not possible due to the idle speed control, etc.

    3. TAP-DOWN CONTROL

      When tapping down the cruise control main switch to - SET (for approximately 0.6 seconds) while the cruise control system is in operation, the stored vehicle speed decreases each time by approximately 1.6 km/h (1.0 mph). When the cruise control main switch is released from - SET and the difference between the driving and stored vehicle speeds is more than approximately 5 km/h (3 mph), the driving vehicle speed is stored and constant speed control is maintained.

    4. + (ACCEL) CONTROL

      The throttle valve motor of the throttle body assembly is instructed by the ECM to open the throttle valve when + RES on the cruise control main switch is pressed and held while the cruise control system is in operation. When the cruise control main switch is released from + RES, the vehicle speed is stored and the vehicle is controlled at a constant speed.

    5. TAP-UP CONTROL

      When tapping up the cruise control main switch to + RES (for approximately 0.6 seconds) while the cruise control system is in operation, the stored vehicle speed increases each time by approximately 1.6 km/h (1.0 mph). However, when the difference between the driving and the stored vehicle speeds is more than approximately 5 km/h (3 mph), the stored vehicle speed will not be changed.

    6. RES (RESUME) CONTROL

      If cruise control operation was canceled with the stop light switch or the CANCEL switch, and if driving speed is within the limit range, pushing the cruise control main switch to + RES restores vehicle speed memorized at the time of cancellation, and maintains constant speed control.

    7. MANUAL CANCEL CONTROL

      Performing any of the following cancels the cruise control system while in operation (the stored vehicle speed in the ECM is maintained).

      • Depressing the brake pedal
      • Moving the shift lever from D or S to any other position (for U660E, U660F)
      • Selecting the 3rd, 2nd, or 1st range with the shift lever in S (for U660E, U660F)
      • Moving the shift lever from D to any other position (for U880F)
      • Selecting the 3rd, 2nd, or 1st range using the transmission shift switch with the shift lever in D (w/ Shift Paddle Switch)
      • Pushing the cruise control main switch to CANCEL
      • Turning the cruise control main switch off (the stored vehicle speed in the ECM is not maintained)
  4. AUTO CANCEL (FAIL-SAFE)

    This system has an automatic cancellation function (fail-safe). Refer to FAIL-SAFE CHART [03/2012 - ] .
