DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) (03/2012 - 07/2012)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) (03/2012 - 07/2012): Wiring Diagram

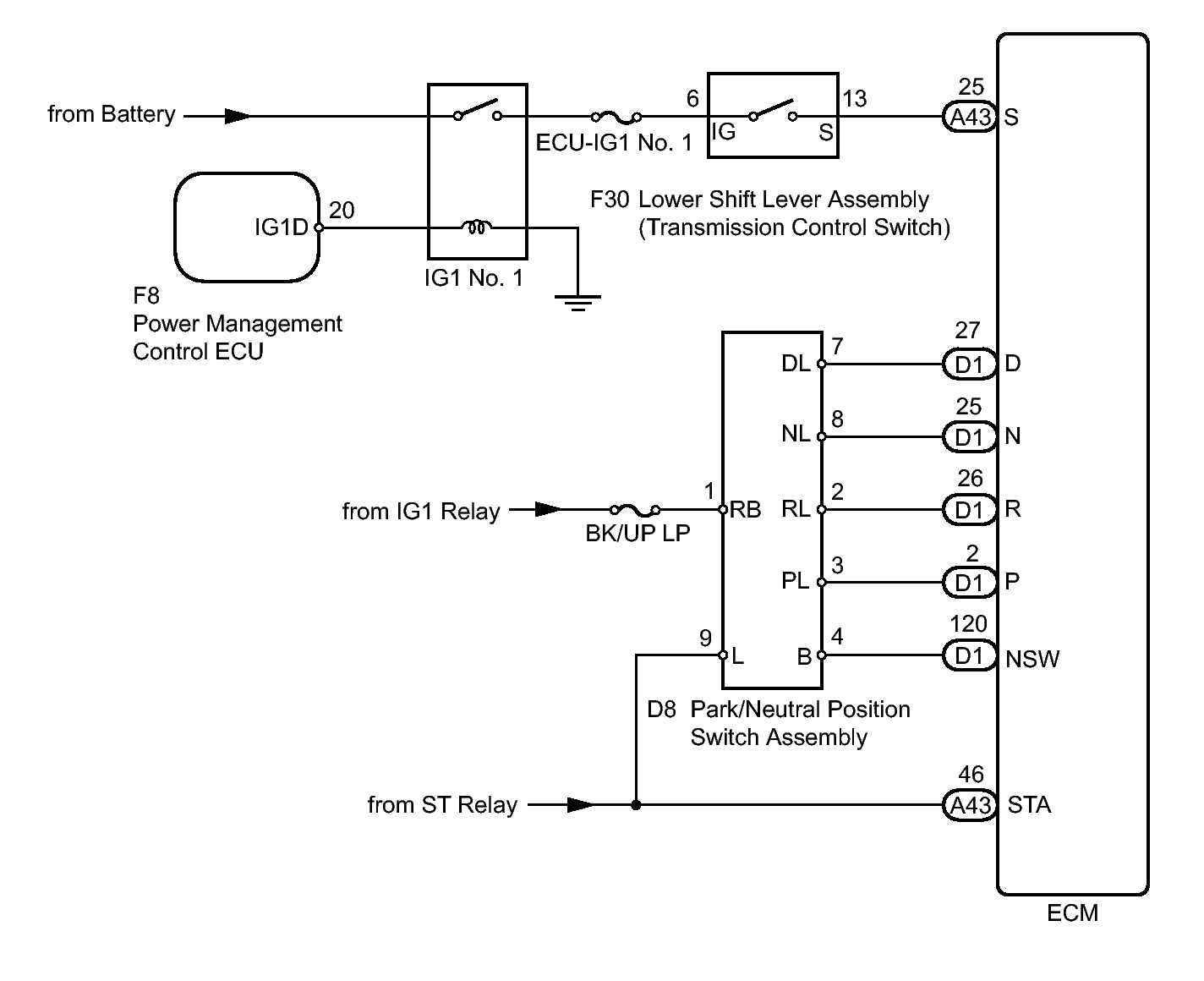

Fig 1: Transmission Range Sensor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
