DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [12/2013 - ]: Wiring Diagram

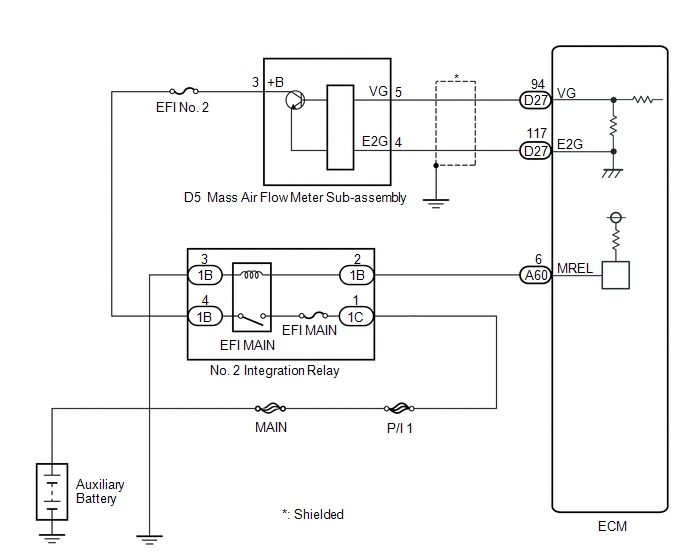

Fig 1: Identifying Mass Air Flow Meter Voltage Wiring Diagram
GTY359180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
