System Diagram [08/2013 - ]

  1. DOOR BUS LINES

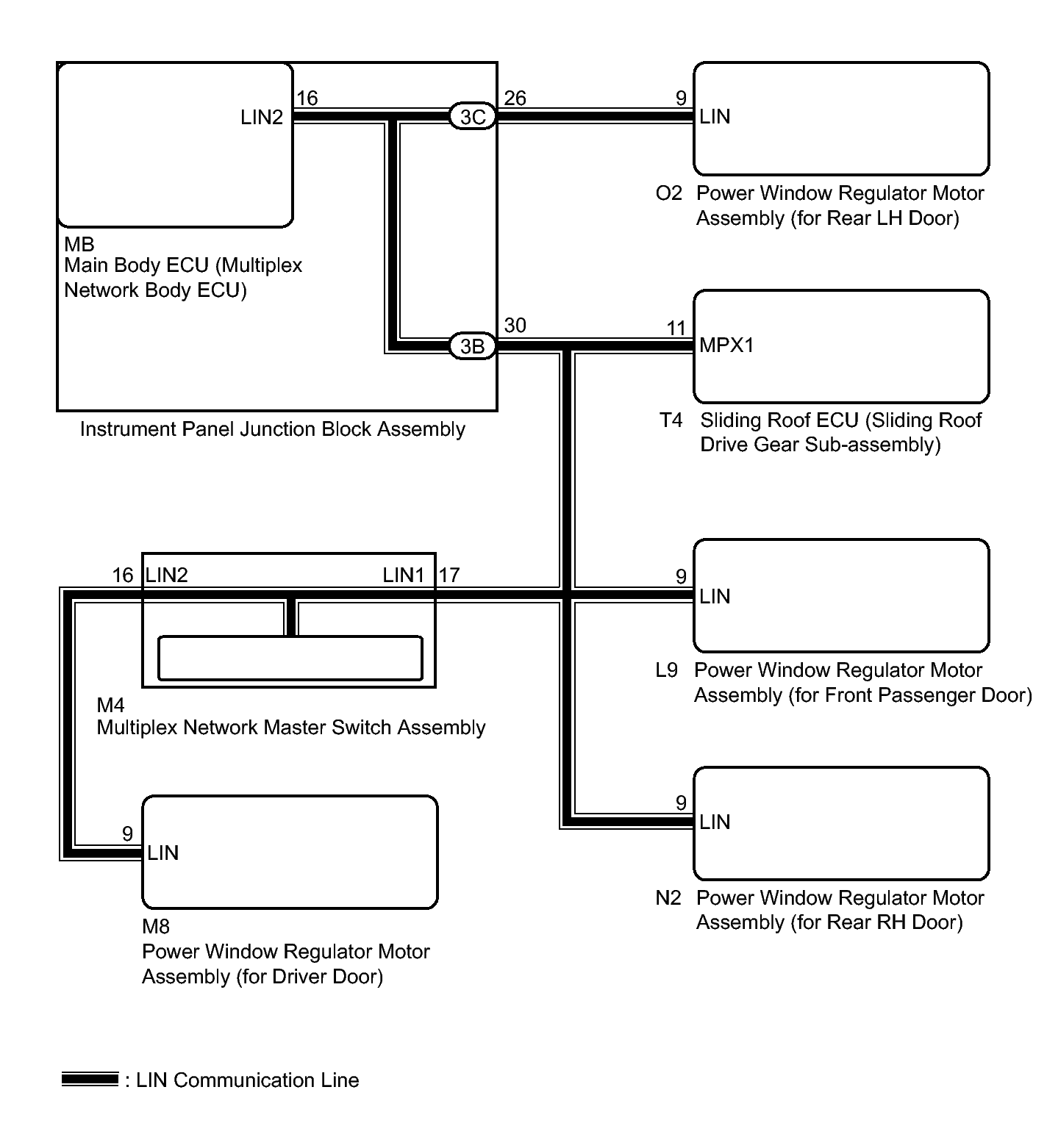

    Fig 1: Identifying LIN Communication System Diagram (Door Bus Lines)
    GTY410960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

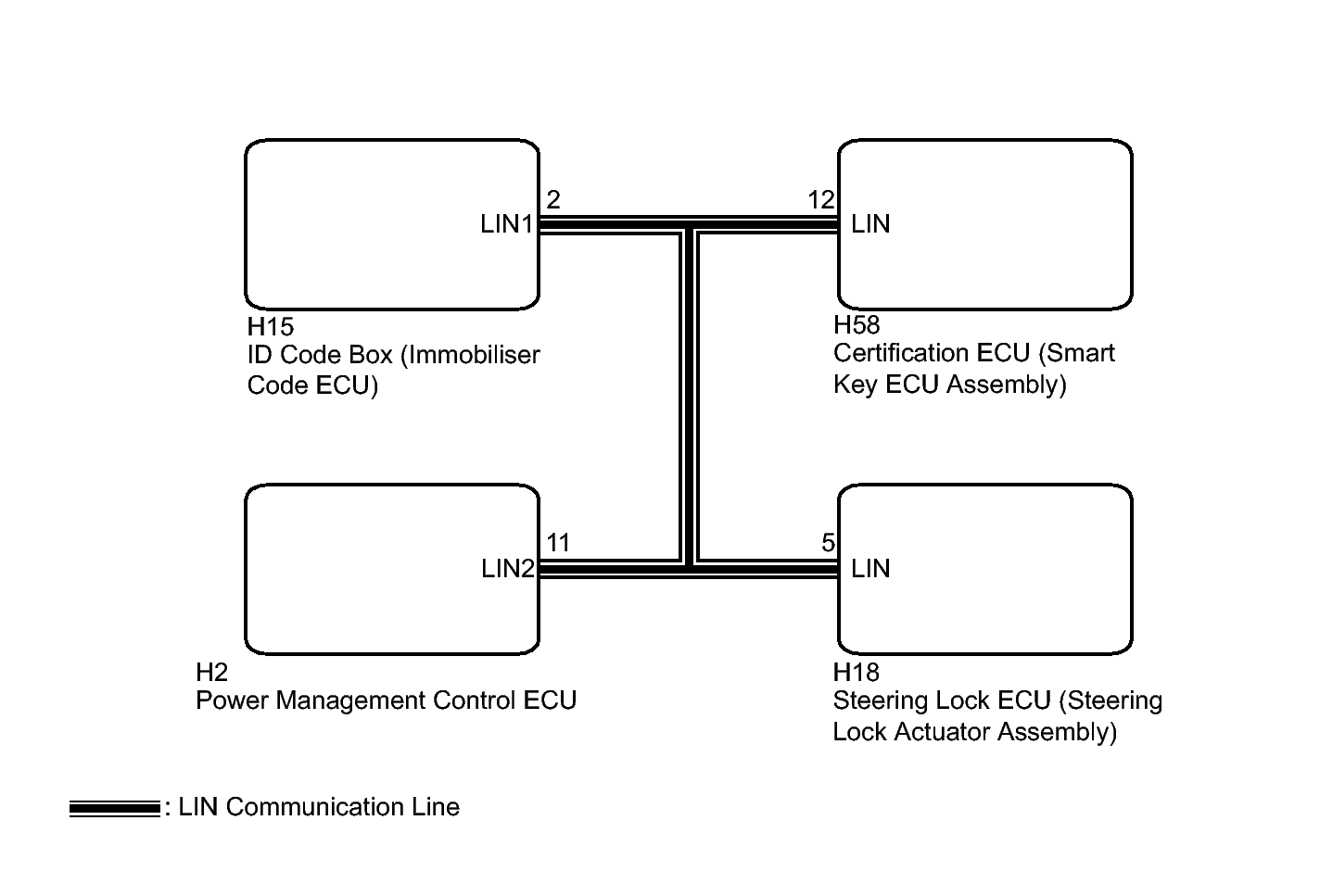

    Fig 2: Identifying LIN Communication System Diagram (Certification Bus Lines)
    GTY405432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
