Components [09/2013 - ]: Illustration

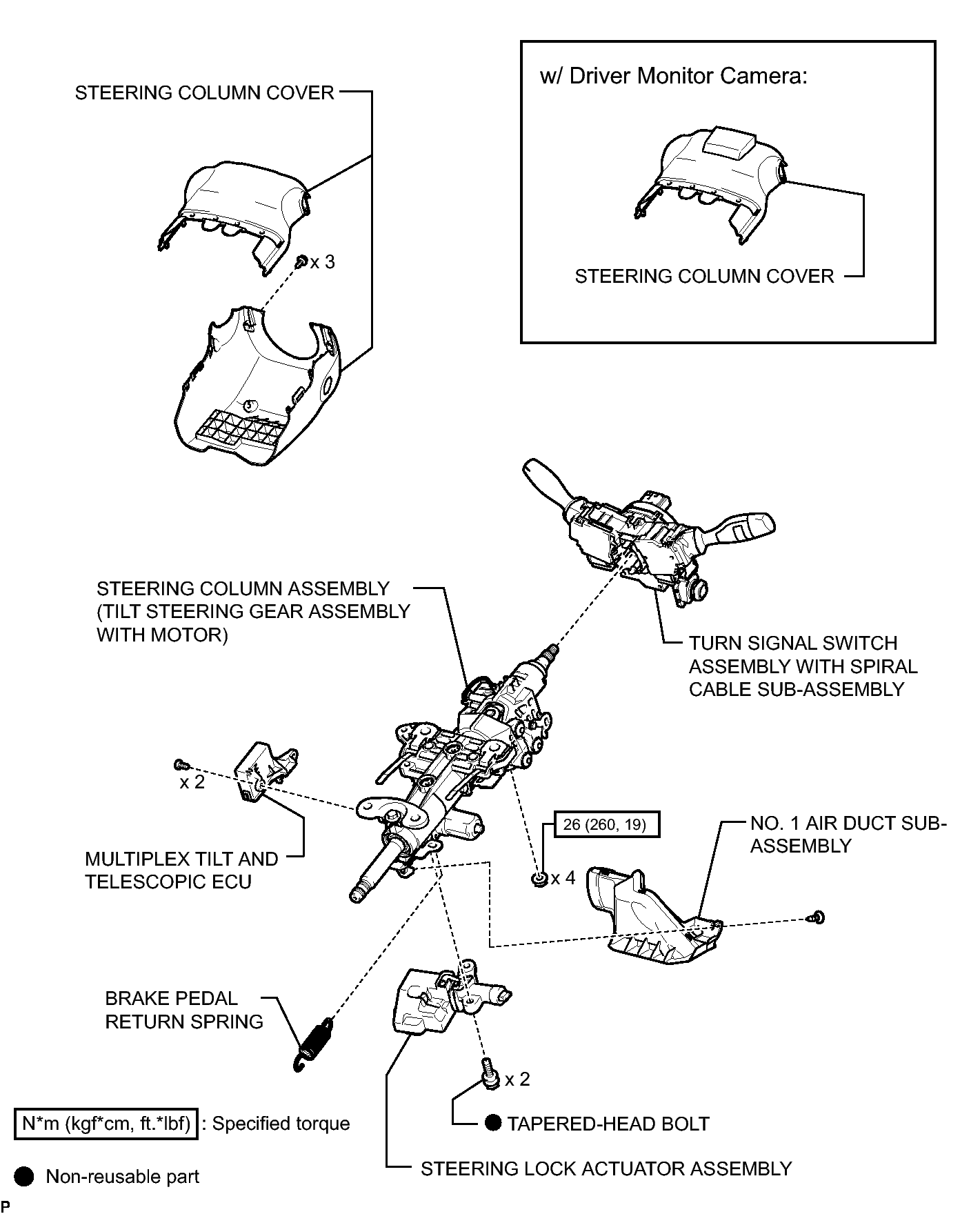

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY397950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

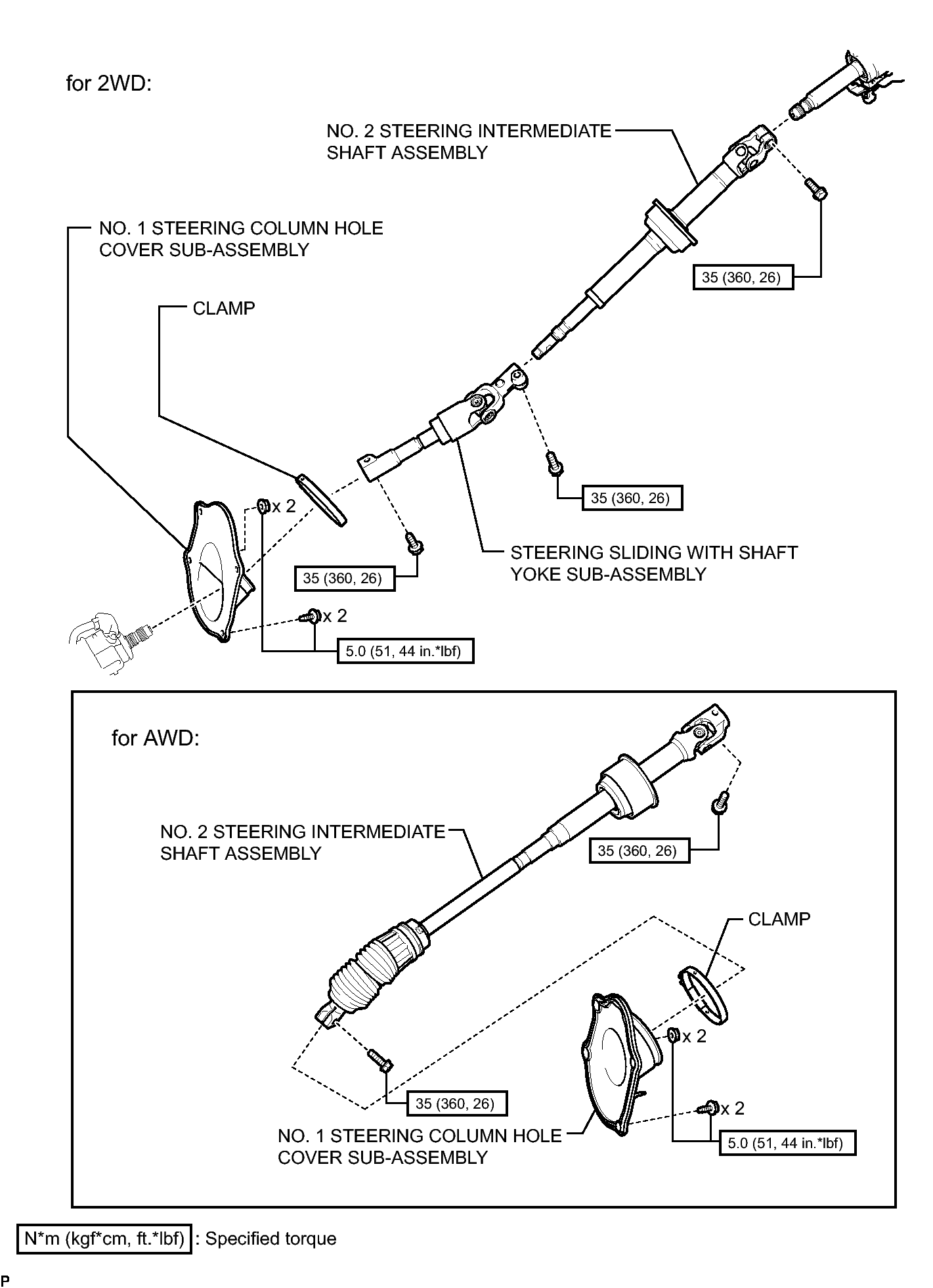

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY419000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

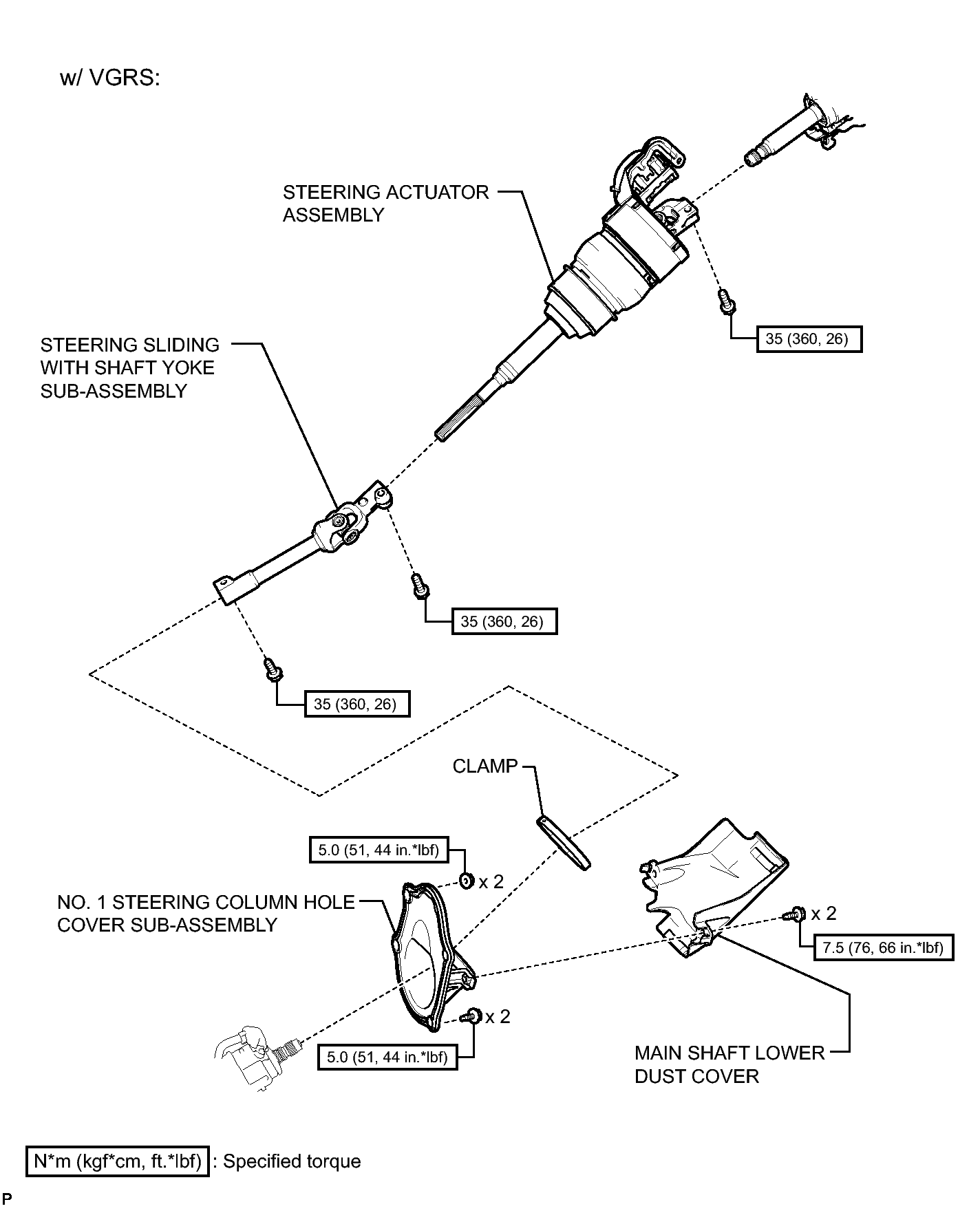

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY418233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
