DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [09/2013 - ]: Wiring Diagram

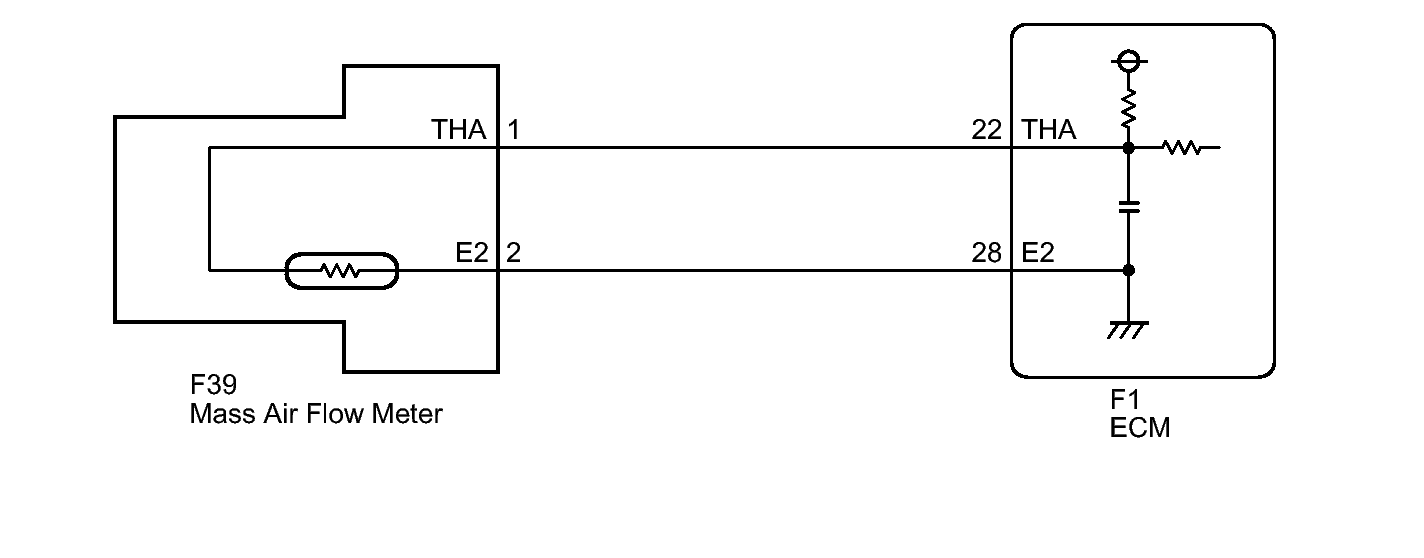

Fig 1: Mass Air Flow Meter Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
