Parts Location [09/2013 - ]: Illustration

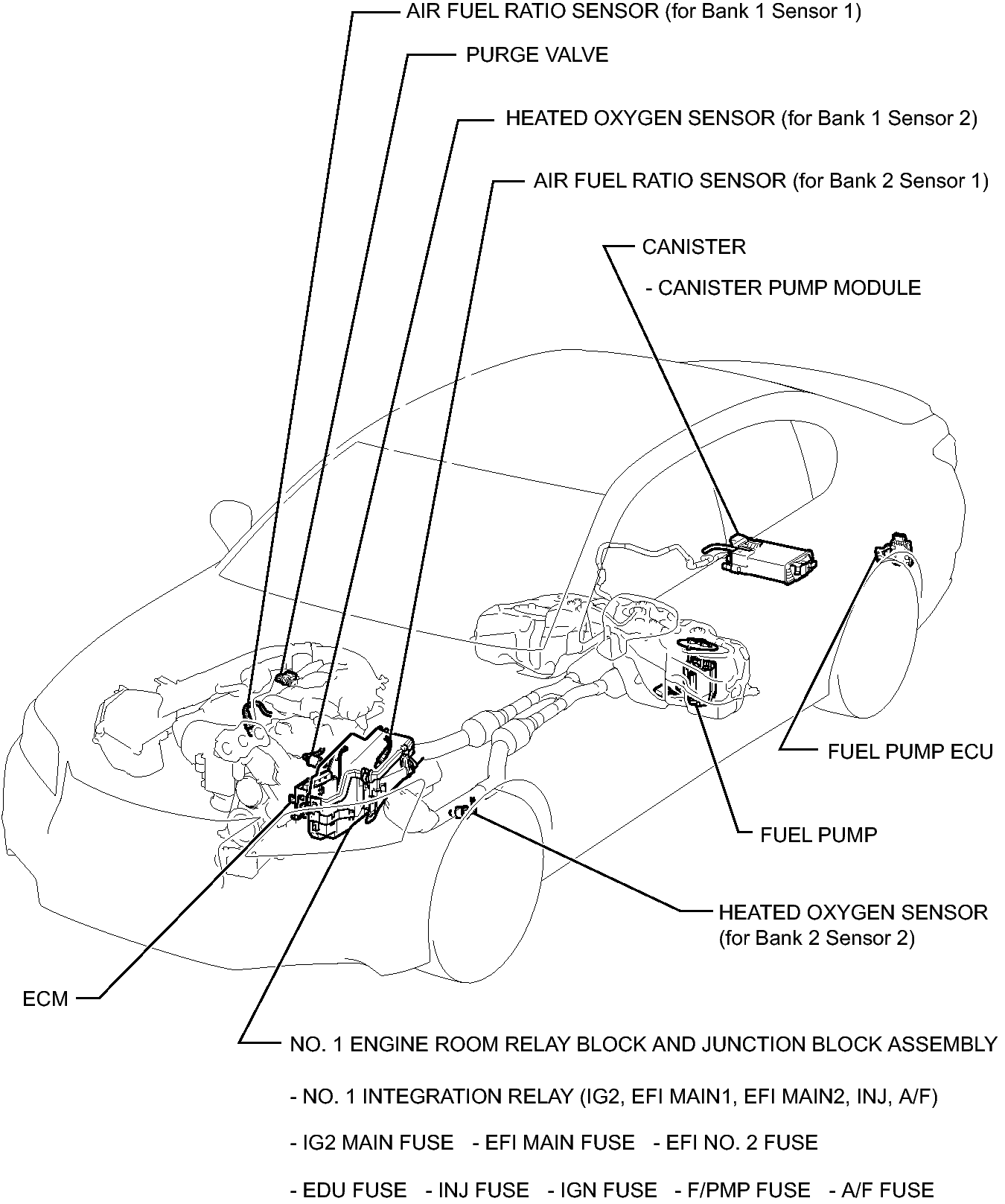

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
GTY457190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

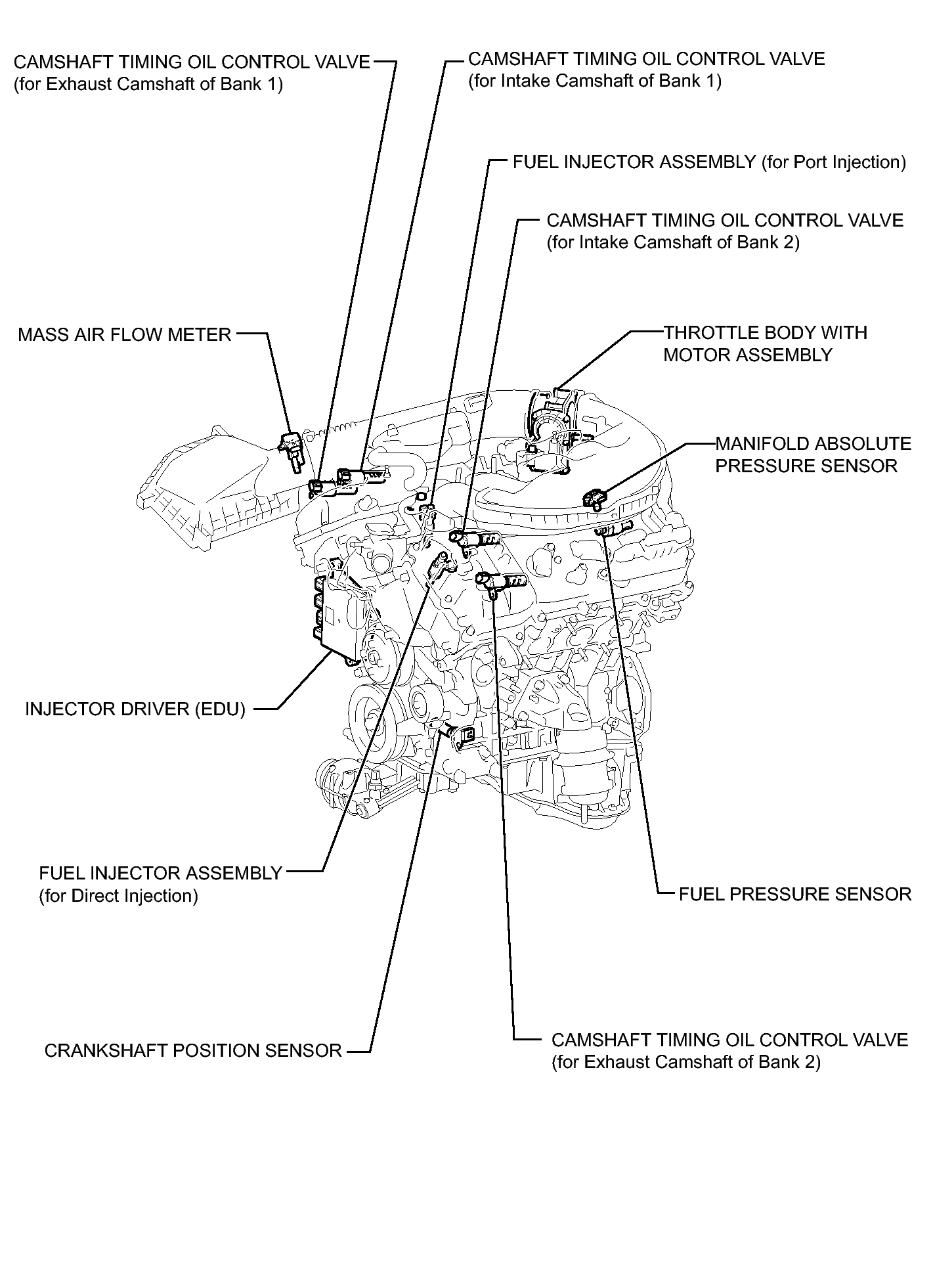

Fig 1: Identifying Engine Control System Components Location (2 Of 4)
GTY462139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

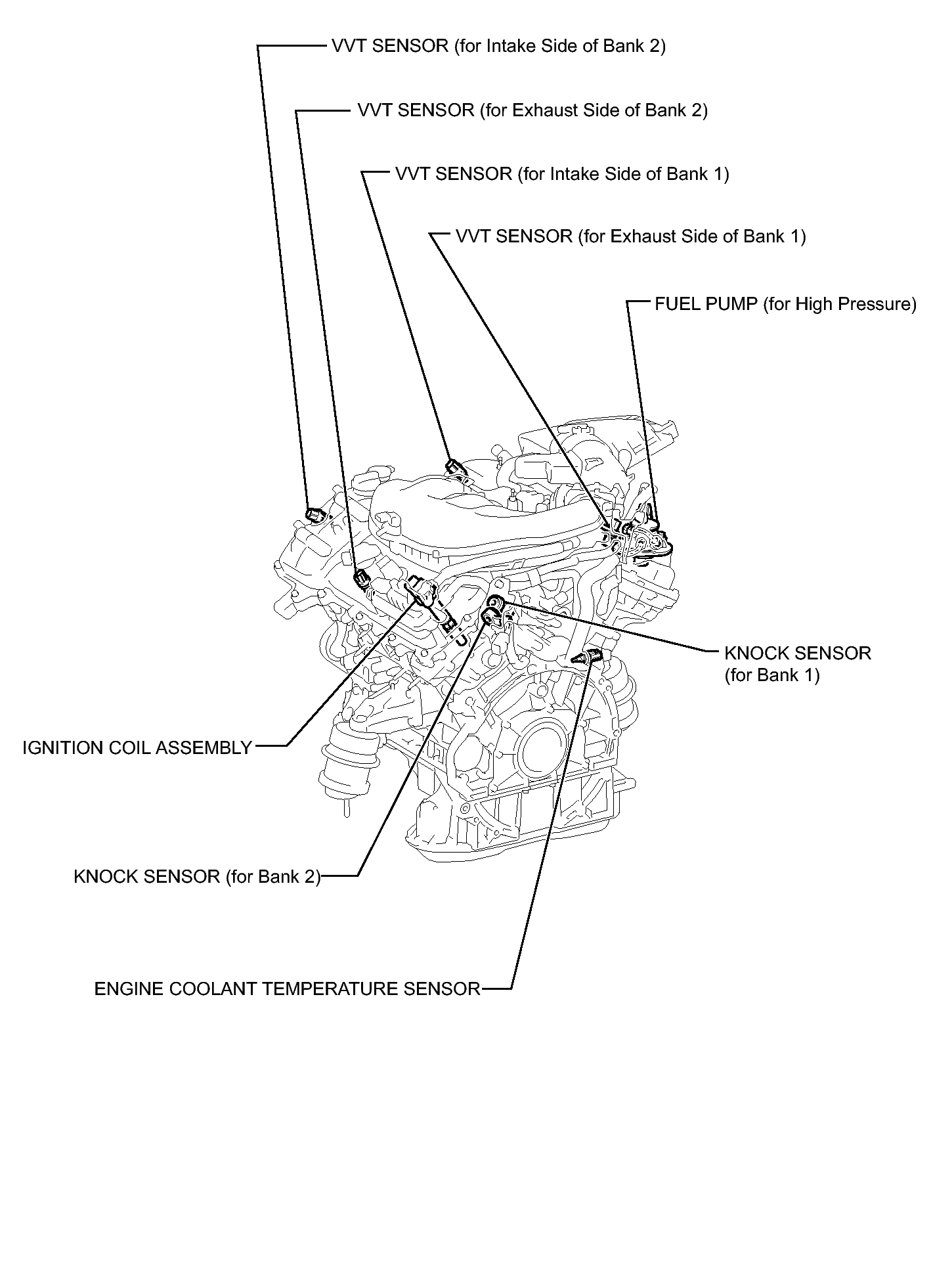

Fig 1: Identifying Engine Control System Components Location (3 Of 4)
GTY407041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

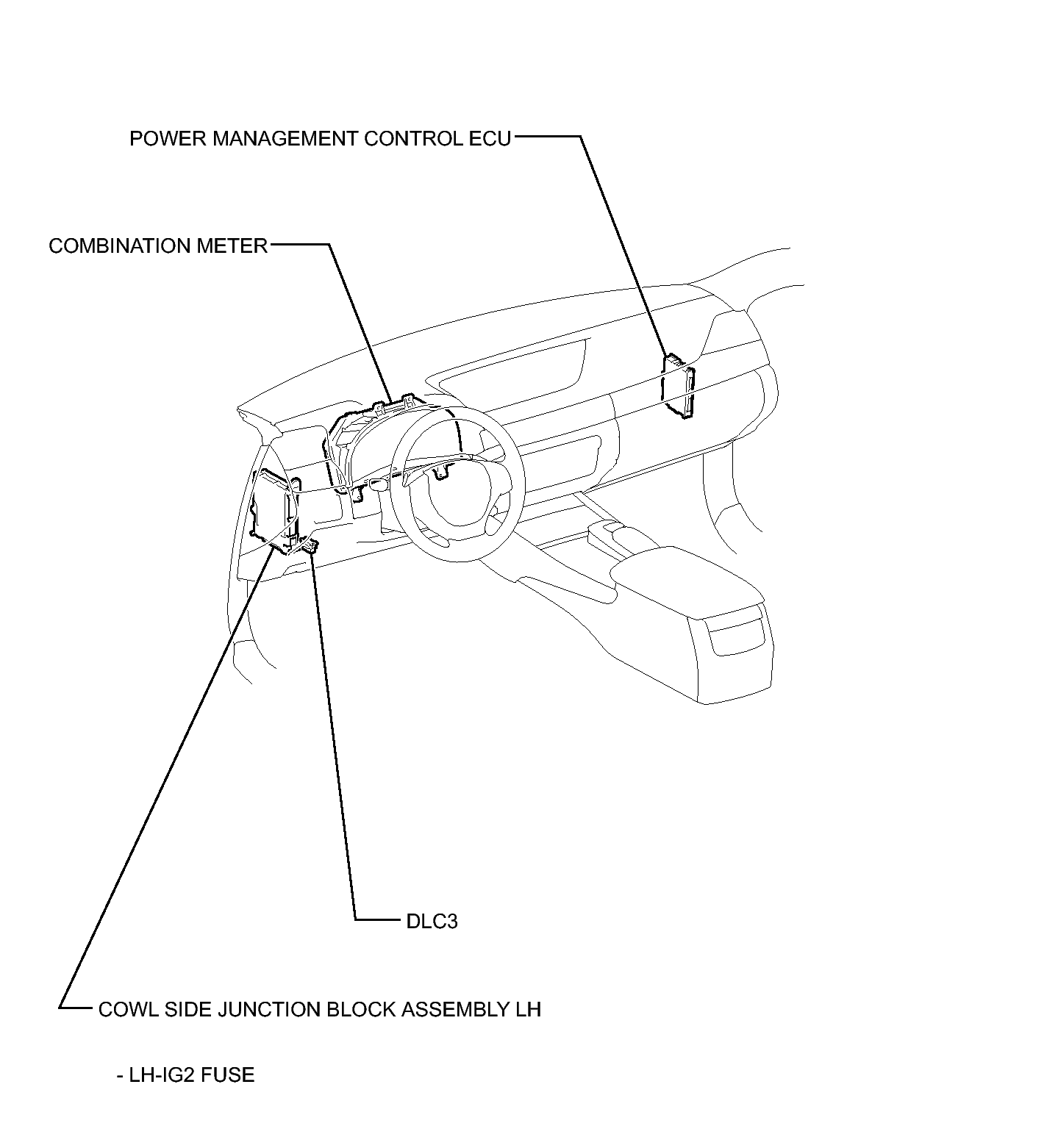

Fig 1: Identifying Engine Control System Components Location (4 Of 4)
GTY399034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
