Junction Block No. 4 Inner Circuit

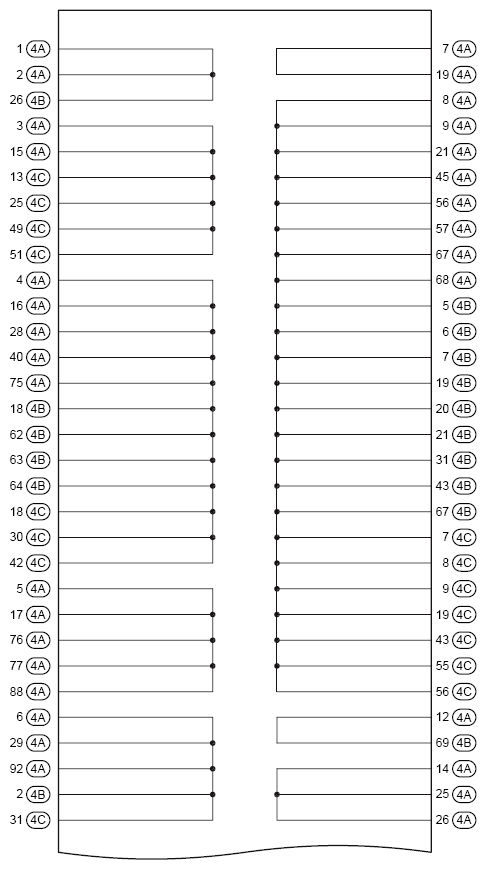

Fig 1: J/B No. 4 Inner Circuit Diagram (1 Of 4)
G09114432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

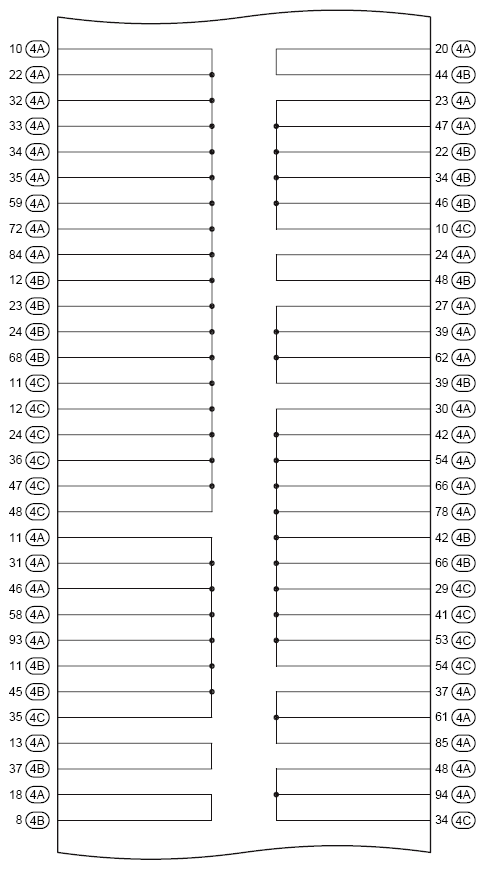

Fig 2: J/B No. 4 Inner Circuit Diagram (2 Of 4)
G09114433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

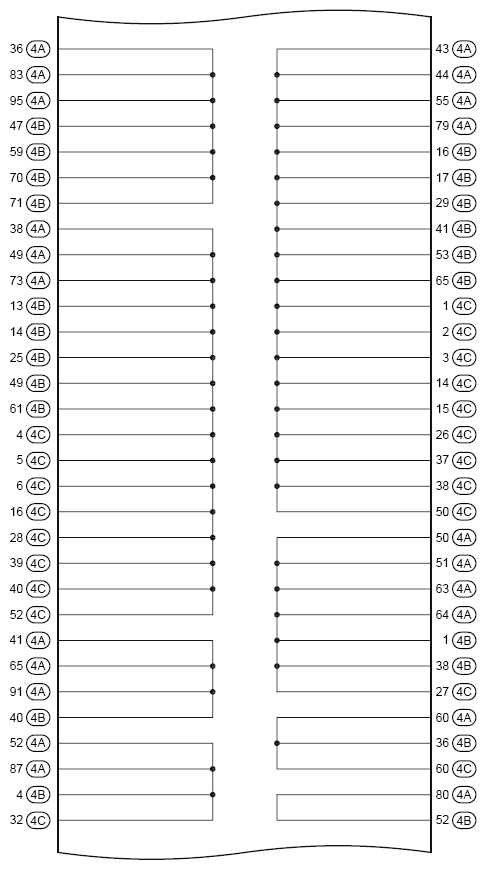

Fig 3: J/B No. 4 Inner Circuit Diagram (3 Of 4)
G09114434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

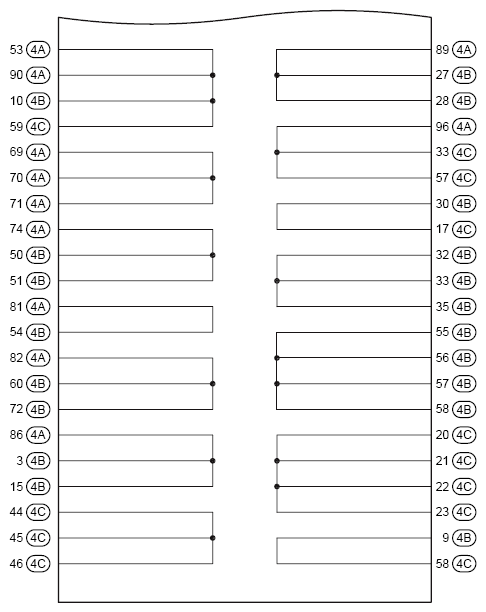

Fig 4: J/B No. 4 Inner Circuit Diagram (4 Of 4)
G09114435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
