Engine Room Relay Block No. 3 Dash Panel

For additional information, refer to Figure.

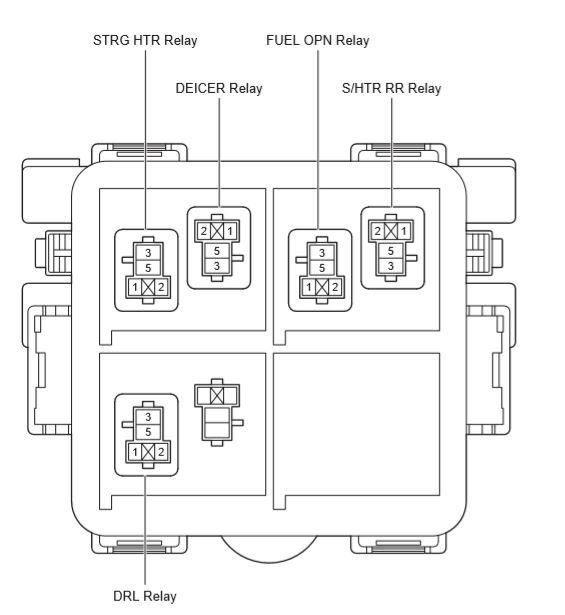

Fig 1: Engine Room R/B No. 3 Relay Locations
G00406157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
Fuel OPN Relay
S/HTR RR Relay
STRG HTR Relay
