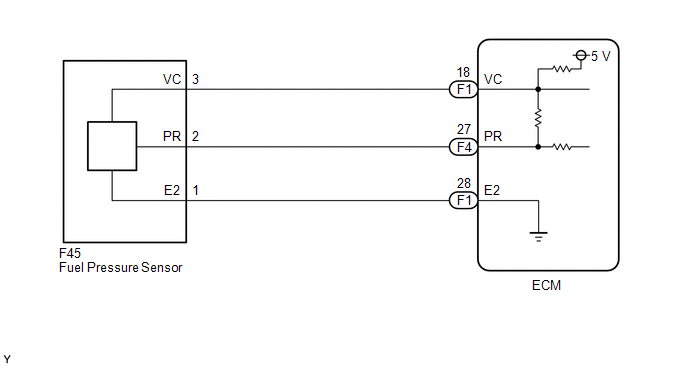

DTC P0190: Fuel Rail Pressure Sensor Circuit; DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [04/2013 - 08/2015]: Wiring Diagram

GTY461484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
