DTC P2014: Intake Manifold Runner Position Sensor / Switch Circuit (Bank 1); DTC P2016: Intake Manifold Runner Position Sensor / Switch Circuit Low (Bank 1); DTC P2017: Intake Manifold Runner Position Sensor / Switch Circuit High (Bank 1) [04/2013 - 08/2015]: Description

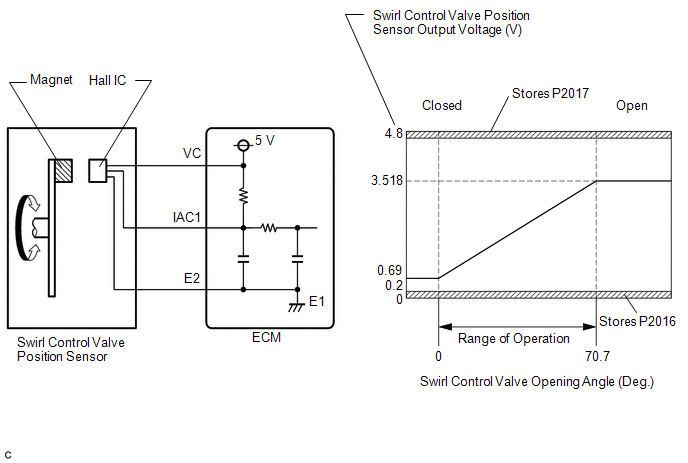

The Swirl Control Valve (SCV) position sensor is a non-contact type sensor.
The position sensor measures the opening angle of the swirl control valve. The sensor is reliable and accurate, as it is electrically controlled by Hall-effect elements.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P2014 | Intake Manifold Runner Position Sensor / Switch Circuit (Bank 1) | The swirl control valve position sensor output voltage flutters up and down beyond the normal operating range (less than 0.2 V, or higher than 4.8 V) for more than 0.5 seconds (open or short) (1 trip detection logic). |
|
Comes on | DTC stored |
| P2016 | Intake Manifold Runner Position Sensor / Switch Circuit Low (Bank 1) | The swirl control valve position sensor output voltage is less than 0.2 V for more than 0.5 seconds (short) (1 trip detection logic). |
|
Comes on | DTC stored |
| P2017 | Intake Manifold Runner Position Sensor / Switch Circuit High (Bank 1) | The swirl control valve position sensor output voltage is higher than 4.8 V for more than 0.5 seconds (open) (1 trip detection logic). |
|
Comes on | DTC stored |
HINT:
When DTC P2014, P2016 or P2017 is output, use the Techstream to confirm the IAC Sensor Voltage (swirl control valve position sensor output voltage). Enter the following menus: Powertrain / Engine and ECT / Data List / Gas Intake Control / IAC Sensor Voltage.
| IAC Sensor Voltage | Malfunction |
|---|---|
| 0.2 V or less |
|
| 4.8 V or higher |
|
