DCM Data Signal Circuit between Navigation ECU and DCM [08/2013 - ]: Wiring Diagram

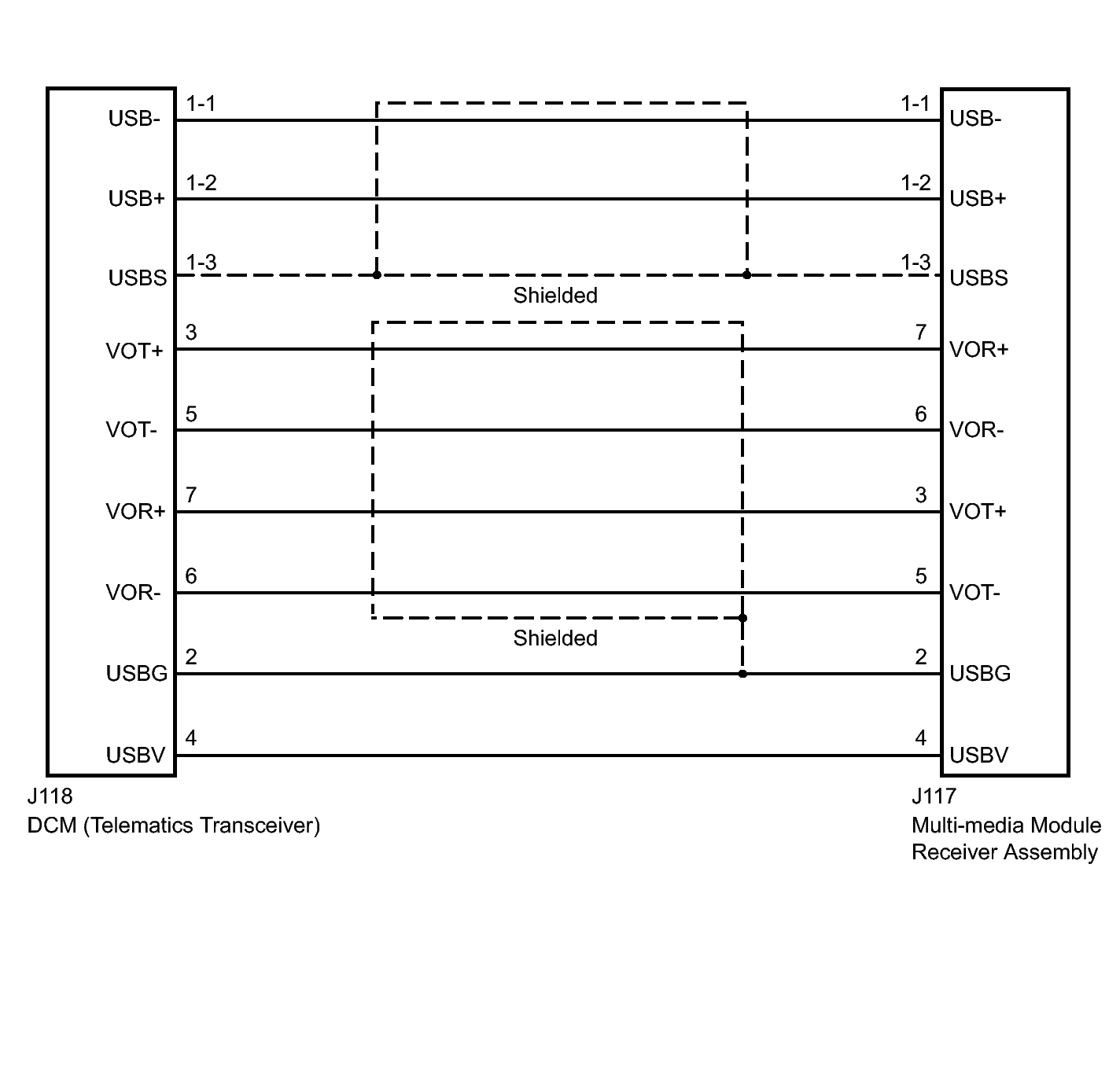

Fig 1: DCM (Telematics Transceiver) Wiring Diagram
GTY396799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
