Fuel Pump Control Circuit [08/2013 - ]: Procedure

  1. CHECK FUEL PUMP OPERATION
    1. Check the fuel pump operation. Refer to ON-VEHICLE INSPECTION [08/2013 - ] - Step 1 .

    NG → See step   5

    OK: Go to next step

  2. INSPECT F/PMP RELAY
    1. Inspect the F/PMP relay. Refer to ON-VEHICLE INSPECTION [08/2013 - ] .

    NG → REPLACE F/PMP RELAY

    OK: Go to next step

  3. INSPECT FUEL PUMP RESISTOR
    1. Inspect the fuel pump resistor. Refer to INSPECTION [08/2013 - ] .

    NG → See step   15

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (F/PMP RELAY - FUEL PUMP RESISTOR)
    1. Remove the F/PMP relay from the engine room relay block No. 2.
    2. Disconnect the fuel pump resistor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      F/PMP relay terminal 4 - A40-2 Always Below 1 Ω
      F/PMP relay terminal 3 - A40-1 Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      Fuel pump relay terminal 4 or A40-2 - Body ground Always 10 kΩ or higher
      Fuel pump relay terminal 3 or A40-1 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   16

  5. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE C/OPN RELAY)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream on.
    3. Enter the following menus: Powertrain / Engine / Active Test / Control the Fuel Pump / Speed.
    4. Check the operation of the relay while operating it using the Techstream.

      OK

      Operating noise can be heard from the C/OPN relay.

    NG → See step   10

    OK: Go to next step

  6. INSPECT FUEL PUMP
    1. Inspect the fuel pump. Refer to INSPECTION [08/2013 - ] .

    NG → See step   17

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (FUEL PUMP - F/PMP RELAY)
    1. Disconnect the fuel pump connector.
    2. Remove the F/PMP relay from the engine room relay block No. 2.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      F/PMP relay terminal 4 - Q14-4 Always Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      F/PMP relay terminal 4 or Q14-4 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (FUEL PUMP - BODY GROUND)
    1. Disconnect the fuel pump connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      Q14-5 - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (C/OPN RELAY - F/PMP RELAY)
    1. Remove the integration relay from the engine room relay block No. 2.
    2. Remove the F/PMP relay from the engine room relay block No. 2.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      2B-8 - F/PMP relay terminal 1 Always Below 1 Ω
      2B-8 - F/PMP relay terminal 3 Always Below 1 Ω
    4. Disconnect the fuel pump resistor connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      2B-8 or F/PMP relay terminal 1 - Body ground Always 10 kΩ or higher
      2B-8 or F/PMP relay terminal 3 - Body ground Always 10 kΩ or higher

    NG → REPLACE ENGINE ROOM RELAY BLOCK NO. 2

    OK → REPAIR OR REPLACE FUEL SYSTEM

  10. INSPECT INTEGRATION RELAY (EFI NO. 2 RELAY)
    1. Inspect the EFI No. 2 relay. Refer to INSPECTION [08/2013 - ] .

    NG → See step   13

    OK: Go to next step

  11. INSPECT INTEGRATION RELAY (C/OPN RELAY)
    1. Inspect the C/OPN relay. Refer to INSPECTION [08/2013 - ] .

    NG → See step   13

    OK: Go to next step

  12. INSPECT ECM (FC VOLTAGE)
    1. Turn the engine switch on (IG).

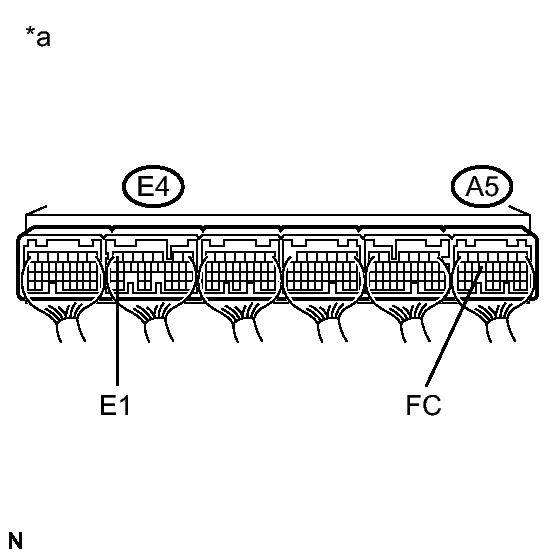

      GTY354067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A5-14 (FC) - E4-7 (E1) Engine switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (ECM)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - C/OPN RELAY)

    OK → See step   14

  13. REPLACE INTEGRATION RELAY. Refer to  REMOVAL [08/2013 - ]
  14. REPLACE ECM. Refer to  REMOVAL [08/2013 - ]
  15. REPLACE FUEL PUMP RESISTOR. Refer to  REMOVAL [08/2013 - ]
  16. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2013 - ]
  17. REPLACE FUEL PUMP. Refer to  REMOVAL [08/2013 - ]
