System Diagram [04/2013 - 09/2020]

  1. Wireless Door Lock Control System

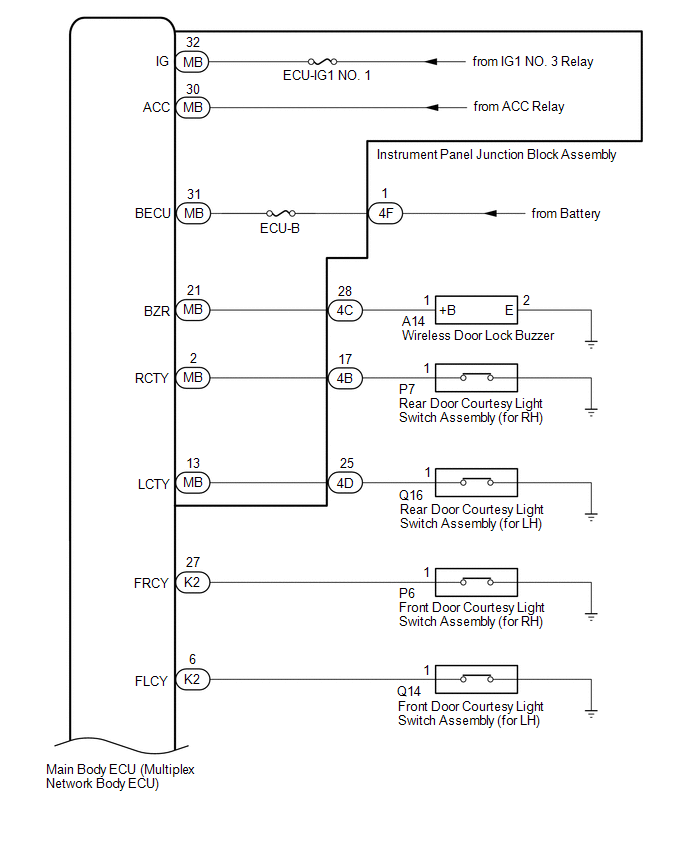

    Fig 1: Wireless Door Lock Control System Wiring Diagram (1 Of 4)
    GTY464271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

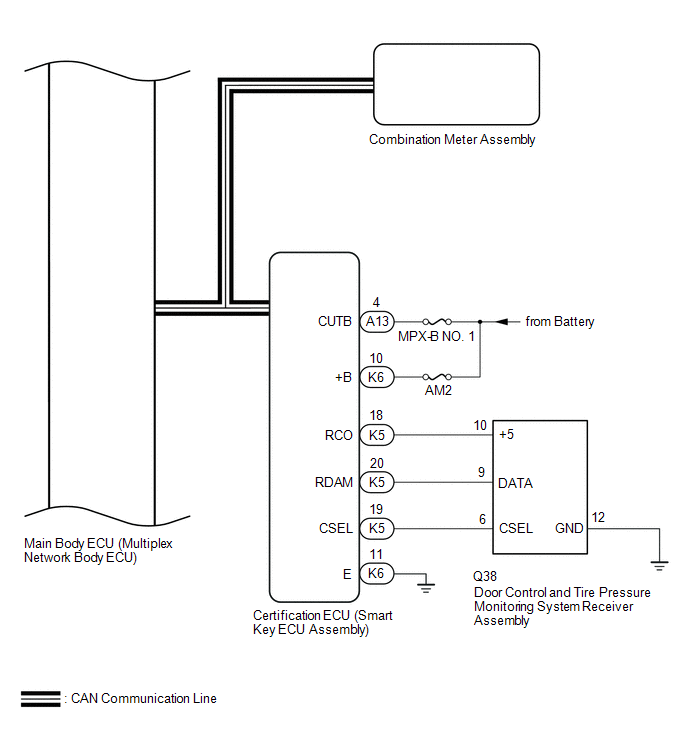

    Fig 2: Wireless Door Lock Control System Wiring Diagram (2 Of 4)
    GTY467094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Wireless Door Lock Control System Wiring Diagram (3 Of 4)
    GTY465525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

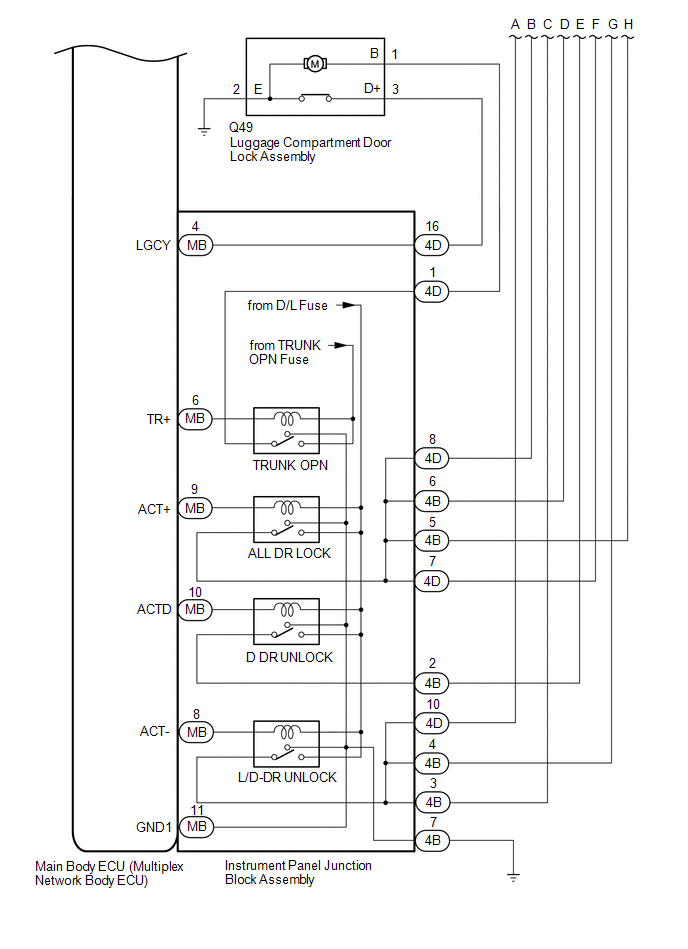

    Fig 4: Wireless Door Lock Control System Wiring Diagram (4 Of 4)
    GTY465976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Sender Receiver Signal Line
    Certification ECU
    (Smart Key ECU Assembly)    		 Main Body ECU
    (Multiplex Network Body ECU)
    • Wireless door lock/unlock signal
    • Wireless door lock buzzer sound request signal
    		 CAN
    Main Body ECU
    (Multiplex Network Body ECU)    		 Combination Meter Assembly Wireless door lock hazard warning light request signal CAN
