System Diagram [08/2013 - ]

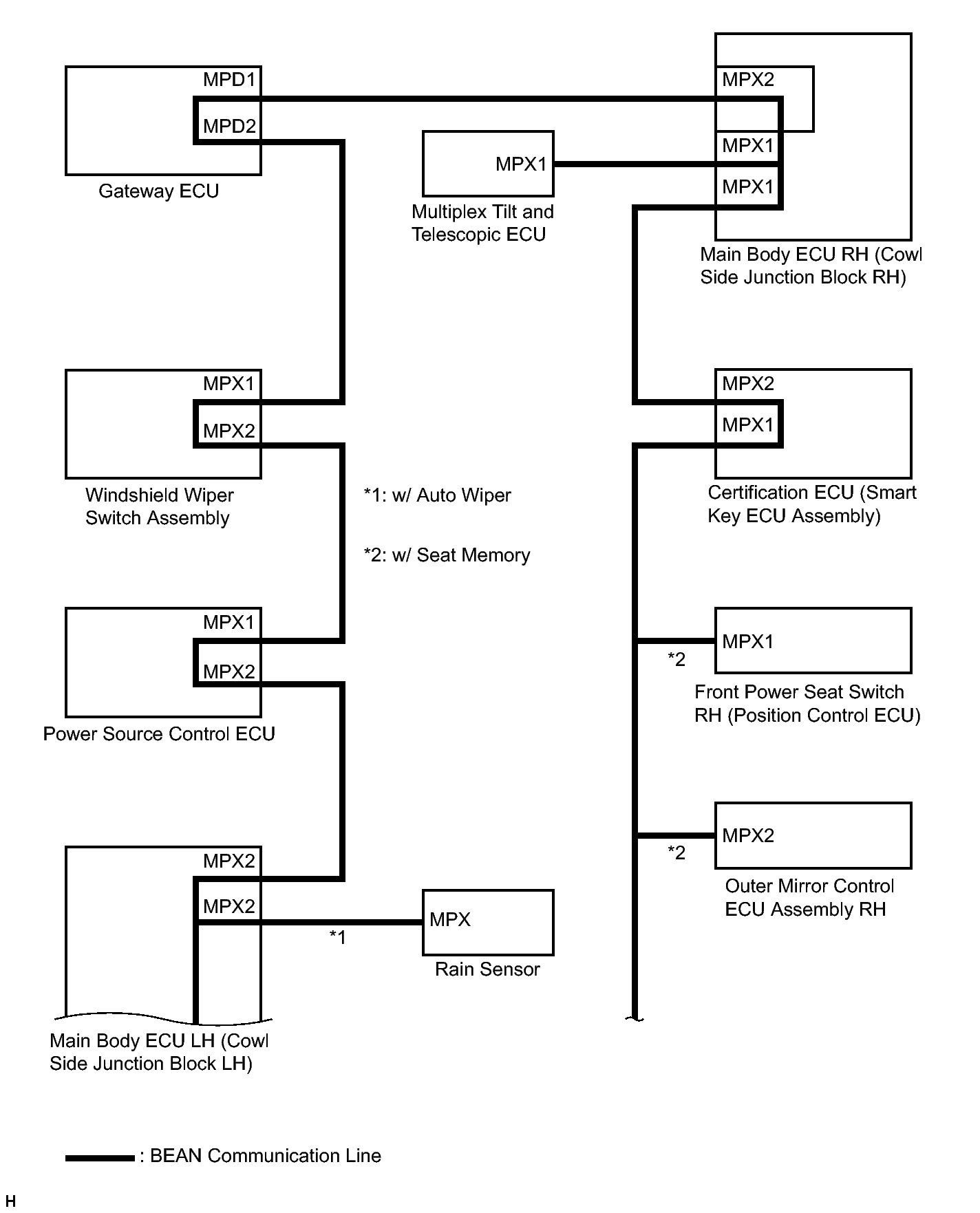

Fig 1: Multiplex Communication System Diagram (1 Of 3)
GTY272239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

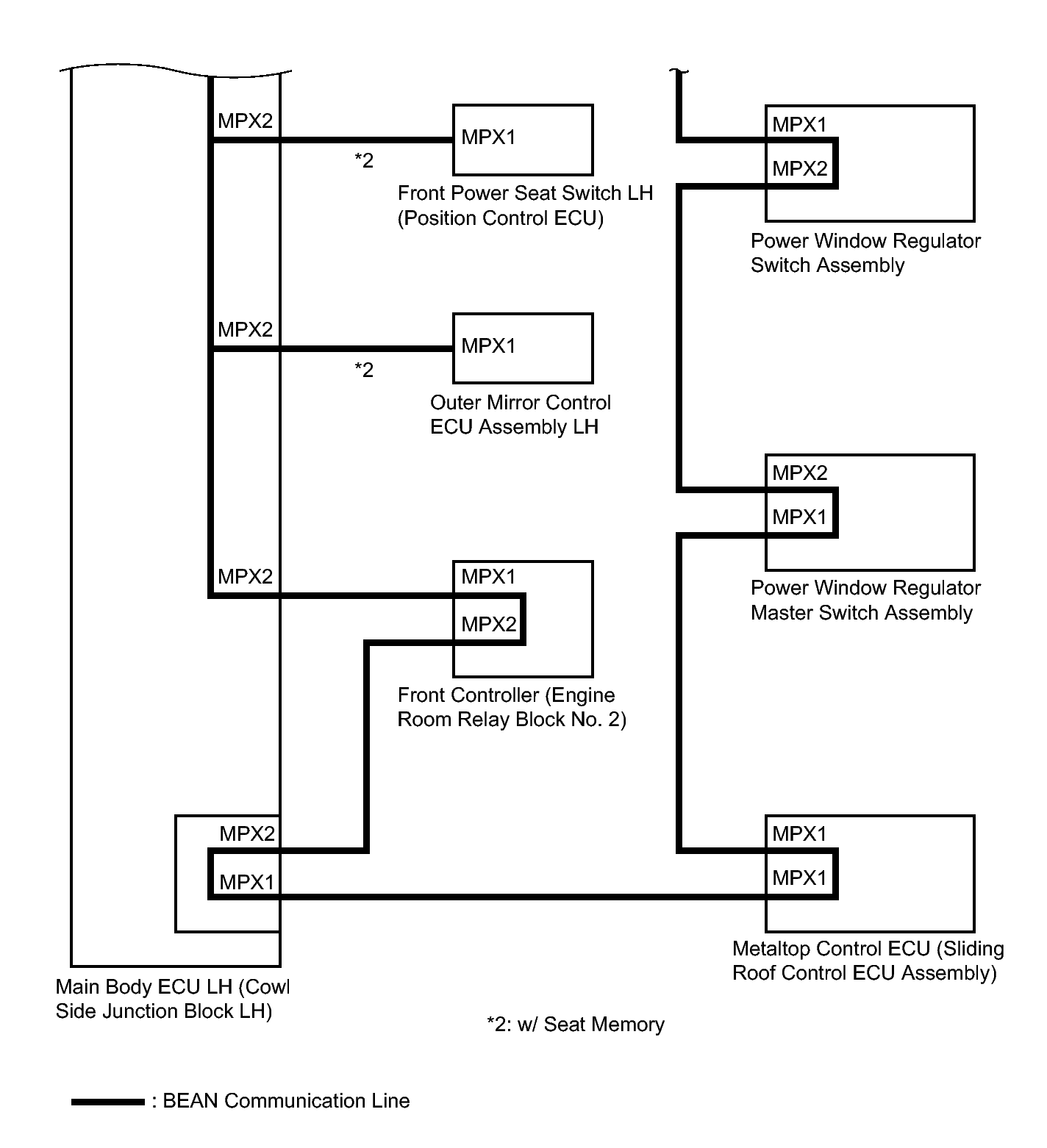

Fig 2: Multiplex Communication System Diagram (2 Of 3)
GTY261435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Multiplex Communication System Diagram (3 Of 3)
GTY357243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
